330878-51-05
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
5 15.0 meters (16.4 feet) systemlength
DIN mount
0 5 Multiple Approvals

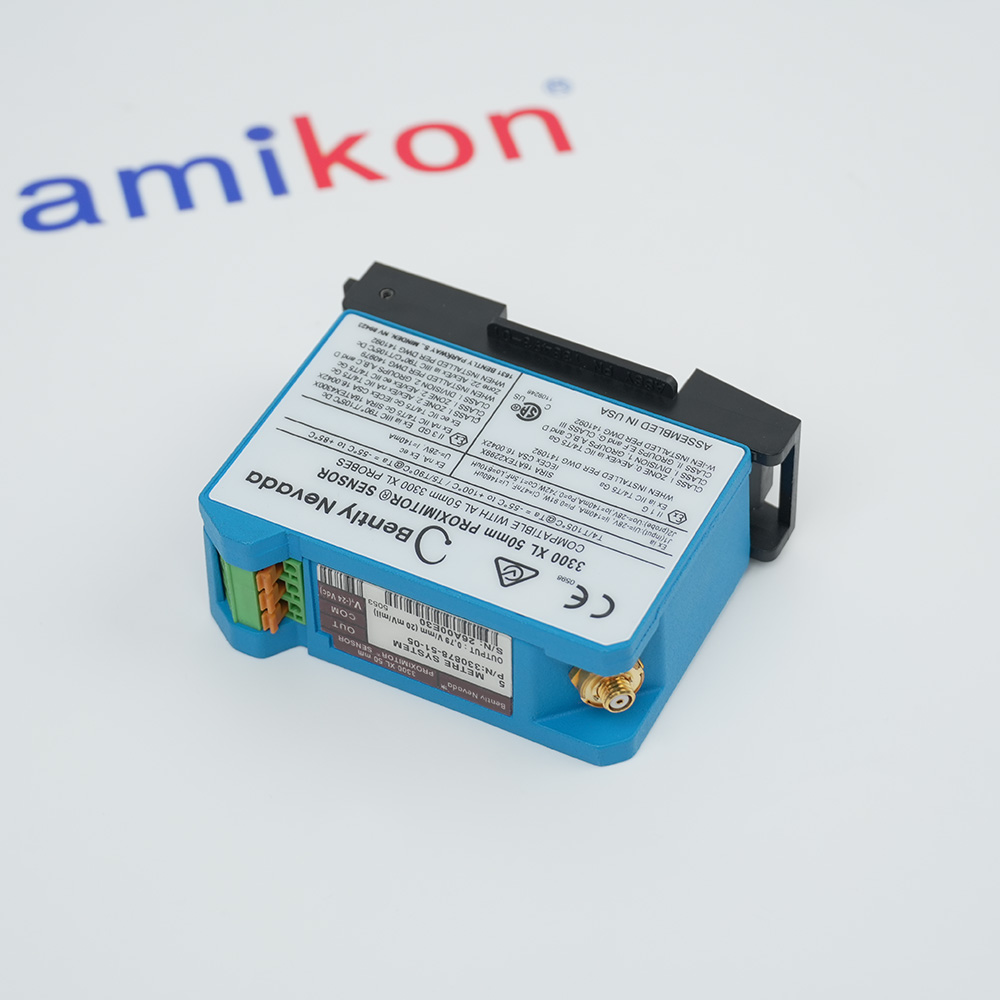

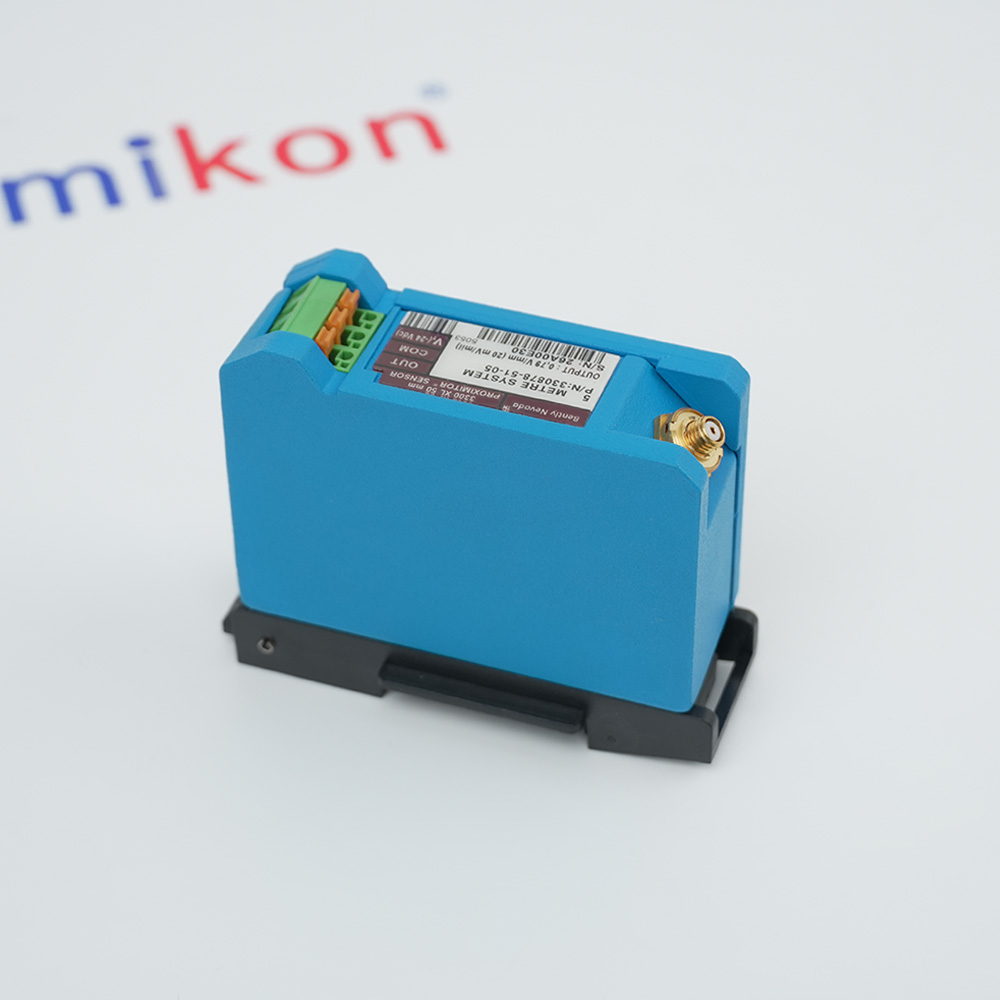

3300 XL 50 mm Proximitor Sensor
DIN mount
0 5 Multiple Approvals
3300 XL 50 mm Proximitor Sensor
Technical specifications for 330878-51-05
-
Product Model330878-51-05
-
Product Parameters3300 XL 50 mm Proximitor Sensor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.8x6x6.2cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Total Length and Mounting Option5.0 meters (16.4 feet) systemlength DIN mount
-
Agency Approval OptionMultiple Approvals
-
Outputresistance50 Ω
-
Proximitor Sensor MaterialA380 aluminum
-
System Length5 or 9 meters includingextension cable
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 330878-51-05？+The Bently Nevada 330878-51-05 is a 3300 XL 50 mm Proximitor Sensor designed for high-precision, non-contacting vibration and position monitoring in industrial machinery..
-
What is the recommended gap voltage for 330878-51-05?+Within the normal operating range, when the shaft is centered, the normal gap voltage is typically between -9 V and -11 V DC.
-
What does the 330878-51-05 part number signify?+330878 refers to the 3300 XL 50 mm Proximitor Sensor, -51 indicates a 5.0-meter system length with a DIN mount, and -05 indicates it includes multiple agency approvals
-
What is the typical operating temperature of 330878-51-05?+The sensor has a wide operating temperature range, from -51°C to +100°C (-60°F to +212°F), making it suitable for harsh industrial environments.
-
Does this sensor work with all Bently Nevada probes?+The 330878-51-05 is specifically designed for the 3300 XL 50 mm Proximity Probe and extension cable systems. System accuracy specifications generally require using Bently Nevada matched components
Get a quick price fo 330878-51-05
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Key Differentiators for the 50 mm Model
Features:
- Consists of 50 mm Probe, Extension Cable, and 3300 XL 50 mm Proximitor Sensor
- Maximum Linear Range of 27.9 mm (1100 mils)
- Measures the Differential Expansion (DE) or Rotor Expansion (RX) of Steam Turbine Generators
The Bently Nevada 3300 XL 50mm Proximity Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50 mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).
The 330878-51-05 Bently Nevada 3300 XL 50 mm Proximity Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330878-51-05 3300 XL 50 mm Proximity Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Differential Expansion measurement is made by usingtwo proximity transducers that observe a collar or rampsome distance from the thrust bearing. Typical transducermounting arrangements that require the 3300 XL 50 mmTransducer’s long linear range include:Two transducers observing the same side of a collar.Two complementary input transducers observingopposite sides of a collar, effectively doubling themeasurable DE range.
The criteria for selecting a mounting method are the size ofthe available target, the expected amount of rotor axialmovement, and the type of DE target that exists in themachine. If the collar height is sufficient and the requiredtotal measurement range is less than 27.9 mm 1.1 inches, thepreferred configuration for redundant measurements is touse two transducers observing the same side of a collar.When 28 mm to 56 mm (1.1 to 2.2 inches) of total range arerequired, install the transducers in a complementary fashion on opposite sides of the differential expansioncollar or other target material.
- Power Generation Plants:Monitors steam turbine rotor-casing differential expansion during temp changes
- Oil & Gas Refineries:Up to 200°C: monitors compressors/pumps to prevent downtime
- Petrochemical Complexes:3500 rack integration for motors/generators stability
- Pulp & Paper Mills:Optimizes maintenance & reduces costs for heavy rotating equipment
- Mining & Metal Mills:High-precision vibration/position for large shafts in rough conditions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Longest Range: It offers the longest linear measurement of any Bently Nevada eddy current sensor.
Target Size Requirement: Because of its large 50 mm tip, it requires a much larger target area (102 mm diameter) to maintain its calibrated accuracy.
Legacy Replacement: This model is the modern, more robust replacement for older 7200 series 50 mm and 130713 DE systems.
Specialty vs. Versatility: Unlike the 8 mm system, which is highly interchangeable across many machines, the 50 mm is a specialty tool used strictly where extreme displacement (over 1 inch) must be tracked.
