Technical specifications for 330901-00-12-05-02-05
-

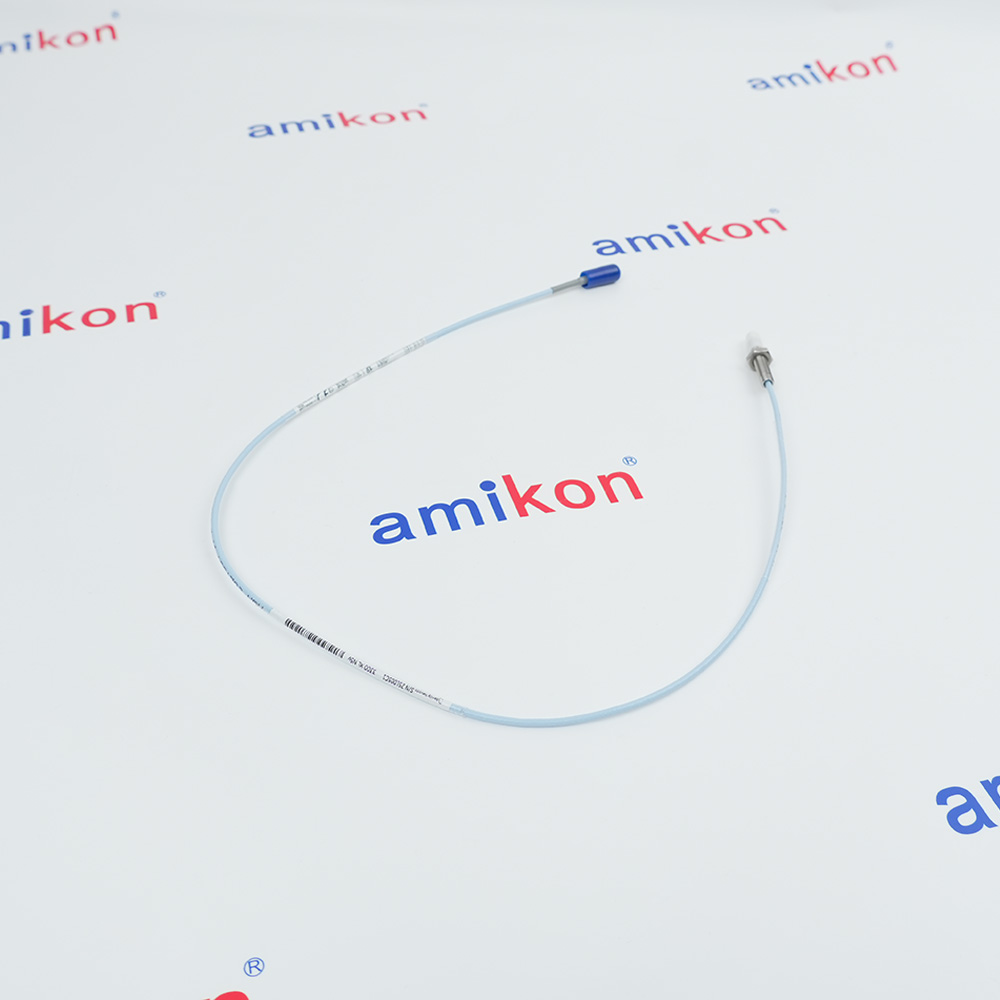

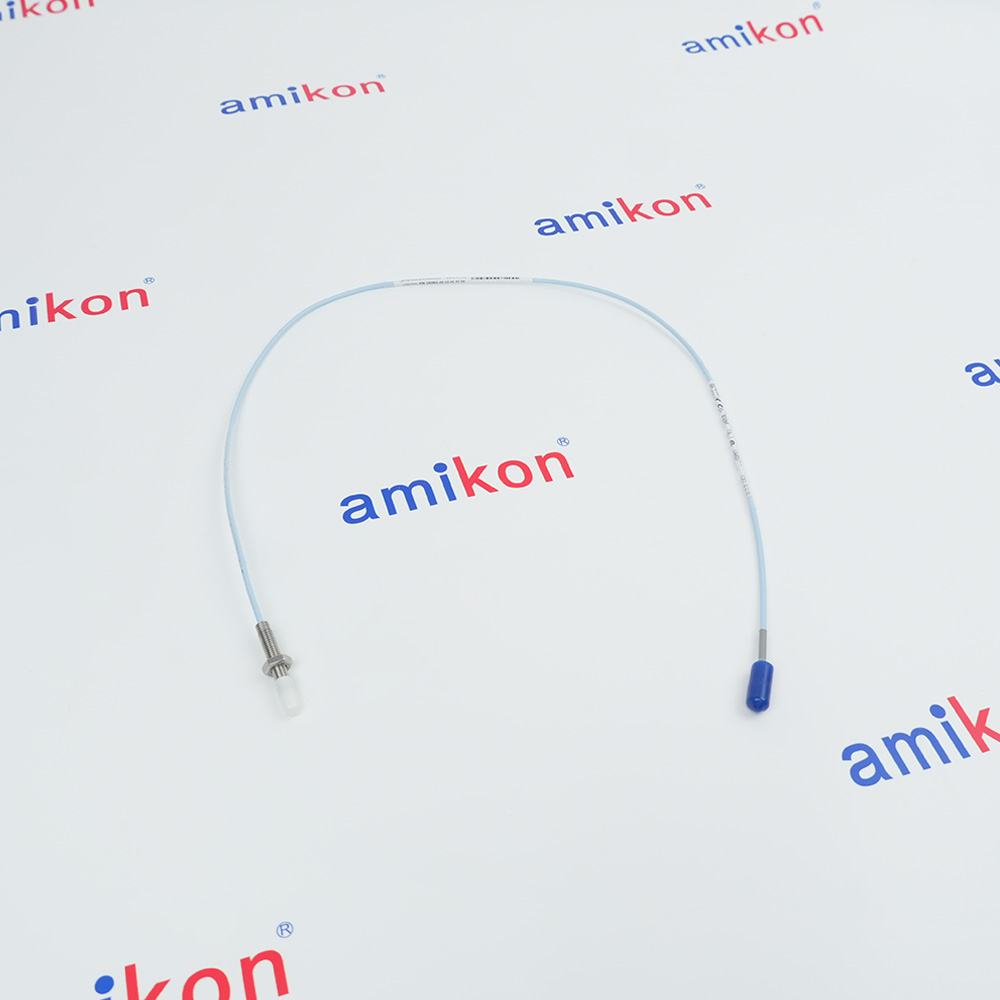

Product Model330901-00-12-05-02-05
-
Product Parameters3300 NSv Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size62x1x1cm
-
ManufacturerBently Nevada
-
Weight0.06 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option1.2 in
-
Total Length Option0.5 meter (20 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionMultiple Approvals
Description
330901 3300 NSv Probe
1/4-28 UNF thread,without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 1.2 in
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals
1/4-28 UNF thread,without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 1.2 in
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting & Clearances
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 330901-00-12-05-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-12-05-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
- Centrifugal Air Compressors:Tight-clearance internal monitoring for industrial compressors
- Refrigeration Compressors:Ideal for small-scale cooling & refrigeration units
- Process Gas Compressors:Chemical-resistant monitoring for small space-constrained gas units
- Fluid-Film Bearing Machines:High-accuracy vibration/position for fluid-film bearing equipment
- Pulp and Paper:Prevents paper-roll tears & reduces waste
- Steel and Metal Mills:High downtime cost: ensures heavy machinery reliability
- Food and Beverage:Tight-space refrigeration & processing equipment monitoring
- Water and Wastewater Treatment:Continuous condition monitoring for large pumps & aeration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Counterbore Requirements: The minimum recommended counterbore diameter is 13 mm (0.5 in). Using a smaller hole (down to a minimum of 9.5 mm) may alter the probe's scale factor.
Probe Separation: To prevent electromagnetic "cross-talk" between two probes (e.g., in an X-Y configuration), maintain a minimum tip separation of 23 mm (0.9 in) for radial vibration or 25 mm (1.0 in) for axial position.
Torque Specs: For the 1/4-28 threads common on this model, the maximum torque is 7.3 N•m (65 in•lb), with a recommended installation torque of 5.1 N•m (45 in•lb).
FAQs
-
What is 330901-00-12-05-02-05?+The Bently Nevada 330901-00-12-05-02-05 is a 3300 NSv (Non-contacting Sensor) proximity probe designed for measuring vibration and position on industrial rotating machinery
-
What is the application of this sensor?+It is used for vibration and position monitoring, particularly for small shafts or high-speed machinery requiring high-precision, non-contact measurements.
-
What is the linear range of this probe?+The calibrated linear range for the 3300 NSv system is 1.5 mm (60 mils), typically starting 0.25 mm (10 mils) from the target.
-
Can I extend the cable length?+Yes, but the system must be used with specific 3300 XL NSv extension cables. The total system length (probe + extension) must match the calibration of the Proximitor Sensor (typically 5.0m or 7.0m)
