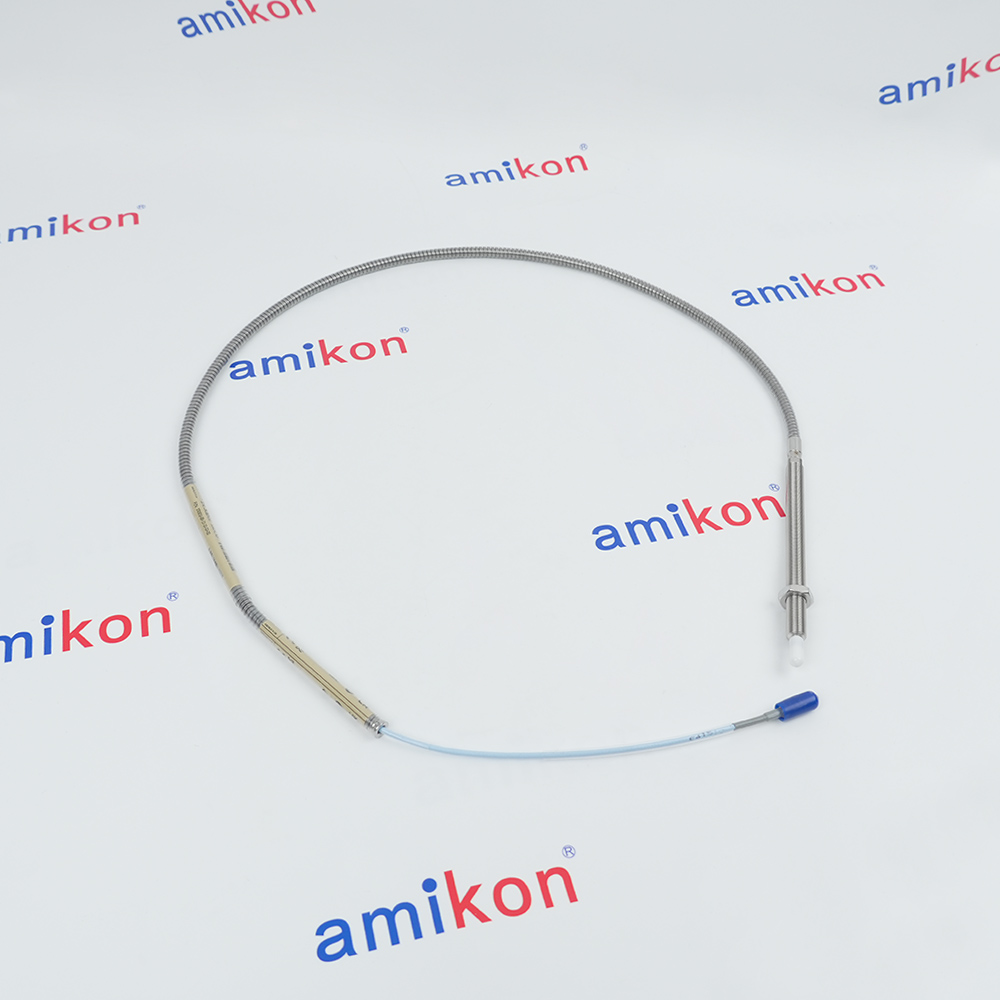

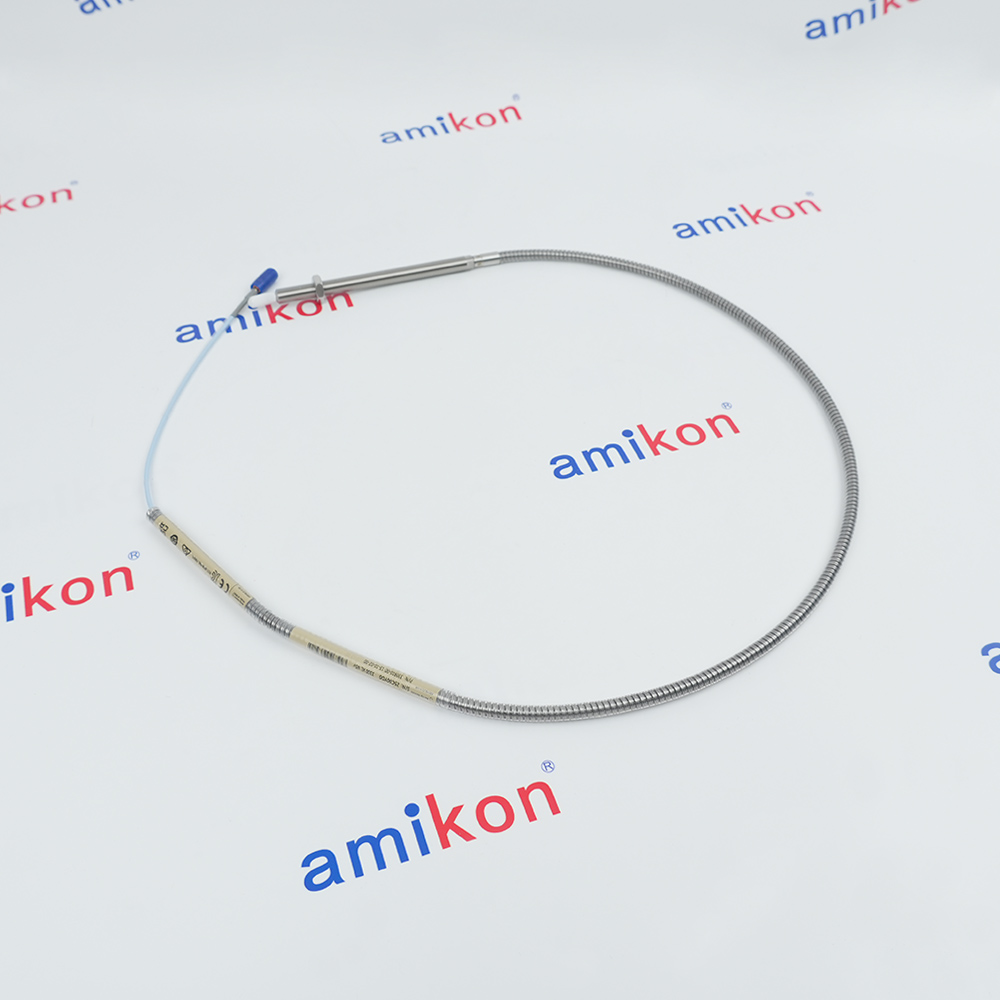

Technical specifications for 330910-00-13-10-02-00
-
Product Model330910-00-13-10-02-00
-
Product Parameters3300 NSv Probe, M10X1 thread, witharmor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20.5x22.5x3.5cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option130 mm
-
Total Length Option1.0 meter (39 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionNot required
Description
The 330910-00-13-10-02-00 is a 3300 NSv Proximity Probe with M10 x 1 thread and armor, as a critical component of the 3300XL NSv Proximity Transducer System. The 330910-00-13-10-02-00 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 330910-00-13-10-02-00 are for areas where counter bore, side-view, or rear-view restrictions limit the use of standard Bently Nevada 3300 and 3300XL 5mm and 8mm Transducer Systems.
The 330910-00-13-10-02-00 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330910-00-13-10-02-00 is primarily used for radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals) on fluid-filmed bearing machines where a small shaft or reduced side-view is present.
The 330910-00-13-10-02-00 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330910-00-13-10-02-00 is primarily used for radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals) on fluid-filmed bearing machines where a small shaft or reduced side-view is present.
Information
Overview
Manuals
Application Notes
Product Applications
Probe Insertion & Gap Adjustment
Features:
- M10 x 1 Metric Thread with Armor Protection
- Patented TipLoc Molding Method
- Patented CableLoc Design with 220 N Pull Strength
- Enhanced Side-View Characteristics for Tight Installations
- Gold-Plated Brass ClickLoc Connectors
The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in).
The 330910-00-13-10-02-00 Bently Nevada 3300 NSv Probe, M10X1 thread, witharmor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330910-00-13-10-02-00 3300 NSv Probe, M10X1 thread, witharmor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The probe incorporates a 1.0 meter (39 inch) integrated 75 Ω coaxial cable with FEP insulation, terminated with a miniature male coaxial ClickLoc connector. The ClickLoc connector locks into place and prevents loosening under vibration. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The patented CableLoc design provides 220 N (50 lb) of pull strength, securing the cable to the probe tip.
The probe delivers a linear range of 1.5 mm (60 mils), with a sensitivity of 7.87 V/mm (200 mV/mil) and linearity better than ±0.06 mm (±2.3 mils). The frequency response extends from 0 to 10 kHz, maintaining performance with extended field wiring up to 305 meters (1000 feet).
The M10 × 1 thread allows a maximum thread engagement of 15 mm. Installation torque must not exceed 0.56 N·m (5 in·lb). The cable has a minimum bend radius of 25.4 mm (1.0 in). The stainless steel armor provides mechanical protection in environments where cable abrasion or physical damage is a concern.
- Centrifugal Air Compressors: Monitors high-speed impeller shaft stability
- Process Gas/Refrigeration Compressors: Provides critical inter-stage component monitoring
- Small Steam/Gas Turbines: Ensures continuous shaft tracking in tight housing assemblies
- Pumps/Gearboxes: Manages vibration profiles on smaller high-velocity drive components
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Thread the probe into the machine's bracket or case.
Gap Setting: The NSv probe typically has a linear range of 1.5 mm. The initial gap is usually set to approximately half of this range (around 0.75 mm or ~30 mils) from the target .
Verification: Connect the system and monitor the Proximitor sensor output voltage using a digital multimeter. The target voltage should read roughly -9 to -10 Vdc (mid-range).
Locking: Once the correct gap is achieved, tighten the locknut against the bracket to secure the probe position.
Alternative Names
330910-00-13-10-02-OO
330910-00-13-10-0Z-00
330910-00-13-10-O2-00
330910-00-13-IO-02-00
330910-00-I3-10-02-00
330910-OO-13-10-02-00
33091O-00-13-10-02-00
3309I0-00-13-10-02-00
33O910-00-13-10-02-00
330910 00 13 10 02 00
330910 00 13 10 02 OO
330910 00 13 10 0Z 00
330910 00 13 10 O2 00
330910 00 13 IO 02 00
330910 00 I3 10 02 00
330910 OO 13 10 02 00
33091O 00 13 10 02 00
3309I0 00 13 10 02 00
33O910 00 13 10 02 00
330910-00-13-10-02-05
330910-00-13-10-02-CN
330910-00-13-10-02-BR
Technical notes
The 330910-00-13-10-02-00 operates within a temperature range of -51°C to +177°C (-60°F to +350°F) for the probe tip and cable. The 330910-00-13-10-02-00 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. The enhanced side-view and small target characteristics of the 330910-00-13-10-02-00 give it a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System, with 1.5mm (60 mils) of linear range exceeding the linear range of the 3000-series 190 Transducer System.
FAQs
-
What is the 330910-00-13-10-02-00 ?
+The Bently Nevada 330910-00-13-10-02-00 is a 3300 XL NSv Proximity Probe for measuring rotor shaft position and vibration in compact machinery. -
What is an NSv Proximity Probe used for?
+It is primarily designed for compact machinery or applications where space constraints prevent the use of standard 5 mm or 8 mm probes. It is suitable for shafts smaller than 51 mm (2 in) or axial targets smaller than 15 mm (0.6 in). -
What is the gap voltage range during installation?
+The Bently Nevada 3300 NSv transducer system is typically set to a nominal gap voltage of around -9V to -10V DC for proper linear operation (the exact midpoint of its operating range). -
What is the recommended torque specification for installation?
+For the M10 × 1 threaded case, the maximum torque is 33.9 N·m, with a recommended installation torque of 5.1 N·m
