Technical specifications for 330980-71-05
-
Product Model330980-71-05
-
Product Parameters3300 XL NSv Proximitor Sensor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size8.8x3.5x7cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Output resistance50 Ω
-
Proximitor SensorMaterial A380 aluminum
-
Total Length and Mounting Option7.0 meters (23.0 feet) systemlength DIN mount
-
Agency Approval OptionMultiple approvals
-
ConnectormaterialGold-plated brass
Description

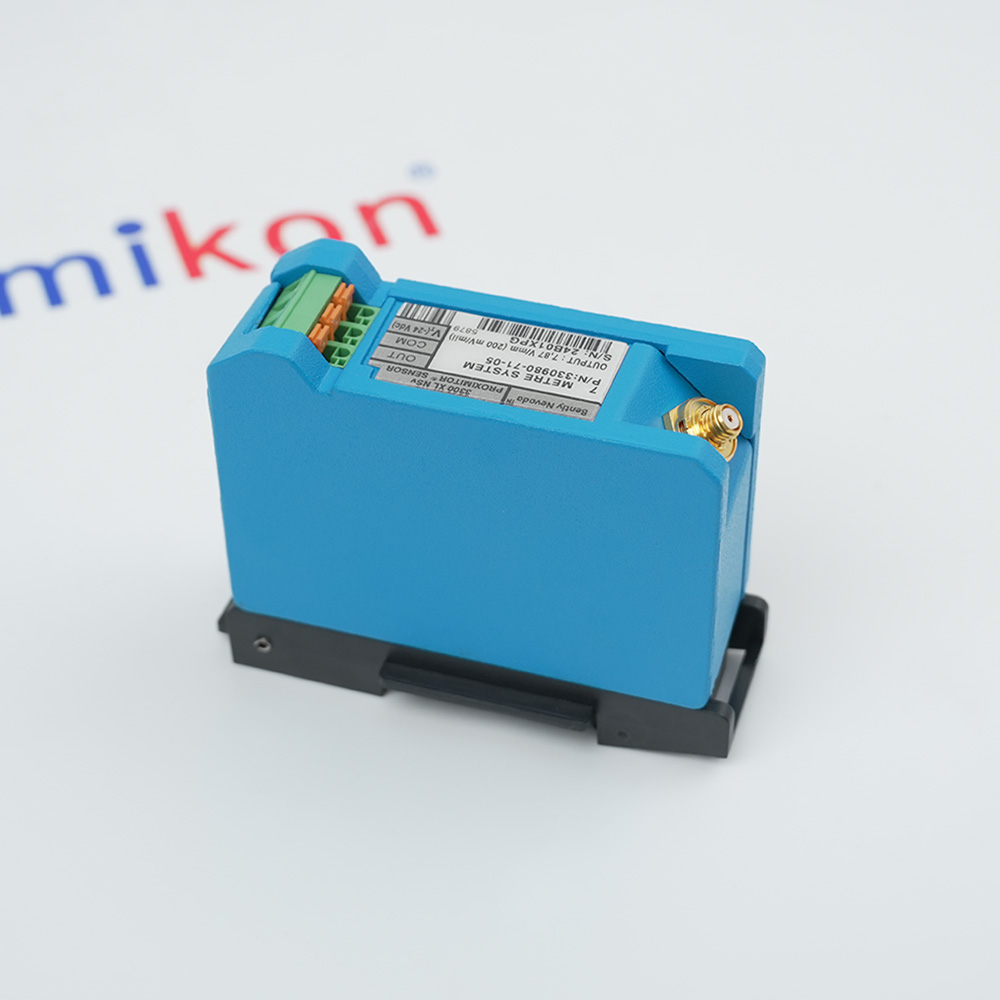

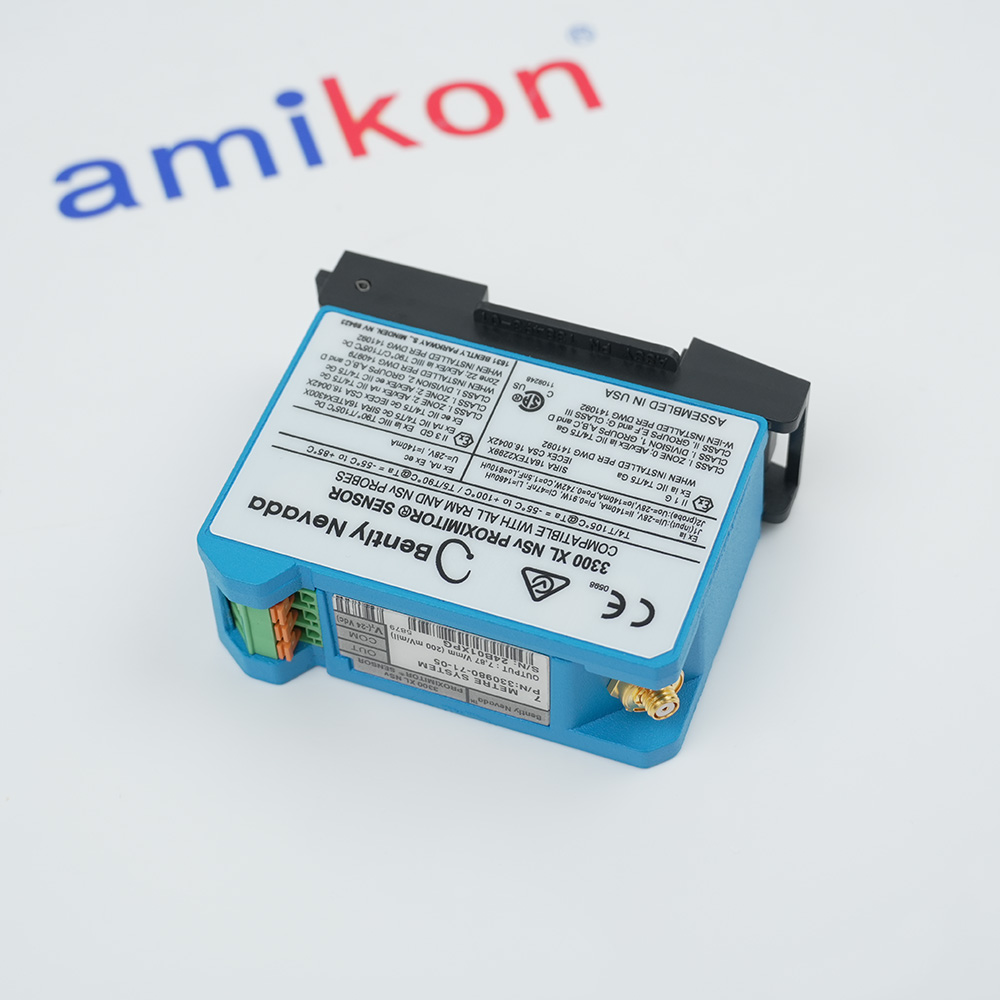

The BENTLY NEVADA 330980-71-05 3300 XL NSv Proximitor Sensor is an electronic signal-conditioning module used in the 3300 XL NSv Proximity Transducer System. It works with a compatible 3300 NSv proximity probe and extension cable to provide non-contact measurement of shaft displacement and position in rotating machinery.
The 3300 XL NSv Proximitor Sensor has similarfeatures to those found in the 3300 XL 8 mmProximitor Sensor. Its thin design allows the userto mount it in either a high-density DIN-railinstallation or a more traditional panel mountconfiguration. Improved RFI/EMI immunityallows the 3300 XL NSv Proximitor Sensor toachieve European CE mark approvals withoutany special mounting considerations. This RFIimmunity also prevents nearby high frequencyradio signals from adversely affecting thetransducer system. SpringLoc terminal strips onthe Proximitor Sensor require no specialinstallation tools and facilitate faster, highlyrobust field wiring connections.
The 3300 XL NSv Proximitor Sensor has similarfeatures to those found in the 3300 XL 8 mmProximitor Sensor. Its thin design allows the userto mount it in either a high-density DIN-railinstallation or a more traditional panel mountconfiguration. Improved RFI/EMI immunityallows the 3300 XL NSv Proximitor Sensor toachieve European CE mark approvals withoutany special mounting considerations. This RFIimmunity also prevents nearby high frequencyradio signals from adversely affecting thetransducer system. SpringLoc terminal strips onthe Proximitor Sensor require no specialinstallation tools and facilitate faster, highlyrobust field wiring connections.
Information
Overview
Manuals
Application Notes
Product Applications
Probe Insertion & Mechanical Positioning
Features:
- Thin Design for High-Density DIN-Rail Installation
- Improved RFI/EMI Immunity
- SpringLoc Terminal Strips
- Complete Interchangeability with 3300XL NSv System Components
- CSA, ATEX, and IECEx Agency Approvals
The complete 3300 XL NSv system consists of a 3300 NSv probe, 3300 NSv extension cable, and 3300 XL NSv Proximitor Sensor. The system is particularly suitable for applications where installation space is limited or where conventional 3300 XL 5 mm or 8 mm proximity transducer systems cannot be easily installed. It is also suitable for smaller shaft targets and compact machinery installations.
The 330980-71-05 Bently Nevada 3300 XL NSv Proximitor Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330980-71-05 3300 XL NSv Proximitor SensorManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330980-71-05 is part of a transducer system that provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. The 330980-71-05 system has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. The enhanced side view and small target characteristics of the 330980-71-05 system give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System, with 1.5 mm (60 mils) of linear range.
The 330980-71-05 allows upgrades from the 3300RAM system to the 3300XL NSv system using the existing probe, extension cable, and monitoring system. The 330980-71-05 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 330980-71-05 is primarily used for radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals) on fluid-filmed bearing machines where a small shaft or reduced side-view is present.
- Oil/Gas: Deployed on offshore rigs, refineries, and LNG transport facilities
- Power Generation: Used in nuclear, thermal, gas, and hydro plants for grid uptime
- Chemical/Petrochemical: Installed in high-risk zones with ATEX/IECEx explosion-proof ratings
- Mining/Refining: Used on ore crushers, blast furnace blowers, and rolling mill drives
- Pulp/Paper/Water: Monitors wastewater pumps and large industrial drying rollers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Target Material: Standard calibration is set for AISI 4140 steel, but can be tailored to other materials.
Sensing Distance & Gap: The linear range is typically 1.5 mm (60 mils). Ensure the probe is positioned mechanically so that the DC gap voltage is around -9 V to -11 V when the machine shaft is centered in its bearing.
Clearance Restrictions: Unlike standard 8mm probes, the NSv probe minimizes side-view and counterbore interference, allowing it to be mounted closer to machine casing walls.
Locking & Protection: The probe uses Bently Nevada's patented CableLoc design. Secure the probe tip-to-cable bond, and optionally use connector protectors to keep moisture out.
Alternative Names
330980-71-O5
330980-7I-05
33098O-71-05
3309B0-71-05
33O980-71-05
330980 71 05
330980 71 O5
330980 7I 05
33098O 71 05
3309B0 71 05
33O980 71 05
330980 71 05
330980-71-00
330980-71-CN
Technical notes
For the specified 3300 XL NSv transducer system, the recommended probe gap is approximately 1.0 mm / 40 mils. The system provides a 1.5 mm / 60 mil linear range, approximately from 0.25 mm to 1.75 mm from the target, with the electrical output varying according to the probe-to-target distance. The nominal scale factor is approximately 7.87 V/mm, equivalent to 200 mV/mil.
FAQs
-
Can I mix and match probes and extension cables with this sensor?
+No. Bently Nevada systems rely on calibrated electrical lengths. The electrical length of the installed probe plus the electrical length of the extension cable must exactly equal the total calibrated electrical length of the Proximitor Sensor (in this case, 7 meters). -
What is the proper gap voltage?
+When properly gapped and with the machine's shaft centered, the normal gap voltage range for this proximitor sensor system is between -9 V and -11 V DC. -
What is the 3300 XL NSv system used for?
+It is primarily used in locations where standard Bently Nevada 5mm and 8mm probes cannot fit due to restricted side-view or counterbore limitations. It is ideal for measuring radial vibration on small shafts (smaller than 51 mm) and axial position on small targets -
Can I use different length cables and probes together?
+No, all three components of the transducer system (Proximitor Sensor, extension cable, and probe) must have consistent electrical lengths. The electrical length of the probe plus the electrical length of the extension cable must match the calibrated length of the Proximitor.
