What is Bently Nevada 125800-01?

125800-01 is a Keyphasor I/O Module developed by Bently Nevada.

What is the operating temperature of the 125800-01?

Operating Temperature ranges from 0 degrees Celsius to +65 degrees Celsius

Is this 125800-01 product brand new?

Yes, Bently Nevada 125800-01 is brand new, original, unused, and factory sealed

In Stock

Ships by Friday, June 19

Fast Shipping Available

· Product image is representative; revision or series may vary. Contact us to request a specific version.

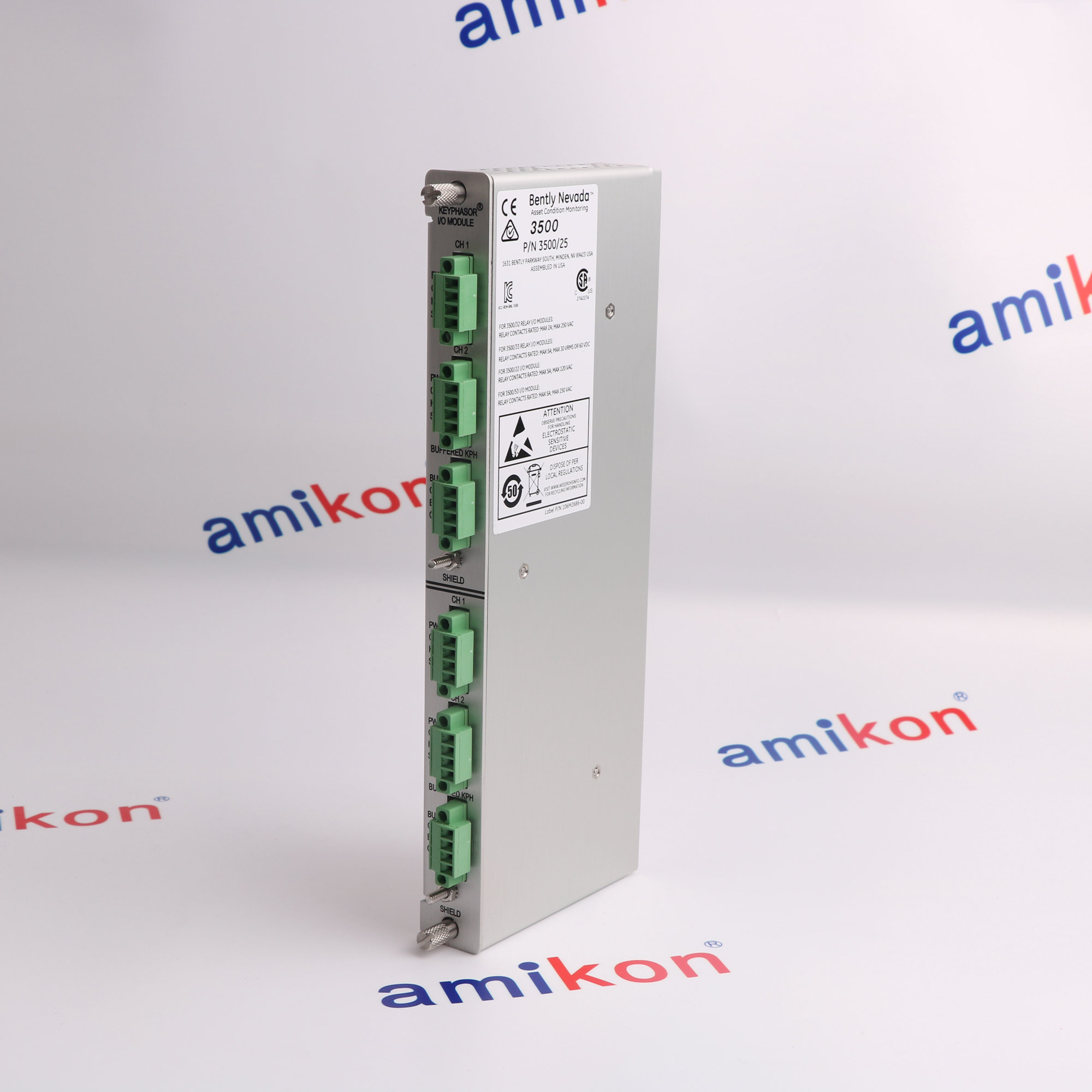

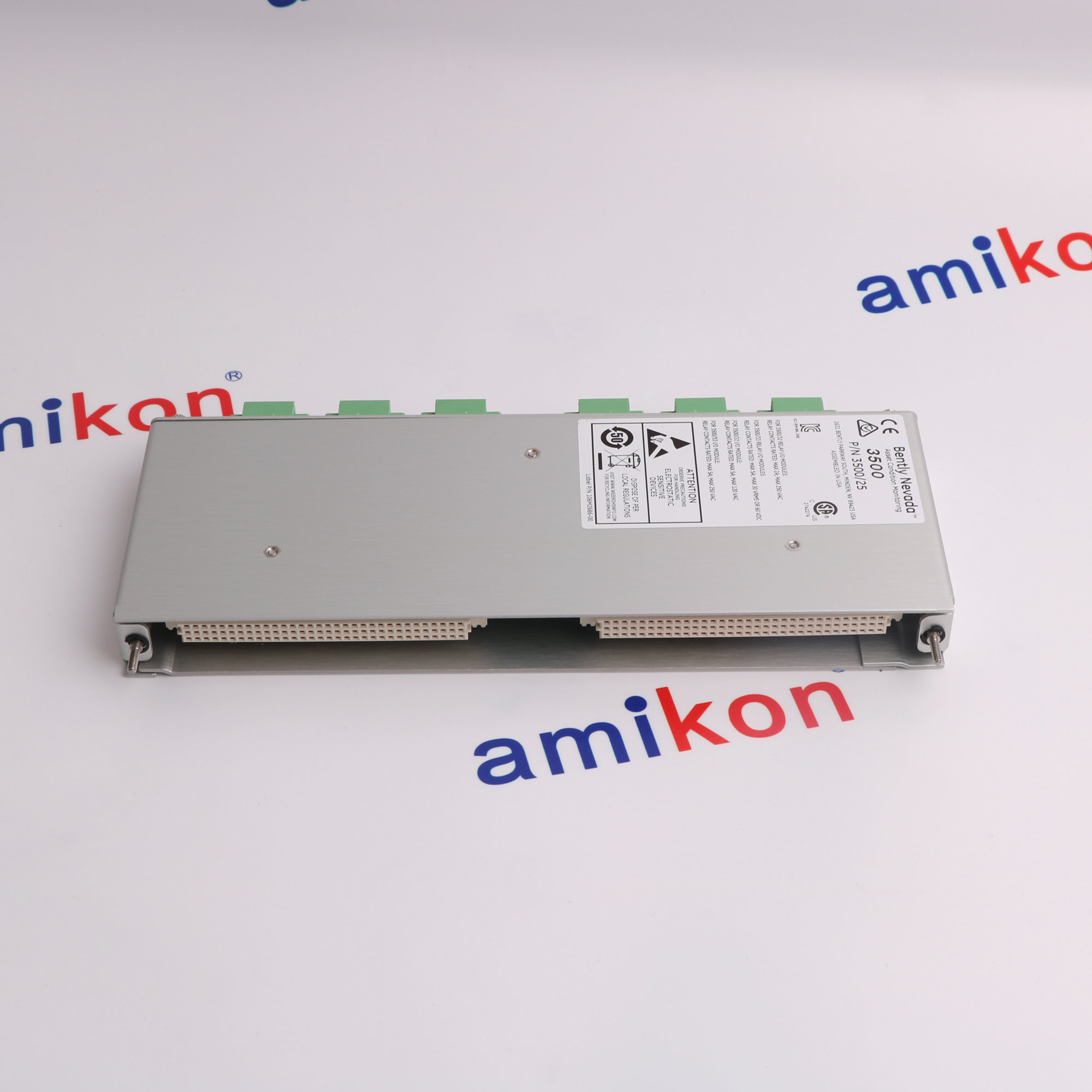

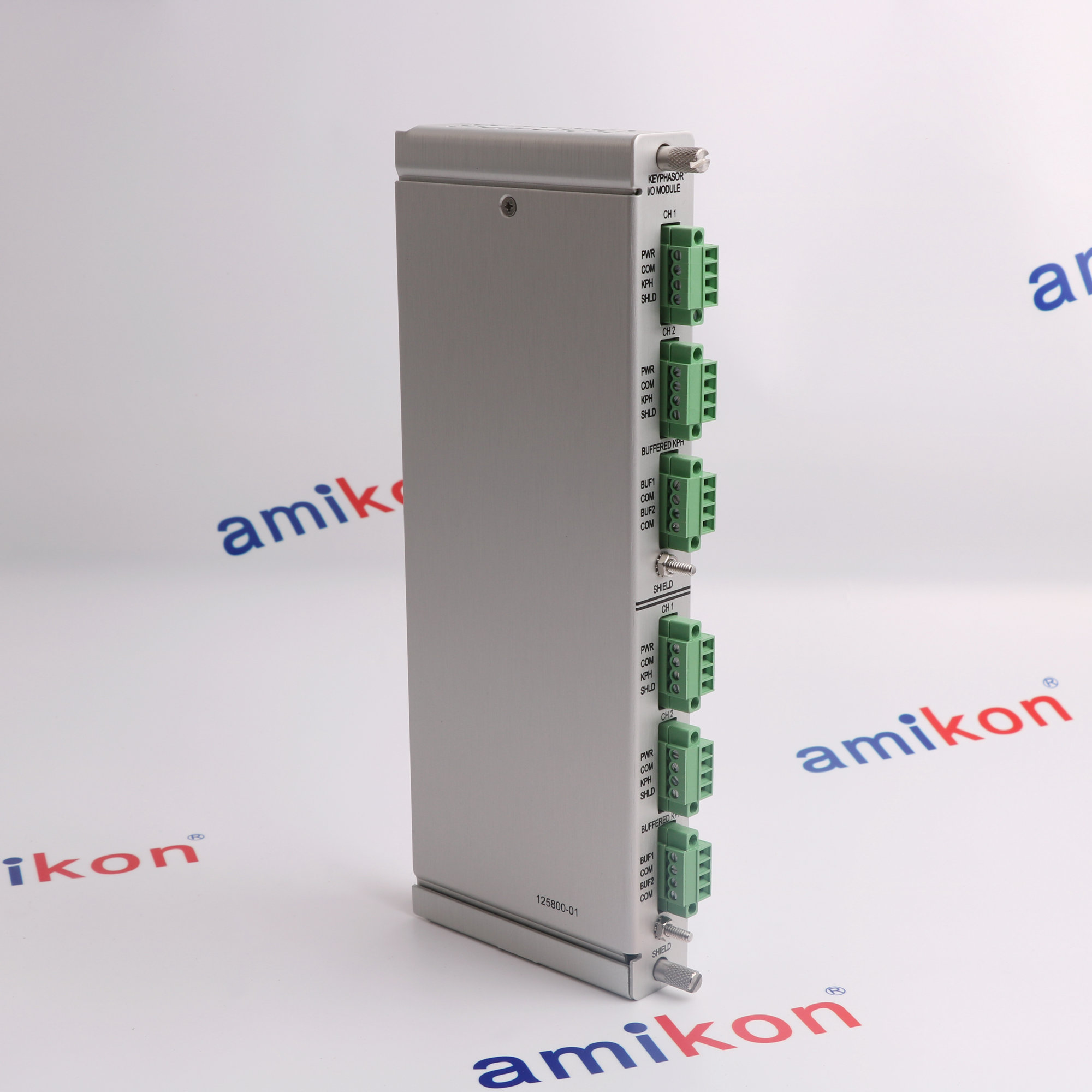

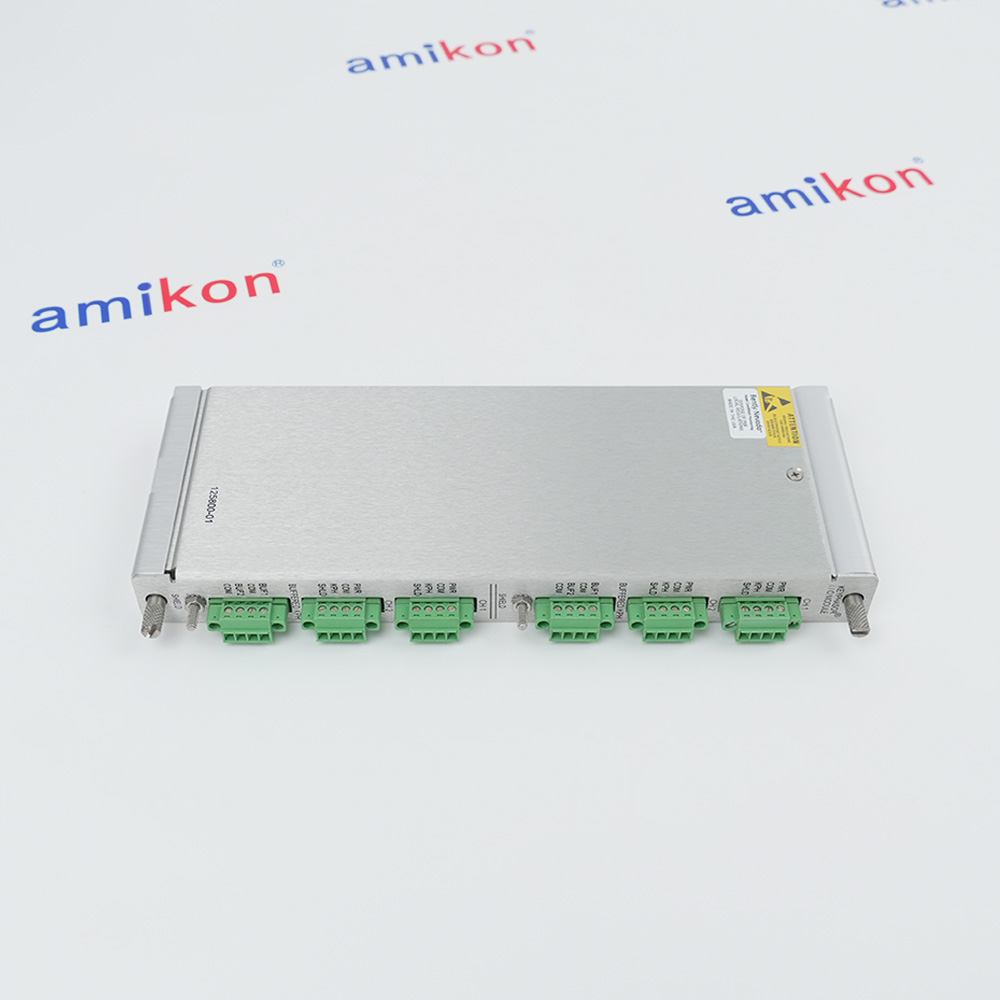

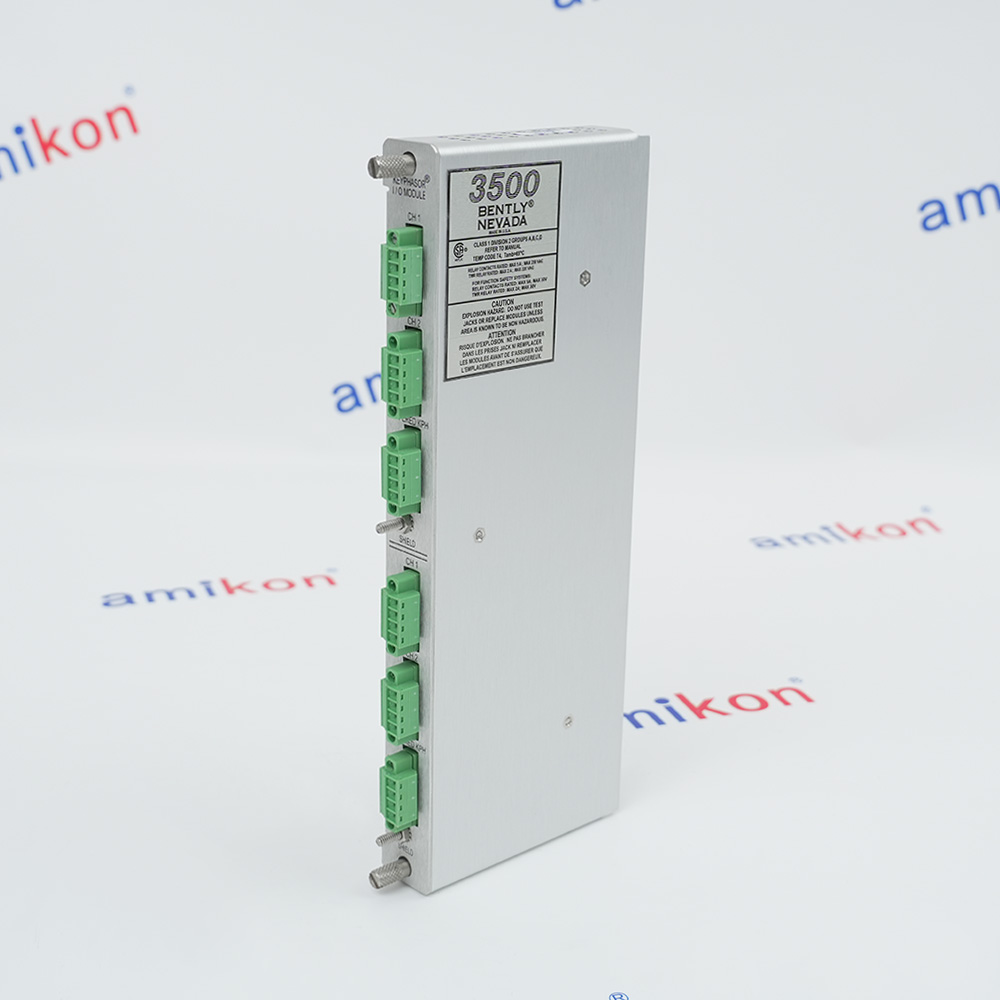

125800-01

Name: 125800-01
Brand: Bently Nevada

Keyphasor I/O Module (InternalTerminations)

Get a Quote

Require for Quote:

Need more help? You may also find the answer in our FAQ section

Shipping Information

For inventory products, we support same day shipping upon payment.
For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.

Warranty Policy

We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.

Return Notice

The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.

How to order?

We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

Parts Availability

Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.

Technical specifications for 125800-01

Product Model

125800-01
Product Parameters

Keyphasor I/O Module (InternalTerminations)
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
In stock

8 units
Estimated Shipping Size

2.5x11.2x24.2cm
Manufacturer

Bently Nevada
Weight

0.38 kg
Operating Temperature

0°C to +65°C (32°F to +150°F)
Storage Temperature

-40°C to +85°C (-40°F to +185°F)
Humidity

95%, non-condensing
Keyphasor Transducer Power Supply

-24 Vdc, 40 mA maximum per channel.

Ask for Quote

Description

The Bently Nevada 125800-01 is a Keyphasor I/O module with internal terminations. The Bently Nevada 125800-01 provides the interface between Keyphasor transducers and the 3500/25 Enhanced Keyphasor Module. The Bently Nevada 125800-01 receives input signals from proximity probes or magnetic pickups and routes these signals to the monitor module for conversion to digital Keyphasor signals.

The Bently Nevada 125800-01 is a non-isolated I/O module. The Bently Nevada 125800-01 is used in applications where Keyphasor signals do not require isolation from control systems or other parallel-connected devices. The Bently Nevada 125800-01 provides a direct electrical path from the transducer to the monitor. The Bently Nevada 125800-01 is suitable for standard shaft speed and phase measurement applications.

Alternative Names

125800 01 125800/01 1258OO-O1 I25800-0I I25800-0I 3500-25

Information

Overview Manuals User guide Product Applications Physical Installation

Features:

Half-height
(2) Channels
Input Signals: Proximity Probes or Magnetic Pickups

The Bently Nevada 3500/25 Series Enhanced Keyphasor Modules are half-height, two-channel modules used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.

The 125800-01 Bently Nevada Keyphasor I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 125800-01 Keyphasor I/O Module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The primary role of the 125800-01 is to receive raw pulses from Keyphasor transducers—usually proximity probes or magnetic pickups—which monitor a "once-per-turn" mark on a rotating shaft. These signals are critical for vibration analysis, as they provide the timing reference (phase) needed to filter vibration data to a specific frequency (1X, 2X, etc.) and to calculate accurate RPM. The module provides highly reliable screw-terminal connections, ensuring that these high-speed pulses are transmitted to the system backplane without degradation or noise interference.

Conveyor Systems:Prevents jerks/jolts damaging belts or products during startup
Turbines:Monitors bearings & stator windings to prevent overheating
Pumps & Motors:Focuses on winding & bearing housing temperatures
Gearboxes:Detects lubrication failure or internal friction
Other Industrial Equipment:Fans, blowers, extruders & pelletizers: continuous protection

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Safety First: Ensure the 3500 rack power is turned OFF or that you are working in a certified safe, non-hazardous area.

Align and Slide: Align the I/O module with the top and bottom guides of the rear rack slot.

Seat the Module: Firmly slide the module into the slot until the rear connector fully mates with the rack’s backplane.

Technical notes

The Bently Nevada 125800-01 includes buffered transducer outputs. The Bently Nevada 125800-01 provides separate buffered outputs for each channel. These outputs allow connection of portable test equipment or diagnostic instruments without interrupting the signal path to the 3500 monitoring system. The Bently Nevada 125800-01 has front-mounted coaxial connectors for direct transducer connection.

FAQs

What is Bently Nevada 125800-01?
+

125800-01 is a Keyphasor I/O Module developed by Bently Nevada.
What is the operating temperature of the 125800-01?
+

Operating Temperature ranges from 0 degrees Celsius to +65 degrees Celsius
Is this 125800-01 product brand new?
+

Yes, Bently Nevada 125800-01 is brand new, original, unused, and factory sealed
