PRODUCT DESCRIPTION

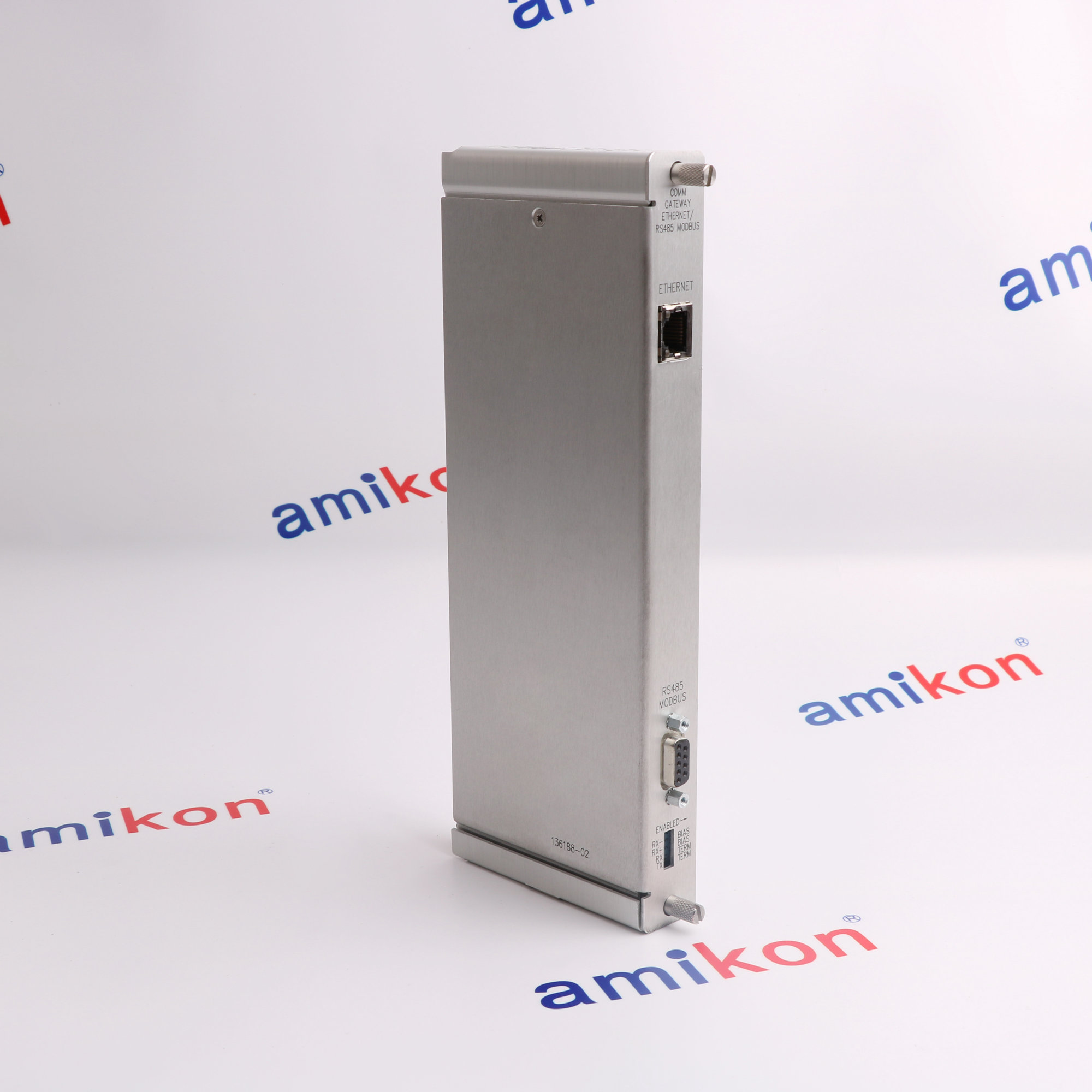

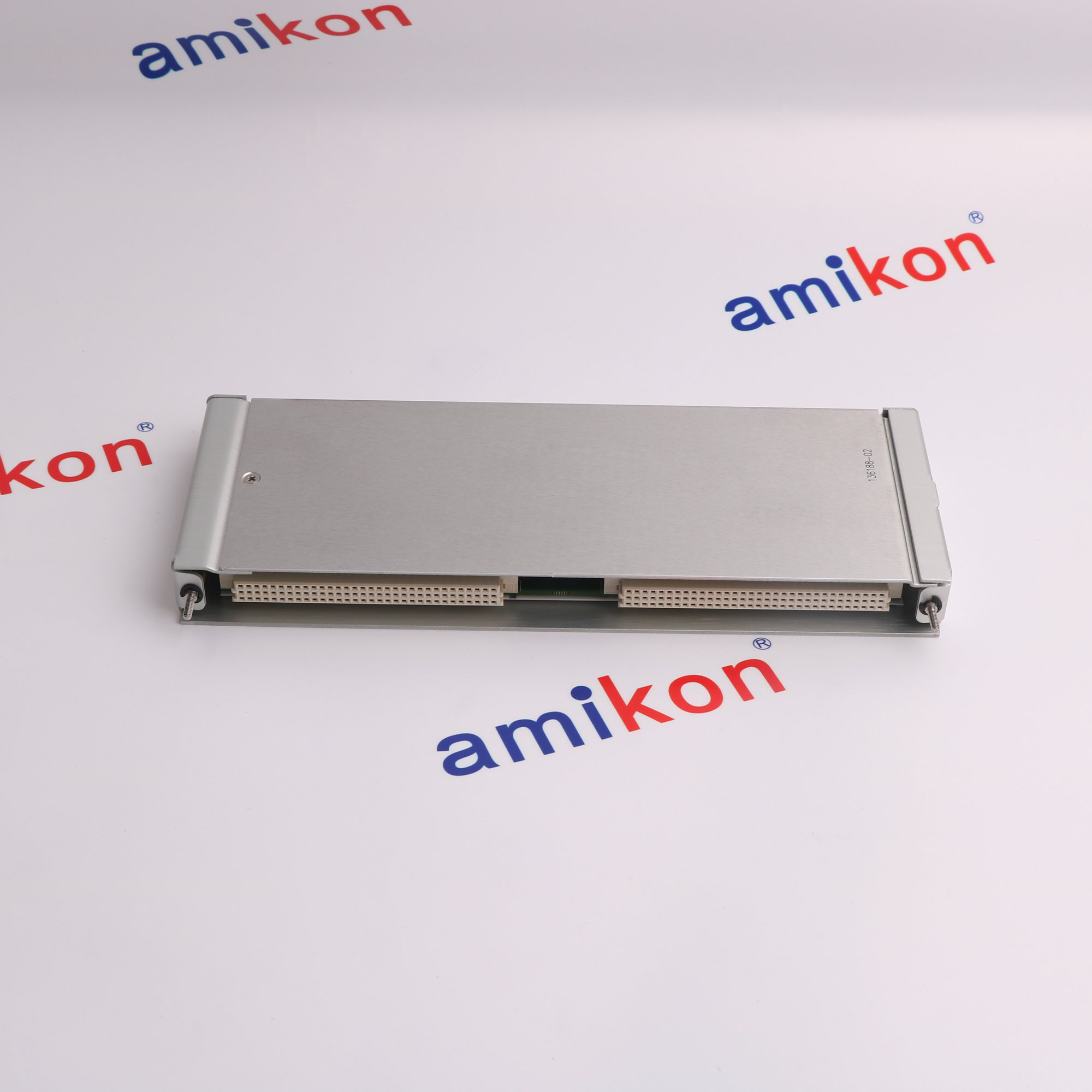

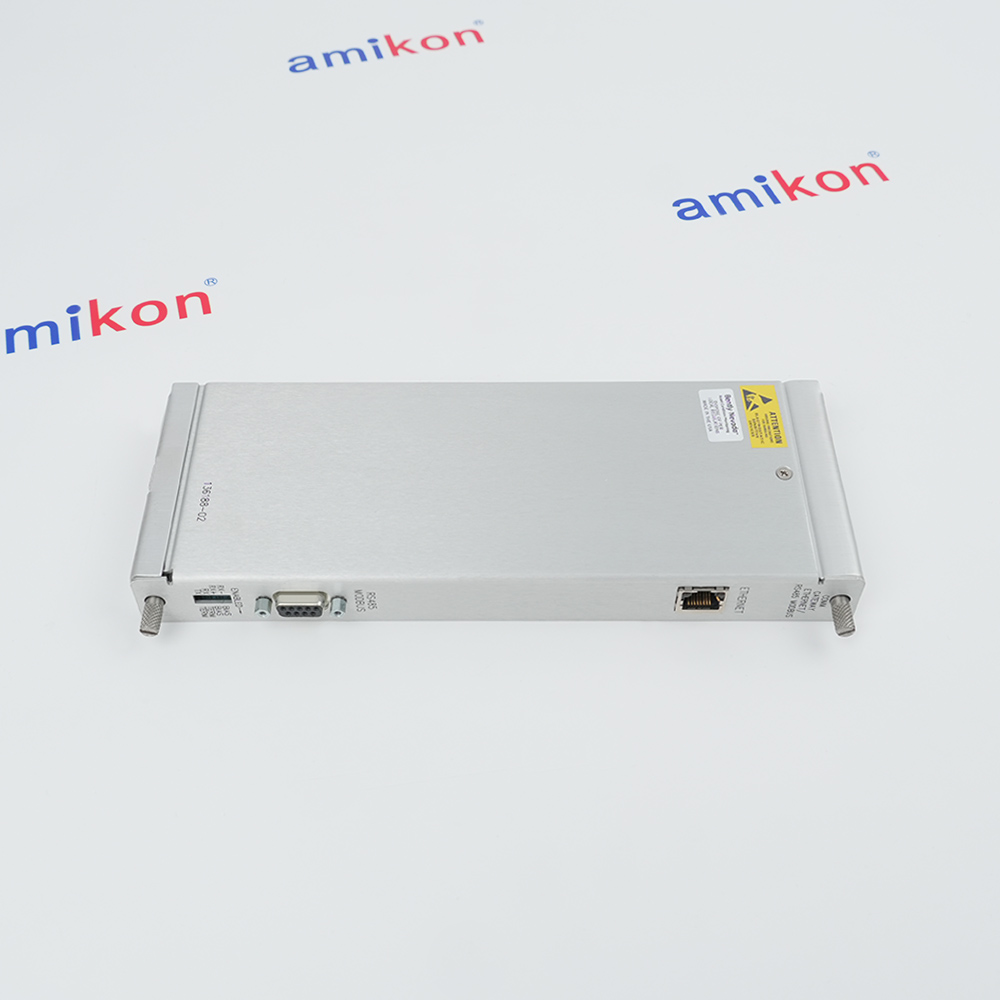

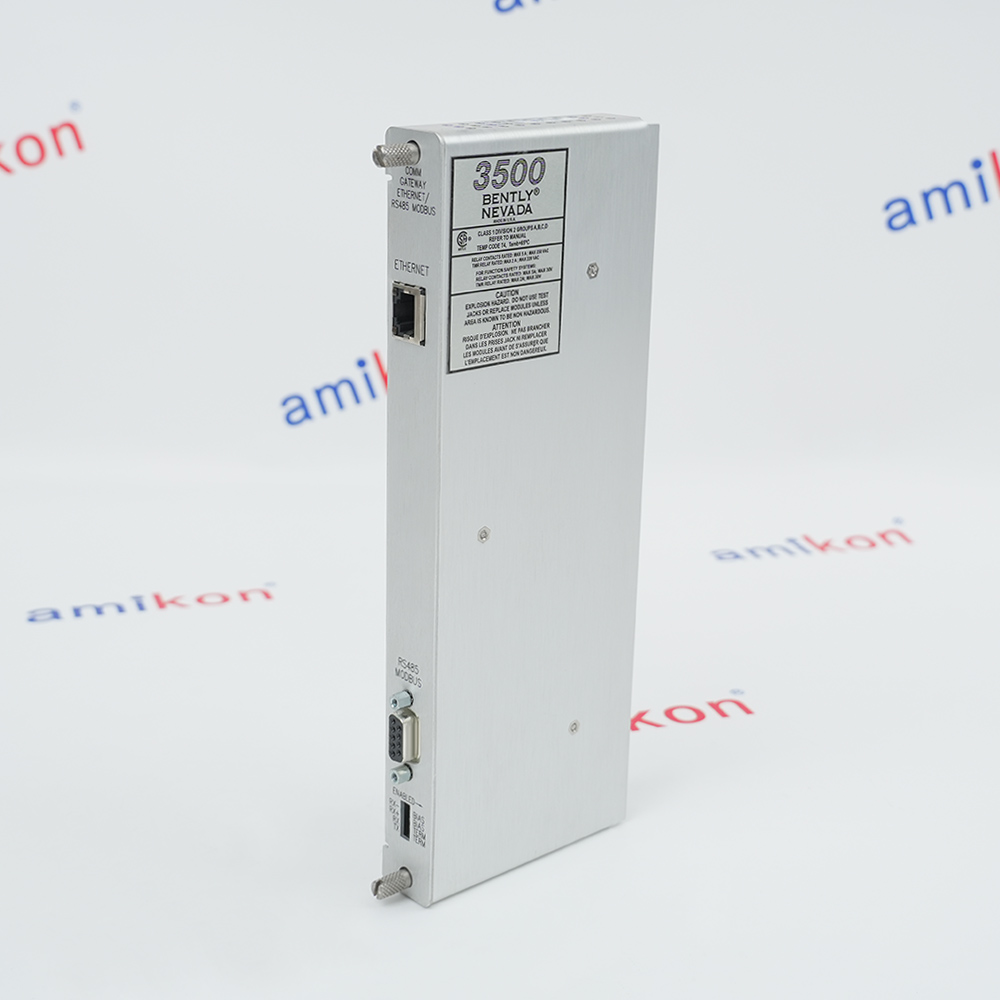

Ethernet RS485 interface module
Bently Nevada 136188-02 is the Ethernet/RS485 Modbus I/O module listed for the 3500/92 Communication Gateway. It provides the corresponding external communication interface and occupies a rear rack slot; it is not the separate 136180-01 main gateway module.
Use this interface with a compatible gateway, firmware and correctly configured host communications. The manufacturer lists a firmware upgrade kit with this spare and warns that older gateways require an upgrade for newer I/O modules. Verify the installed hardware generation before replacement or commissioning.
Use this interface with a compatible gateway, firmware and correctly configured host communications. The manufacturer lists a firmware upgrade kit with this spare and warns that older gateways require an upgrade for newer I/O modules. Verify the installed hardware generation before replacement or commissioning.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Documented application roles
These applications describe the documented manufacturer product or compatible series, not an assertion that this exact order is installed in a named project.
-
01 · PROCESS CONTROL
Rack data through Modbus
The interface connects a compatible 3500/92 gateway to a process control host. Configure the register map for the actual rack measurements and status values. -
02 · SERIAL NETWORKS
RS485 monitoring integration
The selected I/O provides the RS485 communication path within the documented gateway arrangement. Confirm the complete serial wiring and receiving equipment before connection. -
03 · PLANT INFORMATION
Ethernet status acquisition
The gateway uses the Ethernet interface to make configured values available to compatible software. This function is communication, not direct transducer measurement.
Technical specifications for 136188-02
-
Product Model136188-02
-
Product ParametersEthernet RS485 interface module
-
In stock1 unit
-
ManufacturerBently Nevada
-
Associated gateway3500/92
-
Serial interface selectionRS485
-
Ethernet connectionRJ45, 10BASE-T
-
Network data rate10 Mbps, IEEE 802.3
-
Gateway serial protocolModbus RTU
-
Gateway network protocolEthernet TCP/IP and Modbus/TCP
-
Rack spaceOne full-height rear I/O slot
-
Listed spare kit firmware126M4118-01 upgrade kit
-
Operating temperature-30 to +65 degrees C, Rev. M specification
-
Storage temperature-40 to +85 degrees C
-
Humidity limit95%, noncondensing
View all additional
Alternative Names
136188-02 3500/92 Ethernet I/O
136188-02 Modbus RS485 termination
136188-02 gateway interface spare
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ETHERNET RS485 INTERFACE MODULE
Integrating 136188-02
Bently Nevada 136188-02 is the Ethernet/RS485 Modbus I/O module listed for the 3500/92 Communication Gateway. It provides the corresponding external communication interface and occupies a rear rack slot; it is not the separate 136180-01 main gateway module.
Use this interface with a compatible gateway, firmware and correctly configured host communications. The manufacturer lists a firmware upgrade kit with this spare and warns that older gateways require an upgrade for newer I/O modules. Verify the installed hardware generation before replacement or commissioning.
Match the exact 136188-02 identity to the documented mating equipment and installed configuration. Review the manufacturer requirements for connections, operating conditions and component selection before service.
Features:
- Associated gateway
- Serial interface selection
- Ethernet connection
The 136188-02 ethernet rs485 interface module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement selection requires the complete 136188-02 identity and the documented matching equipment. A shared platform or similar connector does not establish interchangeability.
The manufacturer states that older gateways require a firmware upgrade to communicate with a new I/O module. The listed spare includes kit 126M4118-01; verify the supplied contents.
The reviewed documents do not establish an exact-order discontinuation date, delivered hardware revision or unconditional successor. Publication revisions describe the document and are not recorded as product hardware revisions.
Features:
- Check complete identity and configuration
- Use documented matching equipment
- Verify revision and replacement conditions
The 136188-02 ethernet rs485 interface module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 136188-02 ethernet rs485 interface module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.4x11x24.1cm
-
Shipping weight0.35 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 136188-02
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 136188-02 an RS232 interface?
No. The manufacturer identifies it as Ethernet/RS485 Modbus I/O. 136188-01 is the separate Ethernet/RS232 version. -
Does the spare include the main communication gateway?
The spare table lists 136188-02 separately from main module 136180-01. Confirm the quotation contents rather than assuming a complete gateway assembly. -
Do older 3500/92 modules require a firmware change?
The manufacturer states that older gateways require a firmware upgrade to communicate with a new I/O module. The listed spare includes kit 126M4118-01; verify the supplied contents. -
What Ethernet speed is specified?
The documented 3500/92 Ethernet connection is 10 Mbps 10BASE-T. Do not assign the 100Base-TX rating of the TDI I/O family to this module. -
Can the same Modbus register map be assumed after a 3500/90 upgrade?
No. The 3500/92 uses a configurable Modbus register utility instead of the original primary-value registers. Check the host map and configuration. -
Why do older datasheets show a different temperature limit?
Revision F lists a zero-degree lower limit for I/O, while Revision M lists minus thirty degrees Celsius for main and I/O modules. Verify which controlled specification applies to the delivered hardware.
