PRODUCT DESCRIPTION

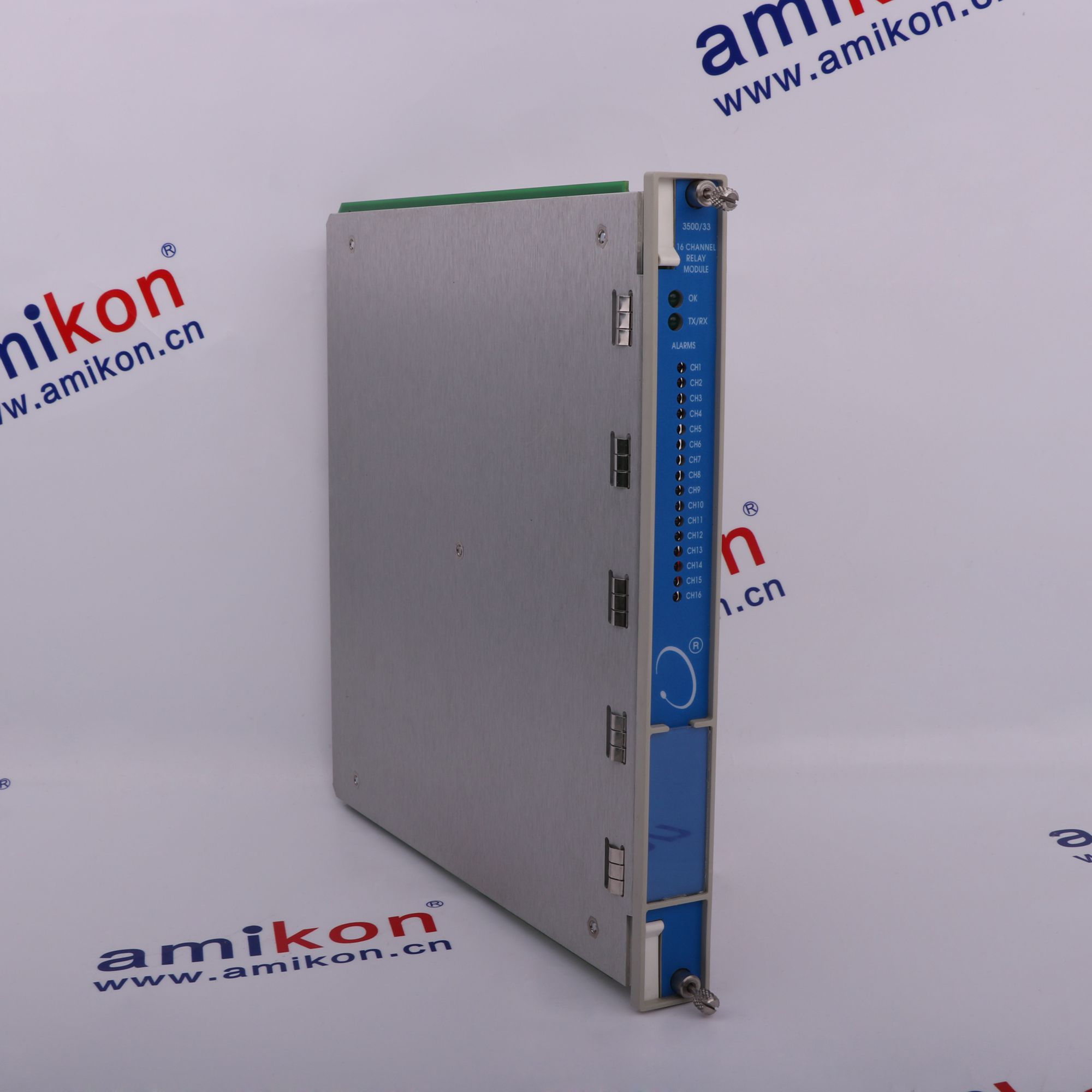

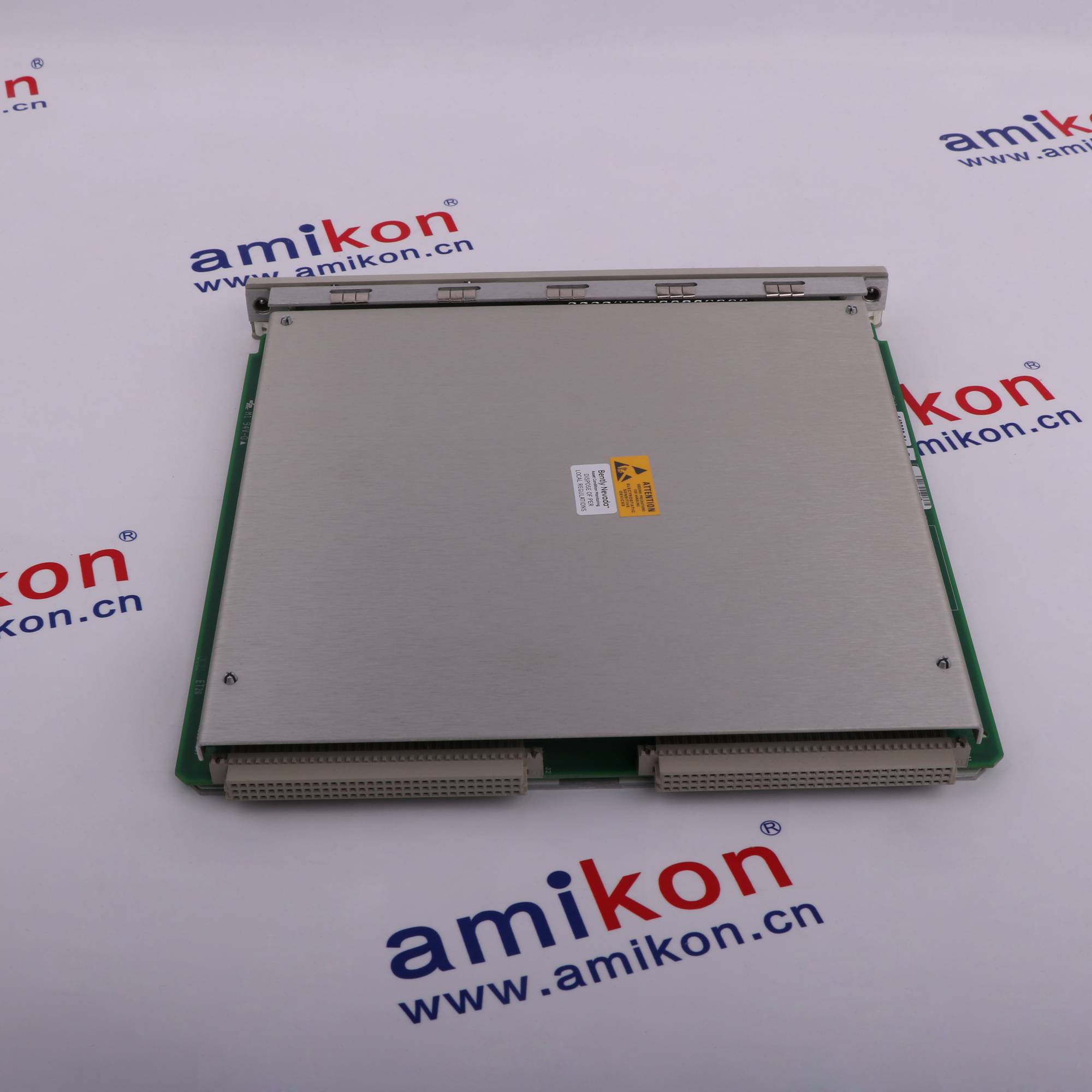

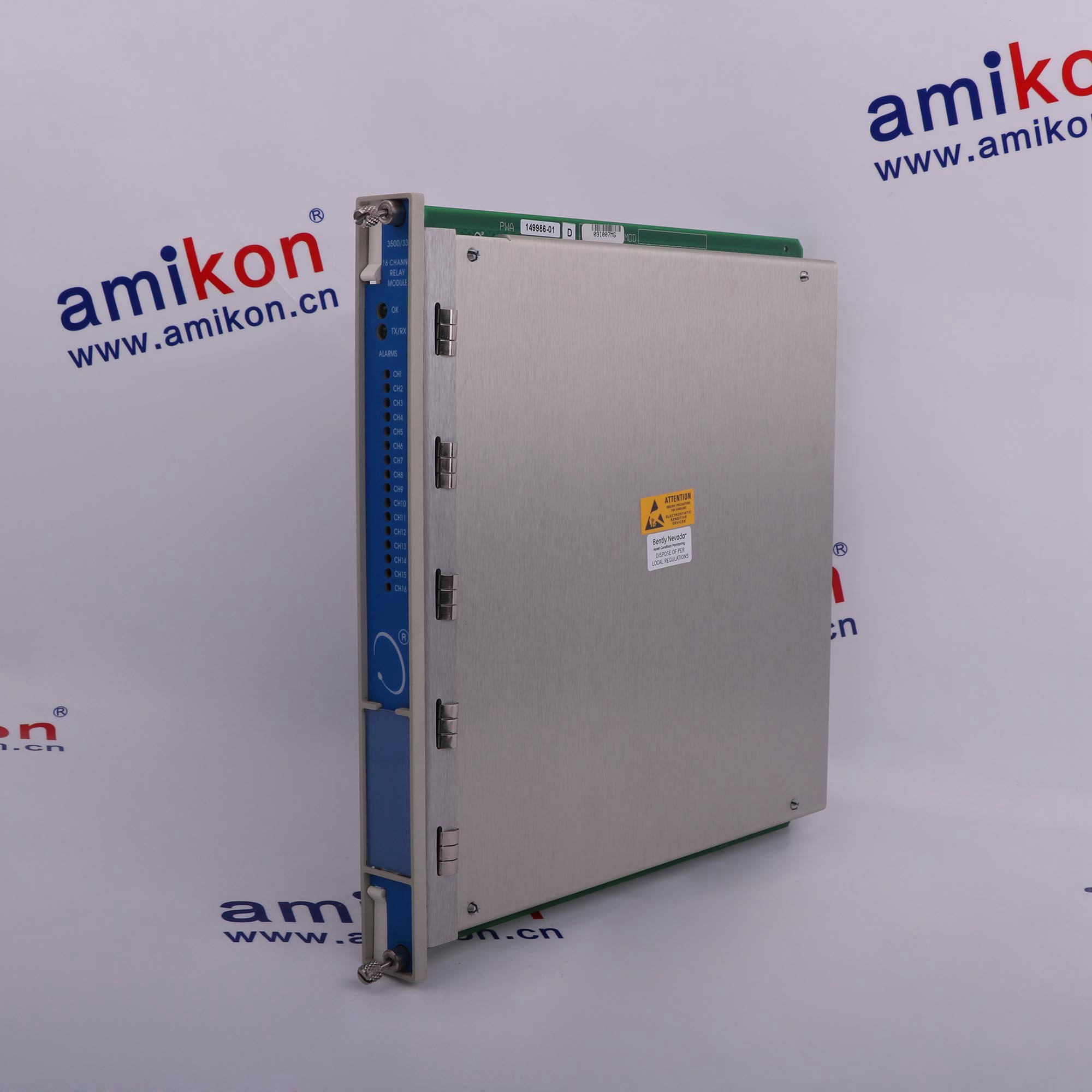

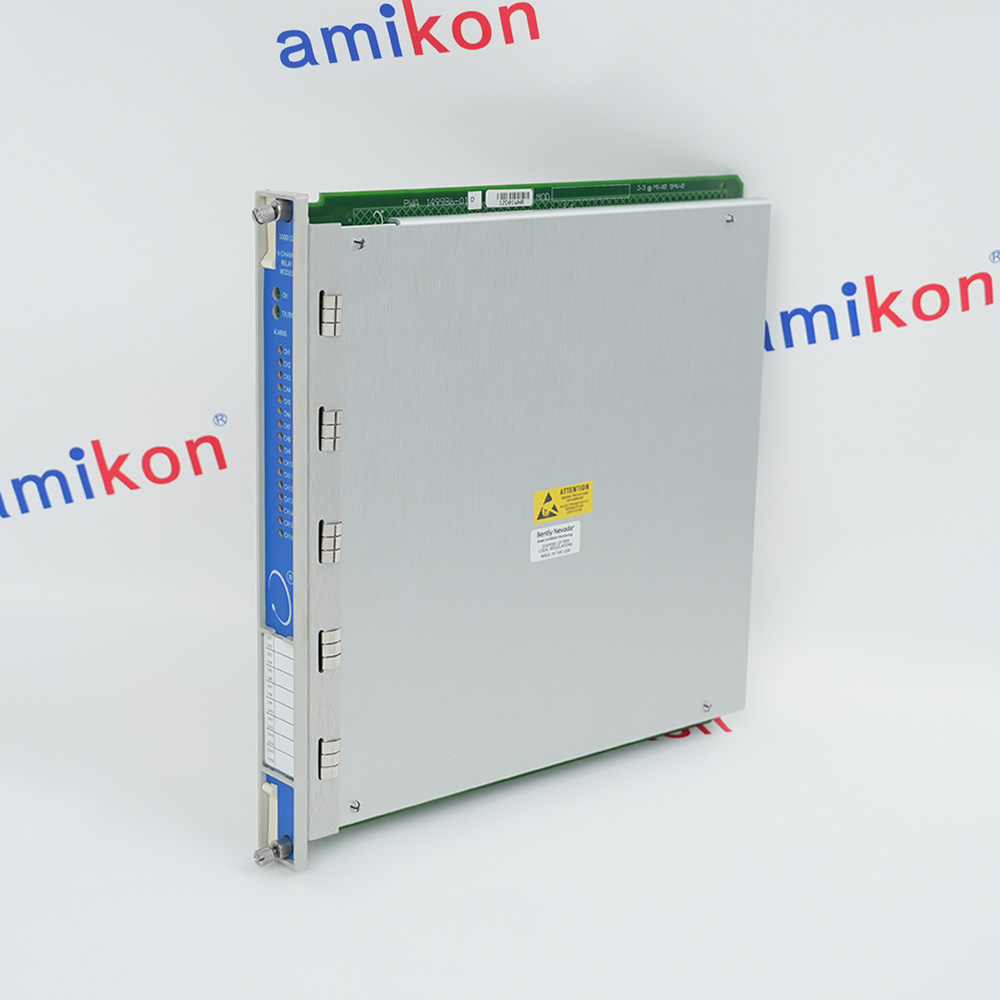

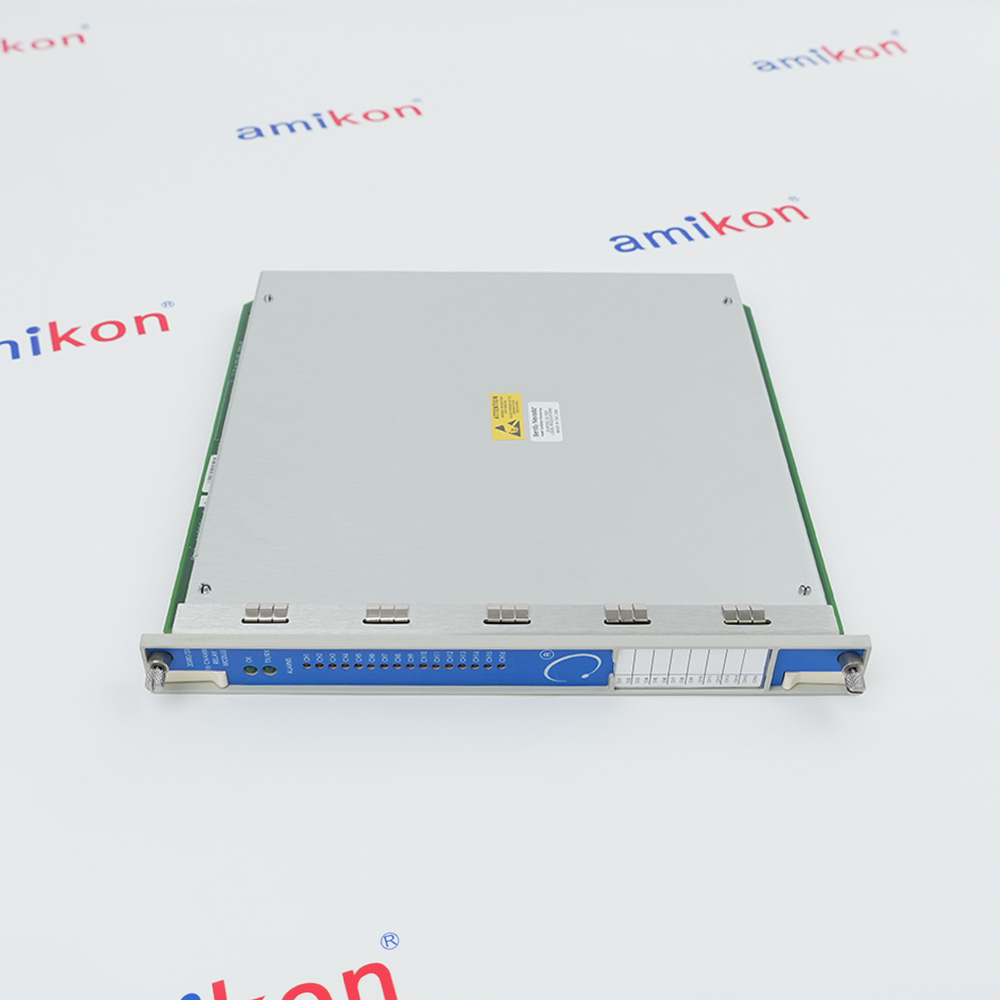

Sixteen channel relay module
Bently Nevada 3500/33 149986-01 is a relay control module. The controller evaluates configured alarm-drive logic and controls sixteen relay outputs through matching output hardware. Each channel can use independently programmed voting from rack measurements and status conditions. Correct relay selection and field-load ratings remain necessary for the complete installation.
The official spare table identifies 149986-01 as the sixteen-channel relay control module. Compare the installed front and rear assemblies, contact load and configured logic. Standard, failsafe and low-current variants must not be treated as identical.
The official spare table identifies 149986-01 as the sixteen-channel relay control module. Compare the installed front and rear assemblies, contact load and configured logic. Standard, failsafe and low-current variants must not be treated as identical.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500/33 relay system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · ALARM VOTING
Independent machine-condition outputs
Each output can use independently programmed AND/OR logic from rack alarms and measured variables. The relay controller applies that logic rather than measuring a transducer directly. -
02 · SYSTEM STATUS
Not-OK condition signalling
The manufacturer permits Not-OK conditions to participate in alarm-drive logic. Selected combinations can be reported to connected circuits when the correct output contacts and load are used. -
03 · PLANT CONTACTS
Load-matched field interfaces
The output hardware connects configured logic to field circuits. Standard, failsafe and low-current selections must be matched to the actual voltage and current instead of relying only on channel count.
Technical specifications for 3500/33 149986-01
-
Product Model3500/33 149986-01
-
Spare Model149986-01
-
Product ParametersSixteen channel relay module
-
In stock6 units
-
ManufacturerBently Nevada
-
Documented assemblyRelay control module
-
Output capacity16 channels
-
Rack positionOne full-height front slot right of the TDI
-
Typical power consumption5.8 W
-
Alarm-drive operatorsAND and OR
-
Logic inputsAlert/Danger, Not-OK and measured variables from rack monitors
-
Programming3500 Rack Configuration Software
-
Channel logic selectionEach output independently programmable
-
Front status indicationsOK, TX/RX and channel alarm
View all additional
Alternative Names
3500/33 149986 01
3500/33 149986-01 relay control module
Bently Nevada 3500/33 149986-01
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SIXTEEN CHANNEL RELAY MODULE
Integrating 3500/33 149986-01
The controller evaluates configured alarm-drive logic and controls sixteen relay outputs through matching output hardware. Each channel can use independently programmed voting from rack measurements and status conditions. Correct relay selection and field-load ratings remain necessary for the complete installation.
Match the 3500/33 controller to its documented output variant. Standard silver and low-current gold-plated contacts have different minimum loads. In failsafe and hazardous-area systems, do not transfer the higher voltage figures listed for ordinary standard systems.
Follow relay user guide 162291 and isolate field circuits before servicing. Exposed conductors can present a shock hazard. Set the normally energized or de-energized selection in the documented groups of four, and verify the programmed voting logic and load before commissioning.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/33 149986-01 relay control module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/33 149986-01 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Match the 3500/33 controller to its documented output variant. Standard silver and low-current gold-plated contacts have different minimum loads. In failsafe and hazardous-area systems, do not transfer the higher voltage figures listed for ordinary standard systems.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/33 149986-01 relay control module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/33 149986-01 relay control module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.5x25.3x24cm
-
Shipping weight0.75 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/33 149986-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/33 149986-01 identified?
The official spare table identifies 149986-01 as the sixteen-channel relay control module. Compare the installed front and rear assemblies, contact load and configured logic. Standard, failsafe and low-current variants must not be treated as identical. -
What is the function of this component?
The controller evaluates configured alarm-drive logic and controls sixteen relay outputs through matching output hardware. Each channel can use independently programmed voting from rack measurements and status conditions. Correct relay selection and field-load ratings remain necessary for the complete installation. -
Which installed equipment must be matched?
Match the 3500/33 controller to its documented output variant. Standard silver and low-current gold-plated contacts have different minimum loads. In failsafe and hazardous-area systems, do not transfer the higher voltage figures listed for ordinary standard systems. -
Where is this component used?
Each output can use independently programmed AND/OR logic from rack alarms and measured variables. The relay controller applies that logic rather than measuring a transducer directly. -
What must be checked during installation?
Follow relay user guide 162291 and isolate field circuits before servicing. Exposed conductors can present a shock hazard. Set the normally energized or de-energized selection in the documented groups of four, and verify the programmed voting logic and load before commissioning. -
Can silver contacts be used for any very low-current signal?
No. Standard silver contacts require at least 100 mA at 5 Vdc. The manufacturer lists separate gold-plated low-current versions with different limits; changing versions requires checking the complete load. -
Are normally energized selections independent for all sixteen relays?
The operating-mode switches select four groups of four channels. This differs from the independently programmed alarm-drive voting logic available for each output.
