PRODUCT DESCRIPTION

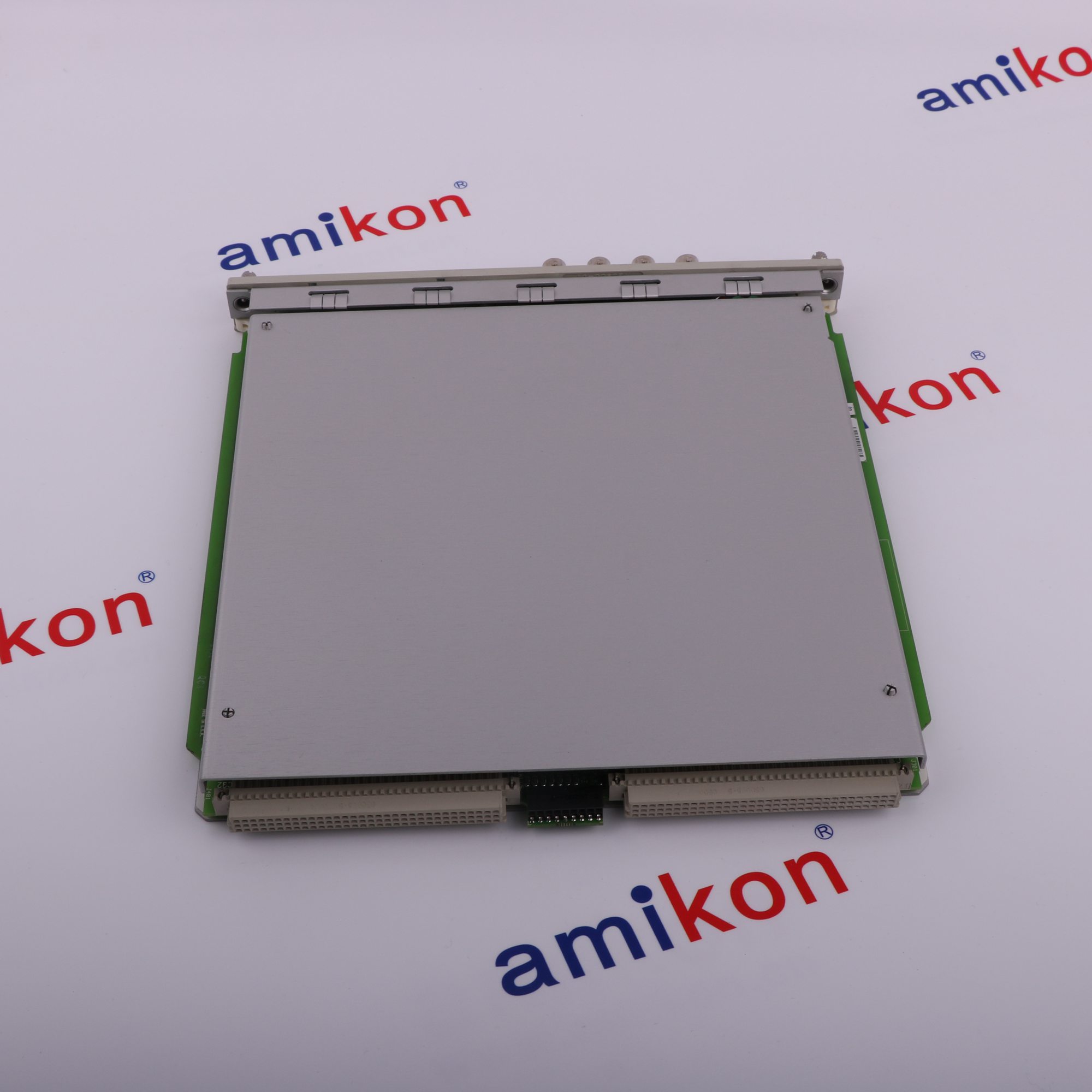

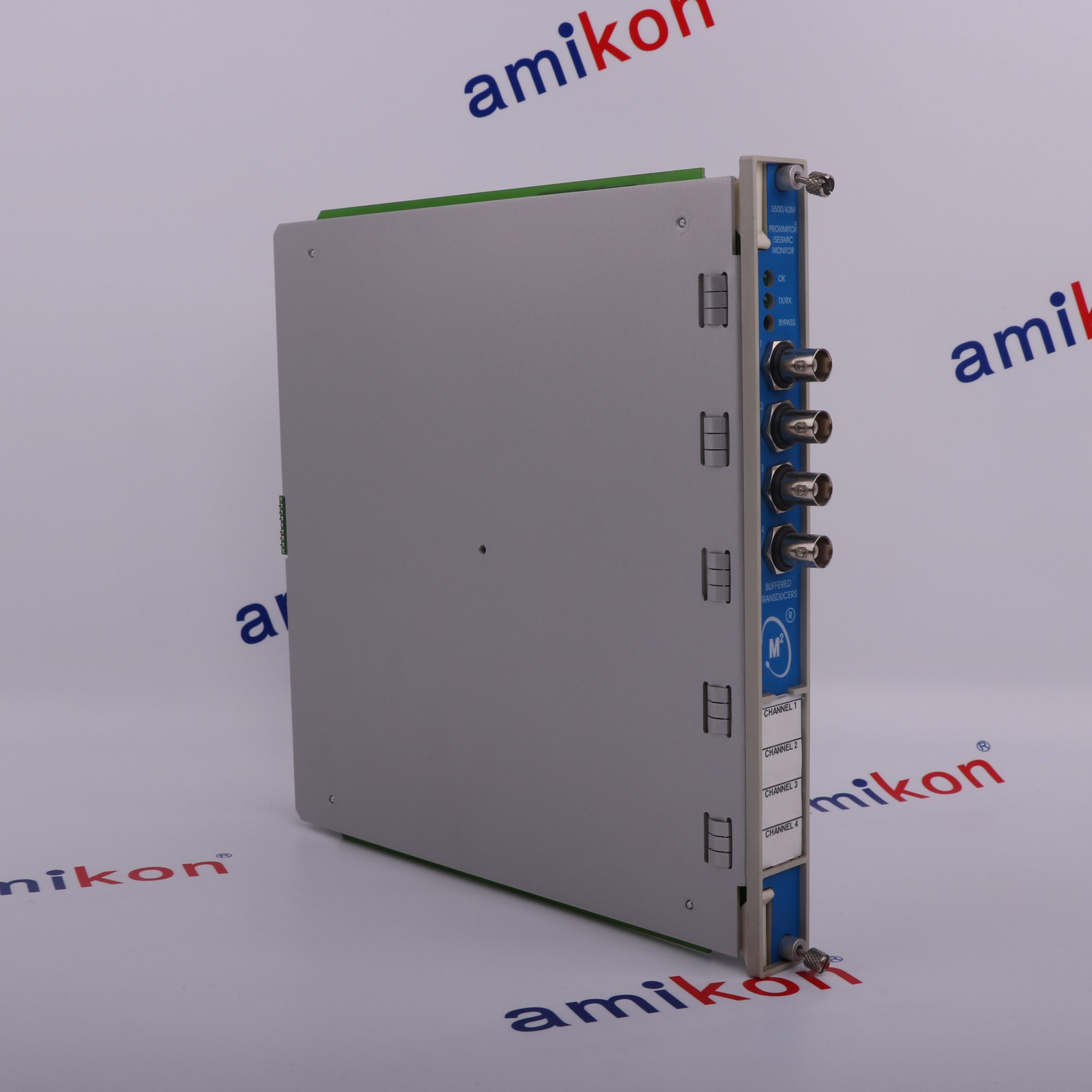

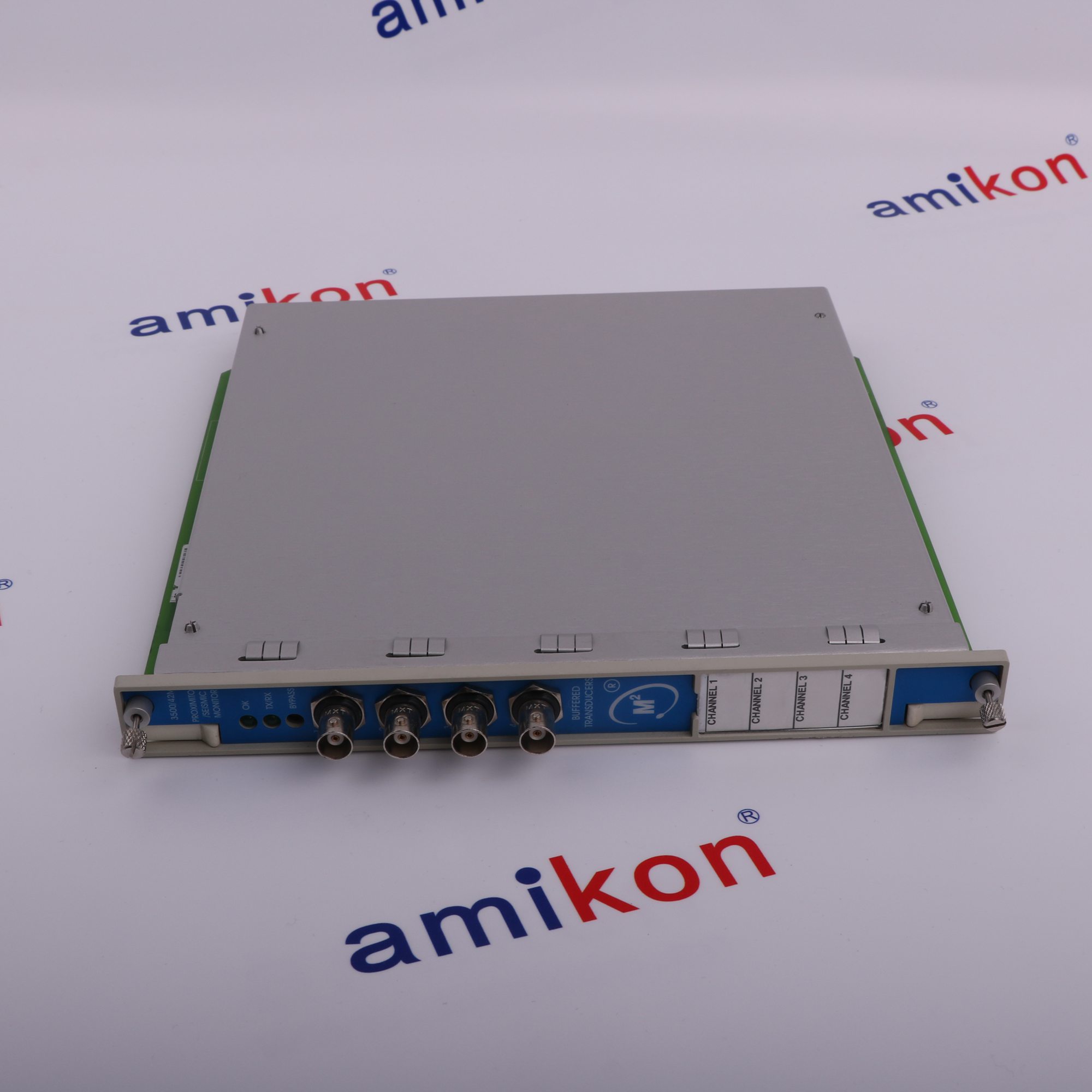

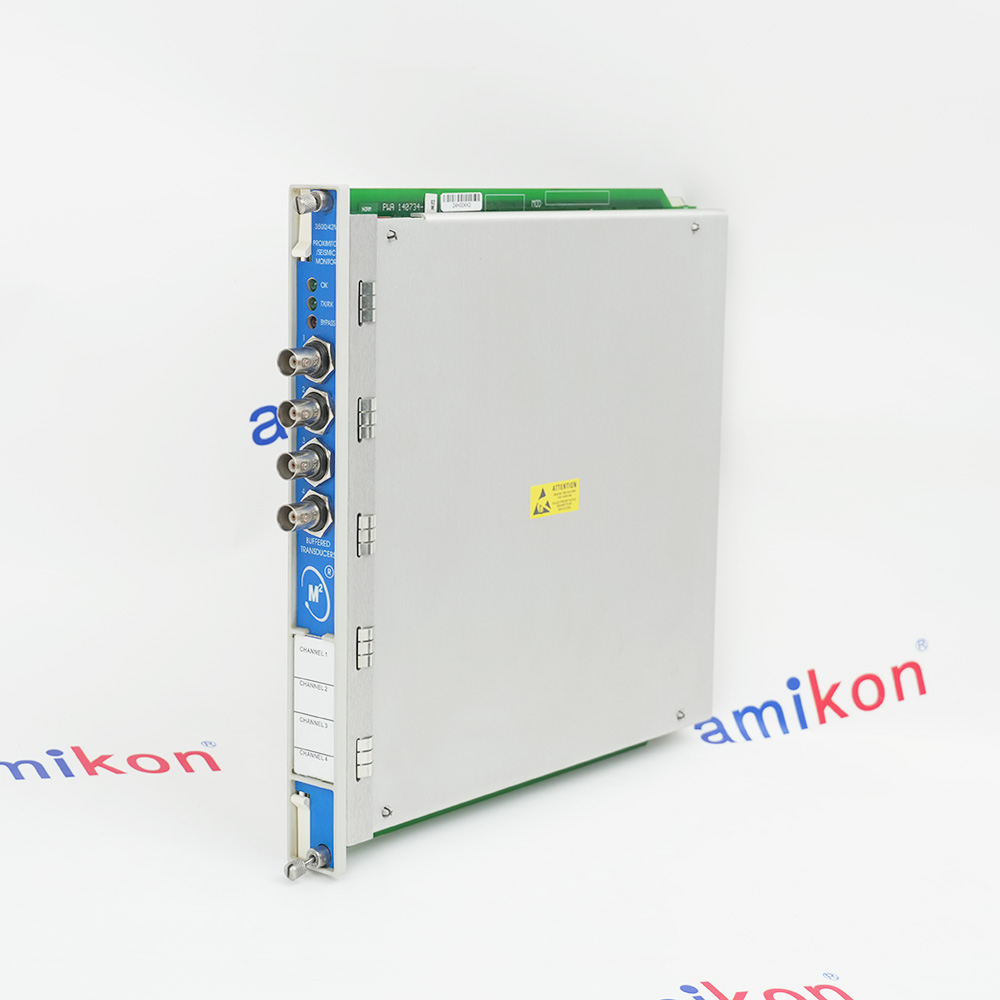

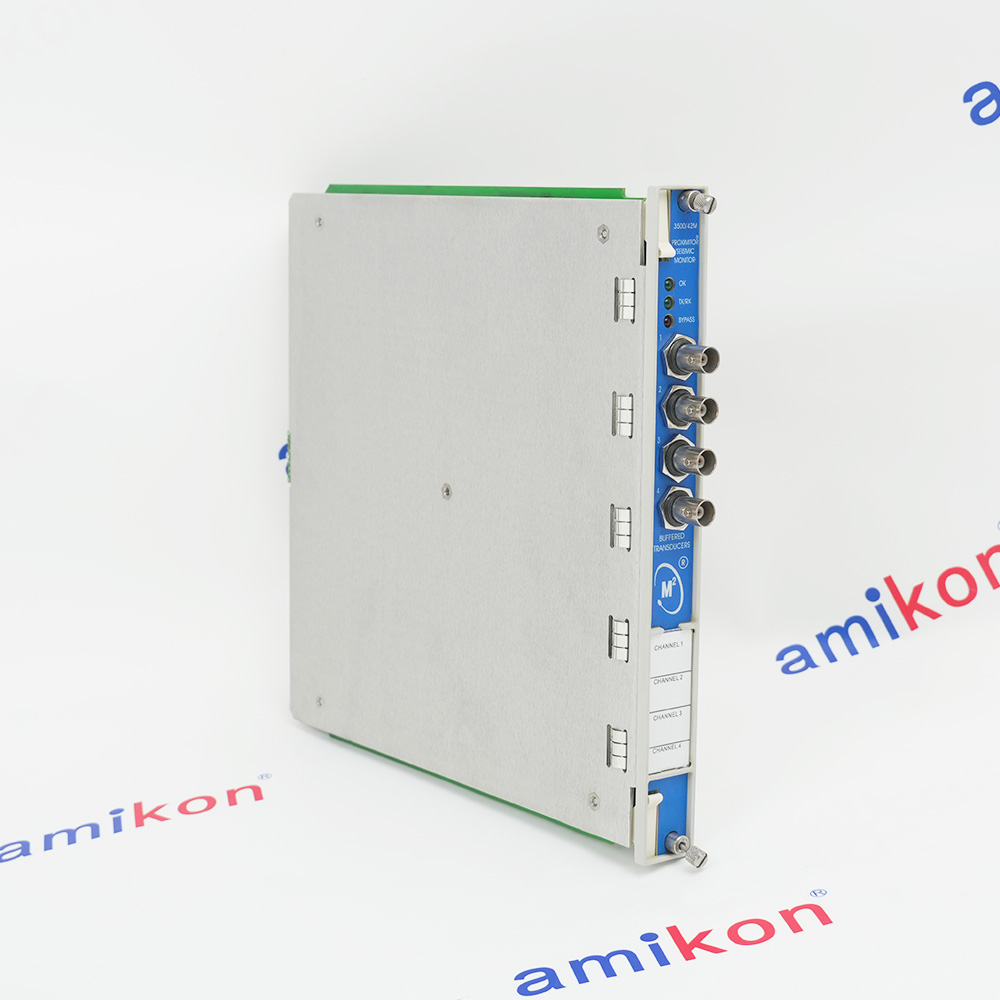

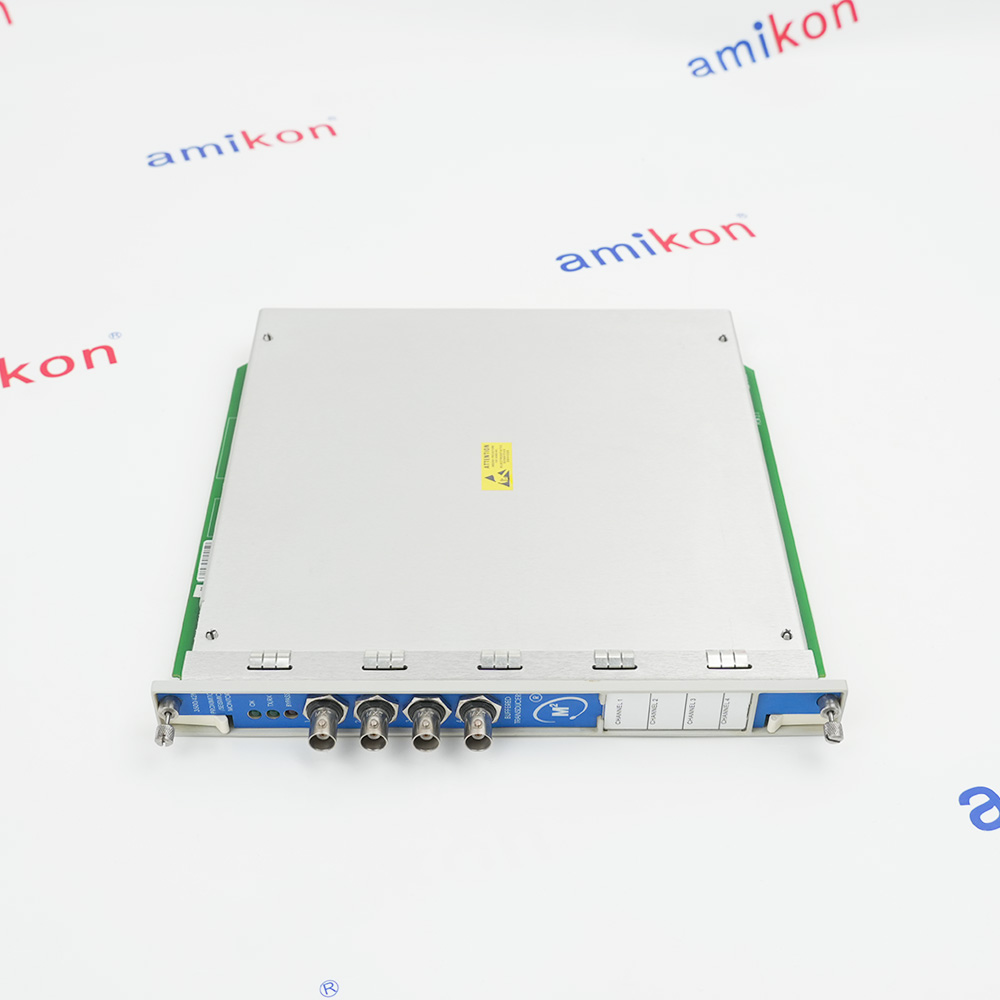

Proximity seismic monitoring module
Bently Nevada 3500/42M 140734-02 is a Proximitor/Seismic monitor. The four-channel monitor conditions proximity and seismic transducer signals for machinery measurements and configured alarms. Channels are programmed in pairs, allowing two selected monitoring functions. Each active channel can generate static values for operators and maintenance personnel within the documented monitoring arrangement.
The historical spare table identifies 140734-02 as the earlier 3500/42M Proximitor/Seismic Monitor. Its documented typical consumption is 7.7 watts. Do not automatically substitute specifications from later spare generations; check the installed I/O, firmware and selected measurement functions before replacement.
The historical spare table identifies 140734-02 as the earlier 3500/42M Proximitor/Seismic Monitor. Its documented typical consumption is 7.7 watts. Do not automatically substitute specifications from later spare generations; check the installed I/O, firmware and selected measurement functions before replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for historical 3500/42M Proximitor/Seismic system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · RADIAL VIBRATION
Configured shaft-vibration channels
The documented monitor accepts proximity-transducer signals for radial vibration measurements. The selected I/O and termination arrangement carry those signals into the correctly configured channel. -
02 · AXIAL POSITION
Thrust-position monitoring
A supported proximity channel can monitor shaft thrust position. The transducer scale, gap and alarm configuration must match the installation, and the interface does not establish them automatically. -
03 · CASING MEASUREMENTS
Acceleration or velocity monitoring
The reference supports selected seismic-transducer measurements. Verify the specific I/O option and channel configuration; not every transducer type is supported by every rear interface.
Technical specifications for 3500/42M 140734-02
-
Product Model3500/42M 140734-02
-
Spare Model140734-02
-
Product ParametersProximity seismic monitoring module
-
In stock3 units
-
ManufacturerBently Nevada
-
Signal channelsFour
-
Accepted transducer signalsProximity, velocity or acceleration
-
Function groupingChannels 1-2 and 3-4 programmed as pairs
-
Typical power consumption7.7 W
-
Standard proximity/acceleration input impedance10 kohm
-
Transducer supply-24 Vdc
-
Front buffered outputsOne short-circuit-protected coaxial output per channel
-
Buffered output impedance550 ohm
-
Recorder output4-20 mA proportional to full scale
-
Recorder load0-600 ohm
-
Recorder update time100 ms or less
-
Recorder resolution0.3662 microampere per bit
-
Status indicatorsOK, TX/RX and Bypass
-
Rack allocationOne full-height front slot
View all additional
Alternative Names
3500/42M 140734 02
3500/42M 140734-02 Proximitor/Seismic monitor
Bently Nevada 3500/42M 140734-02
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
PROXIMITY SEISMIC MONITORING MODULE
Integrating 3500/42M 140734-02
The four-channel monitor conditions proximity and seismic transducer signals for machinery measurements and configured alarms. Channels are programmed in pairs, allowing two selected monitoring functions. Each active channel can generate static values for operators and maintenance personnel within the documented monitoring arrangement.
The historical reference requires 3500/01 software 2.50, 3500/02 software 2.20 and 3500/03 software 1.21 or later for basic operation. Special channel types have additional requirements. External blocks cannot connect to internal-termination I/O, and bussed blocks are reserved for TMR I/O.
Match the exact front monitor generation, rear I/O and field termination. Order the external block and cable separately where required, and configure channels in their documented pairs. Use the applicable monitor manual; source revision and actual delivered firmware are separate facts.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/42M 140734-02 Proximitor/Seismic monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/42M 140734-02 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
The historical reference requires 3500/01 software 2.50, 3500/02 software 2.20 and 3500/03 software 1.21 or later for basic operation. Special channel types have additional requirements. External blocks cannot connect to internal-termination I/O, and bussed blocks are reserved for TMR I/O.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/42M 140734-02 Proximitor/Seismic monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/42M 140734-02 Proximitor/Seismic monitor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.5x25.8x24cm
-
Shipping weight0.85 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/42M 140734-02
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/42M 140734-02 identified?
The historical spare table identifies 140734-02 as the earlier 3500/42M Proximitor/Seismic Monitor. Its documented typical consumption is 7.7 watts. Do not automatically substitute specifications from later spare generations; check the installed I/O, firmware and selected measurement functions before replacement. -
What is the function of this component?
The four-channel monitor conditions proximity and seismic transducer signals for machinery measurements and configured alarms. Channels are programmed in pairs, allowing two selected monitoring functions. Each active channel can generate static values for operators and maintenance personnel within the documented monitoring arrangement. -
Which installed equipment must be matched?
The historical reference requires 3500/01 software 2.50, 3500/02 software 2.20 and 3500/03 software 1.21 or later for basic operation. Special channel types have additional requirements. External blocks cannot connect to internal-termination I/O, and bussed blocks are reserved for TMR I/O. -
Where is this component used?
The documented monitor accepts proximity-transducer signals for radial vibration measurements. The selected I/O and termination arrangement carry those signals into the correctly configured channel. -
What must be checked during installation?
Match the exact front monitor generation, rear I/O and field termination. Order the external block and cable separately where required, and configure channels in their documented pairs. Use the applicable monitor manual; source revision and actual delivered firmware are separate facts. -
Can all four channels be configured independently for unrelated functions?
The historical 3500/42M programs channels in pairs: channels 1-2 perform one function and channels 3-4 another or the same function. Match this grouping to the intended measurements. -
Can a shared spare number guarantee compatibility across generations?
No. Check the front module generation, I/O, firmware and software. This historical reference identifies the earlier spare arrangement; it does not establish unconditional substitution with later hardware.
