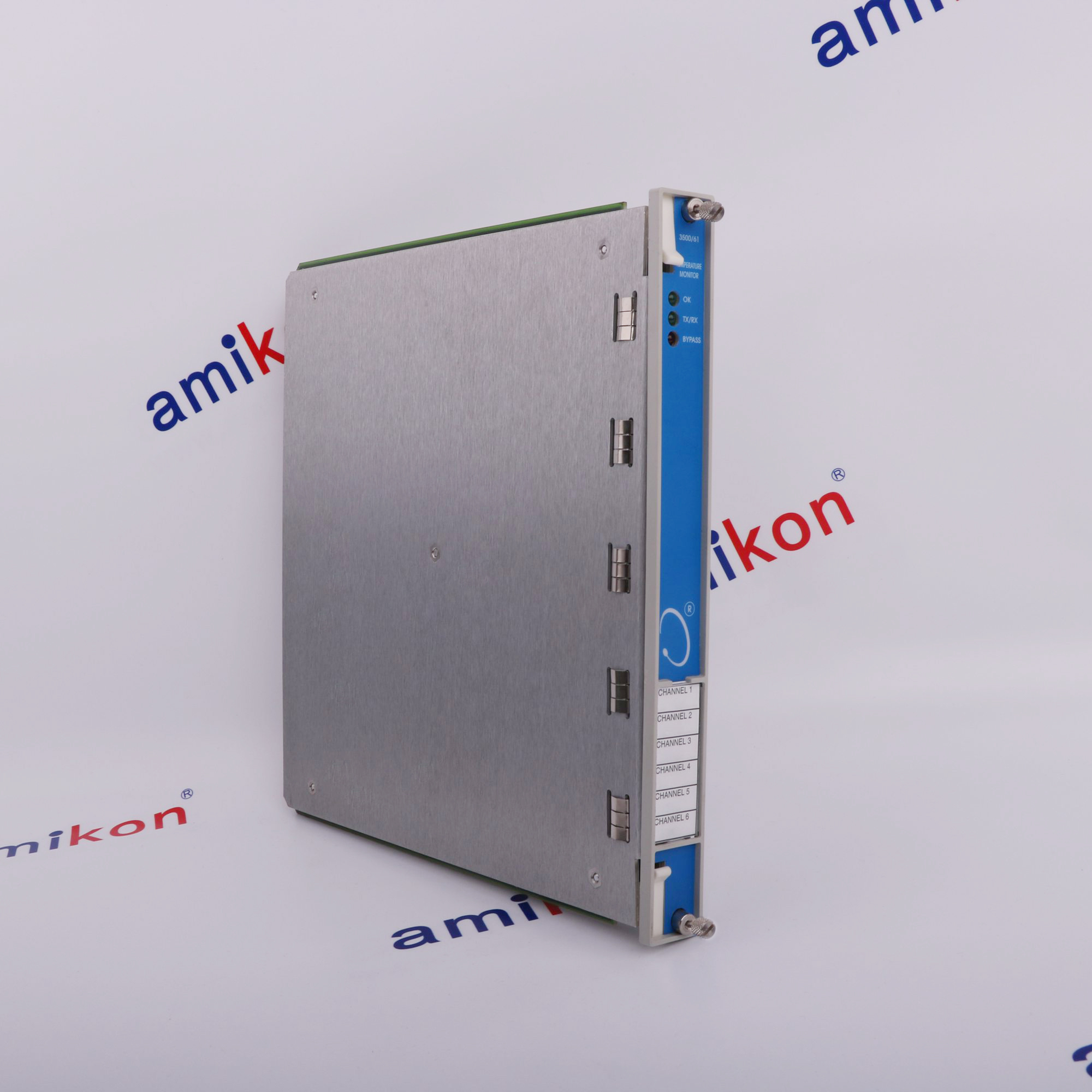

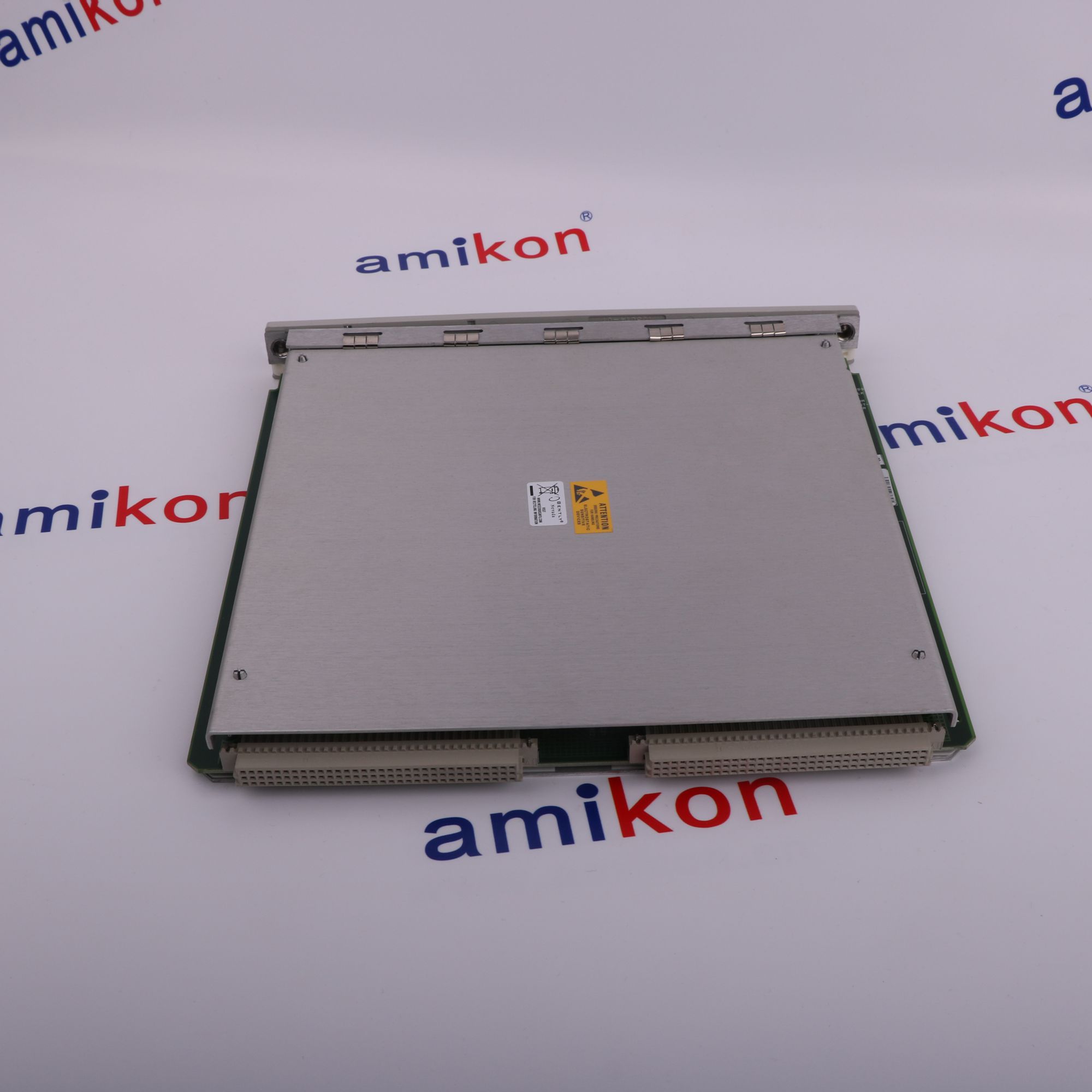

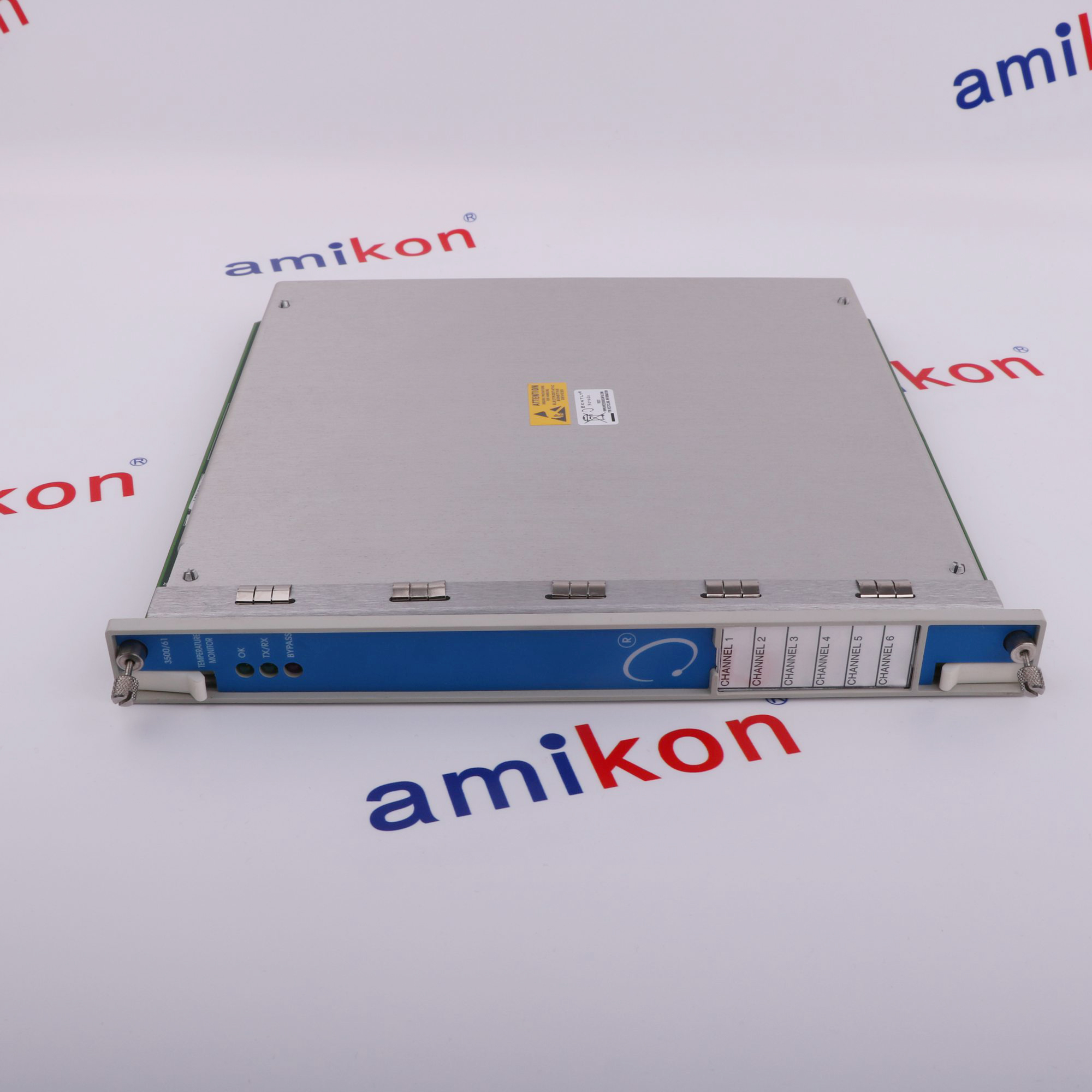

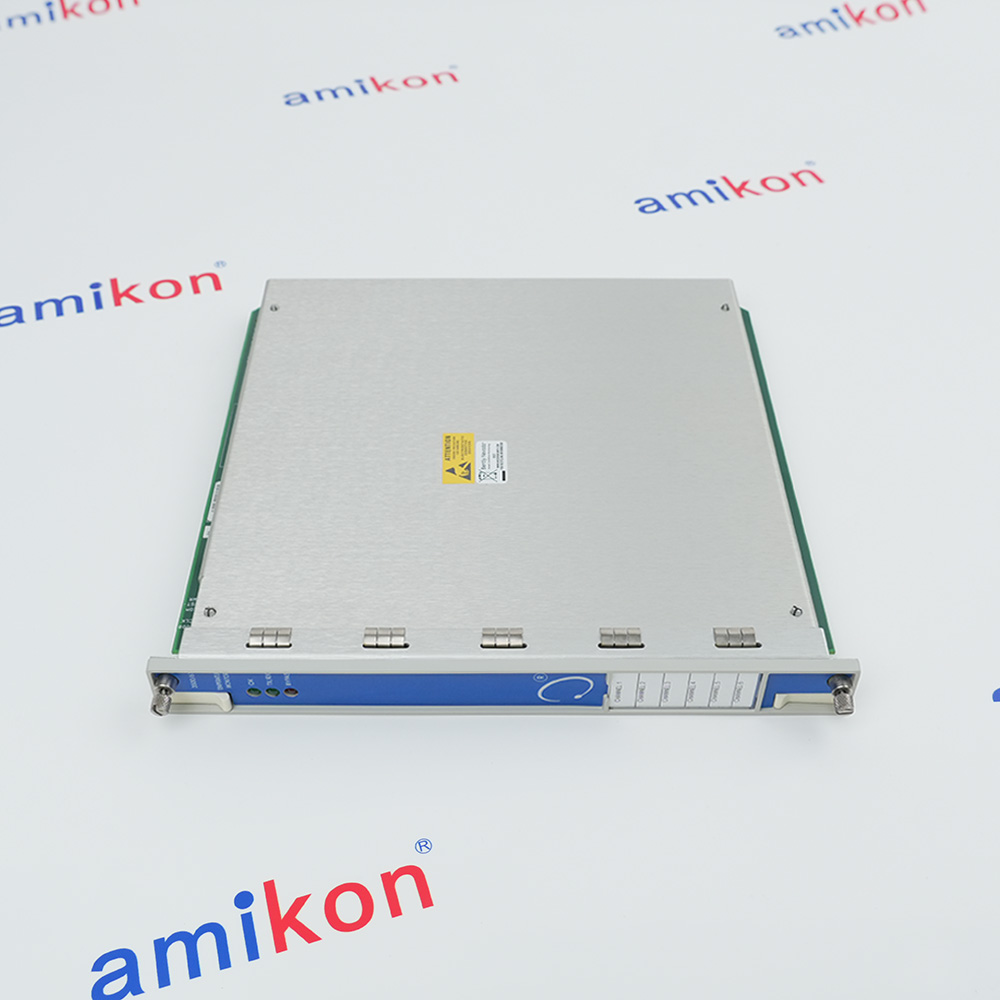

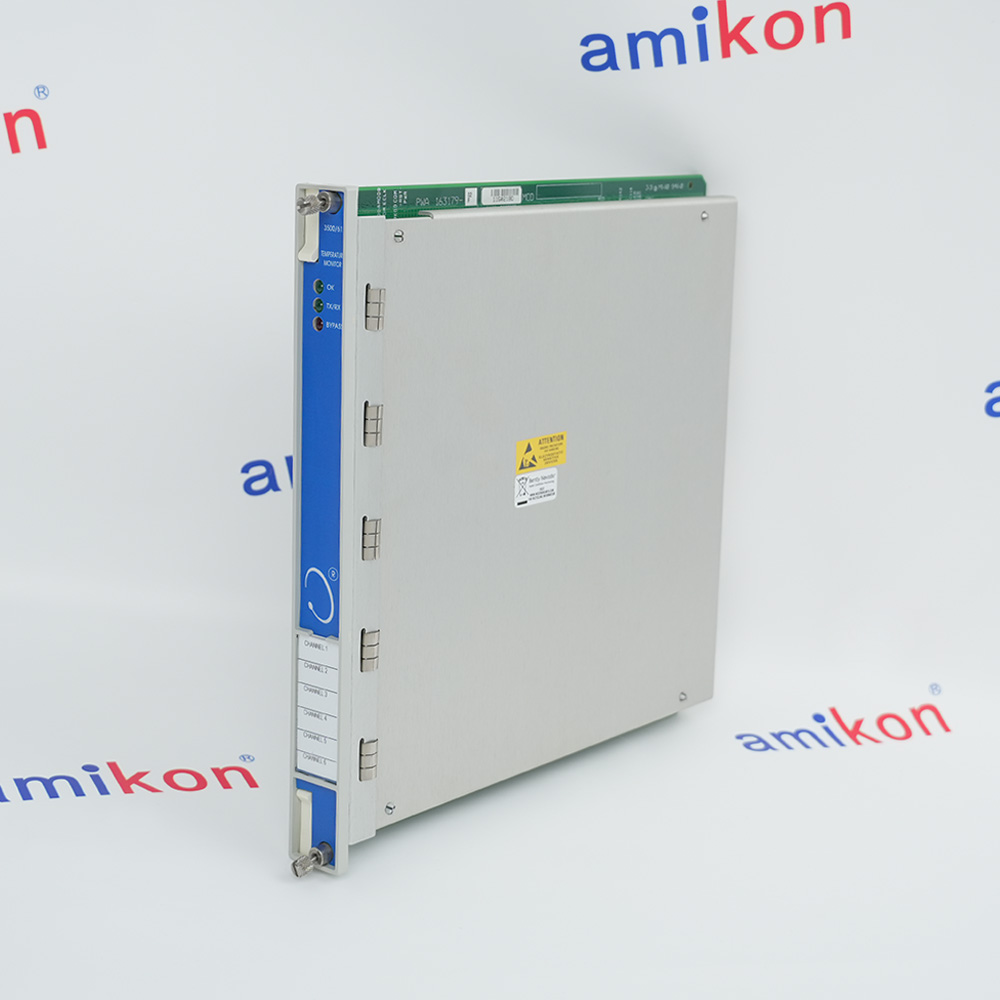

- 3500/61 163179-02
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3500/61 163179-02
-
Product Model3500/61 163179-02
-
Spare Model163179-02
-
Product ParametersTemperature Monitor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.5x25.3x24cm
-
ManufacturerBently Nevada
-
Weight0.8 kg
-
OperatingTemperature-30°C to +65°C(-22°F to +150°F)
-
StorageTemperature-40°C to +85°C(-40°F to +185°F)
-
Humidity95%, non-condensing
-
SignalAccepts from 1 to 6 RTD or TC transducer signals
-
Input Impedance10 MΩ for each lead input
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
Description
350061
TEMPERATURE MONITOR
AVAILABLE
REBUILD SURPLUS
NEW
NEVER USED
REPAIR YOURS
24 HOUR RUSH REPAIR
5-10 DAY REPAIR
2 YEAR RADWELL WARRANTY
TEMPERATURE MONITOR
AVAILABLE
REBUILD SURPLUS
NEW
NEVER USED
REPAIR YOURS
24 HOUR RUSH REPAIR
5-10 DAY REPAIR
2 YEAR RADWELL WARRANTY
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- (6) Channels of Temperature Monitoring
- Ttemperature Inputs: Resistance Temperature Detector (RTD) and Thermocouple (TC)
- Recorder Outputs for each Channel (3500/61)
- RTD/TC Non-Isolated or TC Isolated Versions
The user canconfigure the RTD/TC non-isolated version to accept either TCor RTD, or a mixture of TC and RTD inputs. The TC isolatedversion provides 250 Vdc of channel-to-channel isolation toprotect against external interference.
The 3500/61 163179-02 Bently Nevada Temperature Modules may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/61 163179-02 Temperature Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.
- Steam & Gas Turbines:Monitors speed/phase for rubs, thermal growth & unbalance
- Aeroderivative Gas Turbines:Casing & high-speed core shaft vibration monitoring
- Hydroelectric Turbines:Rotor speed & air gap to keep generator centered
- Centrifugal Compressors:Speed variation detection & auto-shutdown for bearing failure
- Reciprocating Compressors:Rod position, pressure & impulse for valve/piston wear
- Critical Pumps:Reverse rotation & zero-speed monitoring for water/oil
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Bently Nevada 3500/60 and 3500/61 are both six-channel Temperature Monitor modules designed for the 3500 Machinery Protection System. They are highly similar, offering identical core functionality for monitoring temperature inputs from RTDs and thermocouples. The primary difference is that the 3500/61 provides recorder outputs for each channel, whereas the 3500/60 does not.
Functionality: Both modules accept 1 to 6 transducer signals (RTD or TC) and compare them to user-defined alarm setpoints.
Recorder Outputs: The 3500/61 includes 4-20 mA recorder outputs for each channel; the 3500/60 does not.
Power Consumption: The 3500/60 uses 7 watts, while the 3500/61 uses 9 watts.
Isolation: Both offer Isolated TC I/O modules, providing 250 Vdc channel-to-channel isolation to protect against external interference.
TMR Configuration: Both modules support Triple Modular Redundant (TMR) configurations.
FAQs
-
What is the 3500/61 163179-02？
+The Bently Nevada 3500/61 is a 6-channel Temperature Monitor module designed to continuously monitor temperature, providing alarm, protection, and recorder outputs for industrial machinery. It is often used to prevent overheating in critical equipment. -
What is the difference between 3500/61 and 3500/60?
+Both provide six channels for RTD or Thermocouple inputs. However, the 3500/61 includes recorder outputs for each channel, whereas the 3500/60 does not. -
What types of sensors does it support?
+The module accepts both Resistance Temperature Detectors (RTD) and Thermocouples (TC). It can be configured for a mixture of both if using non-isolated I/O modules. -
Can this module be used in a TMR configuration?
+Yes, for Triple Modular Redundant (TMR) applications, temperature monitors must be installed adjacent to each other in groups of three
