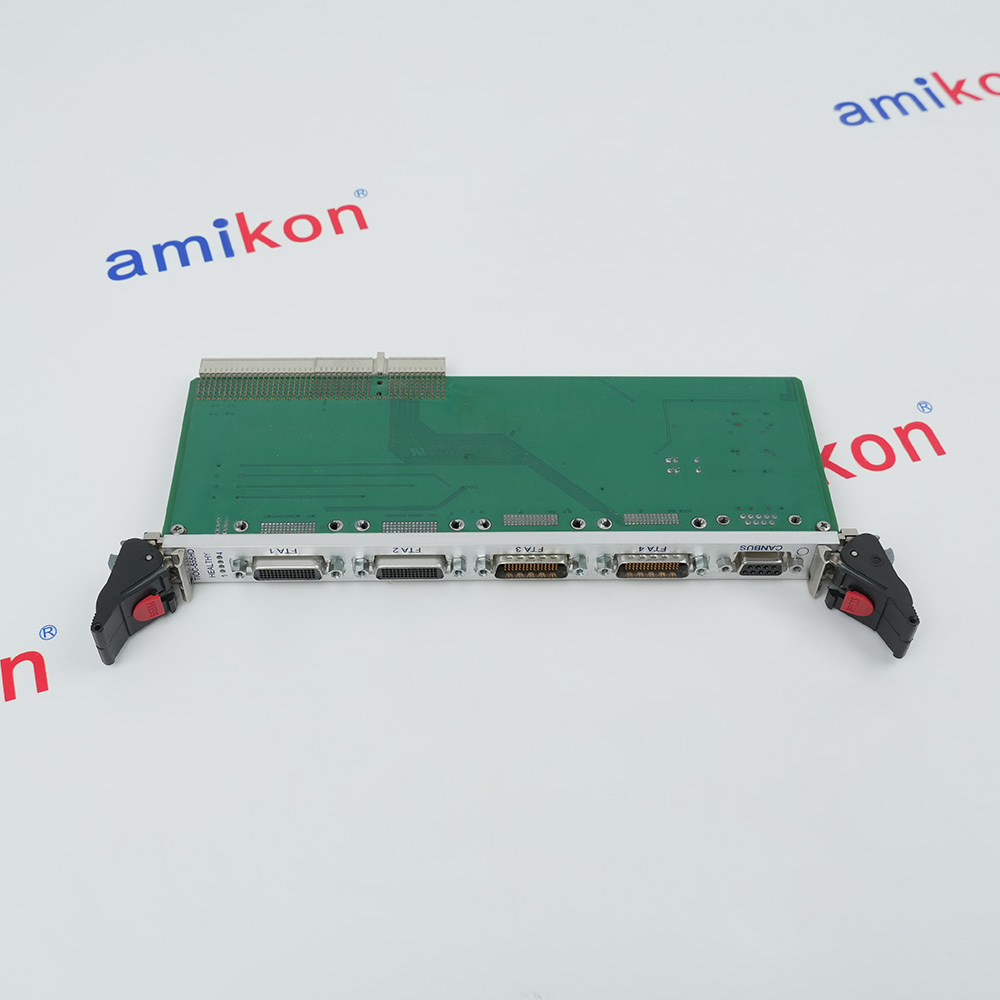

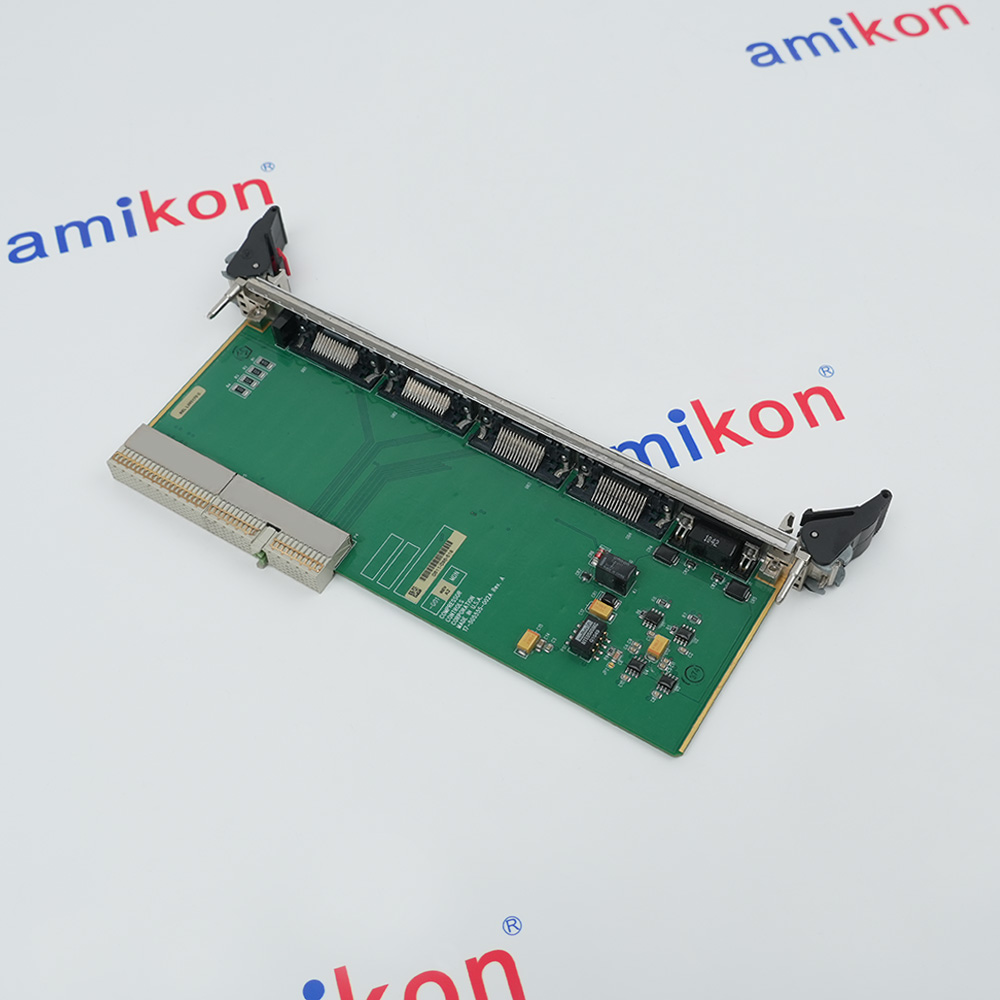

Technical specifications for TIOC-555HD
-
Product ModelTIOC-555HD
-
Product ParametersTRANSITION MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.7x10.2x22.9cm
-
ManufacturerCompressor Controls Corporation
-
Weight0.8 kg
-
Power Supply24V DC
-
Operating Temperature-40°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5% to 95% (non-condensing)
Description
The Compressor Controls Corporation (CCC) TIOC-555HD is a Transition Module designed for use within CCC Series 5 control systems. The module serves as an interface between field wiring and controller I/O assemblies, simplifying signal termination, wiring organization, maintenance, and system replacement procedures. It is commonly deployed in compressor control, turbine control, anti-surge control, and process automation applications where reliable signal routing and high-density field connections are required.
The TIOC-555HD Transition Module provides a structured connection point for analog and digital signals, allowing efficient integration between field devices and CCC control hardware while supporting system diagnostics and maintenance activities.
The TIOC-555HD Transition Module provides a structured connection point for analog and digital signals, allowing efficient integration between field devices and CCC control hardware while supporting system diagnostics and maintenance activities.
Alternative Names
TIOC 555HD
TIOC555HD
TI0C-555HD
T1OC-555HD
TI0C 555HD
T10C 555HD
Information
Overview
Manuals
Application Notes
Product Applications
Physical Module Insertion
Features:
- Centralized field wiring termination
- Simplified I/O signal routing
- Reduced installation complexity
- Supports system maintenance and troubleshooting
- High-density signal termination capability
The transition module simplifies installation and maintenance by separating field wiring from the main control electronics. This arrangement reduces downtime during module replacement and provides a structured wiring architecture for large compressor and turbine control systems. The module supports a wide range of signal types used in process automation environments, including analog measurements, digital status signals, alarms, and control commands.
The TIOC-555HD Compressor Controls Corporation TRANSITION MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Compressor Controls Corporation TIOC-555HD TRANSITION MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The transition module simplifies installation and maintenance by separating field wiring from the main control electronics. This arrangement reduces downtime during module replacement and provides a structured wiring architecture for large compressor and turbine control systems. The module supports a wide range of signal types used in process automation environments, including analog measurements, digital status signals, alarms, and control commands.
The TIOC-555HD is commonly installed in compressor stations, refinery process units, petrochemical facilities, LNG plants, gas processing systems, and power generation applications. Within these systems, the module contributes to reliable signal management, streamlined maintenance procedures, and long-term operational support for critical rotating equipment control platforms.
- Oil and Gas Operations:LNG trains, refining & upstream/midstream/downstream
- Power Generation:Steam/gas turbine governor control & protection
- Industrial Compressors:Anti-surge, load distribution & optimization for CCC
- General Process Control:Metallurgy/petrochemical: safety & downtime reductionn
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Align the Card: Align the TIOC-555HD 3U Eurocard-sized board with the top and bottom chassis guide rails.
Slide Smoothly: Gently slide the module into the slot until the backplane connectors make initial contact.
Seat the Module: Use the front panel injector/ejector handles to firmly press the module completely into the backplane.
Secure Fasteners: Tighten the two front panel retaining screws to secure the card against vibration
Technical notes
The TIOC-555HD is commonly installed in compressor stations, refinery process units, petrochemical facilities, LNG plants, gas processing systems, and power generation applications. Within these systems, the module contributes to reliable signal management, streamlined maintenance procedures, and long-term operational support for critical rotating equipment control platforms.
FAQs
-
What is the TIOC-555HD？
+The Compressor Controls Corporation (CCC) TIOC-555HD (Part No. 17-505555-002A) is a robust Input/Output (I/O) termination card used in Series 5 industrial turbomachinery control systems. -
What is the primary function of the TIOC-555HD?
+It acts as a seamless transition and termination module, relaying signals between field instruments (such as pressure transmitters, temperature sensors, and antisurge valves) and the main CCC Series 5 controller. It bridges the gap between high-voltage/current field devices and the sensitive processor hardware. -
What types of signals does the module support?
+The TIOC-555HD handles a diverse range of industrial process signals, primarily converting and managing both analog (4-20mA, voltage) and discrete/digital signals. -
How does it handle extreme environments?
+The "HD" designation indicates heavy-duty engineering. It handles high vibrations, severe temperatures, and electronic noise common to turbomachinery rooms
