Technical specifications for CDC6-150 220V
-
Product ModelCDC6-150 220V
-
Product Parameters3-pole industrial AC contactor
-
Tariff Code8537101190
-
Country of originWENZHOU
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.2x10.7x3cm
-
ManufacturerDELIXI
-
Weight0.3 kg
-
Control Coil Voltage220 V AC
-
Number of Poles3 (main contacts)
-
Rated Operational Current150 A
-
Motor Power45 kW
-
Rated Insulation Voltage1000 V AC
-
Rated Impulse Withstand Voltage8 kV
-
Conventional Thermal Current (Ith)200 A
-
Operating Time (NO Contact Closing)20 ... 40 ms
-
Operating Time (NO Contact Opening)8 ... 15 ms
Description

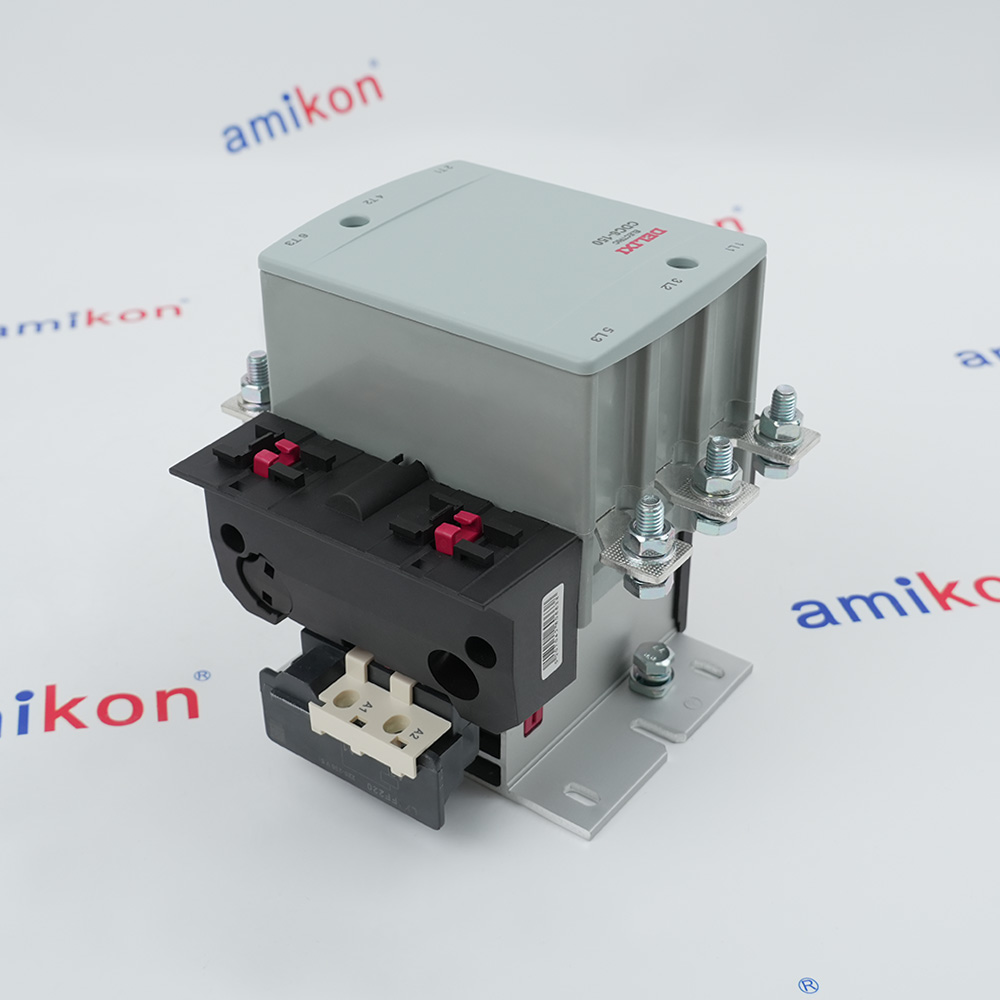

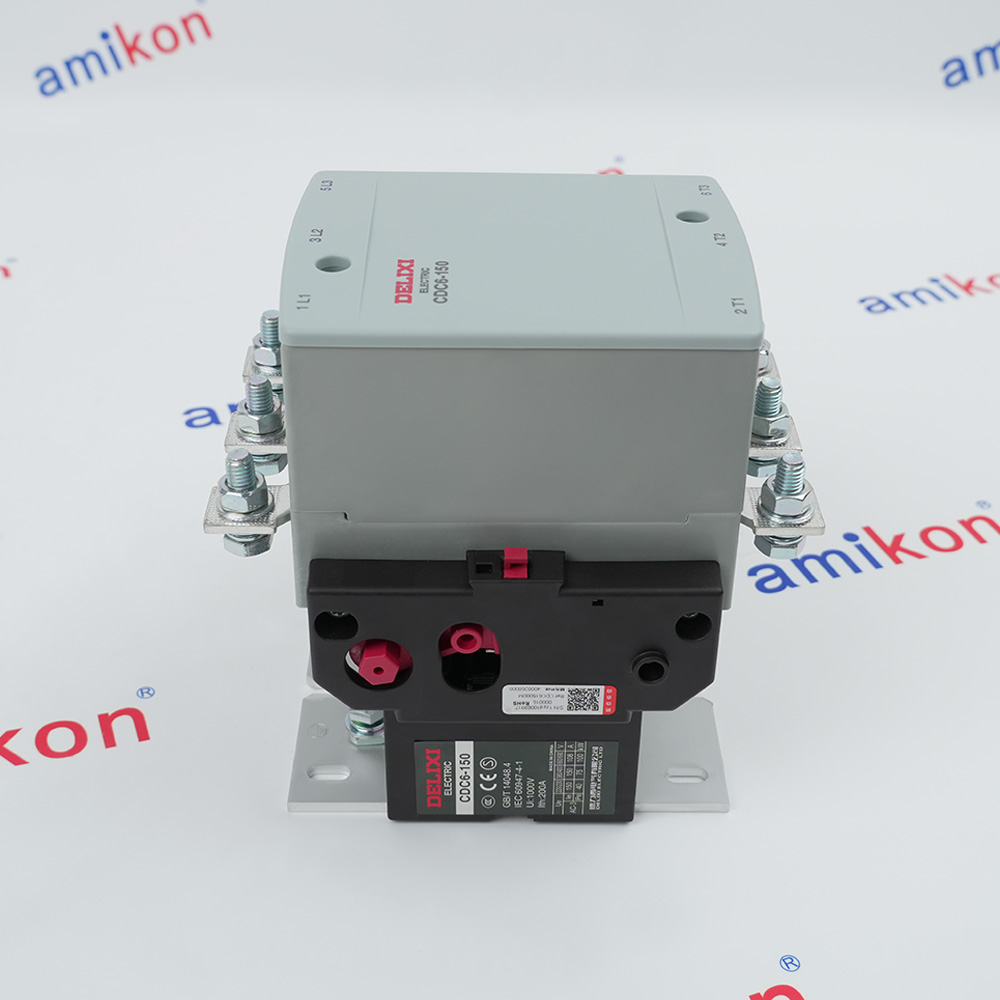

The Delixi CDC6-150 220V is a 3-pole industrial AC contactor from the CDC6 series. It is used for switching AC motors and other AC loads in industrial power distribution and control applications.
The contactor features three main normally open (NO) power contacts rated for 150 A under AC-3 utilization category at 380/400 V AC. The conventional thermal current is 200 A. The rated insulation voltage is 1000 V AC with an impulse withstand voltage of 8 kV.
The control coil operates at 220 V AC (50/60 Hz) with a pick-up voltage range of 0.85 to 1.1 times the rated voltage and a drop-out voltage range of 0.3 to 0.6 times the rated voltage. Coil consumption is 550 VA during inrush and 60 VA / 15 W in the sealed state. Operating times are 20 to 40 ms for NO contact closing and 8 to 15 ms for NO contact opening.
The contactor features three main normally open (NO) power contacts rated for 150 A under AC-3 utilization category at 380/400 V AC. The conventional thermal current is 200 A. The rated insulation voltage is 1000 V AC with an impulse withstand voltage of 8 kV.
The control coil operates at 220 V AC (50/60 Hz) with a pick-up voltage range of 0.85 to 1.1 times the rated voltage and a drop-out voltage range of 0.3 to 0.6 times the rated voltage. Coil consumption is 550 VA during inrush and 60 VA / 15 W in the sealed state. Operating times are 20 to 40 ms for NO contact closing and 8 to 15 ms for NO contact opening.
Alternative Names
CDC6-150/220V
CDC6-150-220V
CDC6-150 22OV
CDC6-15O 220V
CDC6 150 220V
CDC6-I50 220V
Information
Overview
Manuals
Application Notes
Product Applications
Pre-Installation Inspection
Features:
- 150 A AC-3 rated operational current
- 220 VAC control coil
- 3-pole (3NO) main contact configuration
- Suitable for motors up to 100 kW at 690 VAC
- Rated insulation voltage of 1000 V
- Up to 10 million mechanical operations
- IEC 60947-1 and IEC 60947-4-1 compliant
The unit features three normally open main contacts and a 220 VAC control coil. It is designed in accordance with IEC 60947-1 and IEC 60947-4-1 standards, ensuring compatibility with international motor control and low-voltage switching requirements. The contactor supports operational voltages up to 690 VAC and provides an insulation voltage rating of 1000 V for enhanced electrical reliability.
The CDC6-150 220V DELIXI 3-pole industrial AC contactor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
DELIXI CDC6-150 220V 3-pole industrial AC contactor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
For motor control applications, the CDC6-150 can switch motors rated up to 40 kW at 230 VAC, 75 kW at 400 VAC, and 100 kW at 690 VAC under AC-3 operating conditions. Its robust contact system and electromagnetic operating mechanism allow frequent switching while maintaining long service life under demanding industrial conditions.
- Industrial Motor Control:Controls 40kW (240V) / 75kW (400V) AC motors
- Magnetic Starters:CDR6 overload relay: overcurrent & phase failure protection
- Large HVAC & Ventilation Systems:Refrigeration compressors, fans & air handlers
- Water Supply & Pumping Stations:High-volume pumps & wastewater start-stop safety
- Factory Automation & Machinery:Conveyors, production lines & heavy mixers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Check the Coil Voltage: Verify that your control circuit delivers exactly 220V AC. Powering a 220V coil with 110V or 380V will cause failure or burnout.
Inspect for Damage: Ensure the housing has no cracks, the terminal screws turn freely, and the internal contact indicator moves smoothly when pressed manually.
Match Load Ratings: Confirm your motor or load does not exceed 150A under AC-3 operational conditions.
Technical notes
The contactor is capable of controlling motors up to 75 kW at 380/400 V AC, 80 kW at 415 V, 90 kW at 440 V, and 100 kW at 500/660 V under AC-3 conditions. Breaking capacity is 8 times the rated operational current, and making capacity is 10 times the rated operational current.
FAQs
-
What is the CDC6-150？
+The Delixi CDC6-150 is a heavy-duty AC contactor rated for 150 Amps, commonly used to control large motors and industrial circuits. -
Can I use this for my single-phase motor or home appliance?
+The CDC6-150 is typically used for heavy industrial or commercial 3-phase applications. While it handles AC-1/AC-3 loads, using a massive 150A contactor for standard residential appliances is usually overkill unless you are running large compressors or high-draw HVAC systems. -
What thermal overload relay is compatible with it?
+To protect your connected motor from phase failure or overloading, the CDC6-150 is designed to pair seamlessly with the DELIXI CDR6 series (or CDR6i) thermal overload relays to create an integrated electromagnetic starter.
