Technical specifications for VFD007L21A
-
Product ModelVFD007L21A
-
Product ParametersSub-Fractional AC Drive
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.8x12.6x13.1cm
-
ManufacturerDelta Computer Systems
-
Weight0.7 kg
-
SubcategoryAC
-
Nominal Input VAC240 Volts AC
-
HP (CT)1 Horsepower
-
Amps (CT)4.2 Amps
-
Operator ControlsBuilt In
-
Max. Frequency400 Hertz
-
Braking TypeDC Injection
Description

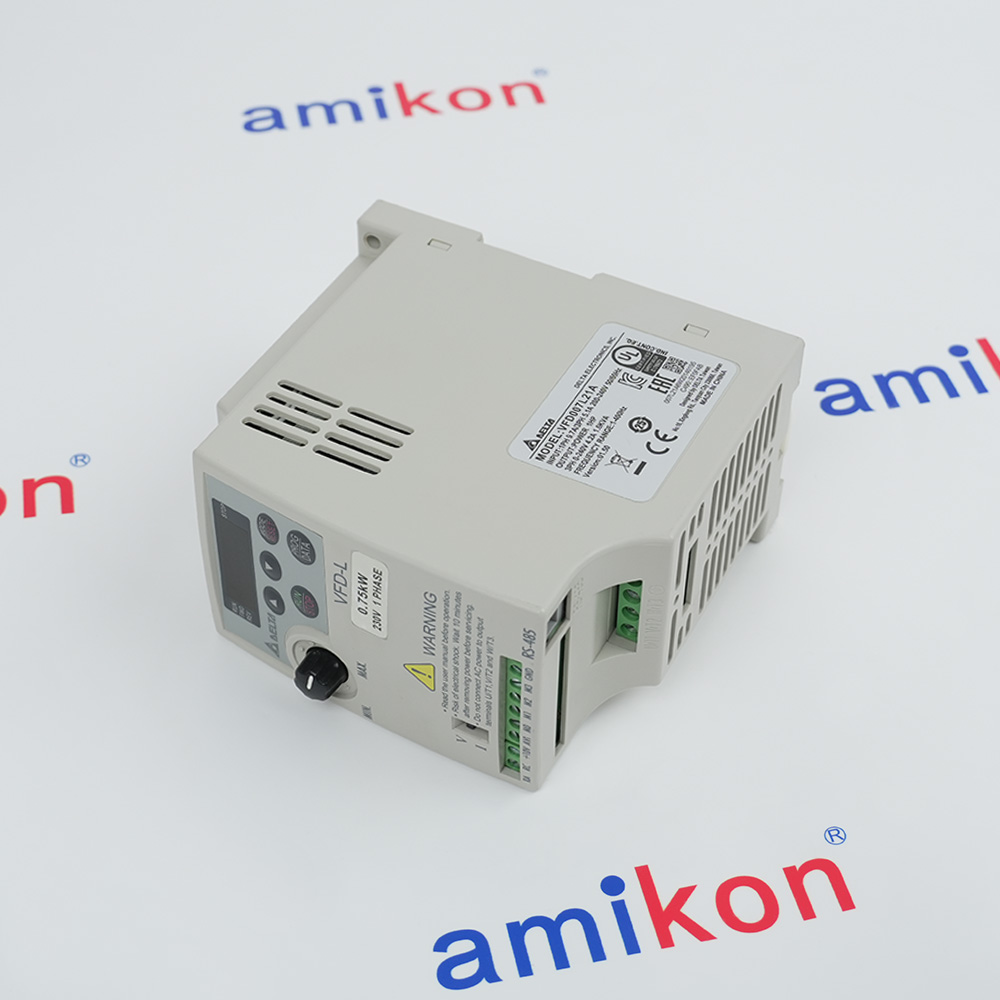

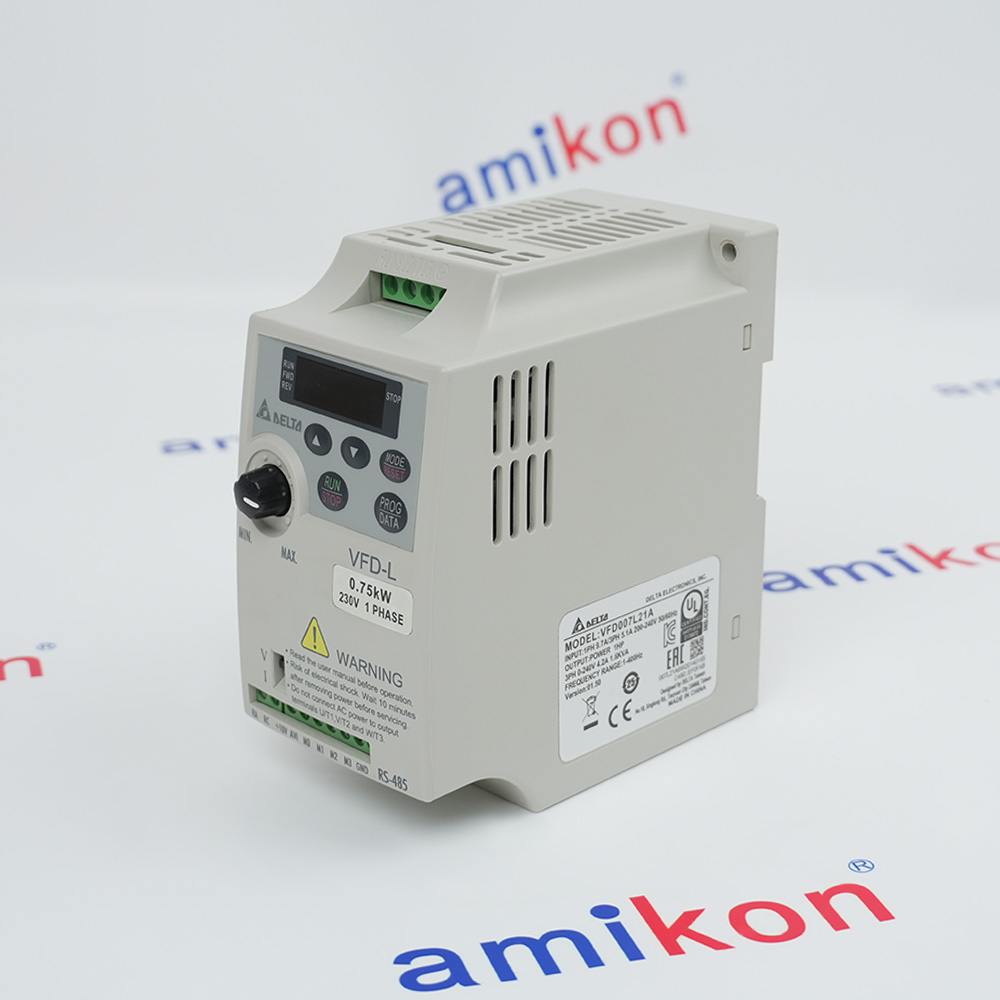

VFD007L21A is a VFD-L Series Simple General Purpose AC Drive designed for 230V single-phase input applications with 0.75kW (1HP) motor capacity, manufactured using high-quality components and incorporating the latest microprocessor technology.
VFD007L21A accepts 230V 1-phase input power at 200-240V 50-60Hz with 9.7A input current, and provides 3-phase output of 0-240V at 4.2A with 1.6kVA capacity and 1HP rating, with an output frequency range of 1.0 to 400Hz for flexible motor speed control.
VFD007L21A features a built-in digital keypad with LED display showing frequency and status information, along with UP/DOWN keys for parameter navigation, MODE/RESET key for mode selection and fault reset, RUN/STOP key for motor control, PROG/DATA key for programming and data confirmation, and a rotary frequency setting knob with MIN/MAX range adjustment.
VFD007L21A accepts 230V 1-phase input power at 200-240V 50-60Hz with 9.7A input current, and provides 3-phase output of 0-240V at 4.2A with 1.6kVA capacity and 1HP rating, with an output frequency range of 1.0 to 400Hz for flexible motor speed control.
VFD007L21A features a built-in digital keypad with LED display showing frequency and status information, along with UP/DOWN keys for parameter navigation, MODE/RESET key for mode selection and fault reset, RUN/STOP key for motor control, PROG/DATA key for programming and data confirmation, and a rotary frequency setting knob with MIN/MAX range adjustment.
Alternative Names
VFDOO7L2IA
VFD0O7L21A
VFO007L21A
VFD 007L21A
Information
Overview
Manuals
Application Notes
Product Applications
Installation Steps and Wiring
Features:
- 16-bit microprocessor controlled SVPWM output
- Low noise;carrier frequency up to 10kHz
- Controlled reversing
- 2 inputs and 1output terminal for external controls
- Adjustable V/Fcurve
- RS-485 communication(Baud rate 9600)
The VFD007L21A Delta AC variable frequency drive (VFD) may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Delta VFD007L21A AC variable frequency drive (VFD) Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Delta VFD007L21A is a compact, general-purpose V/Hz AC drive from the VFD-L series. Rated for 1 HP (0.75 kW), it operates on single-phase 200–240V input and provides three-phase output for precision motor speed and torque control in sub-fractional to small motor applications.Route power wires and control/communication cables separately (preferably at 90-degree angles) to prevent EMI (Electromagnetic Interference).
- Woodworking Machinery: Simple wood cutting saws and carving machines
- Material Handling: Small-scale conveyor belts and sorting lines
- Manufacturing & Textiles: Wire drawing machines and flat knitting machines
- Pumps & Fans: Small-sized air blowers, residential/light commercial fans, and fluid pumps
- Industrial Processing:Stable speed/torque for extruders, compressors & centrifuges
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Install the VFD vertically on a flat, vertical surface using screws to ensure proper heatsink ventilation. Allow sufficient space around the unit for cooling.
Input Power: For the VFD007L21A (1-phase 230V), connect the input power to terminals R/L1 and S/L2.
Motor Output: Connect the 3-phase motor leads to terminals U/T1, V/T2, and W/T3.
Grounding: Ground the VFD unit using the ground terminal (terminal E) to comply with local codes.
Technical notes
VFD007L21A provides multi-function control circuit terminals including digital inputs M0 (Forward/Stop), M1 (Reverse/Stop), M2 (Reset), and M3 (Multi-step 1), all with +18V internal power supply and 4.7kΩ pull-up resistors, plus multi-function relay output contacts RA/RC rated for 120VAC/28VDC at 3A with factory default setting as Fault Indication.
FAQs
-
What is VFD007L21A?
+The Delta VFD007L21A is a 1 HP, 230V single-phase input/three-phase output variable frequency drive (VFD) from the VFD-L series. -
Can I connect a 1-phase motor to the VFD output?
+No. The VFD007L21A outputs 3-phase power. It cannot run a standard 1-phase AC motor. -
How do I change the direction of the motor rotation?
+Switch (swap) any two of the three motor leads connecting to the VFD output -
Does it have built-in communication?
+Yes, it features an RS-485/Modbus RTU interface, allowing you to connect it to PLCs or remote control systems
