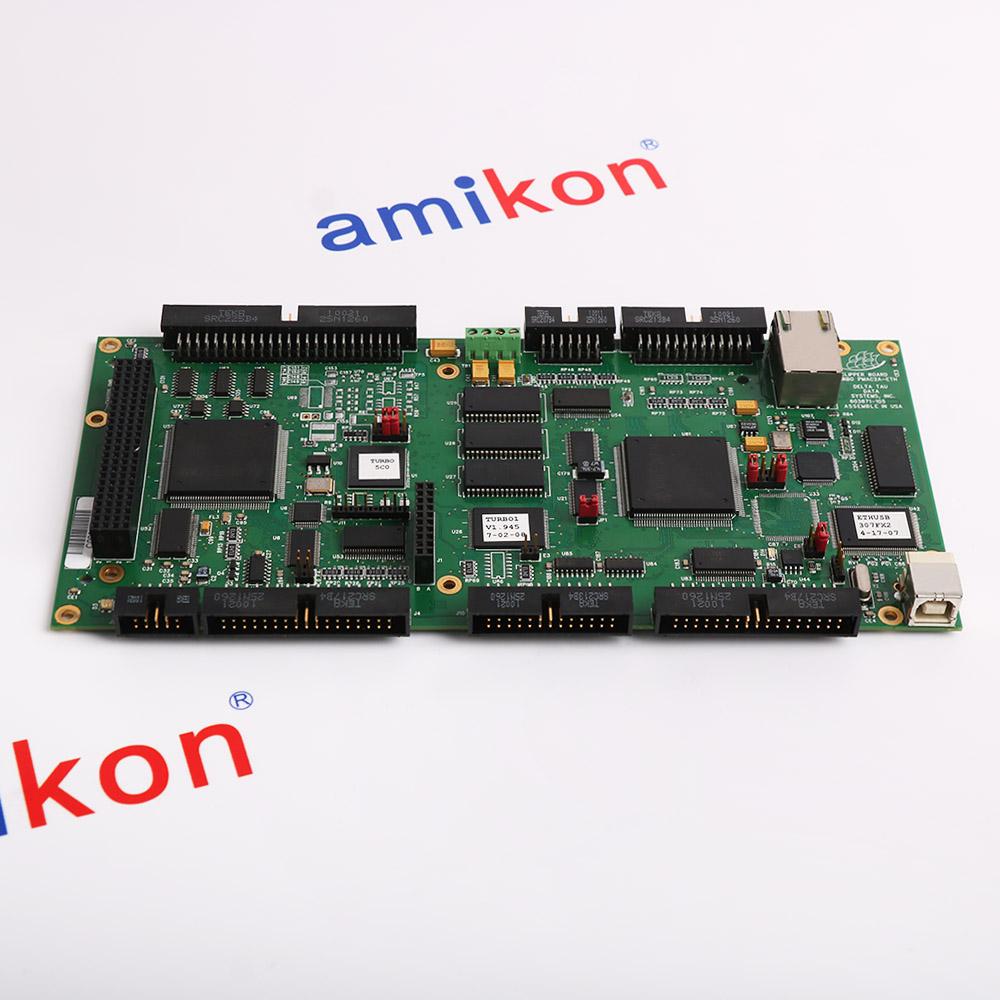

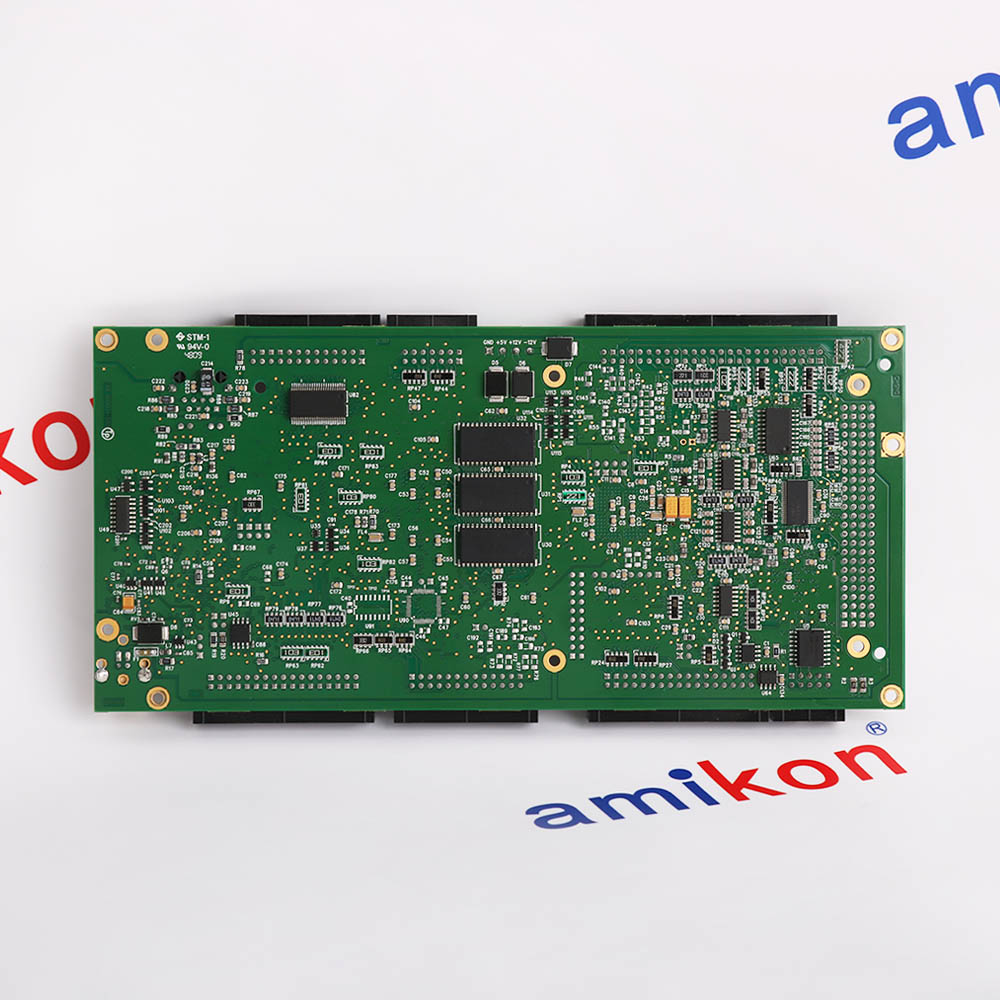

- PMAC2A-ETH 603871-105
In Stock
Ships by Saturday, August 29
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for PMAC2A-ETH 603871-105
-
Product ModelPMAC2A-ETH 603871-105
-
Spare Model603871-105
-
Product ParametersClipper Board Turbo Motion Control Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size22.6x11.3x1.8cm
-
ManufacturerDelta Electronics
-
Weight0.2 kg
-
ManufacturerDelta Tau Data Systems
-
Product FamilyTurbo Clipper
-
Board ModelPMAC2A-ETH
-
Assembly Number603871-105
-
Controller ArchitectureTurbo PMAC2
-
Base Axis Capacity4 servo or stepper axes
-
Axis ExpansionAcc-1P stackable expansion support
-
Host CommunicationsEthernet, USB and RS-232
-
Motor I/O5 motor inputs and 2 motor outputs
-
General-Purpose I/O32 digital I/O points
Description
DELTA PMAC2A-ETH 603871-105 is a Turbo Clipper PMAC2A-Ethernet controller board designed for compact machine-control installations. The controller combines multi-axis motion processing with motor-interface signals and general-purpose digital I/O, allowing independent or coordinated servo and stepper operation.
The board supports host communication through Ethernet, USB and RS-232 interfaces and is configured with Delta Tau PMAC software tools. Before replacement, verify the exact assembly number 603871-105, board revision, option configuration, connector assignments, power requirements and saved PMAC parameters against the installed controller.
Information
Overview
Manuals
Product Applications
Hardware Setup & Connections
Features:
- Four-axis base servo or stepper motion control
- Independent or coordinated multi-axis operation
- Ethernet, USB and RS-232 host communications
- Motor-interface signals and 32 digital I/O points
- Stackable expansion support for additional axes and interfaces
The 603871-105 assembly provides a four-axis base configuration for servo or stepper operation, with Ethernet, USB and RS-232 communication interfaces. PMAC programs, I-variables and coordinate definitions determine the installed machine behavior and should be backed up before replacement.
PMAC2A-ETH 603871-105 Delta Tau Data Systems: Confirm the exact assembly number, printed board revision, installed options, connector layout, power requirements and saved PMAC parameters before replacement.
DELTA PMAC2A-ETH 603871-105 Turbo Clipper Motion Controller Manuals, Datasheets, Official Documents, LinksImportant Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
- Coordinated servo-axis control in multi-axis machinery
- Stepper-axis positioning in automated equipment
- Electronic gearing and synchronized motion functions
- Machine I/O sequencing with PMAC motion programs
PMAC2A-ETH 603871-105 is a machine motion-control board, not a complete drive system. Application requires compatible motors, amplifiers, feedback devices, power, wiring and a verified PMAC machine program.
Power and mounting: Install the Clipper board on suitable stand-offs and apply the specified controller power through the designated terminal block. Verify the installed board revision and expansion stack before energizing the system.
Host communications: Ethernet, USB and RS-232 interfaces support controller configuration and programming. Preserve the existing IP address, serial settings and PMAC device configuration when replacing an installed board.
Machine interface: Confirm motor connectors, encoder inputs, amplifier enable and fault signals, limit and home inputs, digital I/O direction settings and accessory-board connections against the machine drawings.
Alternative Names
DELTA PMAC2A-ETH
Delta Tau PMAC2A-ETH
PMAC2A-ETH 603871-105
603871-105 Turbo Clipper
Turbo Clipper PMAC2A-Ethernet
Delta Tau 603871-105 Controller Board
Technical notes
Confirm assembly number 603871-105 and the installed board revision before replacement. Back up PMAC programs, I-variables, coordinate definitions and communication settings before removing the controller. Apply power and connect machine I/O only according to the Turbo PMAC Clipper hardware reference.
FAQs
-
What is the DELTA PMAC2A-ETH 603871-105?
+It is a Delta Tau Turbo Clipper PMAC2A-Ethernet multi-axis motion controller board. -
How many axes does the base controller support?
+The base Clipper configuration provides four servo or stepper axes; additional axes depend on installed expansion hardware and options. -
Which host communication interfaces are provided?
+The hardware reference describes Ethernet, USB and RS-232 host communication interfaces. -
Can the controller operate servo and stepper axes?
+Yes. Axes may operate independently or in coordinated motion, subject to the installed machine interface and PMAC configuration. -
What must be backed up before replacement?
+Back up PMAC programs, I-variables, coordinate-system definitions, communication settings and other saved parameters. -
Is 603871-105 interchangeable with every PMAC2A-ETH revision?
+No. Confirm the exact assembly number, board revision, options, connectors and firmware requirements before replacement.
