PRODUCT DESCRIPTION

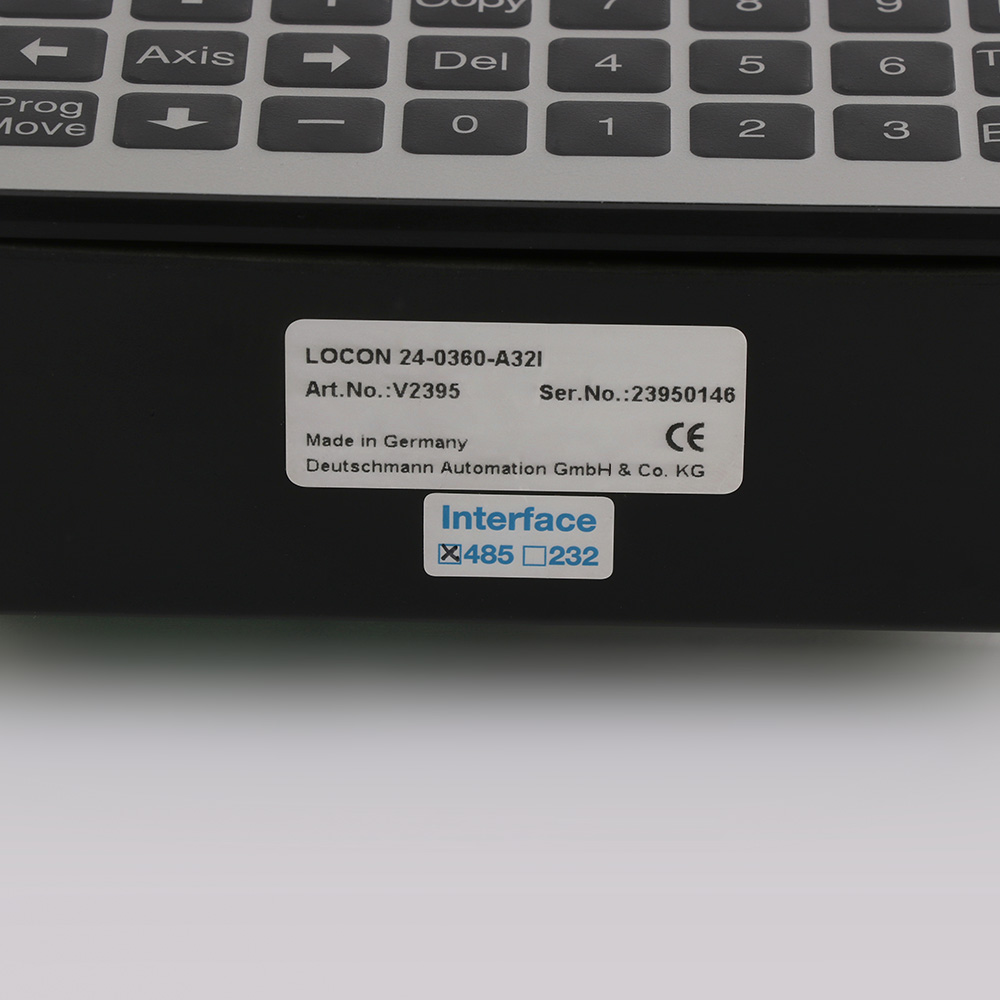

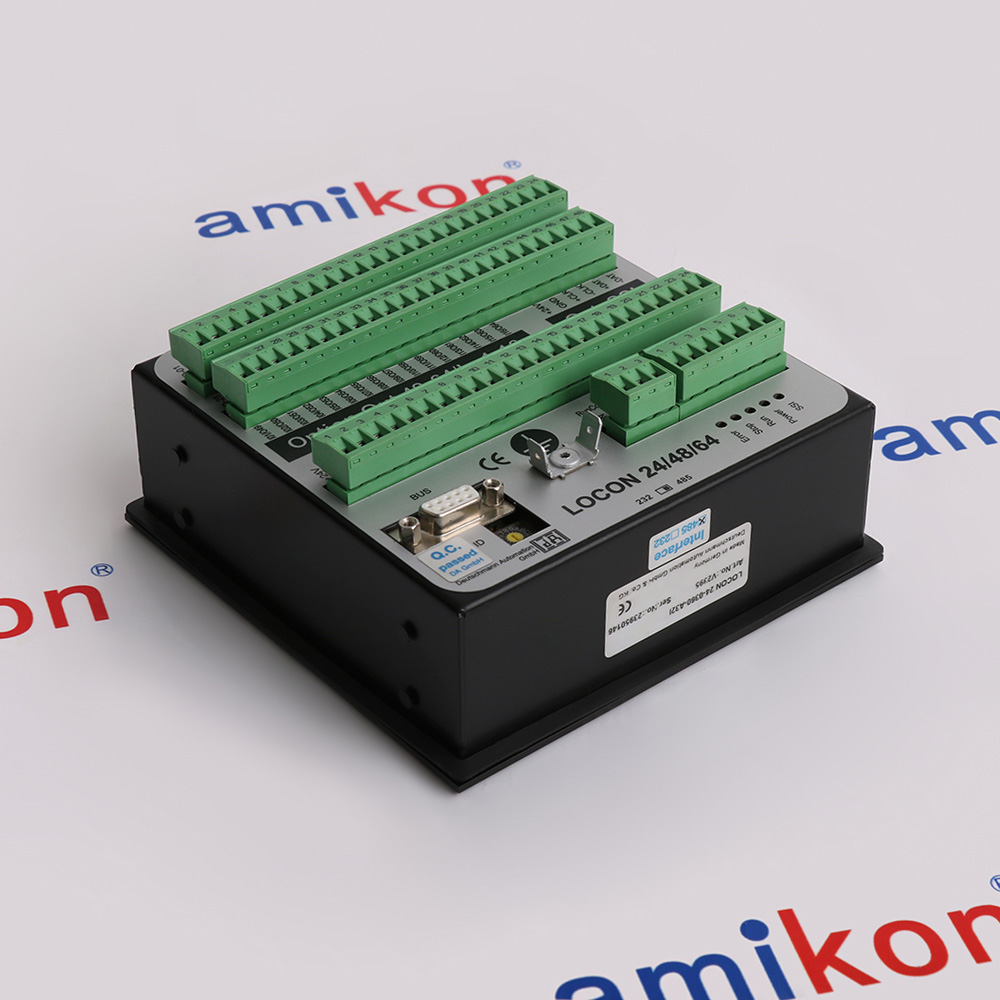

LOCON 24-0360-A32I 32-Output Electronic Cam Controller
Deutschmann Automation LOCON 24-0360-A32I is an electronic cam controller for position-dependent industrial sequencing. The manufacturer order-code definitions identify a parallel absolute encoder with 360 information steps per revolution, 32 outputs and bitwise idle-time compensation.
The compact controller combines an integrated operator panel, cam-program memory, protected positive-switching outputs and selectable serial communication. Its 24 V DC supply, output-group current limits and encoder configuration must be matched to the machine; the I option denotes bitwise compensation rather than an incremental encoder.
The compact controller combines an integrated operator panel, cam-program memory, protected positive-switching outputs and selectable serial communication. Its 24 V DC supply, output-group current limits and encoder configuration must be matched to the machine; the I option denotes bitwise compensation rather than an incremental encoder.
BEFORE YOU BUY
Confirm the complete 32-output electronic cam controller
ACTUAL APPLICATIONS
Application context for LOCON 24-0360-A32I
LOCON 24-0360-A32I provides position-dependent sequencing in compatible industrial machinery. Typical contexts include packaging, material processing and manufacturing. Encoder resolution, programmed cam windows and output-load limits determine the configured machine behavior.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Assembly
Industrial Product ManufacturingIndustrial Assembly Production -
02 · PACKAGING
Packaging and Consumer Goods Production
Consumer Goods PackagingFood and Beverage Packaging -
03 · MATERIAL PROCESSING
Industrial Material Production and Metal Processing
Industrial Material ProcessingMetal Fabrication and Processing
Technical specifications for LOCON 24-0360-A32I
-
Product ModelLOCON 24-0360-A32I
-
Product Parameters32-Output Electronic Cam Controller
-
In stock4 units
-
ManufacturerDeutsmann Automation
-
Operating voltage24 V DC ±20%
-
No-load currentMaximum 0.2 A, outputs off
-
Output channels32, A32 option
-
Output rating per channel24 V DC / 0.3 A, positive switching
-
Combined current per 8 outputsMaximum 1 A
-
Encoder configurationParallel absolute encoder, 360 information steps/revolution
-
Encoder signal input count13
-
Program selection inputs6
-
Program-change inputs1
-
Program-release inputs1
-
Selectable programs64
-
Standard cam records1000
-
EEPROM retentionAt least 100 years
-
Bitwise compensation cycle300 µs
-
Communication interfaceRS-232 / RS-485 DICNET, switchable
View all additional
Alternative Names
LOCON 24-0360-A32I
LOCON 24 32-Output Electronic Cam Controller
32-Output Electronic Cam Controller LOCON
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate LOCON 24-0360-A32I 32-output electronic cam controller
Match LOCON 24-0360-A32I and the 360-step parallel absolute encoder. Decode A32 as 32 outputs and I as bitwise idle-time compensation.
Allocate the 24 V DC supply, program-selection inputs and serial interface. Check individual output currents and the 1 A combined limit for each group of eight outputs.
Verify encoder direction, zero point, cam windows and compensation under the documented machine test procedure. Archive the accepted cam program and wiring configuration.
Features:
- 360-step parallel absolute encoder configuration
- 32 positive-switching cam outputs
- Bitwise idle-time compensation and program selection
The LOCON 24-0360-A32I 32-output electronic cam controller requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify LOCON 24-0360-A32I 32-output electronic cam controller
Compare the complete 0360-A32I code rather than a generic LOCON 24 label. Encoder and compensation options affect replacement suitability.
Record the cam programs, zero point, output assignments and RS-232/RS-485 configuration. Preserve the encoder and program-selection wiring.
After fitting, restore the verified program and test cam switching and compensation at permitted machine speeds. Check output loading and diagnostics before production.
Features:
- Complete 0360-A32I option-code comparison
- Archived cam programs and encoder zero point
- Output-group loading and timed-switching checks
The LOCON 24-0360-A32I 32-output electronic cam controller requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Deutschmann English LOCON 24 V8.9 manual
- A32 and I manufacturer option definitions
- Supply, cam memory and output-current limits
Documentation for the LOCON 24-0360-A32I 32-output electronic cam controller must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size14.3 × 14.3 × 6.3cm
-
Shipping weight0.80kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about LOCON 24-0360-A32I
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does the I suffix of LOCON 24-0360-A32I denote an incremental encoder?
No. The manufacturer option table defines I as bitwise idle-time compensation. 0360 denotes a parallel absolute encoder with 360 information steps per revolution. -
How many outputs does A32 specify?
The A32 option extends LOCON 24 to 32 outputs. -
What supply does this cam controller require?
The technical data lists 24 V DC ±20%, with a maximum 0.2 A current when the outputs are off. -
What limits apply to a group of eight cam outputs?
Each output is rated 24 V/0.3 A, but the combined current of eight associated outputs must not exceed 1 A. -
How many programs and standard cam records are provided?
The standard technical data lists 64 programs and 1000 cam records, distributable among channels and programs. -
What cycle time is listed for bitwise compensation?
The English manual lists 300 µs with bitwise idle-time compensation. Other compensation modes have different cycle times. -
Which encoder and compensation codes identify the required cam-control spare?
Provide LOCON 24-0360-A32I, the 360-step parallel absolute encoder, 32-output arrangement, bitwise compensation and saved cam-program requirements. -
Which cam-controller front-panel and output connections matter at incoming inspection?
Inspect the operator panel, labels and screw-plug connectors. Compare encoder/program-selection wiring, output allocation and the archived cam program before fitting.
