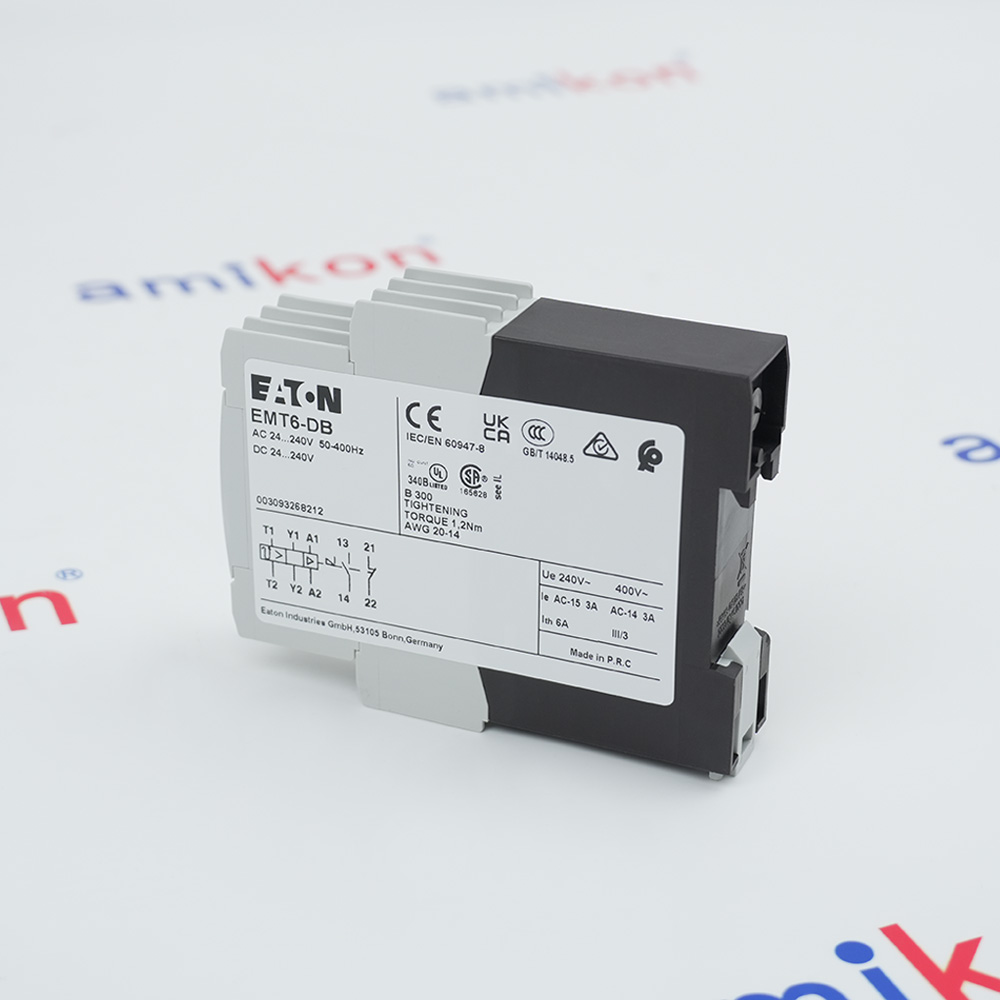

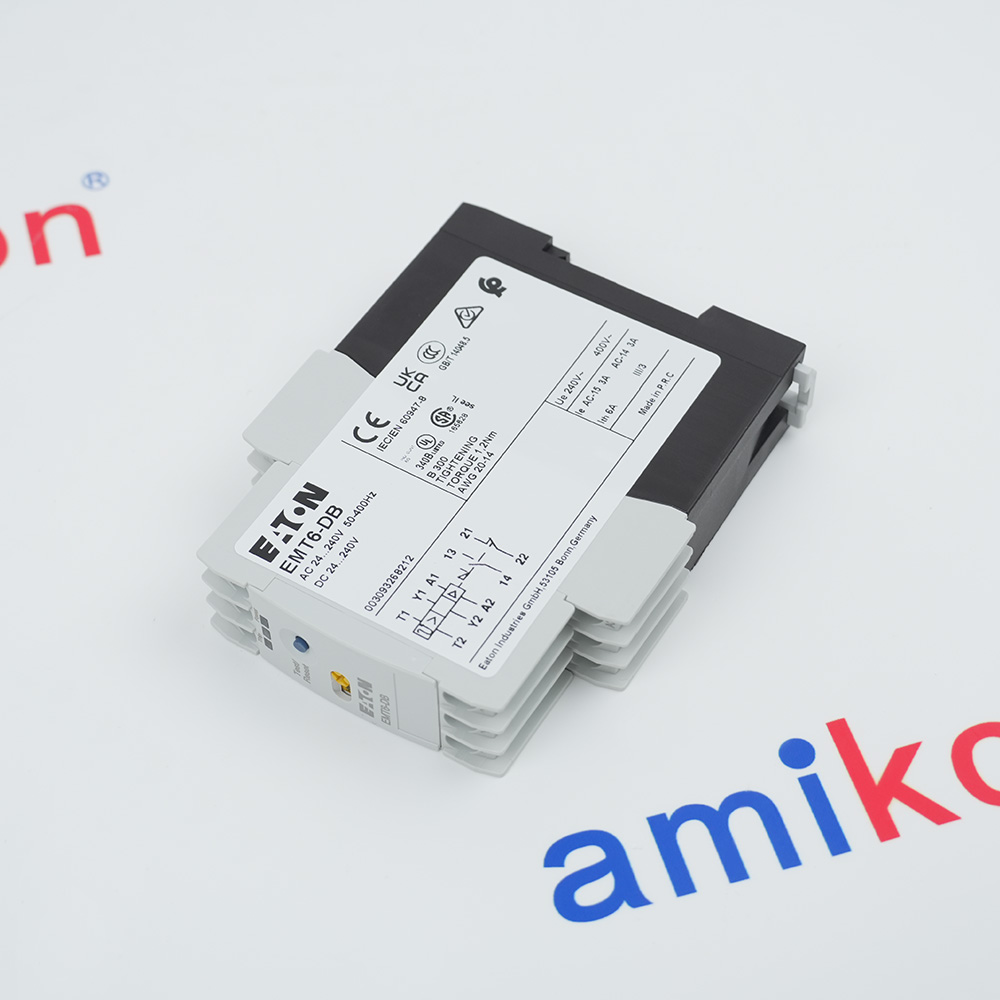

- EMT6-DB 066401
In Stock
Ships by Saturday, July 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for EMT6-DB 066401
-
Product ModelEMT6-DB 066401
-
Spare ModelEMT6-DB
-
Product ParametersThermistor overload relay
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.2x10.3x8.3cm
-
ManufacturerEATON
-
Weight0.15 kg
-
Air discharge8 kV
-
Electric connection typeScrew connection
-
Pollution degree3
-
Power consumption3.5 VA at AC 2 W at DC
-
Rated impulse withstand voltage (Uimp)4000 V AC 6000 V AC
-
Ambient operating temperature - max60 °C
-
Ambient operating temperature - min-25 °C
-
Ambient operating temperature (enclosed) - max45 °C
-
Ambient operating temperature (enclosed) - min-25 °C
-
Ambient storage temperature - max85 °C
-
Ambient storage temperature - min-45 °C
-
Rated control supply voltage (Us) at AC, 50 Hz - max230 V
Description
The EATON EMT6-DB (part number 066401) is a thermistor overload relay designed for machine protection in industrial motor control applications. The EMT6-DB monitors thermistor sensors used for temperature monitoring and switches off the power relay in the event of overtemperature in the machinery, providing direct temperature-based protection that complements current-dependent overload relays
The EMT6-DB supports both automatic and manual reset methods, with additional features including remote reset capability, a test button for functional verification, and a selector switch for MANUAL/AUTO reset configuration. The EMT6-DB also provides short-circuit recognition in the sensor circuit, ensuring reliable fault detection. When using the EMT6-DB, a current monitor must be used in the thermistor circuit to monitor short-circuits, as the EMT6-DB does not include built-in short-circuit monitoring.
The EMT6-DB operates with a 230V AC control supply voltage at 50/60 Hz, with an operating voltage range of 0.85 to 1.1 times the rated voltage. The power consumption of the EMT6-DB is approximately 3.5 VA at AC. The EMT6-DB provides 1 normally open and 1 normally closed auxiliary contact with a rated contact current of 3A at AC-15, 220-240V, and a rated contact voltage of 400V AC, enabling reliable integration into motor control circuits.
Alternative Names
EMT6-DB 06640I
EMT6-DB 0664O1
EMT6-DB O66401
EMT6-D8 066401
EMT6 DB 066401
EMT6DB 066401
EMT6 DB 06640I
EMT6 DB 0664O1
EMT6 DB O66401
EMT6DB 066401
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- Thermistor-Based Direct Temperature Monitoring for Machine Protection
- Automatic and Manual Reset Functionality
- Short-Circuit Recognition in the Sensor Circuit
- 230V AC Control Supply Voltage (50/60 Hz)
- 1 Normally Open + 1 Normally Closed Auxiliary Contacts (3A Rating)
The relay operates from a fixed 230 V AC control supply voltage at 50/60 Hz. It continuously monitors the resistance of a single thermistor measuring circuit across a range of 750 to 12,000 Ω. When the motor temperature exceeds the thermistor's rated response temperature, the resistance increases sharply. The relay trips at approximately 3,600 Ω, opening the normally closed contact and closing the normally open contact to signal the fault condition. The relay resets at approximately 1,600 Ω once the thermistor cools down.
The EMT6-DB 066401 EATON Thermistor overload relay may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
EATON EMT6-DB 066401 Thermistor overload relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The relay provides one normally open contact and one normally closed contact, each rated for a conventional thermal current of 6 A. The contacts are suitable for AC-14 and AC-15 load categories at various voltage levels, with ratings from 1 A at 380/400/415 V AC-15 to 3 A at 220/230/240 V AC-15. Short-circuit protection is provided by a maximum 6 A gG/gL fuse on the contact circuit.
Front panel features include a mains power LED, a fault LED, a separate test button for functional verification, and provisions for external reset. The test button allows operators to verify relay operation without waiting for an actual over-temperature event.
The EMT6-DB mounts on a standard 35 mm DIN rail (IEC/EN 60715) in any orientation.
- Manufacturing/Machine Building: Protects processing lines from unexpected motor failures
- Process Automation/Chemical: Provides stable monitoring for continuous uptime in automated plants
- Water/Wastewater: Prevents overheating in pumps and heavy-duty fluid handling equipment
- Material Handling: Prevents motor burnouts in conveyors, cranes, and sorting systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Assembly: Snap fit the device onto a standard 35 mm top-hat DIN rail (complying with IEC/EN 60715).
Mounting Position: The relay can be mounted in any orientation (as required).Ventilation Clearance: Maintain sufficient cooling clearance around the enclosure.
Environment Constraints: Only install the unit in a pollution degree 2 environment with surrounding air temperatures under 40°C (up to 60°C under restricted operating conditions).
Technical notes
The EMT6-DB features compact dimensions of 23mm width, 103mm depth, and 83mm height, with a weight of approximately 0.132 kg. The EMT6-DB is designed for DIN rail mounting and operates in an ambient temperature range of -25°C to +60°C (or -25°C to +45°C in enclosed installations). The EMT6-DB carries IP20 protection rating and is finger and back-of-hand proof according to EN 50274, ensuring safe operation in industrial control panels.
FAQs
-
What is the EMT6-DB?
+The EATON EMT6-DB (Part No. 066401) is a thermistor overload relay from the Eaton Moeller series designed to protect machinery and motors from overheating. -
What does the DB in EMT6-DBs mean?
+The DB signifies that this specific model include a manual reset lock function. -
What happens when a fault is detected?
+When the thermistor detects an over-temperature, the relay trips and switches off the connected power relay to stop the machine. The fault LED will illuminate. -
What are the contact ratings?
+It features 1 NO (Make) and 1 NC (Break) auxiliary contacts with a current rating of 3A and maximum contact voltage rating of 400V AC.
