Technical specifications for MTL5573
-
Product ModelMTL5573
-
Product ParametersMTL 5500 Temperature Converter
-
Country of originNot confirmed in official Eaton documents
-
Estimated Shipping SizeNot published by manufacturer
-
ManufacturerEATON
-
Product familyMTL 5500
-
Product typeTemperature Converter
-
Number of channelsOne
-
Signal inputsThermocouple, mV, 2-/3-/4-wire RTD
-
Output range4 to 20 mA nominal into 600 ohm max.
-
Supply voltage20 to 35 V dc
-
Response time500 ms typical
-
ConfigurationPCS45 software with PCL45USB interface
-
Signal source locationZone 0 IIC / Division 1 Groups A-D
Description

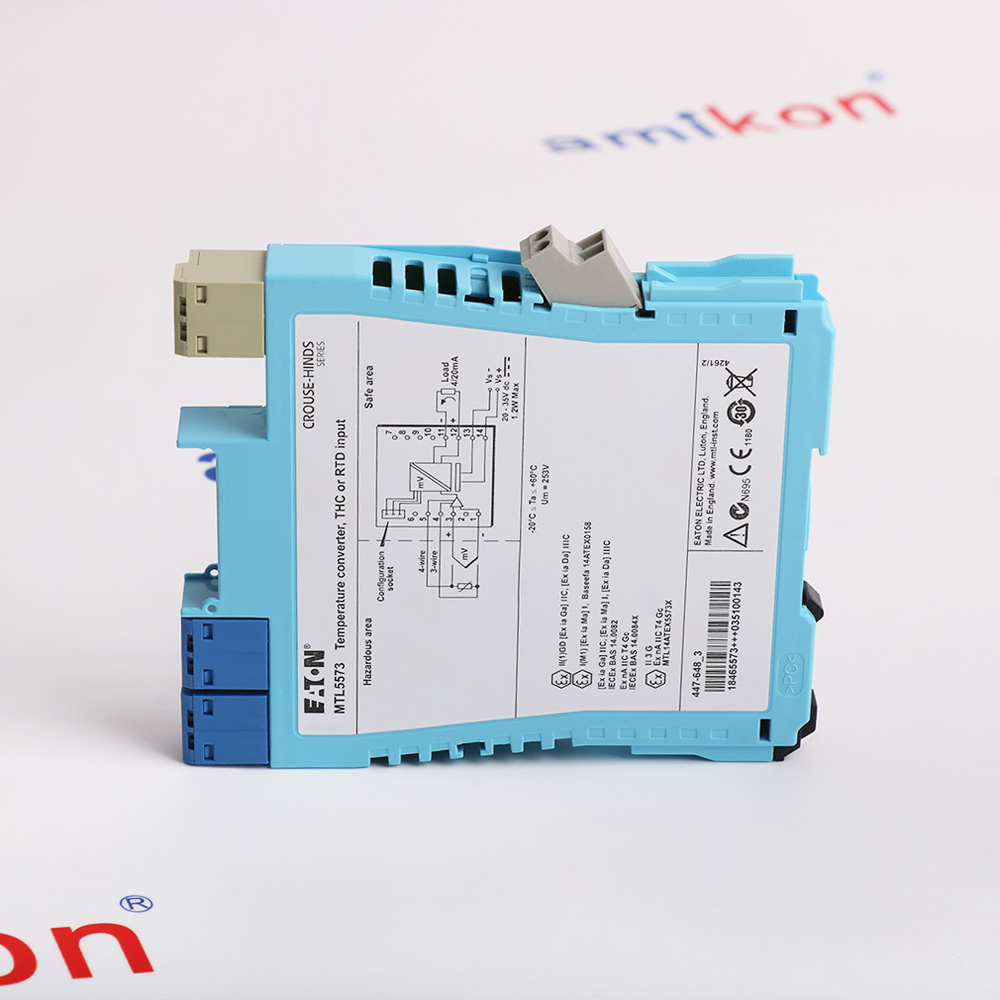

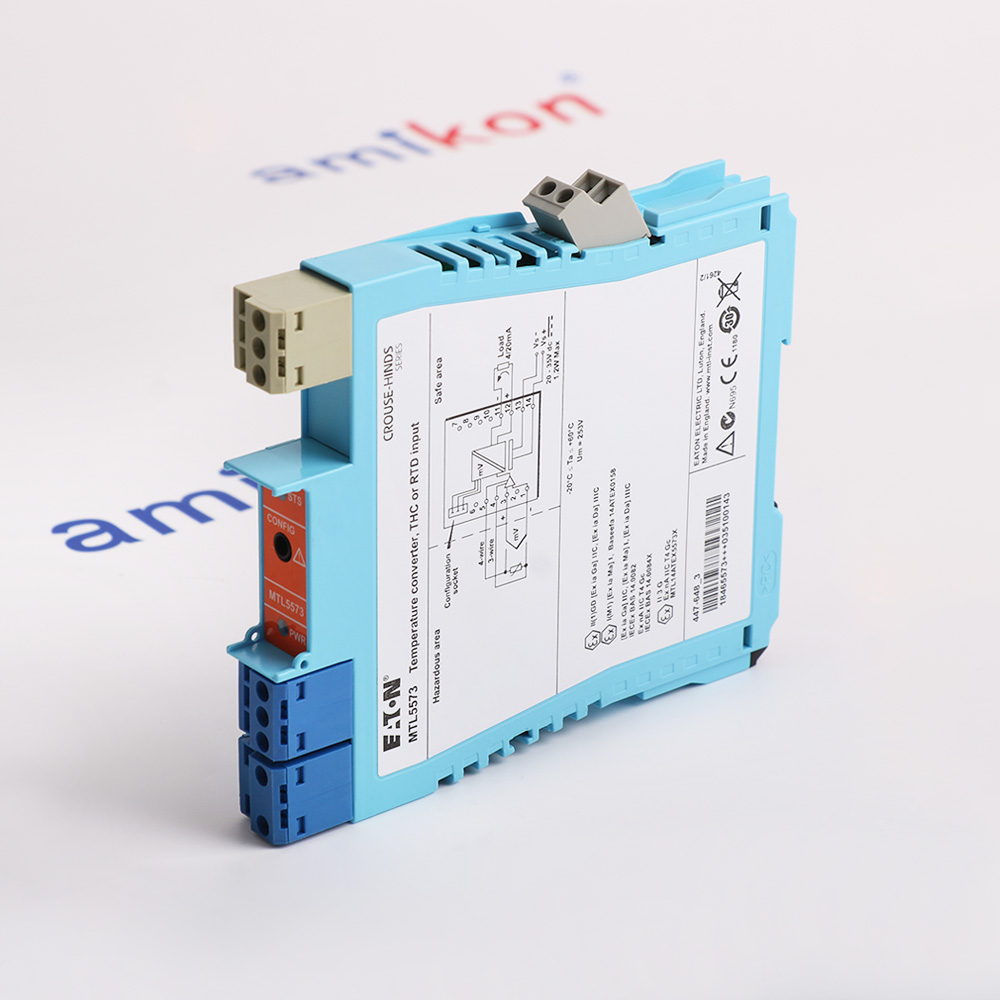

Eaton MTL5573 is a single-channel MTL 5500 temperature converter that accepts thermocouple, low-level mV, or 2-, 3-, and 4-wire RTD inputs and provides a 4-20 mA output to a safe-area load.
The official datasheet specifies one channel, 20-35 V dc supply, 4-20 mA output into a maximum 600 ohm load, and a typical 500 ms response time. Input linearisation, ranging, monitoring, testing, and tagging are configured with PCS45 software through the PCL45USB serial interface.
This converter is one component of a complete temperature-measurement loop. Verify the sensor type, hazardous-area approval, HAZ-CJC use for thermocouples, output load, supply, configuration, and current controlled Eaton documentation before installation.
Information
Overview
Manuals
Product Applications
Compatibility
Features:
- Single-channel MTL 5500 temperature converter
- Thermocouple, low-level mV, and 2-, 3-, or 4-wire RTD inputs
- 4-20 mA nominal output into a maximum 600 ohm load
- 20-35 V dc supply and 500 ms typical response
- PCS45 configuration through the PCL45USB serial interface
The verified datasheet lists thermocouple types J, K, T, E, R, S, B, N and XK, -75 to +75 mV input, supported Pt, Cu and Ni RTDs, and 0 to 400 ohm resistance input.
This converter is one component of a complete measurement loop. Verify the sensor, HAZ-CJC requirement, supply, output load, configuration and current Eaton approvals before installation.
Eaton MTL5573 MTL 5500 Temperature Converter Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon PDF documents are independent reference materials prepared from verified Eaton sources. Use the current controlled Eaton documentation for hazardous-area approval, installation and configuration. Accessories, manuals, cables, software, certificates and other items are not included unless listed in the stock item description.
- Hazardous-area thermocouple temperature measurement
- Hazardous-area 2-, 3-, or 4-wire RTD temperature measurement
- Low-level mV signal conversion to a 4-20 mA safe-area load
- Temperature-input linearisation, ranging, monitoring and sensor-failure indication
MTL5573 is the temperature-converter component, not a complete measuring instrument. Complete measurement requires a compatible sensor, correct hazardous-area interface installation, a 20-35 V dc supply, a safe-area 4-20 mA load and verified PCS45 configuration.
System: Eaton MTL 5500 range isolating interface installation.
Sensor inputs: Use only the thermocouple, mV, RTD or resistance input type configured in PCS45 and supported by the current Eaton documentation.
Output and supply: Confirm the 4-20 mA safe-area load does not exceed 600 ohm and the supply is 20-35 V dc.
Connections: Eaton identifies input terminals 1, 3, 4 and 5 as applicable, output terminals 11 and 12, and supply terminals 13 and 14.
Approval: Verify the current certificate, hazardous-area classification, associated apparatus and HAZ-CJC requirement for the actual installation.
Alternative Names
Eaton MTL5573
MTL5573 Temperature Converter
MTL 5500 MTL5573
Technical notes
Install MTL5573 in accordance with the current MTL5500 instructions. Match the configured thermocouple, mV or RTD input to the field sensor. For thermocouple applications, use the documented HAZ-CJC plug on terminals 1-3. Confirm the 20-35 V dc supply, 4-20 mA load, hazardous-area approval, terminal assignments, sensor-failure action, PCS45 configuration and PCL45USB interface before commissioning.
FAQs
-
What is Eaton MTL5573?
+It is a single-channel MTL 5500 temperature converter for thermocouple, mV and 2-, 3- or 4-wire RTD inputs, with a 4-20 mA output to a safe-area load. -
What input types does MTL5573 accept?
+Eaton lists thermocouple types J, K, T, E, R, S, B, N and XK, -75 to +75 mV input, supported Pt, Cu and Ni RTDs, and 0 to 400 ohm resistance input. -
What supply and output apply to MTL5573?
+The official datasheet specifies a 20-35 V dc supply and a 4-20 mA nominal output into a maximum 600 ohm load. -
How is MTL5573 configured?
+Use Eaton PCS45 software with the PCL45USB serial interface to configure input type, linearisation, range, monitoring, testing and tagging. -
What installation connection points are identified for MTL5573?
+The instruction manual identifies input terminals 1, 3, 4 and 5 as applicable, output terminals 11 and 12, and supply terminals 13 and 14. -
Does Eaton publish MTL5573 packaging dimensions or shipping weight in the verified product documents?
+No. The verified datasheet and instruction section do not publish model-specific packaging dimensions or shipping weight; confirm these details from the actual stock item before shipment.
