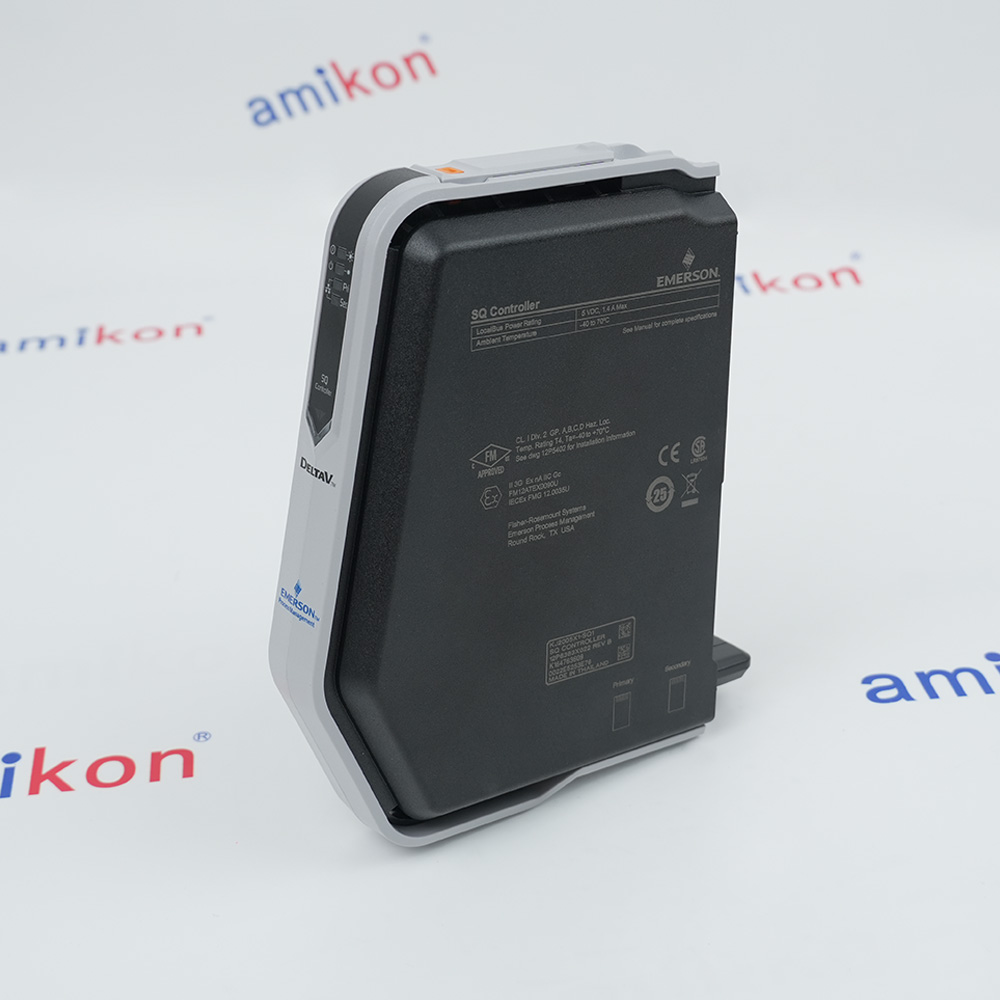

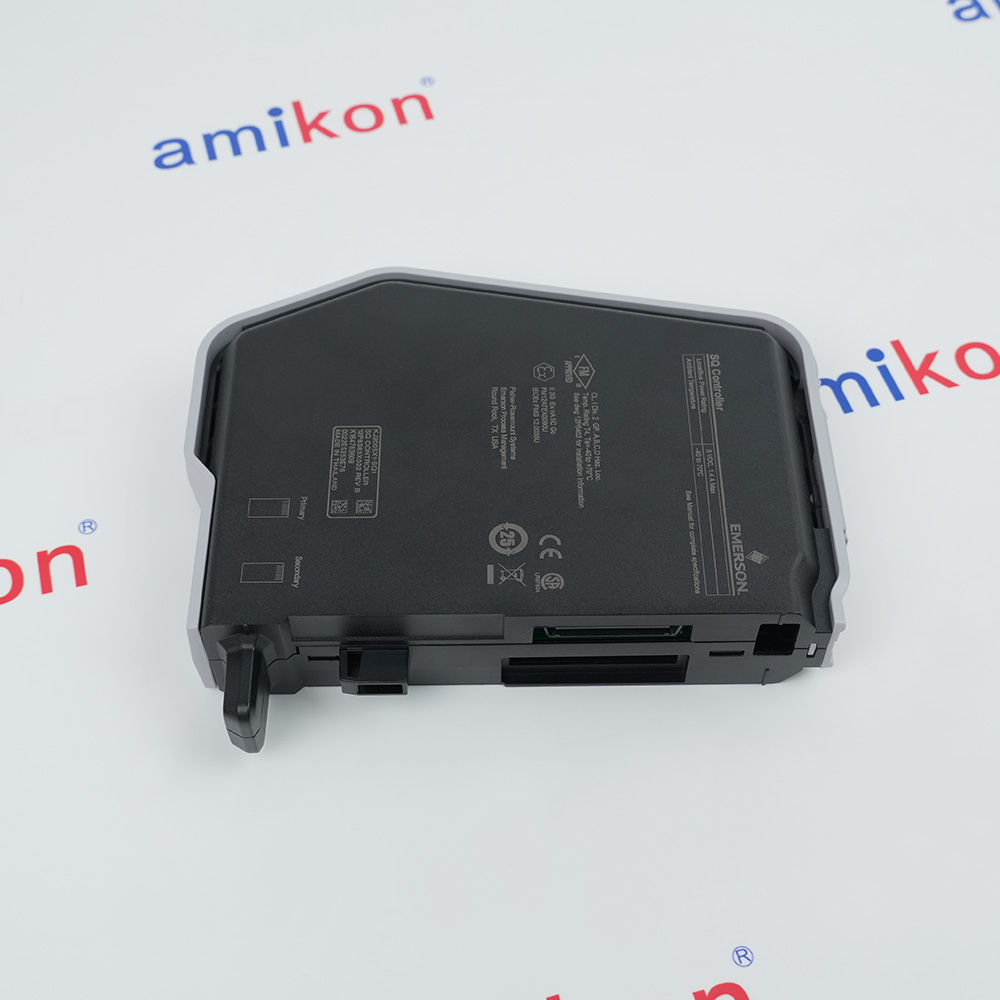

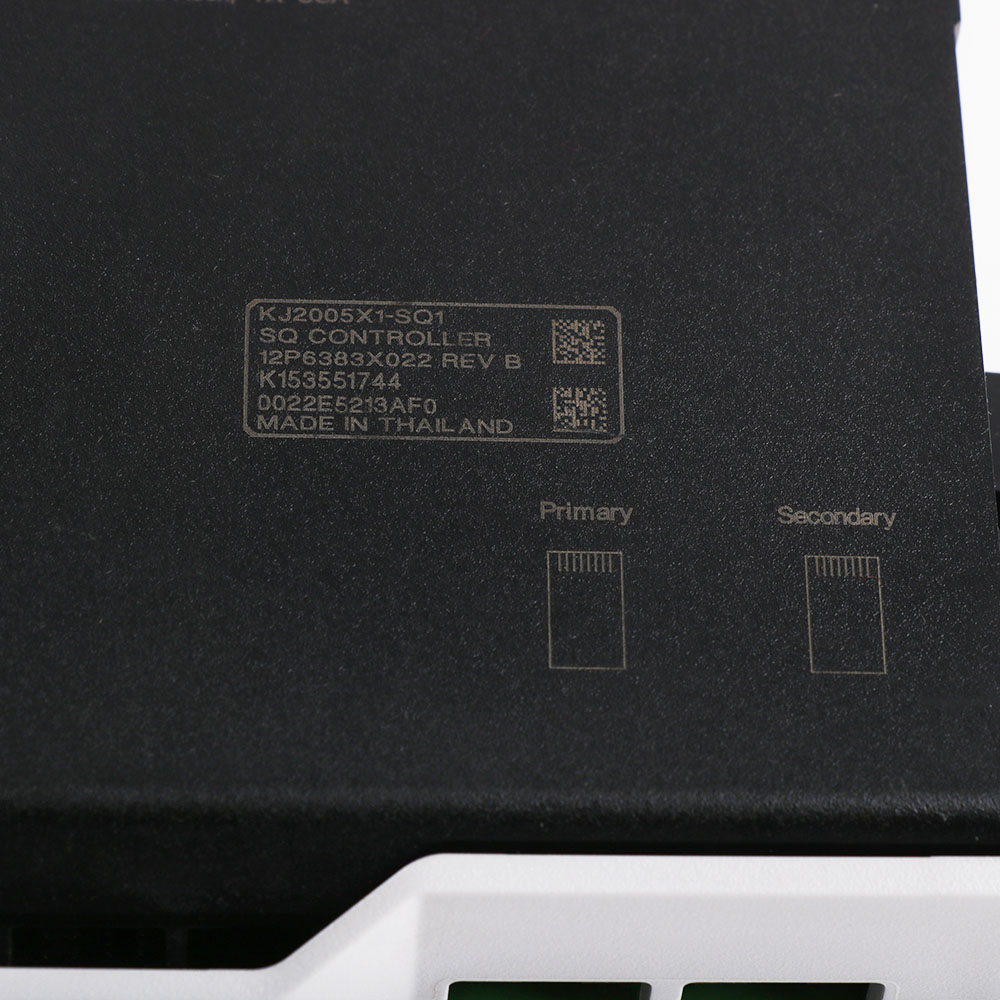

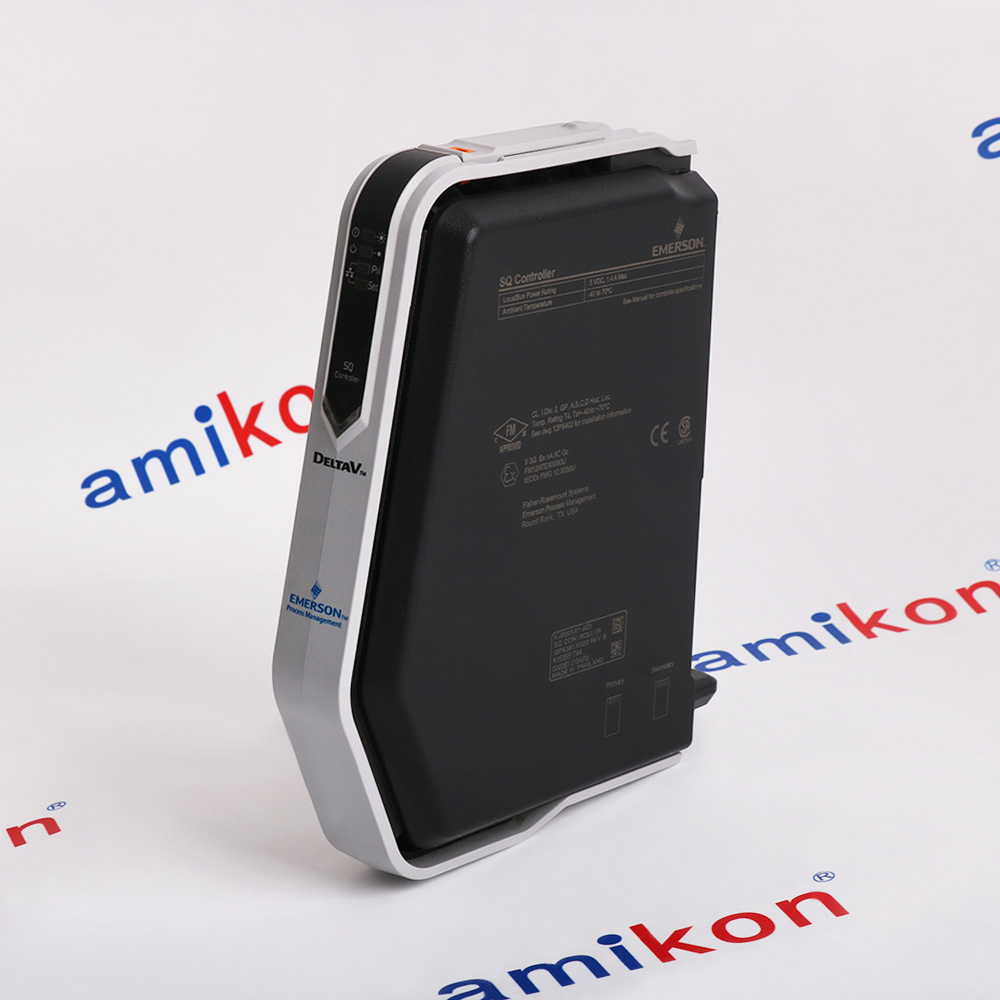

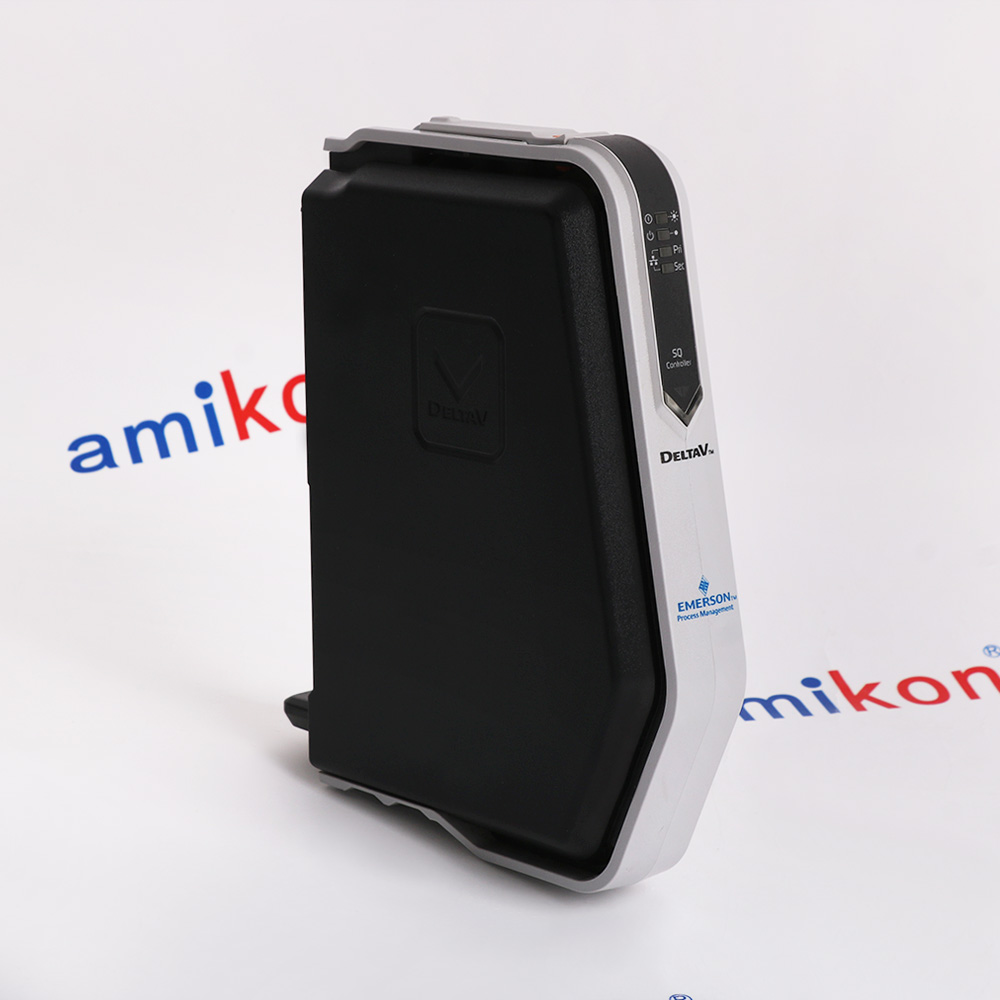

- KJ2005X1-SQ1 12P6383X022
In Stock
Ships by Wednesday, August 26
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for KJ2005X1-SQ1 12P6383X022
-
Product ModelKJ2005X1-SQ1 12P6383X022
-
Product ParametersSQ Controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.1x16.5x19.8cm
-
ManufacturerEmerson
-
Weight0.4 kg
-
Local Bus Power+5 VDC at 1.4 A
-
AmbientTemperature-40°C to +70°C
-
Shock10g ½ Sinewave for 11msec
-
Vibration 1mm Peak to Peak from2 to 13.2Hz
-
Network Connector8-pin RJ-45 Connector
-
Operating Temperature-40°C to +70°C (-40°F to +158°F)
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
-
Relative Humidity5% to 95%, non-condensing
Description
The EMERSON KJ2005X1-SQ1 12P6383X022 SQ Controller is a programmable automation controller for the Emerson DeltaV distributed control system, providing communication and control functions while integrating field devices and other nodes on the control network. KJ2005X1-SQ1 serves as the central processing unit within the DeltaV S-series hardware platform, executing control logic based on process signals received from the I/O subsystem and providing communication to the rest of the DeltaV control system for operator interaction and data collection.
KJ2005X1-SQ1 is specifically designed as a scalable controller that complements the larger SX controller by providing a smaller controller platform at a reduced price for small to moderate applications. The SQ controller of KJ2005X1-SQ1 supports a maximum of 750 individual I/O signals, with 48 MB of user memory and module execution rates configurable from 100 ms to 60 seconds. Control strategies and system configurations created on earlier DeltaV systems can be used with KJ2005X1-SQ1, ensuring backward compatibility and protecting existing engineering investments.
KJ2005X1-SQ1 is specifically designed as a scalable controller that complements the larger SX controller by providing a smaller controller platform at a reduced price for small to moderate applications. The SQ controller of KJ2005X1-SQ1 supports a maximum of 750 individual I/O signals, with 48 MB of user memory and module execution rates configurable from 100 ms to 60 seconds. Control strategies and system configurations created on earlier DeltaV systems can be used with KJ2005X1-SQ1, ensuring backward compatibility and protecting existing engineering investments.
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Configuration
Features:
- DeltaV SQ Controller for Small to Moderate Applications
- 1:1 Redundancy Support with Online Upgrade Capability
- CHARM-Based Electronic Marshalling Support
- Quick Assembly with Snap-In DIN Rail Mounting
- Wide Operating Temperature Range (-40°C to +70°C)
The EMERSON KJ2005X1-SQ1 12P6383X022 operates with a local bus power supply of +5 VDC at 1.4 A. The EMERSON KJ2005X1-SQ1 12P6383X022 provides controller processing capability with a typical power dissipation of 5.0 W and a maximum power dissipation of 7.0 W, allowing installation in standard DeltaV control cabinets with multiple controller and I/O modules.
The KJ2005X1-SQ1 12P6383X022 EMERSON SQ Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
EMERSON KJ2005X1-SQ1 12P6383X022 SQ Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SQ controller supports all standard DeltaV system features including self-addressing (automatic network address assignment upon power-up without DIP switches), self-locating (flashing LEDs for physical identification), and automatic I/O detection (automatic identification of all I/O interface channels upon plug-in). These features are designed to accelerate project execution and reduce configuration time.
The controller supports 1:1 redundancy for increased availability. Redundant SQ controllers can be upgraded to SX controllers online without system shutdown. The controller also supports CHARMs-based Electronic Marshalling, enabling highly distributable I/O configurations with flexible wiring via wired, wireless, or fieldbus signals.
- Oil/Gas Refining: Manages extraction, custody transfer, and continuous refining operations
- Chemical Processing: Controls reactor temperatures, pressure loops, and chemical blending
- Pharmaceuticals: Maintains regulatory compliance for batch processing and sterile monitoring
- Power Generation: Regulates turbine control, boiler systems, and plant-wide automation
- Water/Wastewater: Automates filtration, chemical dosing, and distribution networks
- Food/Beverage: Oversees recipe management, pasteurization, and packaging automation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carrier Mounting: Snap the controller directly onto the power/controller carrier. No screws are required to lock the module in place.
Network & Power Connections: Connect the SQ controller to the DeltaV control network and the associated system power supply. The local bus power requires +5 VDC at 1.4 A.
No Manual Addressing: The DeltaV SQ controller is fully self-addressing and auto-sensing. There are no DIP switches or jumpers to configure. Simply connect it to the network and run Auto-Sense in DeltaV Explorer.
System Requirements: Ensure your system operates on DeltaV software version 12.3 or later.
Alternative Names
KJ2005X1-SQ1 12P6383X0ZZ
KJ2005X1-SQ1 12P6383XO22
KJ2005X1-SQ1 12P63B3X022
KJ2005X1-SQ1 I2P6383X022
KJ2005X1-SQI 12P6383X022
KJ2005XI-SQ1 12P6383X022
KJ2OO5X1-SQ1 12P6383X022
KJZ005X1-SQ1 12P6383X022
KJ2005X1 SQ1 12P6383X022
KJ2005X1 SQI 12P6383X022
KJ2005XI SQ1 12P6383X022
KJ2OO5X1 SQ1 12P6383X022
KJ2005X1 SQ1 12P6383X0ZZ
Technical notes
The environmental specifications of KJ2005X1-SQ1 include an operating temperature range of -40°C to +70°C, storage temperature of -40°C to +85°C, relative humidity of 5% to 95% non-condensing, and IP20 protection rating. KJ2005X1-SQ1 withstands shock of 10g half-sine wave for 11ms and vibration of 1mm peak-to-peak from 5 Hz to 13.2 Hz and 0.7g from 13.2 Hz to 150 Hz. The airborne contaminants rating of KJ2005X1-SQ1 is ISA-S71.04-1985 Class G3 with conformal coating.
FAQs
-
What is the KJ2005X1-SQ1?
+The Emerson KJ2005X1-SQ1 (SE3008) is an SQ Controller Module for DeltaV distributed control systems (DCS), rated at +5 VDC and 1.4 A. -
Is hot-swapping allowed?
+This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous. -
Does the SQ Controller support redundancy?
+Yes. The SQ controller supports 1:1 hot-standby redundancy. This dual-architecture maximizes system availability by instantly switching tasks to a backup controller if the primary hardware encounters an issue. -
What is the primary function of the KJ2005X1-SQ1?
+The primary function is to execute control modules using process signals from its I/O subsystem. It transmits this process data to the rest of the Emerson DeltaV system for operator interaction and data logging.
