- KJ3201X1-BK1 12P4692X042 SE4001S2T1B1
In Stock
Ships by Saturday, July 25
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for KJ3201X1-BK1 12P4692X042 SE4001S2T1B1
-
Product ModelKJ3201X1-BK1 12P4692X042 SE4001S2T1B1
-
Spare ModelKJ3201X1-BK1 12P4692X042
-
Product ParametersDIGITAL INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.1x13x13cm
-
ManufacturerEmerson
-
Weight0.25 kg
-
Local Bus Power12 VDC at 150 mA
-
Bussed Field Power24 VDC at 100 mA
-
Field Circuit24 VDC at 5 mA/Ch
-
Ambient Temperature-40 °C to +70 °C
-
Shock10 g half-sine wave for 11 ms
-
Relative Humidity5 to 95% Non-Condensing
Description

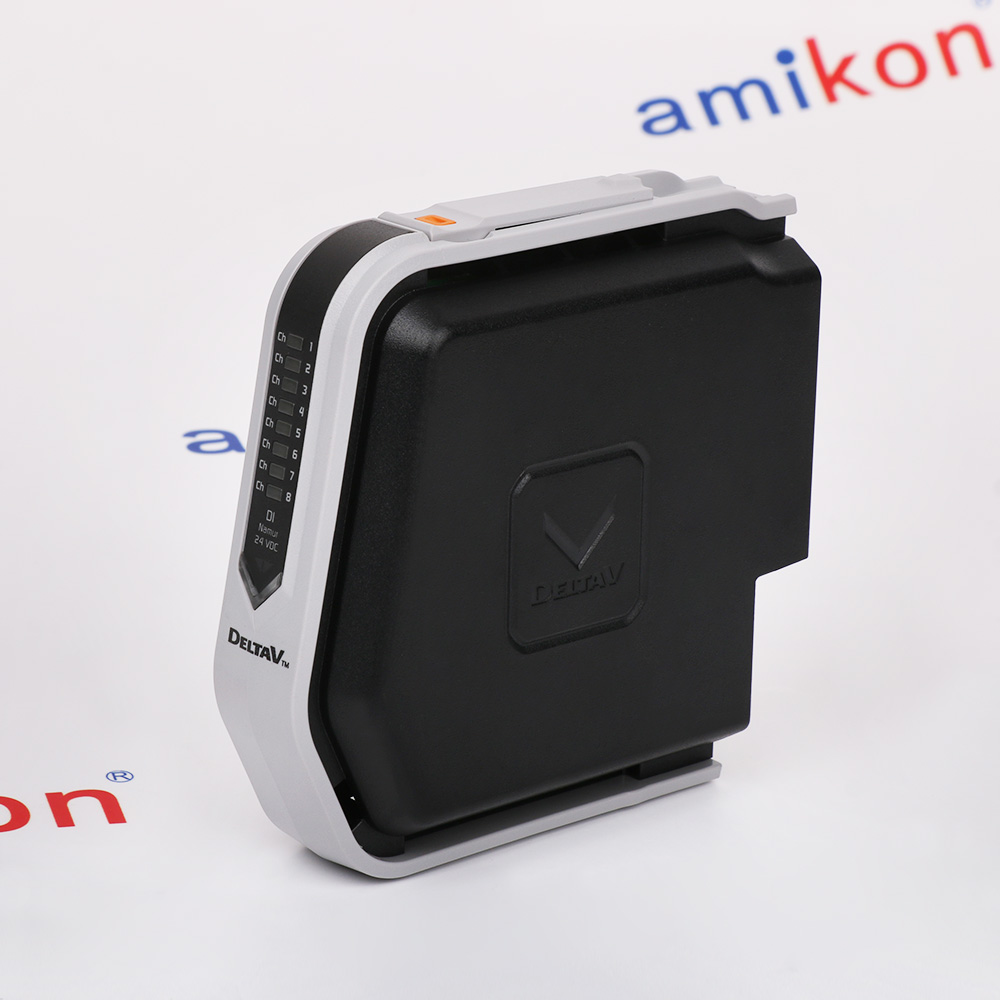

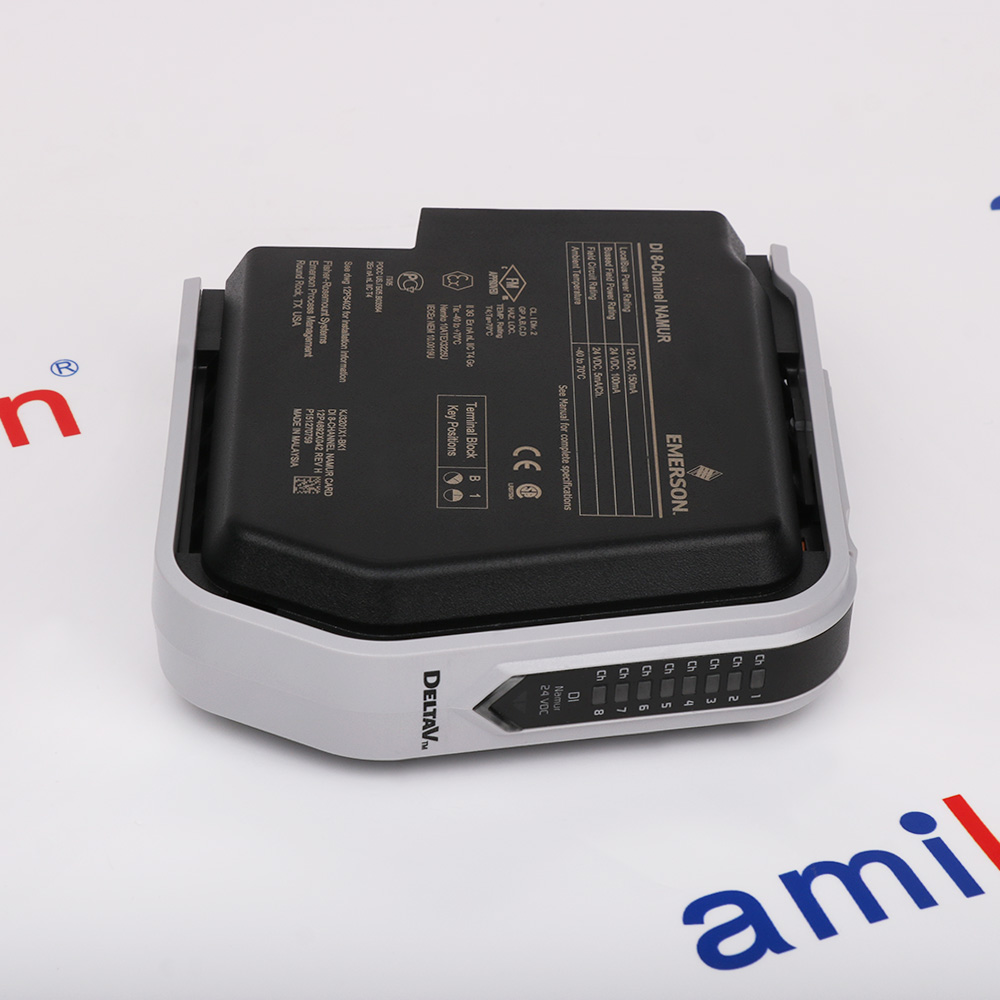

The EMERSON KJ3201X1-BK1 is an S-Series DI 8-Channel Dry Contact Card for the DeltaV Distributed Control System (DCS). The KJ3201X1-BK1 is part of the DeltaV S-series traditional I/O family, providing reliable digital input capability for industrial process automation applications.
The EMERSON KJ3201X1-BK1 features 8 channels of 24V DC dry contact digital input. The KJ3201X1-BK1 is compatible with dry contact inputs and is known to operate with many NAMUR sensors. The KJ3201X1-BK1 has a detection level for On >2.2 mA, detection level for Off <1 mA, input impedance of approximately 5 KΩ, and a wetting voltage of 15 Volts. The KJ3201X1-BK1 supports configurable channel types including discrete input and pulse count input, with pulse train capability up to 75 Hz.
The EMERSON KJ3201X1-BK1 features 8 channels of 24V DC dry contact digital input. The KJ3201X1-BK1 is compatible with dry contact inputs and is known to operate with many NAMUR sensors. The KJ3201X1-BK1 has a detection level for On >2.2 mA, detection level for Off <1 mA, input impedance of approximately 5 KΩ, and a wetting voltage of 15 Volts. The KJ3201X1-BK1 supports configurable channel types including discrete input and pulse count input, with pulse train capability up to 75 Hz.
Information
Overview
Manuals
Application Notes
Product Applications
Field Wiring Connections
Features:
- 8-Channel 24V DC Dry Contact Digital Input
- Optical Isolation Per Channel
- Hazardous Area Certifications (ATEX, IECEx, FM)
- Wide Environmental Operating Range (-40°C to +70°C)
- Dual Field Power Input Options
The card provides eight independent input channels, each optically isolated from the system and factory-tested to 1,500 VDC. Input detection levels are > 2.2 mA for the ON state and < 1 mA for the OFF state, with an approximate input impedance of 5 kΩ and a wetting voltage of 15 V. Channels are configurable as standard discrete inputs or pulse counters. In discrete input mode, the card accepts dry contact or discrete state sensors with switching rates below 2 Hz. In pulse count mode, the card accepts pulse trains up to 75 Hz.
The KJ3201X1-BK1 12P4692X042 EMERSON S-Series DI 8-CHANNEL DRY CONTACT CARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
EMERSON KJ3201X1-BK1 12P4692X042 S-Series DI 8-CHANNEL DRY CONTACT CARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The EMERSON KJ3201X1-BK1 operates over a wide environmental range with ambient temperature from -40°C to +70°C. The KJ3201X1-BK1 withstands shock of 10g half-sine wave for 11ms and vibration of 1mm peak-to-peak from 2 to 13.2Hz and 0.7g from 13.2 to 150Hz. The KJ3201X1-BK1 meets ISA-S71.04-1985 Airborne Contaminants Class G3 specifications and operates in relative humidity from 5% to 95% non-condensing.
The EMERSON KJ3201X1-BK1 features a rotary keying system with terminal block key position B1, ensuring compatibility between I/O cards and terminal blocks after installation is complete. The KJ3201X1-BK1 is compatible with 8-Channel Terminal Block, Redundant Discrete 8-Channel Terminal Block, Fused 8-Channel Terminal Block, and 16-pin Mass Terminal Block.
- Oil & Gas: Monitors valve positions on offshore platforms, pipelines, and refining units
- Chemical/Petrochemical: Manages flow/pressure switches and safety interlocks in volatile environments
- Pharmaceutical: Tracks batch reactor lid positions and containment switch status
- Power Generation: Monitors critical isolation dampers and fuel-trip valves
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Channel Terminals: Each of the 8 channels consists of a positive (+) and a negative (-) terminal.
Connect the Proximity Switch: Route the two wires from your NAMUR proximity sensor directly to the designated channel terminals (e.g., Wire 1 to Channel 1+, Wire 2 to Channel 1-).
Dry Contact Exception: If connecting a standard dry contact mechanical switch instead of a NAMUR sensor, you must install external resistors.
Place one resistor in series and one in parallel at the switch to mimic NAMUR current levels.Without these resistors, the module will flag an open or short-circuit line fault.
Alternative Names
KJ3201X1-BK1 12P4692XO42
KJ3201X1-BK1 I2P4692X042
KJ3201X1-BKI 12P4692X042
KJ3201XI-BK1 12P4692X042
KJ320IX1-BK1 12P4692X042
KJ32O1X1-BK1 12P4692X042
KJ3201X1 BK1 12P4692X042
Technical notes
The EMERSON KJ3201X1-BK1 supports dual field power input options. The KJ3201X1-BK1 accepts bussed field power at 24V DC at 100mA or 12V DC at 150mA, with field circuit power of 24V DC at 5mA per channel. The KJ3201X1-BK1 draws local bus current of 75 mA typical, 100 mA maximum at 12V DC nominal for simplex configuration, and 90 mA typical, 150 mA maximum for redundant configuration.
FAQs
-
What is the KJ3201X1-BK1 12P4692X02?
+The Emerson KJ3201X1-BK1 12P4692X02 is an 8-channel, S-series Digital Input (DI) Dry Contact card designed for the Emerson DeltaV DCS -
What does Dry Contact mean for this module?
+The card’s inputs do not supply voltage to the field devices. Instead, they detect whether a field switch or contact is physically open or closed by supplying a low-voltage sensing current. -
What terminal blocks are compatible with this card?
+The KJ3201X1-BK1 requires a specific S-series 8-Channel Terminal Block. Options include standard terminal blocks or fused versions for added circuit protection. -
What are its environmental operating limits?
+The module operates in ambient temperatures ranging from -40 °C to +70 °C and relative humidity levels between 5% to 95% non-condensing.
