Technical specifications for KJ3203X1-BK1 12P4694X032 SE4001S2T2B4
-

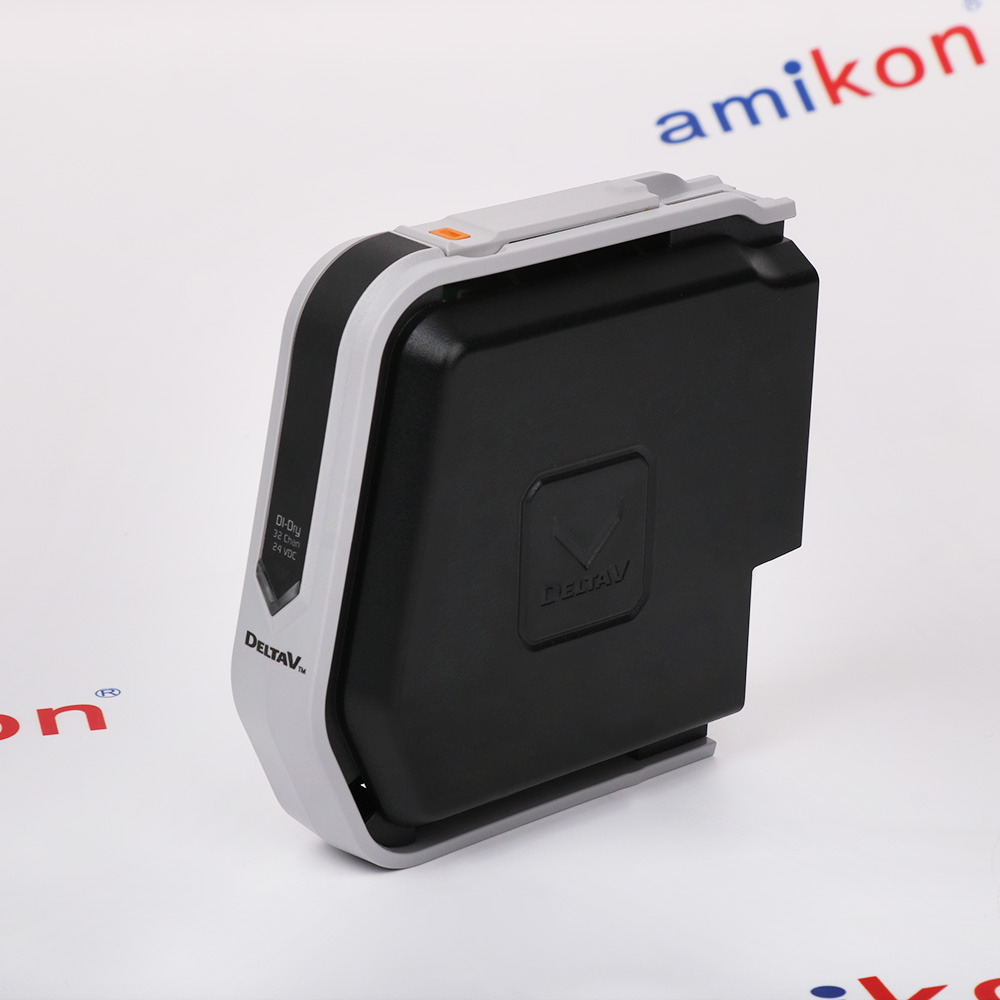

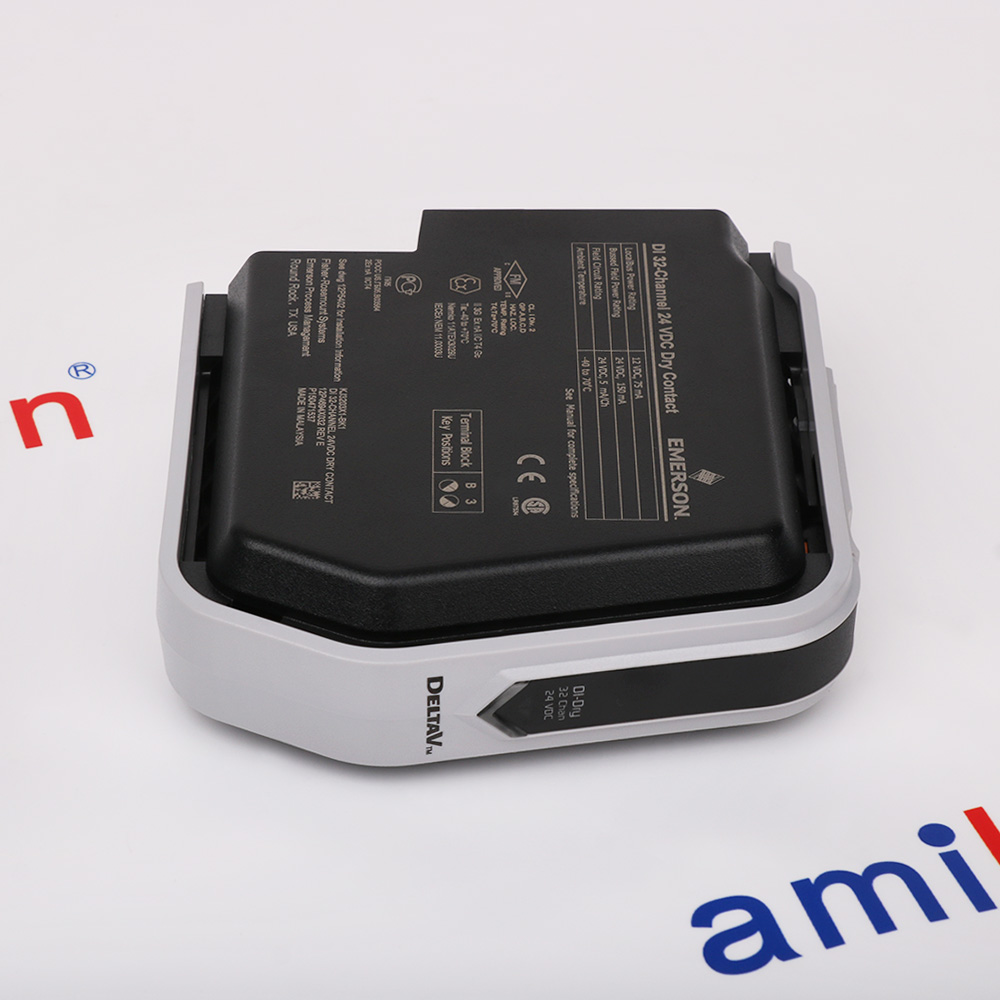

Product ModelKJ3203X1-BK1 12P4694X032 SE4001S2T2B4
-
Spare ModelKJ3203X1-BK1 12P4694X032
-
Product ParametersDiscrete Input Card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.1x13x13cm
-
ManufacturerEmerson
-
Weight0.25 kg
-
Operating Temp-40°C to +70°C (-40°F to +158°F)
-
Humidity5–95% RH (non-condensing)
-
Terminal BlockRemovable, 16-pin (2 groups per block)
-
Wiring12–22 AWG, screw terminals (0.5–0.6 N·m torque)
-
Input Voltage Range5–60V DC
-
On-State Threshold≤ 5V DC (logic "1")
-
Off-State Threshold≥ 15V DC (logic "0")
-
Input Impedance3.3 kΩ (typical)
-
Input Current≤ 8 mA @ 24V DC (per channel)
Description
KJ3203X1-BK1 is an S-Series DI 32-Channel 24VDC Dry Contact Card designed for the Emerson DeltaV distributed control system, providing 32 channels of digital input for dry contact signals in industrial process automation applications.
KJ3203X1-BK1 carries comprehensive hazardous area certifications including ATEX/IECEx II 3G Ex ec IIC Gc under FM19ATEX0173U and IECEx FMG 19.0019U, as well as North American certifications for Class I Division 2 Groups A,B,C,D under FM17US0286U and Class I Zone 2 AEx/Ex ec IIC Gc under FM21UKEX0017U and FM17CA0145U, ensuring safe installation in potentially explosive atmospheres.
KJ3203X1-BK1 operates with efficient power consumption of 12VDC at 75mA from the local bus power supply, 24VDC at 150mA from bussed field power, and 24VDC at 5mA per channel for field circuit power, making it suitable for large-scale digital input applications.
KJ3203X1-BK1 carries comprehensive hazardous area certifications including ATEX/IECEx II 3G Ex ec IIC Gc under FM19ATEX0173U and IECEx FMG 19.0019U, as well as North American certifications for Class I Division 2 Groups A,B,C,D under FM17US0286U and Class I Zone 2 AEx/Ex ec IIC Gc under FM21UKEX0017U and FM17CA0145U, ensuring safe installation in potentially explosive atmospheres.
KJ3203X1-BK1 operates with efficient power consumption of 12VDC at 75mA from the local bus power supply, 24VDC at 150mA from bussed field power, and 24VDC at 5mA per channel for field circuit power, making it suitable for large-scale digital input applications.
Information
Overview
Manuals
Application Notes
Product Applications
Pre-Installation Rules & Safety
Features:
- 32-channel digital input for dry contact signals
- Analog signal interface capability
- Industrial control system integration
The KJ3203X1-BK1 installs into a standard S-Series I/O carrier assembly, connecting to the DeltaV controller via the proprietary S-Series I/O bus. The card communicates discrete input states to the controller for use in control logic, alarming, and operator interface displays. The module features status indication through standard S-Series LED indicators for module health and channel activity. Channels are electrically isolated per S-Series design standards, providing protection against field-side electrical disturbances.
The KJ3203X1-BK1 12P4694X032 Emerson 32-channel S-Series Digital Input Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Emerson KJ3203X1-BK1 12P4694X032 32-channel S-Series Digital Input Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The KJ3203X1-BK1 operates across a standard industrial temperature range of 0°C to +60°C, with storage capability from –40°C to +85°C. Relative humidity tolerance spans 5% to 95% in non-condensing conditions. The IP20 protection rating designates it for indoor control cabinet installation.
The module carries standard industrial certifications including CE, UL, and CSA, and complies with IEC 61131 and ISA S71.04 standards. It is used in process control, discrete manufacturing, and machine control applications where high-density digital input acquisition is required.
- Oil, Gas, and Petrochemicals:Extraction, pipelines & refineries: interlocks/valves
- Chemical Processing:Volatile zones: reactor status & safety switches
- Power Generation:Boiler trips, turbine status & cooling parameters
- Water and Wastewater Treatment:Pumps, level switches & filter backwash
- Pharmaceuticals & Life Sciences:Cleanroom, batch gates & storage alarms
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down Field Voltage: You must disconnect all field power supplied to the device at the field terminal or via the carrier's bussed field power before insertion.
Never Hot-Swap in System Power: Do not remove or insert this I/O module while the 12 VDC local system power is actively energized.
Enclosure Requirements: You must mount the system carrier inside an enclosure that passes electrical shock, mechanical strength, and fire containment tests.
Hazardous Area Clearance: Ensure an I/O loop assessment is fully executed if implementing an energy-limited ("nL") installation in classified environments.
Alternative Names
KJ3203X1 BK1 12P4694X032
KJ32O3X1-BK1 12P4694XO32
KJ3203XI-BKI I2P4694X032
KJ32O3X1 BK1 12P4694XO32
KJ3203XI BKI I2P4694X032
KJ32O3XI-BKI I2P4694XO32
KJ32O3XI BKI O2P4694XO32
Technical notes
The KJ3203X1-BK1 provides 32 independent digital input channels that can be configured for dry contact monitoring. Each channel includes LED status indication for local diagnostics and troubleshooting. The module supports configurable input filtering and debounce settings to minimize false transitions caused by contact bounce or electrical noise.
FAQs
-
What is the KJ3203X1-BK1?
+The Emerson KJ3203X1-BK1 (part number 12P4694X032) is a DeltaV S-Series 32-Channel 24 VDC Dry Contact Digital Input Card. It is designed to interface field discrete signals with the DeltaV Distributed Control System (DCS) -
What type of signal inputs does the card accept?
+It accommodates 32 channels of 24 VDC isolated, digital signals originating from Form A (normally open) dry contacts, such as field pushbuttons or basic switches. -
What is the proper terminal block mechanical keying alignment?
+To prevent matching mismatched modules to wrong field terminals during maintenance, it uses the B3 terminal block key position -
What are its power requirements?
+It consumes Local Bus power at 12 VDC (75 mA), Bussed Field power at 24 VDC (150 mA), and Field Circuit power at 24 VDC (5 mA per channel).
