- KJ3222X1-BK1 12P4705X032 SE4003S2B1
In Stock
Ships by Saturday, July 25
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for KJ3222X1-BK1 12P4705X032 SE4003S2B1
-
Product ModelKJ3222X1-BK1 12P4705X032 SE4003S2B1
-
Spare ModelKJ3222X1-BK1 12P4705X032
-
Product ParametersAI 8 CH 4-20mA HART CARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.1x13x13cm
-
ManufacturerEmerson
-
Weight0.25 kg
-
Operating Temp-40°C to +70°C (-40°F to +158°F)
-
Humidity5–95% RH (non-condensing)
-
Terminal BlockRemovable, accepts 12–22 AWG wire
-
Torque0.5–0.6 N·m (4.4–5.3 lb-in)
-
Channels8
-
Signal Type4–20 mA DC
-
Overrange Capability-1 mA to +25 mA
-
Input Impedance≤ 250 Ω (typical)
-
Accuracy±0.05% of span (at 25°C)
Description

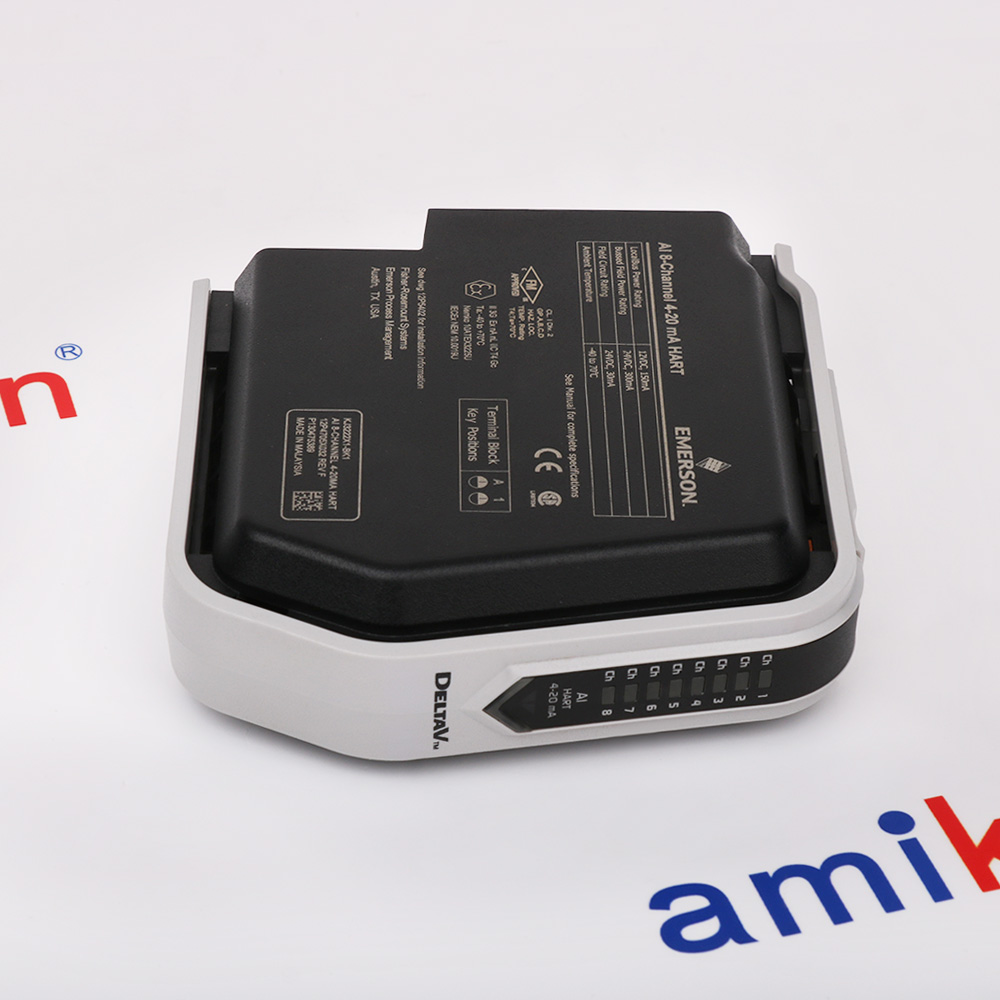

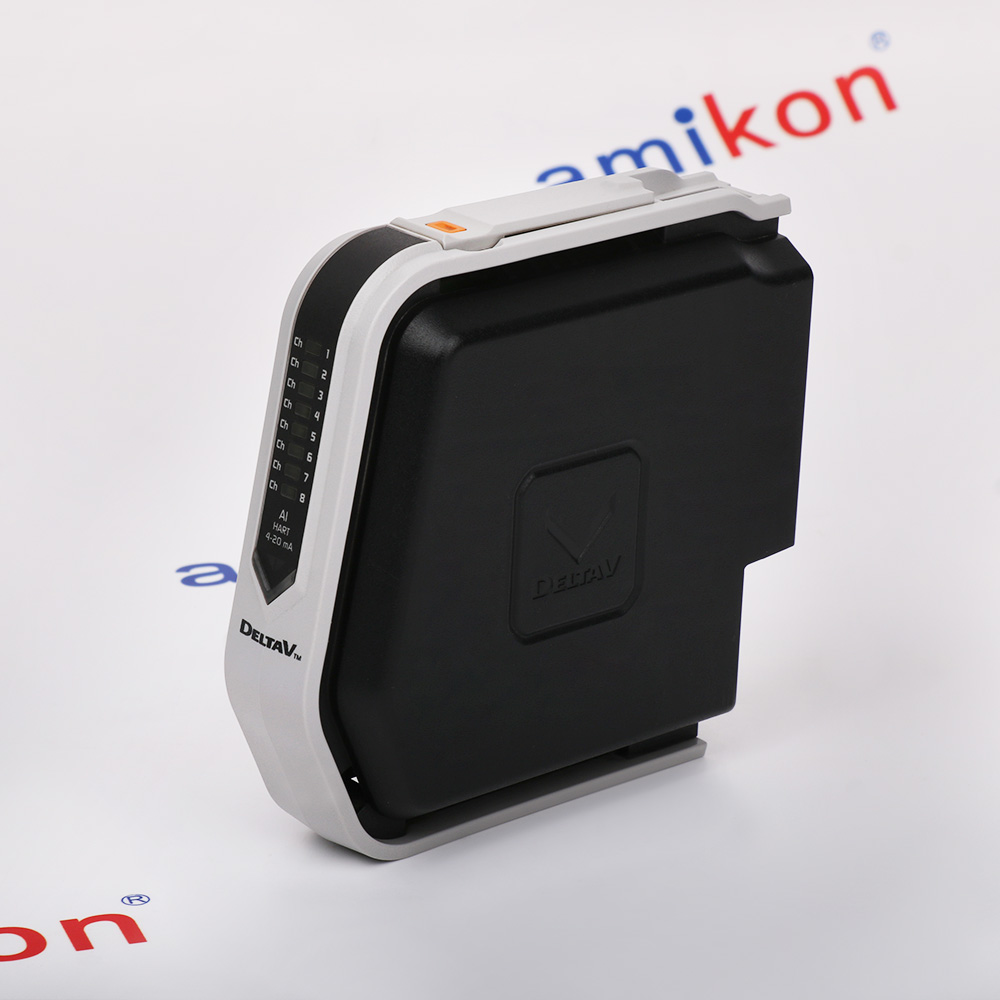

The Emerson KJ3222X1-BK1 (12P4705X032) is a high-performance S-Series Analog Input Card used in the DeltaV Distributed Control System for acquiring process measurements from smart field instruments and conventional analog transmitters. The module provides eight independent 4–20 mA input channels with integrated HART communication, enabling simultaneous analog measurement and digital device diagnostics over the same wiring pair.
The card supports both 2-wire loop-powered transmitters and 4-wire field devices commonly used for pressure, temperature, flow, level, and analytical measurements. Integrated HART functionality allows maintenance personnel and asset management systems to access device diagnostics, configuration parameters, and secondary process variables without additional communication hardware.
The card supports both 2-wire loop-powered transmitters and 4-wire field devices commonly used for pressure, temperature, flow, level, and analytical measurements. Integrated HART functionality allows maintenance personnel and asset management systems to access device diagnostics, configuration parameters, and secondary process variables without additional communication hardware.
Information
Overview
Manual
Application Notes
Product Applications
Physical Installation Steps
Features:
- 8-channel analog input with 4-20mA and HART support
- Multiple hazardous area certifications
- Efficient power consumption
- 4–20 mA input signal support
- Compatible with 2-wire and 4-wire transmitters
The module provides eight independent analog input channels, each configured for 4-wire connection and standard 4–20 mA current loop signals. Each channel supports HART (Highway Addressable Remote Transducer) protocol communication, enabling digital diagnostics, remote configuration, and secondary variable access from HART-capable field transmitters without interrupting the primary analog signal. The card converts analog sensor signals into digital data for reliable process monitoring and control within the DeltaV system.
The KJ3222X1-BK1 12P4705X032 Emerson AI 8 CH 4-20mA HART CARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Emerson KJ3222X1-BK1 12P4705X032 AI 8 CH 4-20mA HART CARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Environmental durability is rated for harsh industrial conditions. The module operates across an extended temperature range of –40°C to +70°C. Shock resistance is rated at 10 g half-sine wave for 11 ms. Vibration tolerance spans 1 mm peak-to-peak from 5 to 16 Hz and 0.5 g from 16 to 150 Hz. Airborne contaminant resistance complies with ISA-S71.04 –1985 Class G3. Relative humidity tolerance is 5% to 95% in non-condensing conditions. The IP20 protection rating designates it for indoor control cabinet installation.
- Oil, Gas, and Petrochemicals:Extraction, pipelines & refineries: interlocks/valves
- Chemical Processing:Volatile zones: reactor status & safety switches
- Power Generation:Boiler trips, turbine status & cooling parameters
- Water and Wastewater Treatment:Pumps, level switches & filter backwash
- Pharmaceuticals & Life Sciences:Cleanroom, batch gates & storage alarms
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carrier Mounting: Mount the I/O interface carrier securely to your panel. You can install carriers prior to snapping in I/O cards to manage phased installation.
Rotary Keying System: The DeltaV features a rotary keying system to prevent mismatching. Before attaching the terminal block, set the rotary keys on the block to correspond exactly with the KJ3222X1-BK1 I/O card.
Module Seating: Align the I/O card with the slot on the carrier and press down firmly until the module clicks into place. Do not attempt to force it.
Terminal Block Connection: Plug the terminal block directly onto the I/O interface carrier, ensuring it locks into the keyed card.
Alternative Names
KJ3222X1-BK1 12P47O5XO32
KJ3222X1 BK1 12P47O5XO32
KJ3222XI-BKI I2P4705X032
KJ3222XI BKI I2P4705X032
Technical notes
The module provides eight independent analog input channels, each configured for 4-wire connection and standard 4–20 mA current loop signals. Each channel supports HART (Highway Addressable Remote Transducer) protocol communication, enabling digital diagnostics, remote configuration, and secondary variable access from HART-capable field transmitters without interrupting the primary analog signal. The card converts analog sensor signals into digital data for reliable process monitoring and control within the DeltaV system.
