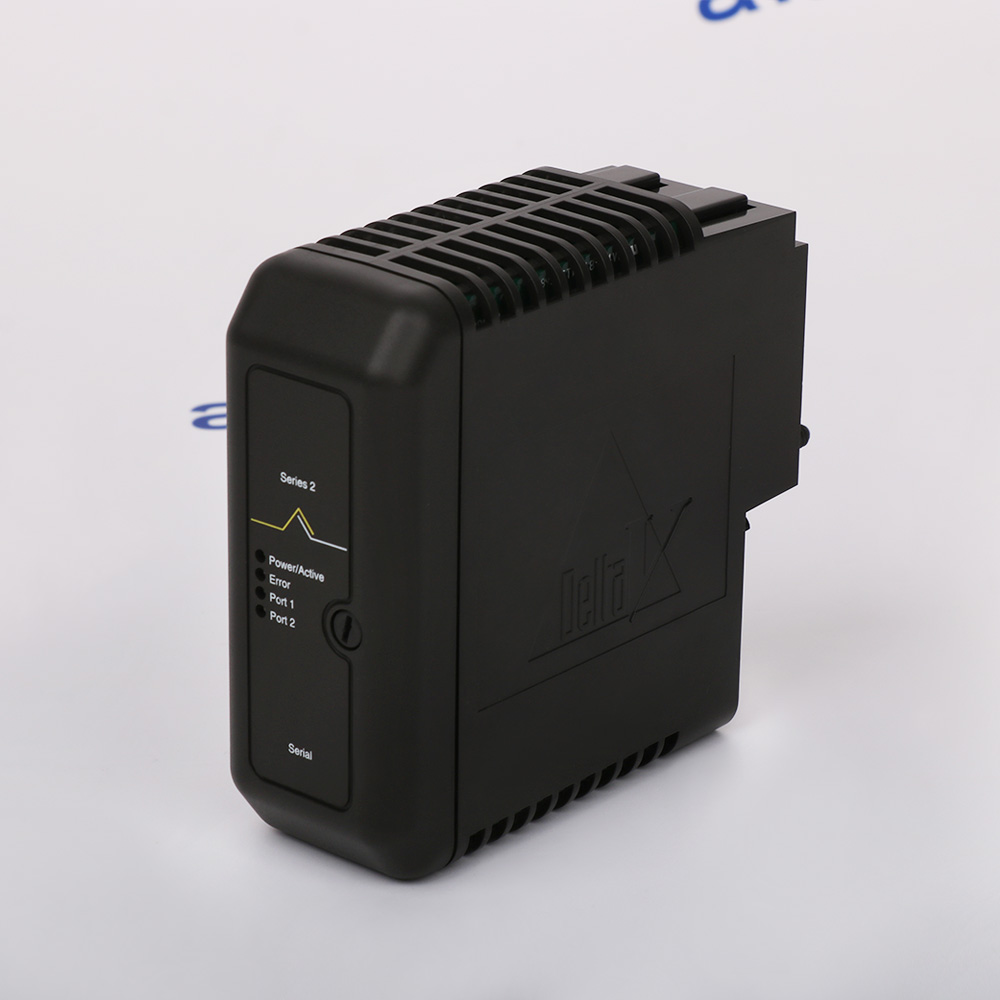

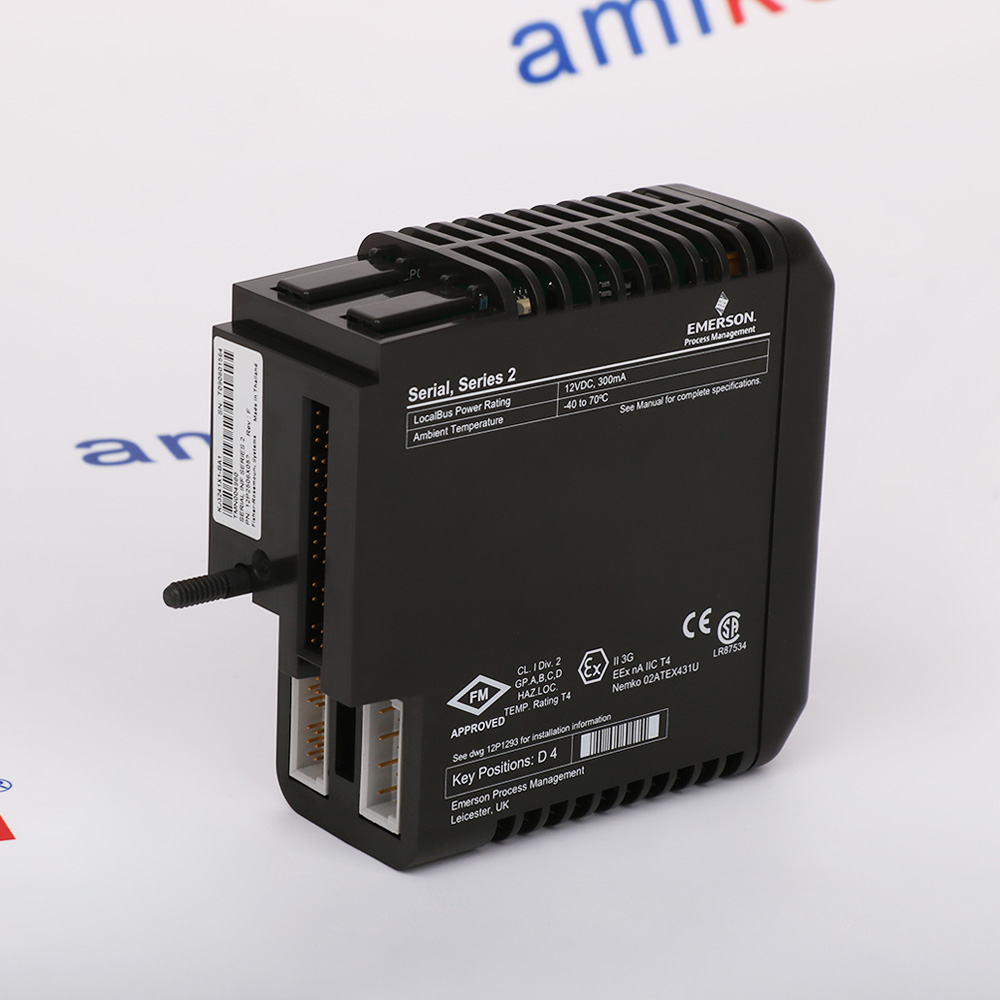

- KJ3241X1-BA1 12P2506X052
In Stock
Ships by Tuesday, June 9
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for KJ3241X1-BA1 12P2506X052
-
Product ModelKJ3241X1-BA1 12P2506X052
-
Product ParametersSerial Interface Card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.1x12.5x10.5cm
-
ManufacturerEmerson
-
Weight0.2 kg
-
Local Bus Power Voltage12 VDC
-
Local Bus Power Current300 mA
-
Bussed Field Power Voltage24 VDC
-
Bussed Field Power Current75 mA
-
Power Consumption3.6 W (typical)
-
Operating Temperature–40 °C to +70 °C (–40 °F to +158 °F)
-
Storage Temperature–40 °C to +85 °C (–40 °F to +185 °F)
-
Relative Humidity5 % to 95 %, non-condensing
Description
The EMERSON KJ3241X1-BA1 12P2506X052 Serial Interface Card is a communication module designed for use within the Emerson DeltaV™ distributed control system. The card provides serial communication capabilities between the DeltaV control platform and external devices, allowing reliable data exchange with instruments, analyzers, PLCs, intelligent field devices, and third-party control systems.
The KJ3241X1-BA1 Serial Interface Card enables integration of equipment that communicates through serial protocols, helping facilities connect legacy systems and specialized devices to the DeltaV environment. It supports the transfer of process data, status information, alarms, and operational commands between connected devices and the control system.
The KJ3241X1-BA1 Serial Interface Card enables integration of equipment that communicates through serial protocols, helping facilities connect legacy systems and specialized devices to the DeltaV environment. It supports the transfer of process data, status information, alarms, and operational commands between connected devices and the control system.
Alternative Names
KJ3241X1 BA1 12P2506X052
KJ324IXI-BAI I2P2506X052
KJ3241X1-BA1 12P25O6XO52
KJ324IXI-BAI 12P25O6XO52
Information
Overview
Manuals
Engineering Considerations
Product Applications
Shielding and Field Wiring Guidelines
Features:
- Supports integration with external industrial devices
- Provides serial communication connectivity for DeltaV systems
- Backplane-powered operation
- Simplifies integration of serial-based equipment
The card operates from local bus power at 12 VDC with a current consumption of 300 mA. The power is supplied through the DeltaV M-Series backplane. No external power supply is required for the card operation.
The card operates over an ambient temperature range of -40°C to +70°C. This wide temperature range allows installation in environments with extreme temperature variations. The storage temperature range is consistent with the operating range. The card has hazardous area certifications for use in potentially explosive atmospheres. The ATEX certification is II 3G Ex nA nC IIC Gc with certificate number FM12ATEX0090U. The IECEx certification is FMG. The card is also approved for Class I, Division 2, Groups A, B, C, D hazardous locations with a temperature rating of T4.
The KJ3241X1-BA1 12P2506X052 EMERSON Serial Interface Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
EMERSON KJ3241X1-BA1 12P2506X052 Serial Interface Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Emerson KJ3241X1-BA1 (Part No. 12P2506X052) is a DeltaV M-Series Redundant Serial Interface Card designed to connect DeltaV controllers with peripheral devices like PLCs, RTUs, and barcode readers. It translates serial communication protocols into the standard DeltaV data highway.
The card has environmental specifications for industrial use. The shock rating is 10 g with 1/2 sinewave for 11 milliseconds. The vibration rating is 1 mm peak-to-peak from 2 to 13.2 Hz, and 0.7 g from 13.2 to 150 Hz. The airborne contaminants rating is ISA-S71.04-1985 Class G3, indicating suitability for environments with moderate levels of corrosive contaminants.
- Oil, Gas & Petrochemical:RTUs, wellhead controls, flow computers & tank gauging
- Chemical Manufacturing:Skids, blending controllers & dosing pumps to DCS
- Power Generation & Utilities:Relays, protective systems & remote subsystems
- Water & Wastewater:Flow meters, pumps & processing instruments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Selection: Always use shielded twisted-pair (STP) cables for RS-232, RS-422, or RS-485 connections to ensure CE compliance
Shield Grounding: Connect the cable shield at one end only. If your third-party field device does not feature a dedicated shield ground, connect the cable shield directly to the DeltaV Carrier Shield Bar.
Differential Reference: When configuring RS-422 or RS-485 multidrop networks, the shield must provide the ground reference for the port. Tie the shield to the exact ground (GND) terminal on the corresponding interface terminal block.
Technical notes
The card has environmental specifications for industrial use. The shock rating is 10 g with 1/2 sinewave for 11 milliseconds. The vibration rating is 1 mm peak-to-peak from 2 to 13.2 Hz, and 0.7 g from 13.2 to 150 Hz. The airborne contaminants rating is ISA-S71.04-1985 Class G3, indicating suitability for environments with moderate levels of corrosive contaminants.
FAQs
-
What is the KJ3241X1-BA1？
+The Emerson KJ3241X1-BA1 is a high-performance Serial Interface Card used in the DeltaV Scalable Process System to connect controllers to serial field devices. -
Can the card be removed or inserted while the system is powered?
+No, the unit must generally be removed or inserted with system power de-energized. However, it can be handled in a known non-hazardous area, provided only one unit at a time is removed or inserted. -
What are the environmental operating limits of the card?
+The module is designed for harsh industrial settings, operating smoothly in ambient temperatures from -40°C to +70°C. It also withstands non-condensing relative humidity of 5% to 95% and meets ISA-S71.04-1985 Class G3 standards for airborne contaminants -
Is it certified for use in hazardous areas?
+Yes, the module carries Zone 2 hazardous area certifications, including ATEX (FM12ATEX0090U) and IECEx (FMG 12.0035U) ratings for environments classified as II 3G Ex nA nC IIC Gc.
