          PRODUCT DESCRIPTION

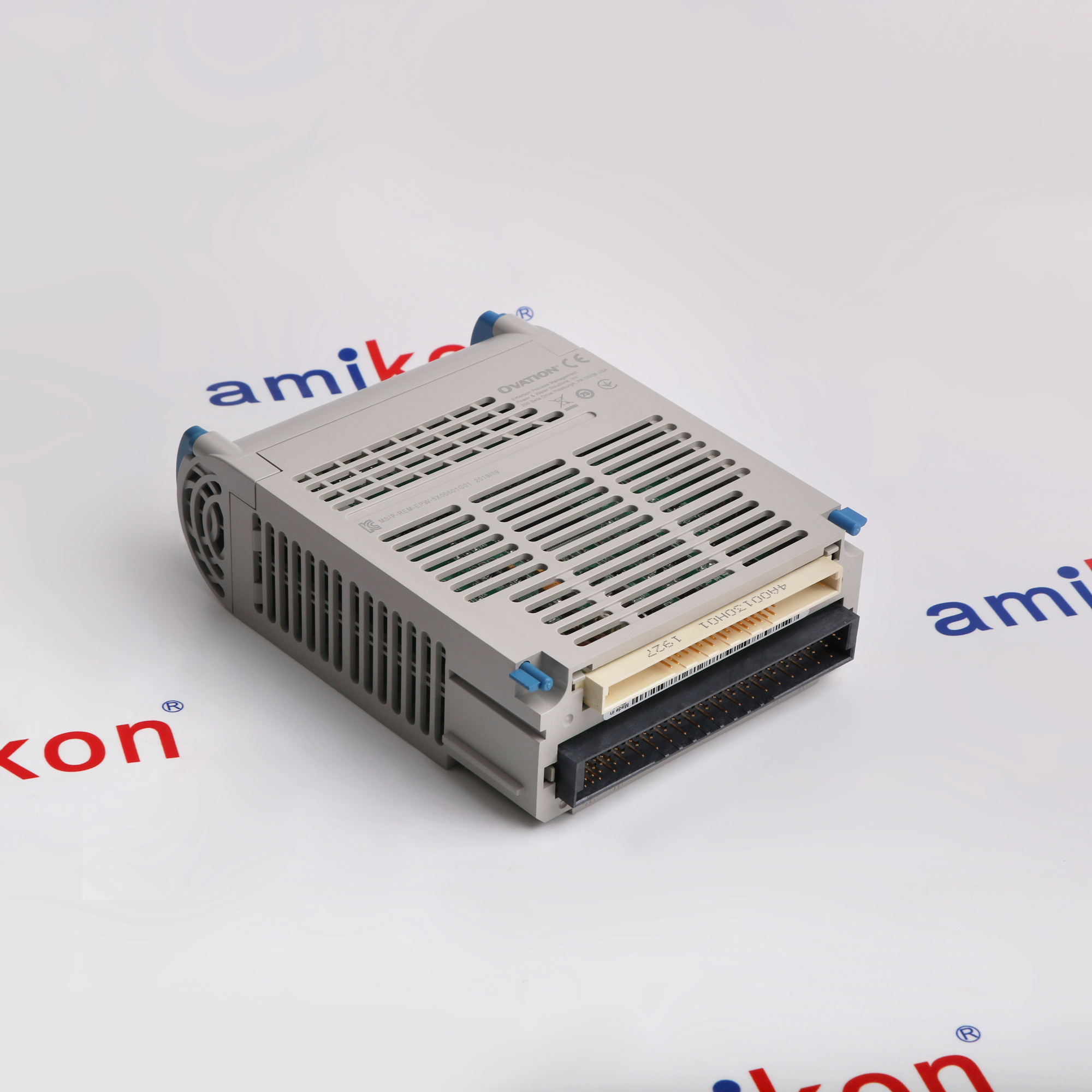

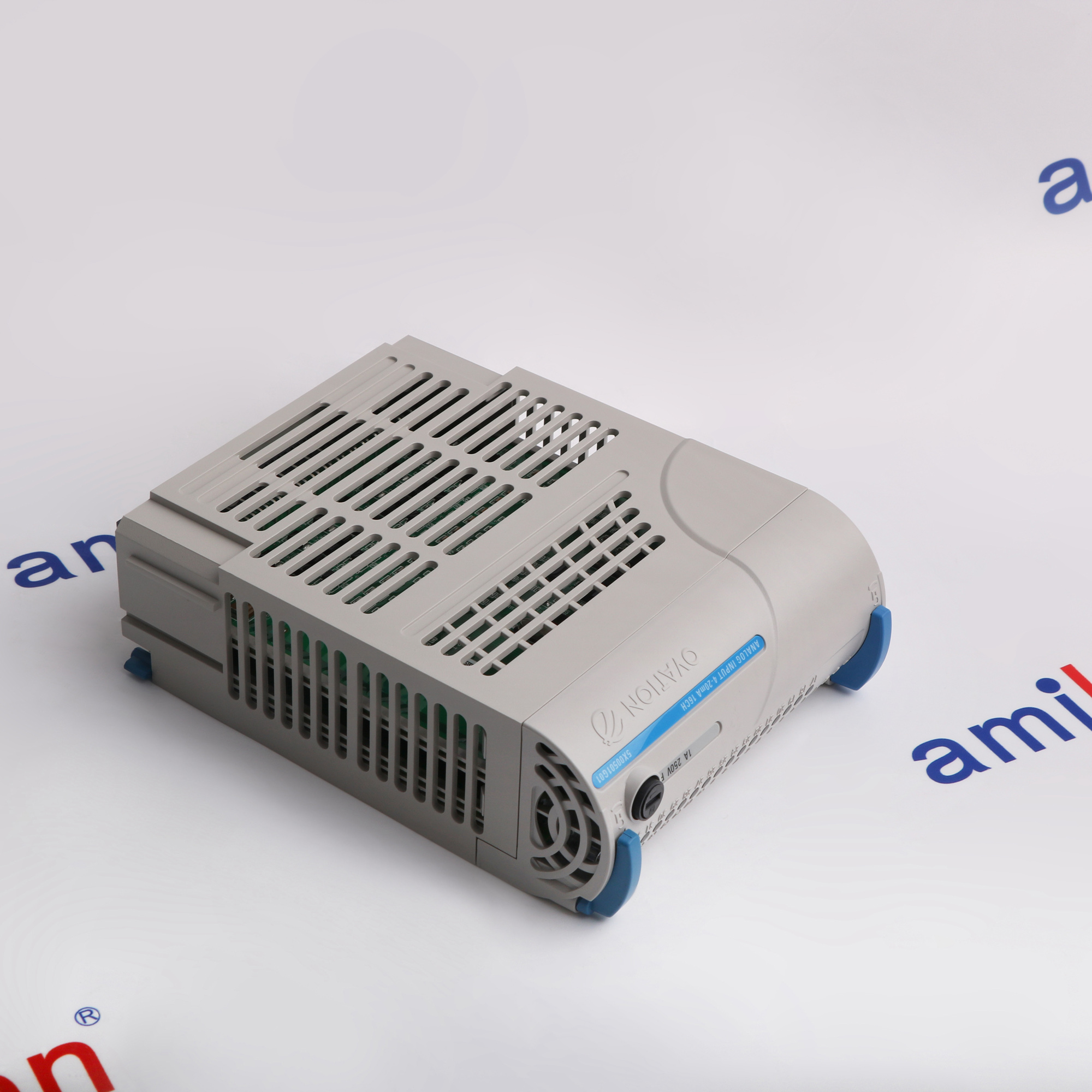

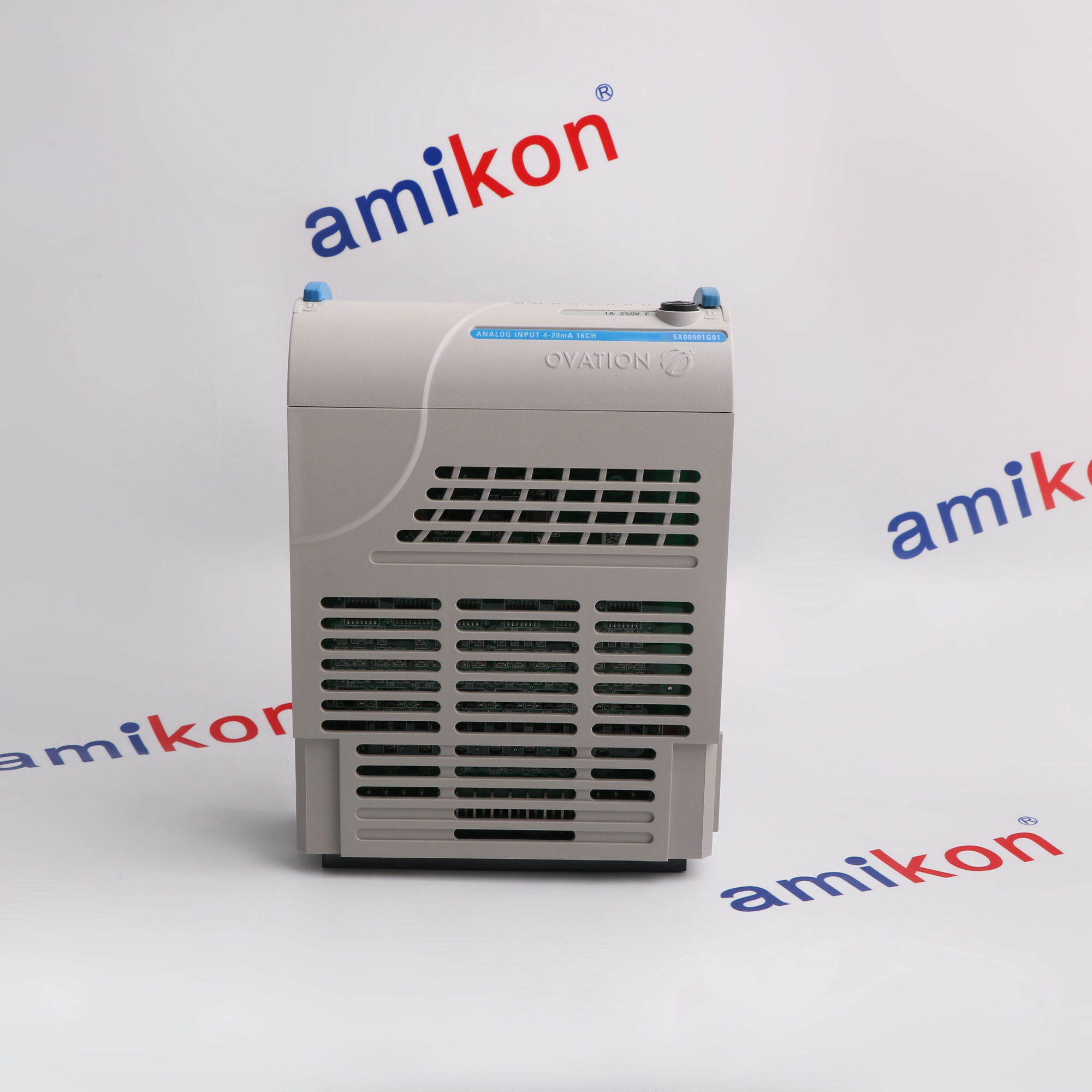

          5X00501G01 16-channel analog input electronics module

          Emerson 5X00501G01 is the electronics module for the Ovation sixteen-channel 4–20 mA analog input assembly. It connects field current-loop signals to the controller through the matching personality interface and requires the four-slot 5X00497G01 I/O base.

          The documented conversion resolution is 14 bits, with a 200 ms refresh for all sixteen channels and a 130 ohm input impedance. The 5X00502G01 personality module supports the documented two-wire and four-wire arrangements. Internal diagnostics distinguish open-loop, out-of-range and auxiliary-supply fuse conditions.
          BEFORE YOU BUY

          Confirm the complete 16-channel analog input electronics module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for 5X00501G01

          5X00501G01 is used in the following application areas within compatible Ovation high-density analog input configurations.
          • 01 · POWER GENERATION

            Thermal Electricity and Hydroelectric Power Generation

            Combined-Cycle Power GenerationPumped-Storage Hydropower
          • 02 · RENEWABLE ENERGY

            Renewable Electricity and Low-Carbon Energy Development

            Solar Power GenerationOnshore Wind Energy
          • 03 · WATER & WASTEWATER

            Municipal Water Supply and Industrial Wastewater Treatment

            Drinking Water TreatmentWastewater Resource Recovery

          Technical specifications for 5X00501G01

          • Product Model
            5X00501G01
          • Product Parameters
            16-channel analog input electronics module
          • In stock
            1 unit
          • Manufacturer
            Emerson
          • Current input channels
            16
          • Nominal input signal
            4 to 20 mA
          • A/D resolution
            14 bits, no missing codes
          • Input impedance
            130 ohm +/-0.1%
          • Complete-channel refresh
            200 ms for 16 channels
          • Conversion sampling
            50 samples/s at 50 Hz rejection; 60 samples/s at 60 Hz rejection
          • Reference accuracy
            +/-0.10% full scale +/-0.5 LSB at 25 +/-1 °C, 50 +/-1% RH, 0 V common mode
          • Open-loop band
            0 to 2.5 mA
          • Channel-to-logic isolation
            1000 V AC/DC
          • Channel-to-channel isolation
            Common reference
          • Main supply consumption
            1.20 W typical; 1.38 W maximum
          • Two-wire auxiliary power
            8.16 W typical; 9.38 W maximum
          • Four-wire auxiliary power
            0.48 W typical; 0.56 W maximum
          • Transmitter loop power
            19.18 V available at 20 mA
          • Required base
            5X00497G01 four-slot I/O base
          View all additional
          Ask for Quote

          Alternative Names

          5X00501G01 Ovation 16-channel 4–20 mA input electronics Westinghouse high-density analog input Emod
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 5X00501G01 16-channel analog input electronics module

          Allocate sixteen current-loop channels and the required four-slot base in the Ovation configuration. The assembly is documented for Windows Ovation 3.4 and above and cannot be installed on the standard two-slot I/O bases identified in the reference manual.
          For two-wire transmitters, the assembly supplies loop power through the personality interface; the documented available voltage is 19.18 V at 20 mA. Four-wire transmitters use the separate termination arrangement and a much lower auxiliary power budget. Select the 50 or 60 samples-per-second conversion mode to match the intended mains-noise rejection.
          The documented conversion resolution is 14 bits, with a 200 ms refresh for all sixteen channels and a 130 ohm input impedance. The 5X00502G01 personality module supports the documented two-wire and four-wire arrangements. Internal diagnostics distinguish open-loop, out-of-range and auxiliary-supply fuse conditions.

          Features:

          • Sixteen 4–20 mA channels on a four-slot base
          • 200 ms complete-channel refresh
          • Distinct two-wire and four-wire supply budgets
          The 5X00501G01 16-channel analog input electronics module requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify 5X00501G01 16-channel analog input electronics module

          Do not replace this module as an RTD input module: 5X00501G01 is a sixteen-channel current-input electronics module. Compare its paired personality module, the four-slot base and the existing two-wire or four-wire loop wiring before removal.
          After replacement, check channel enabling, scaling and current values across the assigned channels. Exercise open-loop indication separately from normal 4–20 mA measurement, and verify the auxiliary fuse and loop power before diagnosing an apparent low input as failed conversion electronics.
          The reference lists 0–2.5 mA as the open-loop band.

          Features:

          • Correct current-input rather than RTD identity
          • Retain channel scaling and enable masks
          • Check loop supply before condemning electronics
          The 5X00501G01 16-channel analog input electronics module requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS
