PRODUCT DESCRIPTION

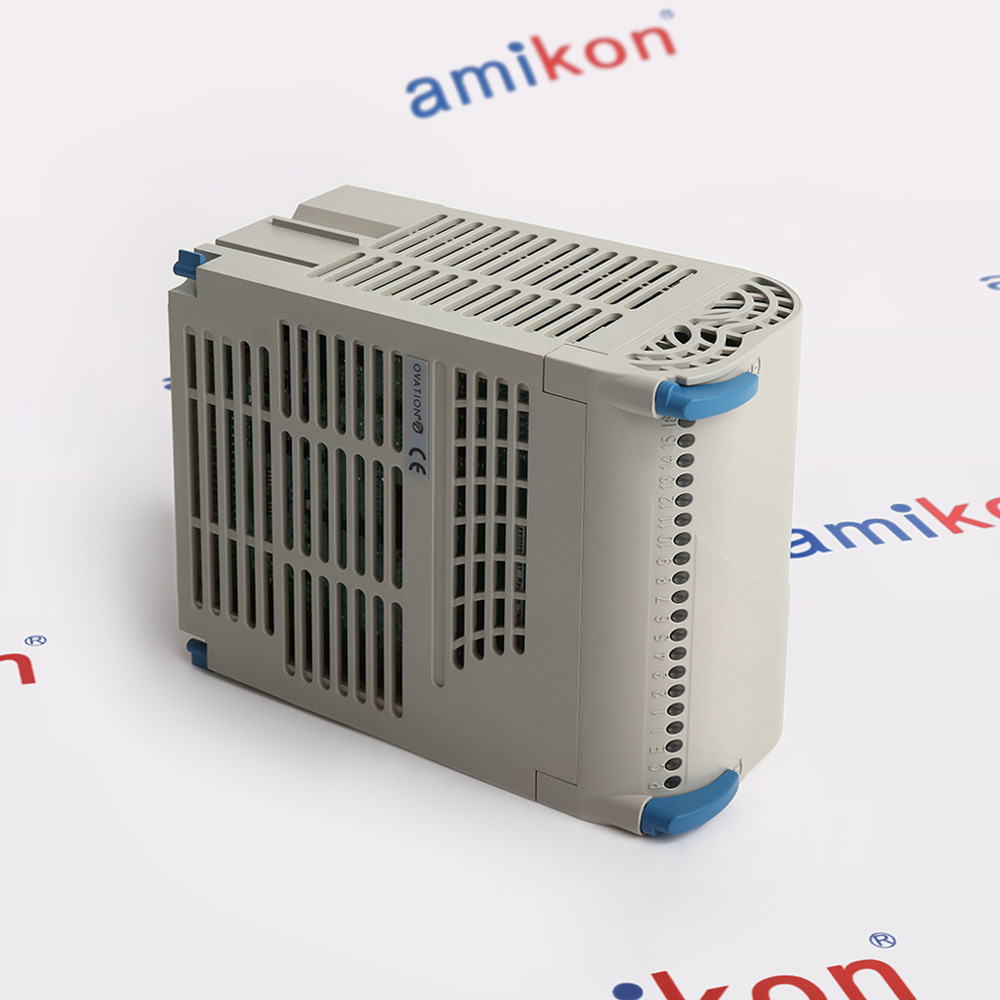

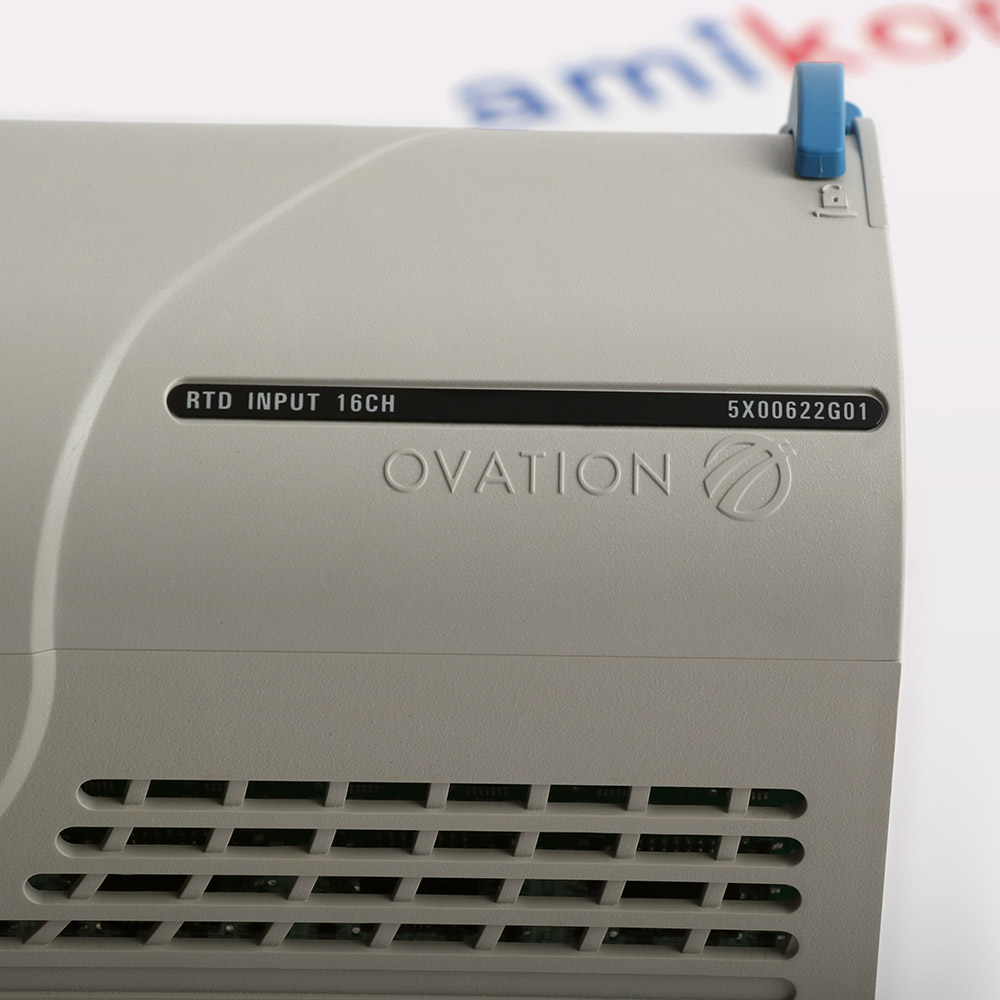

5X00622G01 16-channel RTD input electronics module
Emerson 5X00622G01 is the Ovation sixteen-channel RTD input electronics module for resistance-based temperature measurement. It belongs to the high-density I/O group that requires a four-slot Ovation base and supports the resistance ranges specified for the RTD input assembly.
The RTD module samples channels at 50 ms in the documented 50 Hz and 60 Hz modes and uses 14-bit conversion. Its nominal supply is 24 V DC, with a 21–25 V DC operating window and 3.87 W typical consumption. Open-wire, overrange and controller-access watchdog indications help distinguish wiring faults from communication or measurement problems.
The RTD module samples channels at 50 ms in the documented 50 Hz and 60 Hz modes and uses 14-bit conversion. Its nominal supply is 24 V DC, with a 21–25 V DC operating window and 3.87 W typical consumption. Open-wire, overrange and controller-access watchdog indications help distinguish wiring faults from communication or measurement problems.
BEFORE YOU BUY
Confirm the complete 16-channel rtd input electronics module
ACTUAL APPLICATIONS
Application context for 5X00622G01
5X00622G01 is used in the following application areas within compatible Ovation 16-channel RTD input configurations.
-
01 · WATER & WASTEWATER
Municipal Water Supply and Industrial Wastewater Treatment
Drinking Water TreatmentWastewater Resource Recovery -
02 · HYDROPOWER
Hydroelectric Generation and Grid Energy Storage
Run-of-River HydropowerReservoir Hydropower Development -
03 · FOSSIL FUEL POWER
Thermal Electricity Production and Regional Heat Supply
Gas-Fired Power GenerationIndustrial Cogeneration
Technical specifications for 5X00622G01
-
Product Model5X00622G01
-
Product Parameters16-channel RTD input electronics module
-
In stock1 unit
-
ManufacturerEmerson
-
RTD input channels16
-
Channel sampling interval50 ms in 50 Hz and 60 Hz modes
-
Resistance ranges31.25, 125, 250, 500, 1000 and 2000 ohm
-
Conversion resolution14 bits
-
Power supply voltage21 V minimum; 24 V nominal; 25 V maximum
-
Typical module power3.87 W
-
Measurement accuracy+/-0.10% of span at 99.7% confidence
-
Maximum lead resistance100 ohm per lead
-
Channel-to-channel withstand+/-1000 V DC peak for 1 minute
-
Channel-to-logic withstand+/-1000 V DC for 1 minute
-
Normal-mode rejection60 dB typical at 50 or 60 Hz +/-1 Hz
-
Bus watchdog timeout1.5 s, +/-20%
-
Operating ambient temperature0 to 60 °C
-
Storage temperature-40 to +85 °C
-
Non-condensing humidity0 to 95%
View all additional
Alternative Names
5X00622G01
Ovation sixteen-channel RTD input Emod
Westinghouse high-density resistance-temperature input
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 5X00622G01 16-channel rtd input electronics module
Select the configured RTD resistance scale and the correct sensor wiring arrangement before assigning engineering-unit conversion. The documented three-wire scales extend from 31.25 to 2000 ohm; the maximum single-lead resistance is 100 ohm.
Budget 3.87 W typical module power and retain the 21–25 V supply window. The watchdog reports a missing controller access after 1.5 seconds with +/-20% tolerance. Open leads and readings above 121% of full scale produce attention status, which should be evaluated alongside the actual sensor circuit.
The RTD module samples channels at 50 ms in the documented 50 Hz and 60 Hz modes and uses 14-bit conversion. Its nominal supply is 24 V DC, with a 21–25 V DC operating window and 3.87 W typical consumption. Open-wire, overrange and controller-access watchdog indications help distinguish wiring faults from communication or measurement problems.
Features:
- Sixteen resistance-temperature input channels
- 50 ms sampling in both mains modes
- Open-lead, overrange and watchdog attention
The 5X00622G01 16-channel rtd input electronics module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 5X00622G01 16-channel rtd input electronics module
Replace this item as an RTD input electronics module rather than the digital output function previously assigned to the record. Compare the sixteen-channel assignment, selected resistance scale and sensor lead arrangement with the existing configuration.
After fitting the replacement, verify representative channels with a suitable RTD/resistance test source, then check open-wire and overrange indications. Preserve lead compensation and engineering-unit scaling; otherwise electrically plausible resistance readings can still display the wrong temperature.
An open wire on any lead results in attention status; an input above 121% of full scale also produces attention.
Features:
- Correct RTD rather than digital-output identity
- Retain resistance scales and lead compensation
- Compare simulated resistance with displayed temperature
The 5X00622G01 16-channel rtd input electronics module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 5X00622G01 16-channel rtd input electronics module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size12.0 x 7.8 x 16.5 cm
-
Shipping weight0.36 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538909100
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 5X00622G01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 5X00622G01 a sixteen-channel digital output module?
No. The manufacturer planning reference identifies the 5X00622 group as sixteen-channel RTD analog input. -
Which resistance scales are specified for the RTD assembly?
The three-wire scales are 31.25, 125, 250, 500, 1000 and 2000 ohm. -
What supply window surrounds the nominal 24 V rating?
The documented supply limits are 21 V minimum and 25 V maximum. -
How much resistance is allowed in one sensor lead?
The maximum single-lead resistance is 100 ohm. -
What does the 1.5-second watchdog monitor?
It monitors controller access to the RTD input subsystem and reports a timeout if access is missing within the specified interval. -
How are broken sensor leads reported?
An open wire on any lead results in attention status; an input above 121% of full scale also produces attention. -
What configuration details should be included in an RTD spare inquiry?
Provide 5X00622G01, the base arrangement, sensor types, resistance scales and the required channel allocation. -
Can a quotation include a pre-shipment resistance-simulation check?
Request the desired channels and resistance points so the scope of any available test can be confirmed in writing.
READY TO VERIFY YOUR PART?
Get a 5X00622G01 quote with price, lead time and revision check.
