AMIKONG EXCESS CONTROL SYSTEM PARTS
Specializing In:Automation Spares(DCS, PLC, CNC) Servo Drives HMI Power supplies Controllers
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
- Home
- ALL MANUFACTURERS
- Festo
- DGSL-12-30-PA
In Stock
Ships by Sunday, June 7
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DGSL-12-30-PA
-
Product ModelDGSL-12-30-PA
-
Product ParametersElastic cushioning rings/plates at both ends
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.6x18x16.2cm
-
ManufacturerFesto
-
Weight0.4 kg
-
CushioningElastic cushioning rings/plates at both ends Guide
-
Ball bearing cage guideOperating pressure
-
Operating pressure1 bar ... 8 bar
-
Max. speed0.8 m/s
-
Repetition accuracy0.3 mm
-
Max. force Fy1075 N
-
Max. force Fz1075 N
-
Max. moment Mx15 Nm
-
Max. moment My10 Nm
Description

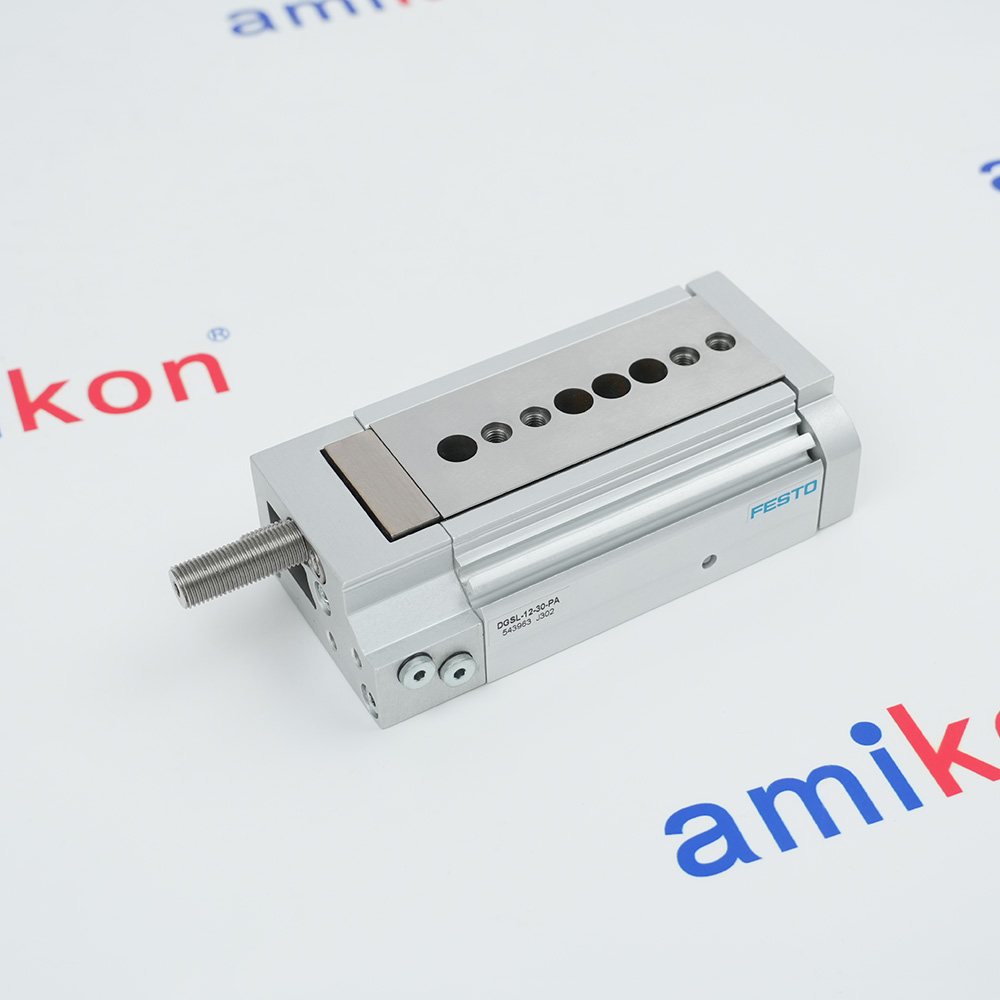

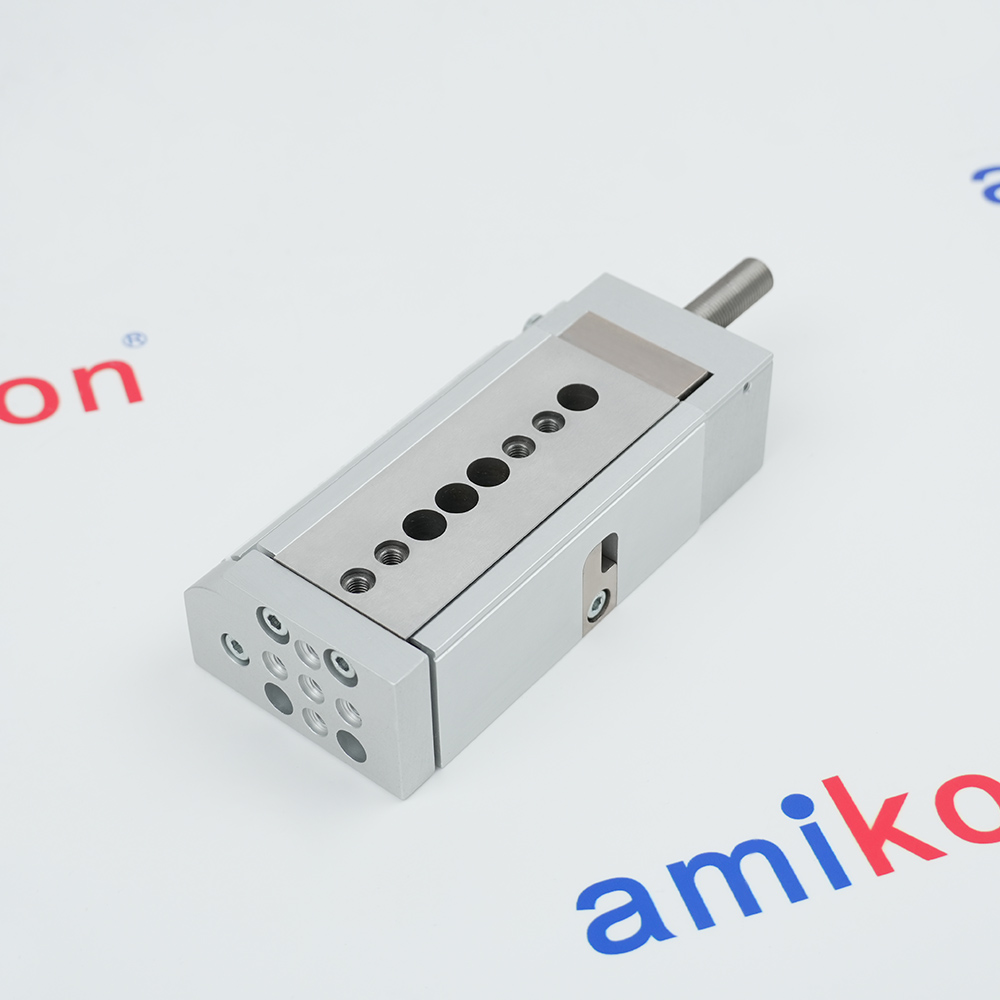

The Festo DGSL-12-30-PA is a mini slide from the DGSL series. It is a non-rotating single-piston drive with a bearing guide. The slide is moved back and forth by alternate pressurisation of the supply ports. The slide is braked at the end position by elastic cushioning rings/plates at both ends.
The bore diameter is 12 mm. The stroke is 30 mm. The mode of operation is double-acting. The pneumatic connection is M5. The operating pressure range is 0.1 MPa to 0.8 MPa, equivalent to 1 bar to 8 bar. The maximum speed is 0.8 m/s.
The structural design is a yoke type with a ball bearing cage guide. The guide uses ground ball bearing support rails for high load capacity and positioning accuracy. The repetition accuracy is 0.3 mm.
The bore diameter is 12 mm. The stroke is 30 mm. The mode of operation is double-acting. The pneumatic connection is M5. The operating pressure range is 0.1 MPa to 0.8 MPa, equivalent to 1 bar to 8 bar. The maximum speed is 0.8 m/s.
The structural design is a yoke type with a ball bearing cage guide. The guide uses ground ball bearing support rails for high load capacity and positioning accuracy. The repetition accuracy is 0.3 mm.
Alternative Names
DGSL1230PA
DGSL/12/30/PA
DGSL-I2-30-PA
DGSL-12-3O-PA
DGSL-I2-3O-PA
Information
Overview
Manuals
Engineering Considerations
Product Applications
Payload Attachment
Features:
- 12 mm bore diameter with 30 mm stroke
- Elastic cushioning rings/plates at both ends
- Ball bearing cage guide
- M5 pneumatic connection
- Position detection via proximity sensor
- Wrought aluminum alloy housing and cover
The DGSL-12-30-PA FESTO Elastic cushioning rings/plates at both ends may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
FESTO DGSL-12-30-PA Elastic cushioning rings/plates at both ends Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Cushioning Limits: The built-in elastic ("P") cushioning absorbs a maximum impact energy of 0.25 Nm per stroke. If your payload mass combined with a high execution speed exceeds this threshold, you must use external flow control valves to throttle the speed or pivot to a model with hydraulic shock absorbers (e.g., DGSL-12-30-Y3A).
Stroke Adjustments: This component allows manual stroke manipulation. The front end-position range can be mechanically adjusted up to 29 mm, while the rear range allows up to 25.5 mm of modification.
- Electronics and Semiconductor Manufacturing:PCB assembly, microchip manipulation & testing
- Biotech, Pharmaceutical, and Medical Devices:Fluid handling, pipetting & vial sorting
- Food Processing and Packaging:Packaging lines, carton erection & picking
- Light Automotive Component Assembly:Sensor/valve assembly & connector testing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Yoke Connection: Fasten your tool, gripper, or application payload directly to the front faceplate (yoke).
Screw Penetration: Ensure your payload mounting screws do not exceed the max depth of the yoke's blind holes. If a screw is too long, it will pierce through and physically jam or scratch the underlying slide cylinder housing.
Sleeve Alignment: Use a second set of centering sleeves on the yoke interface to ensure the payload stays perfectly perpendicular under cycle vibrations.
Technical notes
The maximum force Fy is 1400 N and the maximum force Fz is 1400 N. The maximum torque Mx is 20 Nm, My is 15 Nm, and Mz is 15 Nm. The theoretical force at 6 bar for the advancing stroke is 121 N. The theoretical force at 6 bar for the retracting stroke is 104 N.
FAQs
-
What is the DGSL-12-30-PA？
+The Festo DGSL-12-30-PA (Part No. 543963) is a highly accurate, double-acting pneumatic mini slide featuring a precision ball bearing cage guide. It features a 12 mm bore and a 30 mm stroke. -
What is the maximum allowable payload?
+The maximum forces the slide can handle are 1,075 N (both laterally and vertically), and maximum permissible torques are 15 Nm (Mx) and 10 Nm (My and Mz). -
Does it have an adjustable stroke?
+Yes. The adjustable end-position range length is 29 mm at the front and 25.5 mm at the rear. -
How much theoretical force does it generate?
+At a standard operating pressure of 6 bar, it outputs a force of 121 N on the advance stroke and 104 N on the return stroke.
