6MBI75UC-120-52
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

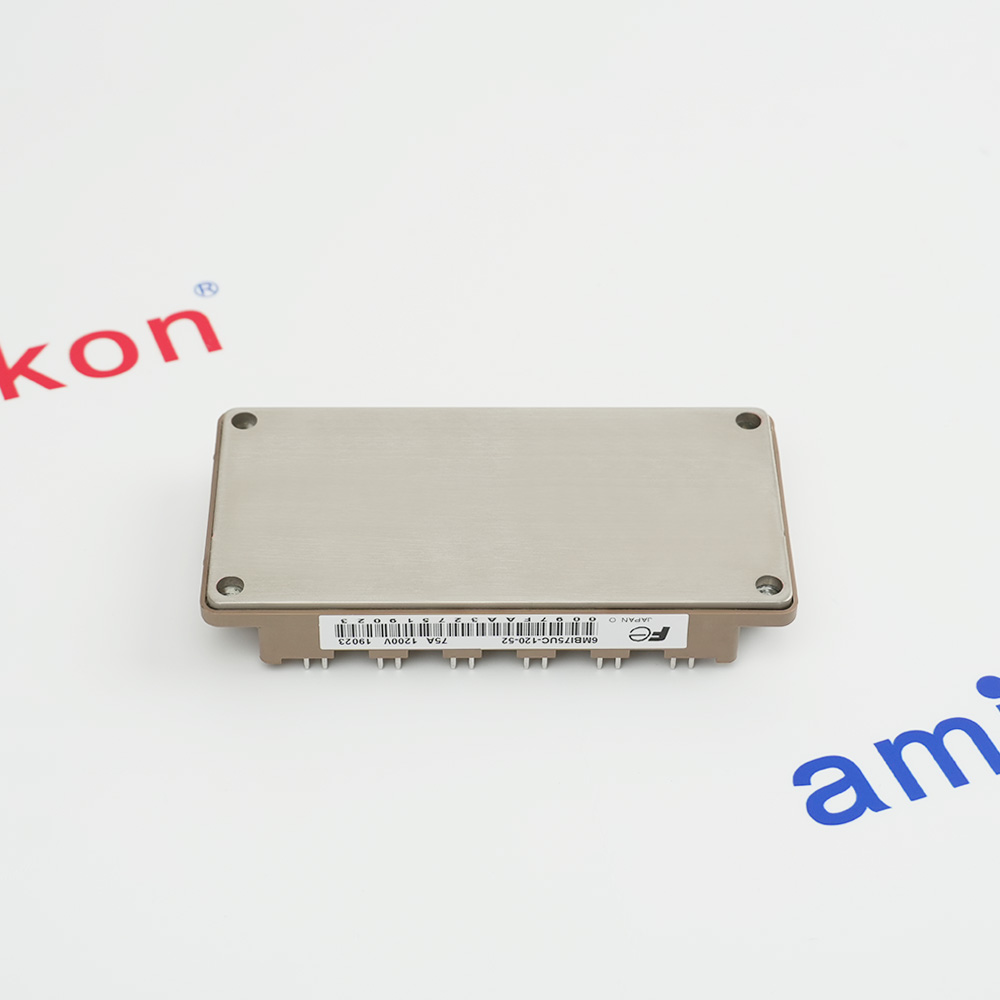

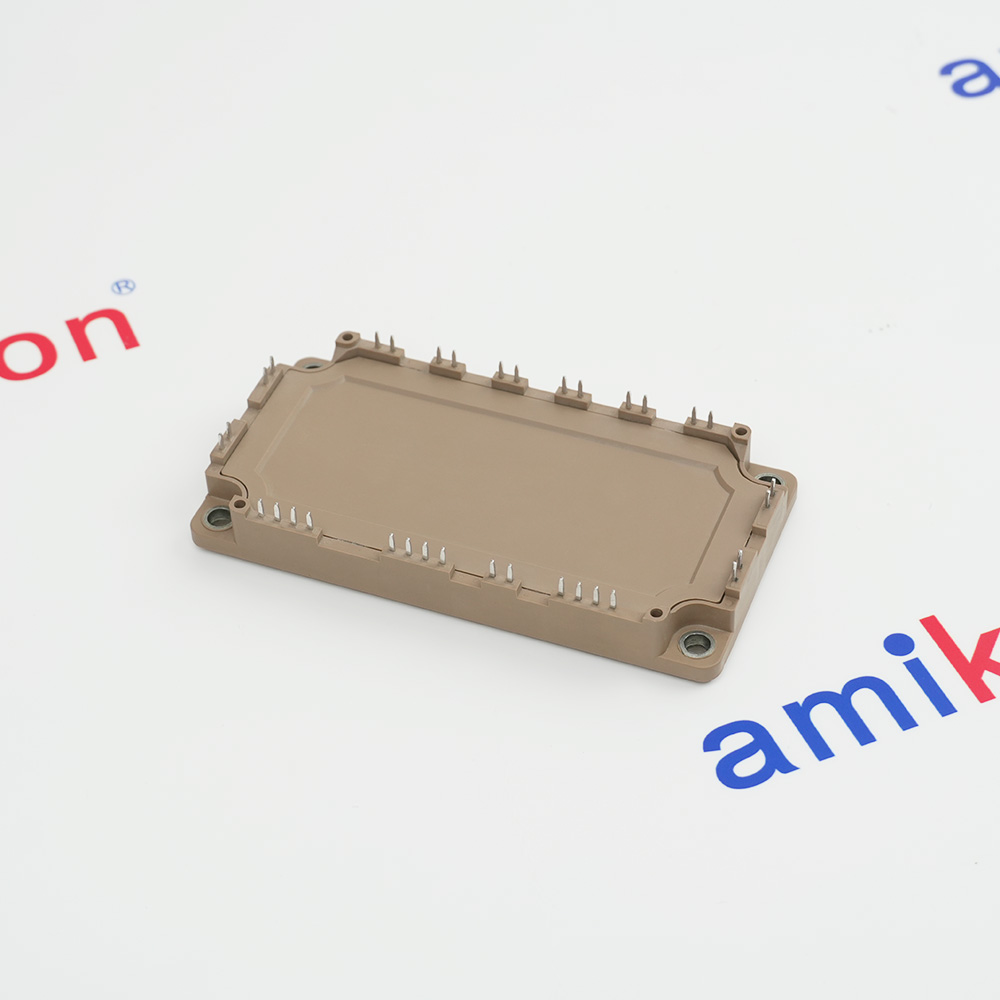

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
6MBI75UC12052
INSULATED GATE BIPOLAR TRANSISTOR
100A I(C)
1200V V(BR)CES
N-CHANNEL
INSULATED GATE BIPOLAR TRANSISTOR
100A I(C)
1200V V(BR)CES
N-CHANNEL
Technical specifications for 6MBI75UC-120-52
-
Product Model6MBI75UC-120-52
-
Product ParametersINSULATED GATE BIPOLAR TRANSISTOR
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.2x6.2x2cm
-
ManufacturerFuji Electric
-
Weight0.3 kg
-
Collector-Emitter Voltage1200V
-
Gate-Emitter Voltage±20 V
-
Collector Current (DC)75 A
-
Total Power Dissipation600 W
-
Isolation Voltage2500 V AC
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 6MBI75UC-120-52?+The Fuji 6MBI75UC-120-52 is an advanced 1200V, 75A Insulated Gate Bipolar Transistor (IGBT) module featuring six IGBTs in a single package.
-
What causes gate drive failure?+Improper voltage levels or timing can lead to erratic switching. Verify circuits for correct voltage and ensure sufficient dead time.
-
Is it short-circuit protected?+The module requires external short-circuit protection circuits and fast fault detection to minimize damage during events.
-
How do I handle voltage spikes?+Use snubber circuits or voltage clamping devices to ensure spikes do not exceed the module's 1200V rating.
Get a quick price fo 6MBI75UC-120-52
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Electrical Connections
Features:
- High speed switching
- Voltage drive
- Low inductance module structure
The 6MBI75UC-120-52 Fuji IGBT Module U-Series may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Fuji 6MBI75UC-120-52 IGBT Module U-Series Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FUJI 6MBI75UC-120-52 is a 6-in-1 U-Series IGBT module rated for 1200V and 75A. Designed for high-reliability industrial applications like motor drives and inverters, it features optimized switching losses and thermal performance. Contains 6 separate IGBTs and diodes in a single, highly integrated package, drastically reducing footprint and assembly time in multi-phase inverters.
- Motor Drives & Inverters:AC/DC servo amps & motor inverters
- Power Supplies:UPS & SMPS for stable/efficient conversion
- Industrial Machinery:Welding machines & induction heating
- Renewable Energy:Solar/wind DC to AC grid converters
- Transportation:EV drive & rail traction power control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminal Screws: Use the appropriate screws for the main power and control terminals. Apply the correct tightening torque specified in the official Fuji Electric datasheet to prevent stripped threads or loose, high-resistance connections.Gate Drive Wiring: Keep the gate drive wires as short as possible to minimize parasitic inductance and prevent gate signal oscillations.Snubber Circuits: Use properly sized snubber circuits to suppress dangerous voltage spikes that exceed the module’s 1200V rating during switching events.
