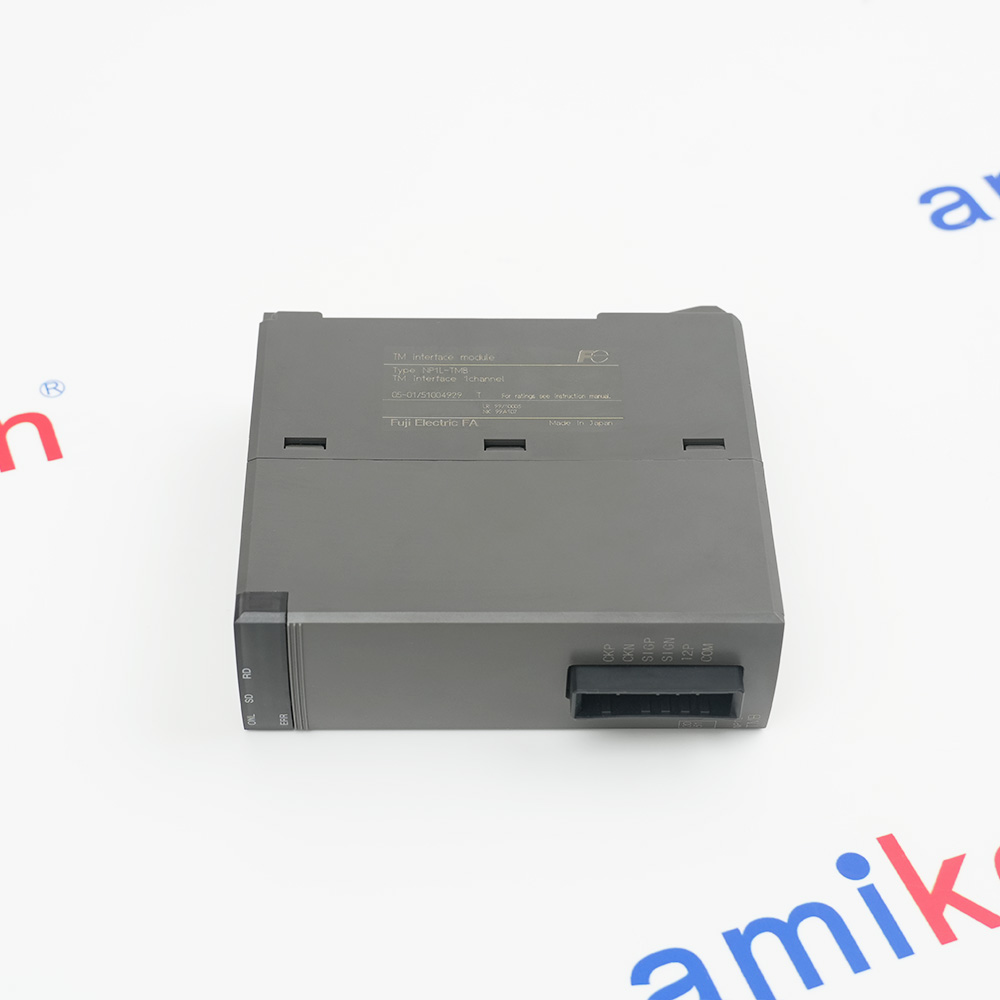

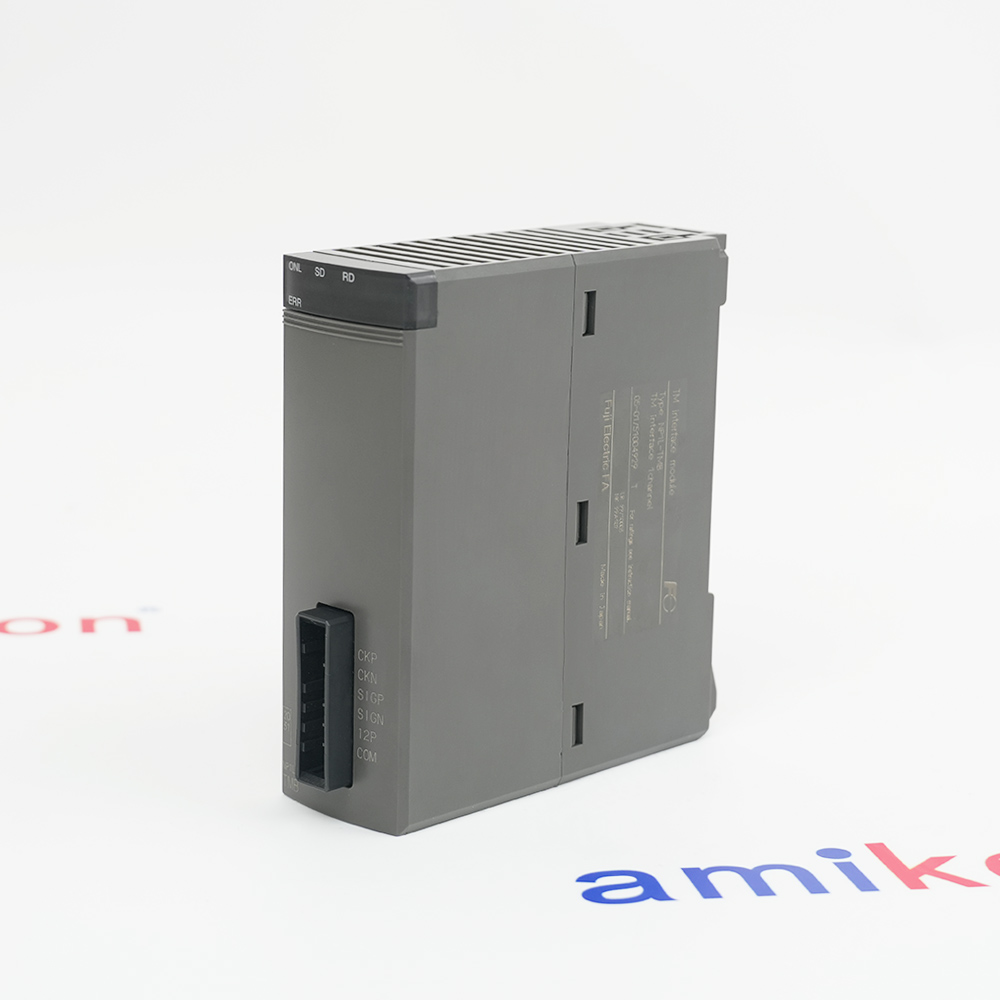

NP1LTMB
INTERFACE MODULE
TM INTERFACE MODULE
MICREX-SX SPH series
INTERFACE MODULE
TM INTERFACE MODULE
MICREX-SX SPH series
Technical specifications for NP1L-TMB
-
Product ModelNP1L-TMB
-
Product ParametersINTERFACE MODULE
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x10.2x10.5ccm
-
ManufacturerFuji Electric
-
Weight0.15 kg
-
Terminal Capacity0.2 – 2.5 mm²
-
Current Rating2 A per terminal @ 30 °C
-
Voltage Rating250 V ac
-
Isolation1500 V ac
-
Operating Temp0 – +55 °C
-
Storage Temp–20 – +75 °C
-
Humidity5 – 95 % RH non-condensing
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Wiring
Features:
- INTERFACE MODULE
- MICREX-SX SPH series
The NP1L-TMB Fuji Electric TM interface module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Fuji Electric NP1L-TMB TM interface module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The NP1L-TMB is a TM Interface Module belonging to the Fuji Electric MICREX-SX SPH Series of programmable logic controllers (PLCs). It is primarily used as an add-on or PC board interface within industrial automation and machine control systems.Avoid operation in environments with high humidity, condensation, dust, corrosive gases, or excessive vibration, as these can cause erratic operation or fire.
- Industrial Automation:Connects sensors, actuators & solenoids to central PLC
- PLC/Machine Control:Bridge between central processor & decentralized I/O
- Data Acquisition & Monitoring:High-speed data transfer over long distances
- Marine Automation:Shipbuilding machinery, marine automation & navigation
- Factory Automation Systems:Secure & efficient production line communication
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Secure Mounting: Periodically check that mounting and terminal screws are tightened. Loose connections can cause erratic operation or fire.
Dust Covers: Remove dust-cover seals only after wiring is complete. Leaving them on during operation can lead to overheating or fire.
Grounding: Securely connect the ground terminal to an appropriate earth ground to prevent electric shock.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about NP1L-TMB
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the NP1L-TMB ？
Fuji Electric NP1L-TMB is a component related to the MICREX-SX SPH series T-link (bit level) communication system, often listed as a T-link interface or slave module. -
What NP1L-TMB series does it belong to?
It is part of the MICREX-SX SPH series of bit-level communication modules. -
Can I connect NP1L-TMB to old MICREX-F systems?
Yes, NP1L-series T-link modules are generally designed to interface SPH series CPUs with existing MICREX-F and FLEX-PC T-link equipment. -
What is the NP1L-TMB maximum distance?
Data can be transmitted up to 5 km between master/slave modules and remote terminals, depending on the configuration. -
What NP1L-TMB does F8 mean on a connected HMI?
If a POD (UG Series) HMI is connected via T-link and displays "F8," it often indicates a communication error between the T-link master and the HMI/terminal. Check terminal resistance and cable integrity.
