GE Mark VIe

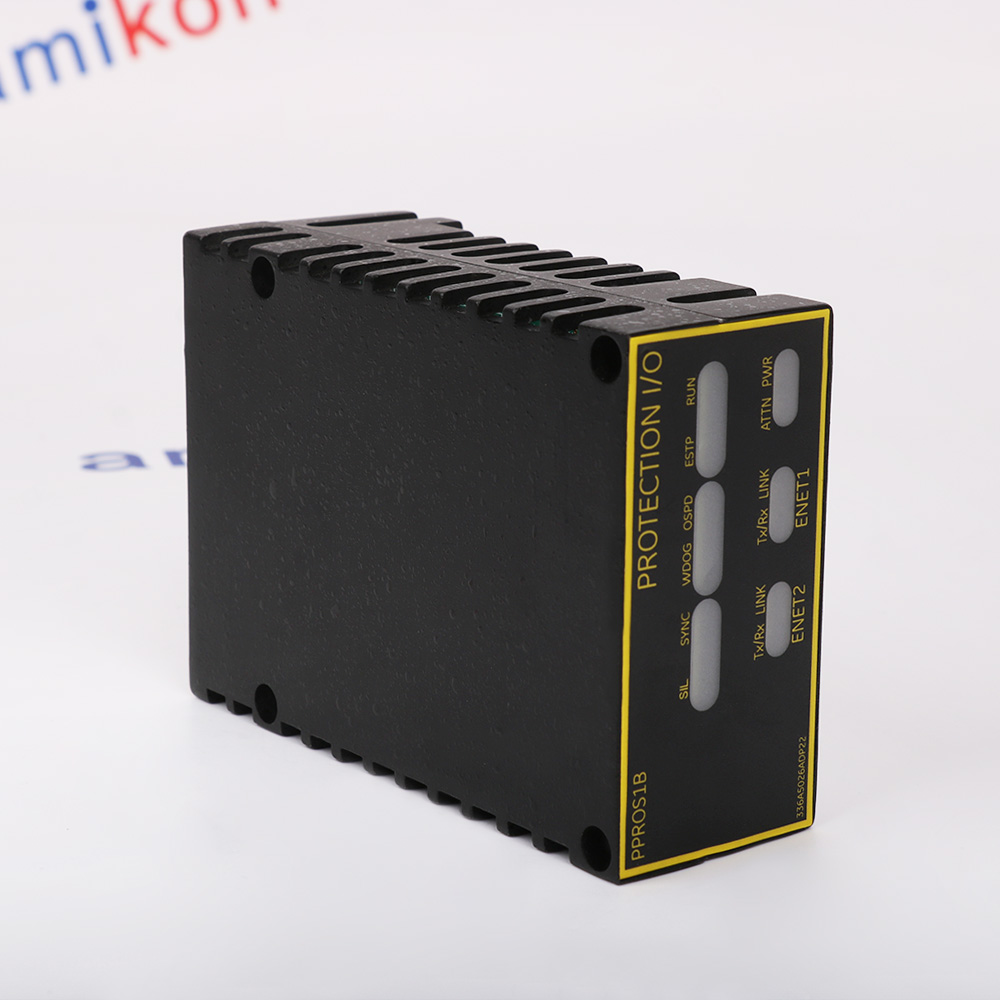

Primary Turbine Protection DIN Rail Module

Series: Mark VIe
Function: Primary Turbine Protection DIN Rail Module
Operating Temperature: -40°C to +70°C
Controller and I/O module Redundancy: Simplex
Internal operating system: QNX
Operating Voltage: 9 V to 16 V dc
Power Consumption: 4 W
Analog outputs: 0 to 10 V
Configuration Software: ToolboxST
Ethernet Ports: 2 Ethernet ports

Analog DIN Rail Input/Output Module

Series: Mark VIe
PCI bus: 32bit/33MHz
Product Type: Analog DIN Rail Input/Output Module
Number of channels: 12
A/D resolution: 16 bits
Number of inputs: 32 single-ended
Common Mode Voltage Range: +5 V dc
Maximum lead resistance: 15Ω max
Output Load: 500 Ω for 4-20 mA
Operating temperature: 0 to 70°C
Frequency: 50 or 60 Hz

Digital Input/Output board

Input Voltage Range: 24–125 VDCor 120 VAC.
Output Ratings:
Relay Outputs: Up to 5 A, 250 VAC/30 VDC.
Solid-State: 0.5–2 A (24–48 VDC).
Isolation:1500 VAC minimum
Operating Temperature: -40°C to +85°C (industrial-grade).
Certifications: CE, UL, IEC 61131-2

Discrete Output Module

Surface-Mount
12 Relay/Coil Monitors
Simplex or TMR
Processor Board BPPC

DIRECT CURRENT FEEDBACK BOARD

DIRECT CURRENT FEEDBACK BOARD
EX2100 SERIES
Board Description:Exciter DC Feedback
Board Type:Input/Output Terminal Board
External Power Supply:±24 VDC
Functional Acronym/Abbreviation:EDCF
Hardware Form:A, Not Backward Compatible

Discrete Output I/O pack

Mark VIeS Safety Discrete Output I/O pack
Country of Manufacture: United States of America (USA)
Number of buffered outputs: 14
N28 ripple: 280 mV pk
N28 maximum current: 400 mA
Temperature rating: 0 to 60 oC
Product Type: Discrete Output Pack

Servo Control Module

Series: Mark VIe
Microprocessor: Intel Celeron 650 MHz
Number of inputs: 8
Power supply voltage: 28 V dc
Memory: 128 MB SDRAM
Number of outputs: 2
LVDT Excitation Output: 3.2 kHz
Programming: Boolean
Product Type: Simplex Servo Control I/O Module

CIRCUIT BOARD

Primary: 24VDC nominal
Backplane Outputs: +5V
Current Capacity:Up to 20A

I/O Pack Processor Board

Estimated 512 MB+ RAM
Modbus TCP/IP, Ethernet/IP
Analog (AI): ±10V DC, 4-20 mA
Digital (DI): 24V DC
Power Supply: 24V DC (±20%)
Power Consumption: < 10W

Redundant fault-tolerant control system

Input Voltage: 24V DC
Current Consumption: 1.5A typical
Isolation: 1500V AC channel-to-channel
Trip Contact Ratings:5A @ 30V DC resistive
Analog Inputs: 8 channels
Relay Outputs: 8 channels
Communication Ports: 2x Ethernet for diagnostics

Resistance Temperature Device

RTD INPUT MODULE
8 CHANNEL
14-BIT
15 OHMS MAX.
2 ETHERNET PORTS
FOR MARK VI TURBINE CONTROL SYSTEM

Thermocouple Input Module

IO PACK
THERMOCOUPLE
2 ETHERNET PORTS
AMBIENT TEMPERATURE RATING:
-30 TO + 65°C (-22 TO +149 °F)

Discrete Contact Input I/O Module

Power Supply:28VDC
Functional Revision 1:A
Mark VI Series Grouping:Group 1
Number of Channels:16 (isolated)
Input Type:Dry contact (volt-free) or wet contact (24–125V DC)
Voltage Range:24–125V DC (configurable)
Input Current :2–20mA per channel
On-State Voltage:≤3V DC (for dry contact)
Off-State Leakage:<1mA

Analog I/O Module

CARD
INPUT/OUTPUT PACK
ANALOG IN/OUT
200 MA TYPE
FOR MARK VIE TURBINE CONTROL SYSTEM

LAN Communications Card

TURBINE CONTROL SYSTEM
MARK V
SPEEDTRONICS
W/FIRMWARE
16 DIGIT DISPLAY

Thermocouple Input Board

Voltage: 24 V DC ±10%
Consumption: ≤15 W (typical)
Channel-to-Channel: ≥250 V AC
Field-to-System: 1500 V AC
Signal Range: -200°C to +1800°C

ETHERNET CONNECTION BOARD

PC BOARD ASSEMBLY
ETHERNET CONNECTION BOARD
CONTROLLER WITH 2 IS BUS CHANNELS
MARK VI

Discrete Input Pack

Channels:16x isolated
Voltage Range:24-125V DC
Current Rating:5mA (min)
Isolation:1500V AC
Power Supply:24V DC (±10%) from backplane
Power Consumption:6W (typical)
Response Time:<1ms (input), <0.5ms (output)
Contact Rating:50,000 operations @ rated load

Vibration Transducer Interface Module

Series: Mark VI
Product Type: Vibration Transducer Interface Module
Board rating: 125 V dc
Common Mode Voltage Range: ±5 V
Dimensions: 11.00 x 9.00 x 3.00
Operating temperature: 0 to 60 °C
No.of Analog Voltage Inputs: 6

Relay Output Terminal Board

Product Type: Relay Output Terminal Board
Number of channels: 16
Relay Type: SPDT
Relay Contact Rating: 10A
Input Voltage Range: 12V, 24V
Number of Relay Channels: 4, 8
Relay Switching Current: Max 10A
Mounting Type: DIN rail
Output Resolution: 12-bit
Output Impedance: 10 Ohm
Analog outputs: 0-20 mA

FEEDBACK I/O PACK

POWER DISTRIBUTION SYSTEM
FEEDBACK I/O PACK
PDM DIAGNOSTICS TYPE
FOR MARK VIE
TURBINE CONTROL SYSTEMS
AMBIENT TEMPERATURE:
-30 TO 65 DEGREES C

I/O pack

CARD
INPUT/OUTPUT PACK
PROTECTION TYPE
FOR MARK VIE TURBINE CONTROL SYSTEM
2 ETHERNET PORTS
POWER SUPPLY
LOCAL PROCESSOR
DATA ACQUISITION BOARD

POWER CONNECT CARD

Input Voltage:+24V DC
Input Range:+18V to +30V DC
Output Voltage:+23.5V to +24.5V DC
Max Current Capacity:40A total
Per-Slot Current:5A max (fused)
Efficiency:>92% (at full load)
Ripple Noise:<100 mV pk-pk

NTB/3TB Terminal Board

531X305NTBAPG1
DISCONTINUED BY MANUFACTURER
PC BOARD ASSEMBLY
ACDC2000
DRIVE TERMINAL
MARK V SERIES

Exciter PT/CT Board

Series:Mark VI Speedtronic
Functional Part Number:IS200EPCTG1AAA
Functional Description:IS200EPCTG1AAA Exciter PT/CT Board
Voltage Input:120 VAC
Current Input:1 A or 5 A
Operating Temperature: -30°C to +70°C
