GE Mark VIe

Turbine Protection Board

Series: Mark VIe
Product Type: Turbine Protection Board
Number of Inputs: 3
Number of Outputs: 6
Operating temperature: -30 to 65℃
Power Supply Voltage: 125 V

Servo I/o Module

I/O PACK
SERVO INTERFACE
BPPC
MARK VIE
TX/RX LINK
28 VDC
1 AMP

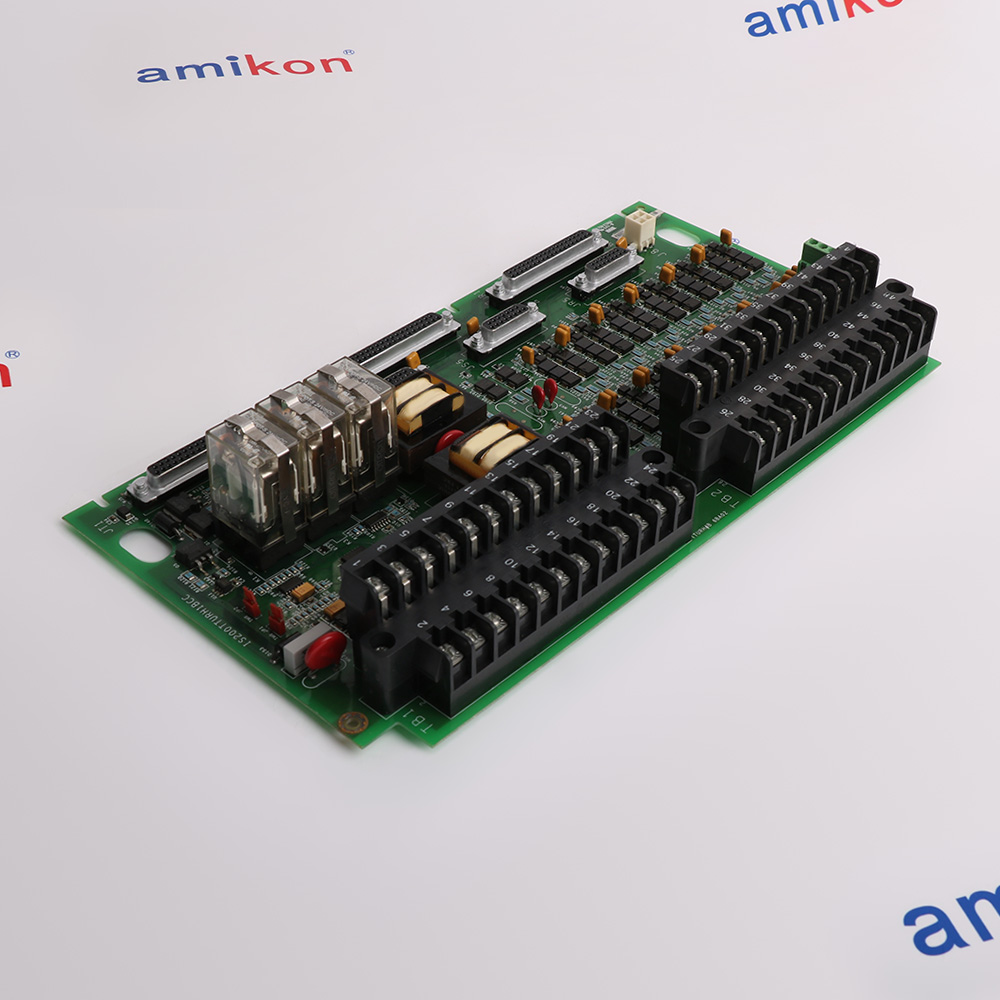

Terminal Board

Series: Mark VIe
Product Type: Terminal Board
Technology: Surface mount
Number of outputs: Generator breaker coil, 5A at 125 V dc
Power supply voltage: Nominal 125 V dc to breaker coil
MPU pulse rate range: 2 Hz to 20 kHz

Analog Output Module

Series: Mark VIe
Product Type: Analog Output Module
Number of channels: 12
Common Mode Voltage Range: +5 V dc
Maximum Lead Resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: -30 to 65 °C
Size: 8.26 cm high x 4.18 cm
Frequency: 50 or 60 Hz

Mark VIe I/O pack

Series: Mark VIe
Product Type: I/O PACK
Number of channels: 12
Maximum Lead Resistance: not exceed 450Ω
Analog output current: -8 to 45 mV

Analog Output Module

Series: Mark VIe
Product Type: Analog Output Module
Number of channels: 12
Common Mode Voltage Range: +5 V dc
Maximum Lead Resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: -30 to 65 °C
Frequency: 50 or 60 Hz

Primary Turbine Protection DIN Rail Module

Series: Mark VIe
Function: Primary Turbine Protection DIN Rail Module
Operating Temperature: -40°C to +70°C
Controller and I/O module Redundancy: Simplex
Internal operating system: QNX
Operating Voltage: 9 V to 16 V dc
Power Consumption: 4 W
Analog outputs: 0 to 10 V
Configuration Software: ToolboxST
Ethernet Ports: 2 Ethernet ports

Analog DIN Rail Input/Output Module

Series: Mark VIe
PCI bus: 32bit/33MHz
Product Type: Analog DIN Rail Input/Output Module
Number of channels: 12
A/D resolution: 16 bits
Number of inputs: 32 single-ended
Common Mode Voltage Range: +5 V dc
Maximum lead resistance: 15Ω max
Output Load: 500 Ω for 4-20 mA
Operating temperature: 0 to 70°C
Frequency: 50 or 60 Hz

Digital Input/Output board

Input Voltage Range: 24–125 VDCor 120 VAC.
Output Ratings:
Relay Outputs: Up to 5 A, 250 VAC/30 VDC.
Solid-State: 0.5–2 A (24–48 VDC).
Isolation:1500 VAC minimum
Operating Temperature: -40°C to +85°C (industrial-grade).
Certifications: CE, UL, IEC 61131-2

Discrete Output Module

Surface-Mount
12 Relay/Coil Monitors
Simplex or TMR
Processor Board BPPC

Power Conversion Module

AC/DC POWER CONVERSION ASSEMBLY
115/230 VAC INPUT
50/60 HZ
125 VDC OUTPUT
FOR SPEEDTRONIC MARK V/VI-E / EX2100 SYSTEMS
REPLACES DS2020DACAG1

DIRECT CURRENT FEEDBACK BOARD

DIRECT CURRENT FEEDBACK BOARD
EX2100 SERIES
Board Description:Exciter DC Feedback
Board Type:Input/Output Terminal Board
External Power Supply:±24 VDC
Functional Acronym/Abbreviation:EDCF
Hardware Form:A, Not Backward Compatible

VME Analog Input board

Mark VI
Contact Input Group
Isolation terminal board
24 channels per VAIC board
16-bit A/D converter
with 14-bit resolution

VIBRATION INPUT TERMINAL BOARD

IS200TVIBH2BCC
VIBRATION INPUT TERMINAL BOARD
SERIES MARK VI
13 PROBES

TERMINAL CONTACT BOARD

IS200TBCIH1B
IS200TBCIH1BCE
TERMINAL CONTACT BOARD
MARK VI SPEEDTRONIC

EXCITER POWER SUPPLY MODULE

IS200EPSMG1AE
POWER BOARD
EXCITER POWER SUPPLY MODULE
FOR GE EX2100

Discrete Output I/O pack

IS220YDOAS1A
IO PACK
CONTACT OUT SIL
DISCRETE INPUT MODULE

Servo Control Module

Series: Mark VIe
Microprocessor: Intel Celeron 650 MHz
Number of inputs: 8
Power supply voltage: 28 V dc
Memory: 128 MB SDRAM
Number of outputs: 2
LVDT Excitation Output: 3.2 kHz
Programming: Boolean
Product Type: Simplex Servo Control I/O Module

CONTROL BOARD

CONTROL BOARD
DIGITAL SIGNAL PROCESSOR
60 MHZ
MARK VI

Digital Analog Module

DS200ADMAH1A
Mark V
Digital Analog Module
Analog to Digital Module

CIRCUIT BOARD

Primary: 24VDC nominal
Backplane Outputs: +5V
Current Capacity:Up to 20A

I/O Pack Processor Board

Estimated 512 MB+ RAM
Modbus TCP/IP, Ethernet/IP
Analog (AI): ±10V DC, 4-20 mA
Digital (DI): 24V DC
Power Supply: 24V DC (±20%)
Power Consumption: < 10W

Redundant fault-tolerant control system

Input Voltage: 24V DC
Current Consumption: 1.5A typical
Isolation: 1500V AC channel-to-channel
Trip Contact Ratings:5A @ 30V DC resistive
Analog Inputs: 8 channels
Relay Outputs: 8 channels
Communication Ports: 2x Ethernet for diagnostics

Resistance Temperature Device

RTD INPUT MODULE
8 CHANNEL
14-BIT
15 OHMS MAX.
2 ETHERNET PORTS
FOR MARK VI TURBINE CONTROL SYSTEM

Thermocouple Input Module

IO PACK
THERMOCOUPLE
2 ETHERNET PORTS
AMBIENT TEMPERATURE RATING:
-30 TO + 65°C (-22 TO +149 °F)
