Technical specifications for A06B-6096-H104
-
Product ModelA06B-6096-H104
-
Product ParametersSingle-axis servo amplifier module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size14.8x28.5x38cm
-
ManufacturerGeneral Electric
-
Weight8.3 kg
-
Module TypeSVM1-40L
-
DC Link Input Voltage283 ... 325 V DC
-
Control Power Input24 V DC
-
Output Type3-phase PWM inverter output
-
Maximum Output Voltage230 V AC
-
Rated Output Current40 A
-
Total Heat Dissipation80 W
-
Residual Heat in Cabinet45 W
Description

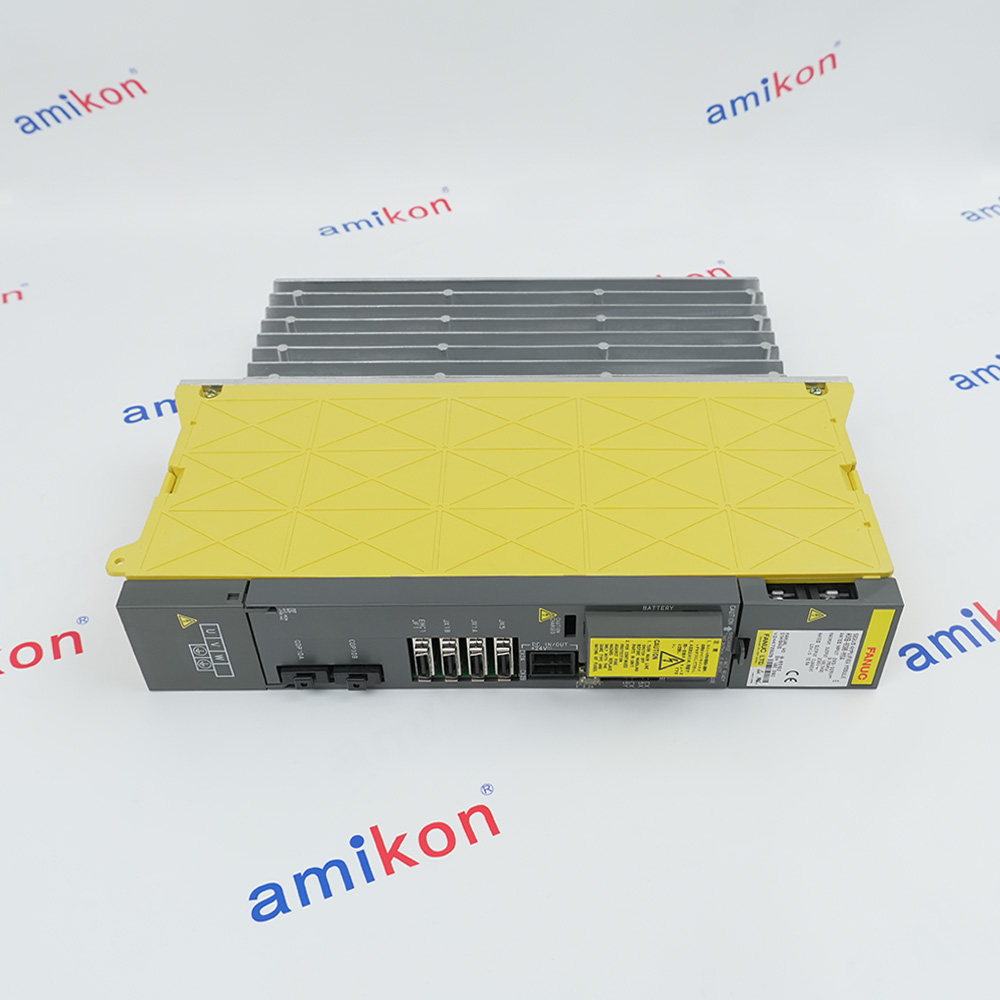

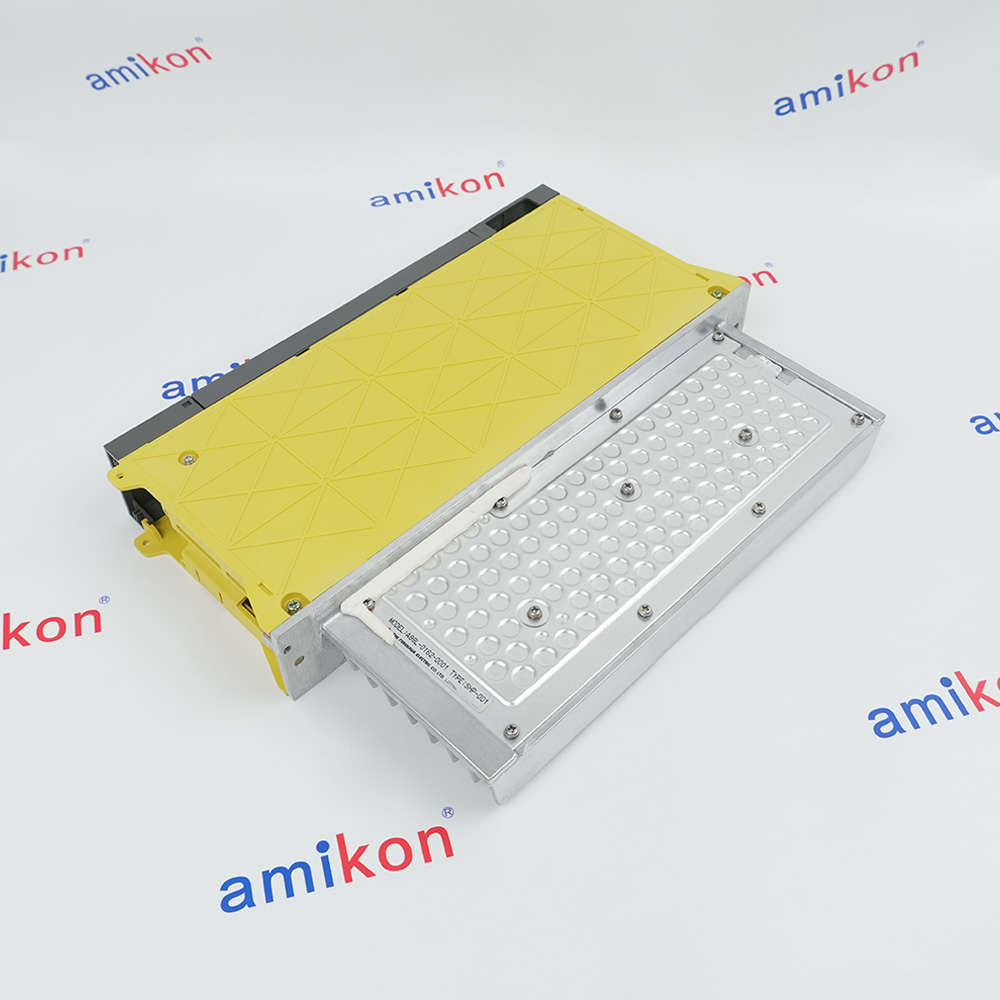

The A06B-6096-H104 is a Single-axis Servo Amplifier Module manufactured by FANUC for CNC machine tool and industrial automation drive systems. The A06B-6096-H104 serves as the power amplification and control unit for a single servo axis in FANUC Alpha series CNC configurations, converting DC bus power to controlled AC output for precise servo motor control.
The A06B-6096-H104 is specifically designed with the FSSB (FANUC Serial Servo Bus) optical interface. The FSSB interface of the A06B-6096-H104 enables high-speed serial communication between the servo amplifier and FANUC CNC controls using optical fiber cables. On the A06B-6096-H104, the optical cable from COP10A on the CNC is connected to COP10B on the first amplifier, and optical cables from COP10A of the previous amplifier are connected to COP10B of the next amplifier in a daisy-chain configuration. Up to 8 axes are available in the FSSB network, with the attached cap placed on COP10A of the last amplifier to protect the optical connector from dust.
The A06B-6096-H104 is specifically designed with the FSSB (FANUC Serial Servo Bus) optical interface. The FSSB interface of the A06B-6096-H104 enables high-speed serial communication between the servo amplifier and FANUC CNC controls using optical fiber cables. On the A06B-6096-H104, the optical cable from COP10A on the CNC is connected to COP10B on the first amplifier, and optical cables from COP10A of the previous amplifier are connected to COP10B of the next amplifier in a daisy-chain configuration. Up to 8 axes are available in the FSSB network, with the attached cap placed on COP10A of the last amplifier to protect the optical connector from dust.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- Single-Axis Servo Amplifier with FSSB Interface
- 283–325 V DC Input / 230 V AC Maximum Output
- SVM1-40L Classification for Medium-Power Applications
- Compatible with α22/1500 and Similar Servo Motors
- Energy-Efficient Design with Power Regeneration
The module features FSSB (FANUC Serial Servo Bus) optical fiber interface, compatible with FANUC Series 16i, 18i, 21i, 20i, and 15i CNC control systems. The FSSB interface uses optical connectors COP10B (input) and COP10A (output) for daisy-chain connection to the CNC and downstream amplifier modules.
The A06B-6096-H104 GE Single-axis servo amplifier module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE A06B-6096-H104 Single-axis servo amplifier module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The A06B-6096-H104 accepts a DC input voltage of 283–325 V from the FANUC power supply module. The A06B-6096-H104 delivers a maximum output voltage of 230 V AC to the servo motor, with a rated output current of 12.5 A for the L-axis. This power rating of the A06B-6096-H104 makes it suitable for medium-power servo motor applications in CNC machining centers, milling machines, turning centers, and other precision machine tools. The A06B-6096-H104 is classified as SVM1-40L, indicating a single-axis, 40A class amplifier with long-type dimensions.
The A06B-6096-H104 is to drive FANUC α22/1500 servo motors and other compatible motors in the Alpha series. According to FANUC thermal specifications, the A06B-6096-H104 has a total heat dissipation of 80W, with 45W remaining heat in the cabinet when forced air cooling is employed. Proper thermal management of the A06B-6096-H104 is essential for reliable operation, and the amplifier must be installed in an adequately ventilated electrical cabinet with sufficient airflow.
- Gantry Mills: Powers multi-motor setups for moving heavy bridges/columns across long axes
- Vertical Turning Lathes: Drives high-horsepower spindles and tool carousels for heavy-diameter workpieces
- Multi-Axis Centers: Central power for 5-axis machines running multiple high-current servo drives without drops
- Automotive Presses: Coordinates synchronized multi-axis motion of robotic loaders and heavy rams
- Boring Mills: Supplies reliable energy for high-torque spindles in mining/energy equipment fabrication
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cabinet Placement: Mount vertically inside a sealed, dust-free electrical cabinet to prevent contamination.
Spacing Rules: Maintain at least 40mm of clearance at the top and bottom of the unit for proper heat dissipation.
Physical Securing: Hang the unit onto the cabinet's mounting rails using the integrated top notches, then tightly secure the bottom mounting screws
Alternative Names
A068-6096-H104
A06B-6096-HI04
A06B6096H1O4
AO686O96HIOA
AO6B6O96H1O4
A0686096H104
A06B-6O96-H104
A06B6096HI04
AO6B-6096-H104
A06B-6096-H10A
A06B6096H104
A06B6O96H104
AO6B-6O96-H1O4
A06B-6096-H1O4
A06B6096H10A
AO68-6O96-HIOA
AO6B6096H104
Technical notes
Inter-module interface connectors JX1A (input) and JX1B (output) enable module-to-module communication and safety interlocking. A signal check connector (JX5) is available for diagnostic purposes using an SVM check board. The module flange includes a tapped hole for M5 grounding connection.The A06B-6096-H104 carries CE and UL/cUL certifications and complies with EN 50178 and EN 61800-5-1 safety standards. Ambient operating temperature ranges from 0 to +45 °C, with storage and transport temperatures from –25 to +70 °C.
FAQs
-
What is the A06B-6096-H104?
+The GE Fanuc A06B-6096-H104 is a single-axis ALPHA Series Servo Amplifier Module (SVM1-40L) -
What are the primary power ratings?
+The module operates on a rated high-voltage DC input of 283V to 325V DC (6.4 kW) supplied by a central power supply module. It provides a rated output of 230–255V AC with a peak current capacity of 40 Amps. -
Which control interface does it use?
+It relies on the proprietary FSSB (Fanuc Serial Servo Bus) optical fiber interface. This allows high-speed communication with CNC control systems like the Fanuc 16i, 18i, and 21i series. -
What internal board architecture does it have?
+The unit utilizes the internal power wiring board A16B-2203-0451. This circuit board is integrated directly into the chassis and is not sold separately by the OEM
