- A06B-6096-H106
In Stock
Ships by Monday, August 3
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for A06B-6096-H106
-
Product ModelA06B-6096-H106
-
Product ParametersSingle-axis servo amplifier module SVM1-130
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size14.8x28.5x38cm
-
ManufacturerGeneral Electric
-
Weight8.3 kg
-
DC Link Input Voltage283 ... 325 V DC
-
Control Power Input24 V DC
-
24V FuseF2: 3.2 A, 48 V DC
-
Output Type3-phase PWM inverter output
-
Maximum Output Voltage230 V AC
-
Rated Output Current130 A (L-axis)
-
Ambient Temperature0 ... +45 °C
-
Relative HumidityMax. 95 % RH (non-condensing)
Description

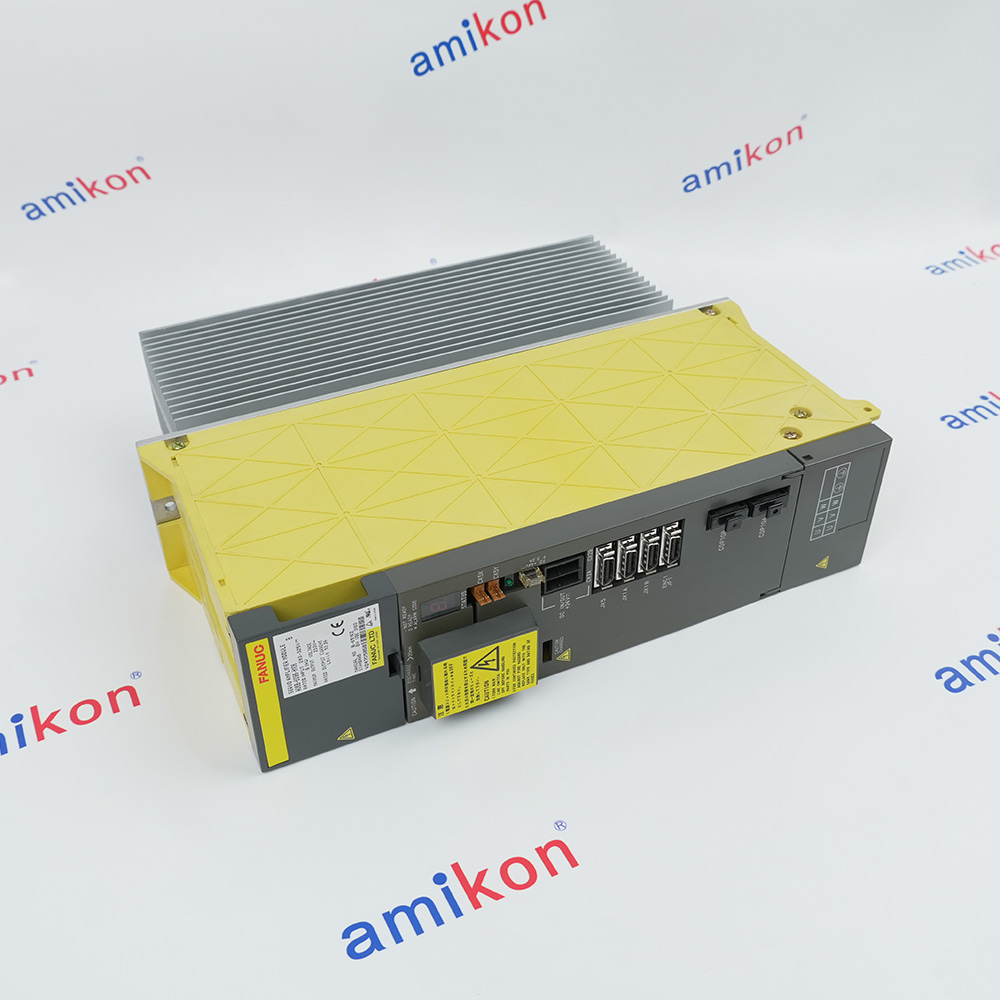

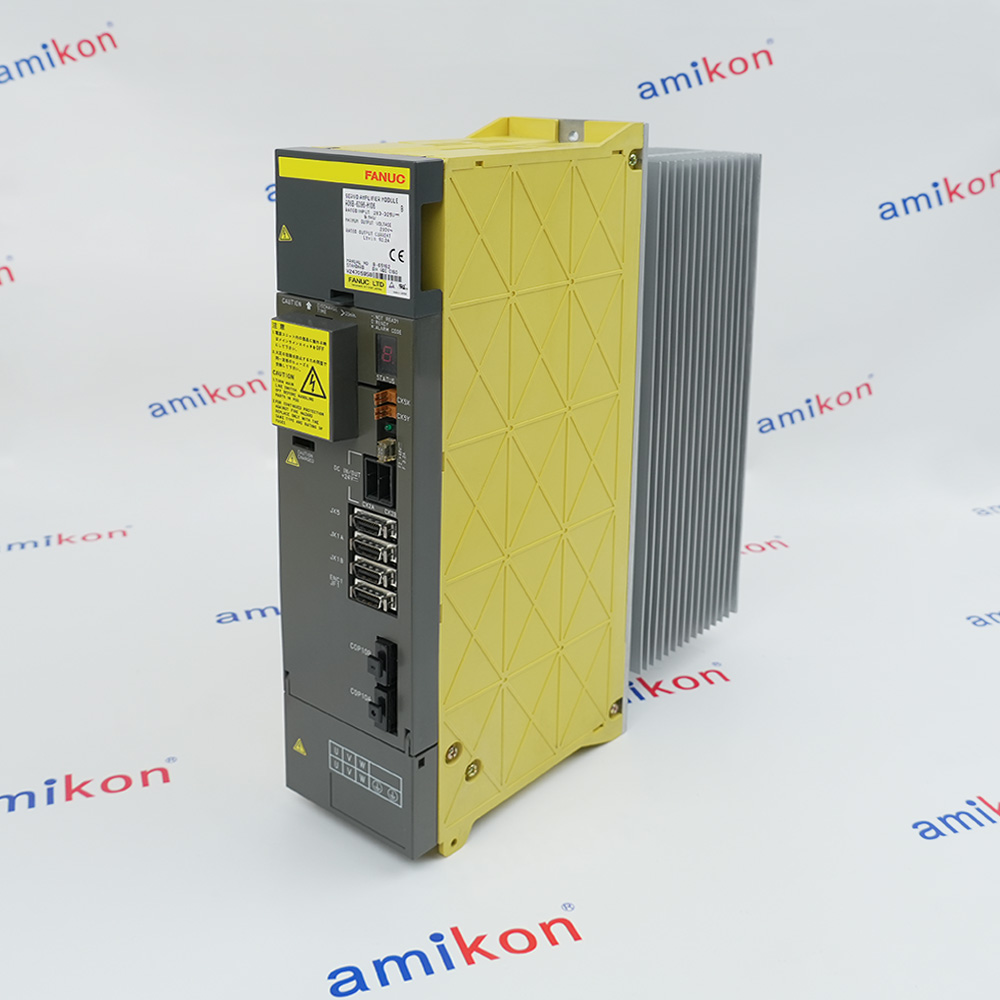

The A06B-6096-H106 is a Single-axis Servo Amplifier Module manufactured by FANUC for CNC machine tool and industrial automation drive systems. The A06B-6096-H106 serves as the power amplification and control unit for a single high-power servo axis in FANUC Alpha series CNC configurations, converting DC bus power to controlled AC output for precise servo motor control. The A06B-6096-H106 is part of FANUC's renowned Alpha series servo amplifier family, which represents a proven and widely deployed platform for high-precision motion control in demanding manufacturing environments.
The A06B-6096-H106 is specifically with the FSSB (FANUC Serial Servo Bus) optical interface. The FSSB interface of the A06B-6096-H106 enables high-speed serial communication between the servo amplifier and FANUC CNC controls using optical fiber cables. Up to 8 axes are available in the FSSB network, with the attached cap placed on COP10A of the last amplifier to protect the optical connector from dust. The FSSB interface of the A06B-6096-H106 is compatible with FANUC Series 16i/18i/21i and above CNC controls.
The A06B-6096-H106 is specifically with the FSSB (FANUC Serial Servo Bus) optical interface. The FSSB interface of the A06B-6096-H106 enables high-speed serial communication between the servo amplifier and FANUC CNC controls using optical fiber cables. Up to 8 axes are available in the FSSB network, with the attached cap placed on COP10A of the last amplifier to protect the optical connector from dust. The FSSB interface of the A06B-6096-H106 is compatible with FANUC Series 16i/18i/21i and above CNC controls.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Single-Axis Servo Amplifier with FSSB Interface
- 283–325 V DC Input / 230 V AC Maximum Output
- SVM1-130 Classification for High-Power Applications
- 9.1 kW Rated Input Power
The module features FSSB (FANUC Serial Servo Bus) optical fiber interface, compatible with FANUC Series 16i, 18i, 21i, 20i, and 15i CNC control systems. The FSSB interface uses optical connectors COP10B (input) and COP10A (output) for daisy-chain connection to the CNC and downstream amplifier modules.
The SVM1-130 is to drive FANUC Alpha series servo motors including α22/2000, α30/3000, and α40/2000. It delivers a rated output current of 130 A on the L-axis, with peak current capability varying by approximately ±10 % depending on circuit constants.
The A06B-6096-H106 GE Single-Axis Servo Amplifier Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE A06B-6096-H106 Single-Axis Servo Amplifier Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Cooling is achieved through natural convection. The module includes a DC link terminal block (TB1) for power input from the PSM, a motor power terminal block (TB2) for servo motor connection, and a pulse coder connector (ENC1/JF1) for motor feedback. Absolute position encoder battery backup is supported via connectors CX5X and CX5Y, using battery model A06B-6073-K001. Control power at 24 V DC is supplied through connectors CX2A and CX2B, protected by fuse F2 (3.2 A, 48 V DC).
Status indication is provided by a 7-segment LED display showing operational status and alarm codes. Common alarm conditions include overcurrent (Alarm 1), overvoltage (Alarm 4), undervoltage (Alarm 6), abnormal current (Alarm 8), abnormal inverter (Alarm 9), and FSSB communication errors. A red DC link charge LED warns when hazardous voltages are present in the internal capacitors.
- Gantry Mills: Powers multi-motor setups for moving heavy bridges/columns across long axes
- Vertical Turning Lathes: Drives high-horsepower spindles and tool carousels for heavy-diameter workpieces
- Multi-Axis Centers: Central power for 5-axis machines running multiple high-current servo drives without drops
- Automotive Presses: Coordinates synchronized multi-axis motion of robotic loaders and heavy rams
- Boring Mills: Supplies reliable energy for high-torque spindles in mining/energy equipment fabrication
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Ground Fault Interrupter: Install a ground fault interrupter designed for use with an inverter to protect against fire and electric shock.
Power Lines & DC Link: DC link busbars must be torqued to the manufacturer's exact specifications to prevent arcing and voltage drops. Never ground or short-circuit power supply lines or power lines together.
Motor Ground: Always ground the motor frame to avoid electric shocks by connecting the terminal in the motor box to the machine's ground.
Alternative Names
A068-6096-H106
A06B-6O96-H106
A06B6O96H106
AO6B-6O96-H1O6
A0686096H106
A06B6096H106
AO68-6O96-HIO6
AO6B6096H106
A06B-6096-H1O6
A06B6096H1O6
AO686O96HIO6
AO6B6O96H1O6
A06B-6096-HI06
A06B6096HI06
AO6B-6096-H106
Technical notes
Inter-module interface connectors JX1A (input) and JX1B (output) enable module-to-module communication and safety interlocking. A signal check connector (JX5) is available for diagnostic purposes using an SVM check board. The module flange includes a tapped hole for M5 grounding connection.The A06B-6096-H106 carries CE and UL/cUL certifications and complies with EN 50178 and EN 61800-5-1 safety standards. Ambient operating temperature ranges from 0 to +45 °C, with storage and transport temperatures from –25 to +70 °C.
FAQs
-
What is the A06B-6096-H106?
+The GE Fanuc A06B-6096-H106 (also known as the SVM1-130) is a single-axis Alpha series servo amplifier module commonly used in CNC machine applications. -
What does FSSB mean on this unit?
+FSSB stands for Fanuc Serial Servo Bus. It is a high-speed, digital communication interface between the CNC control and the servo amplifier. An FSSB alarm on the A06B-6096-H106 usually indicates a severed fiber optic cable, communication failure, or a loose FSSB connector between modules. -
How many axes does this amplifier drive?
+This specific module (SVM1-130) drives single-axis motors. It is designed to work with large Alpha series servo motors like the α 22/3000 and α 30/3000. -
What are the power specifications?
+The module has a rated power of 9.1 kW, with a nominal output current of 52.2A and a peak output capacity of 130 Amps.
