PRODUCT DESCRIPTION

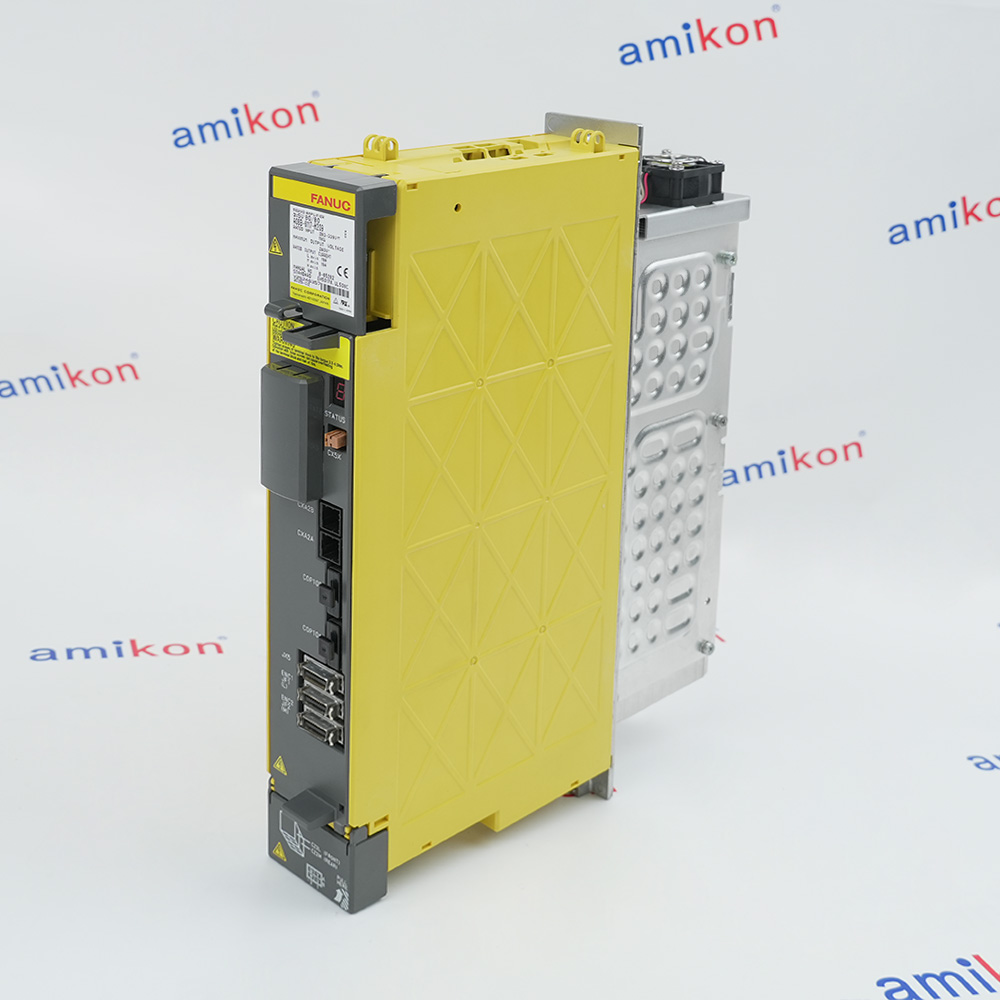

Two-axis servo amplifier module

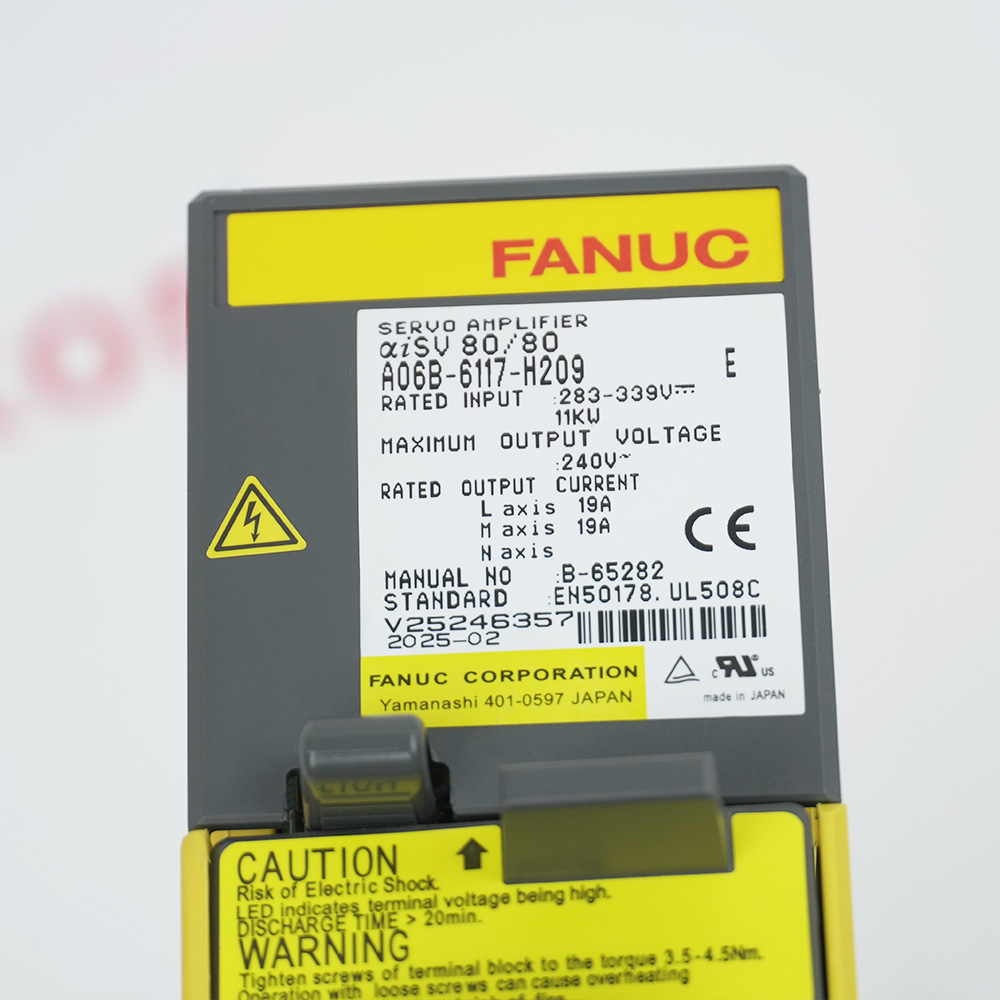

FANUC A06B-6117-H209 is the standard alpha i SV 80/80 two-axis servo amplifier identified in B-65282EN/06. The manufacturer lists HRV2 and HRV3 support, with the corresponding 200-V-series specification giving 19 Arms rated output current for each of the L and M axes.
Select the complete H209 ordering number and verify the installed CNC, motor combination and control requirements before replacement. The attached reference package retains the original specification and ordering pages, including the peak-current qualification, but does not replace the complete manufacturer installation, connection or safety instructions.
Select the complete H209 ordering number and verify the installed CNC, motor combination and control requirements before replacement. The attached reference package retains the original specification and ordering pages, including the peak-current qualification, but does not replace the complete manufacturer installation, connection or safety instructions.
BEFORE YOU BUY
Confirm the complete installed configuration
Technical specifications for A06B-6117-H209
-
Product ModelA06B-6117-H209
-
Product ParametersTwo-axis servo amplifier module
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Amplifier designationAlpha i SV 80/80
-
Controlled axesTwo: L and M
-
Rated output current19 Arms per axis
-
Nominal current limit80 Apeak per axis; approximately +/-10% variation noted by manufacturer
-
Supported control modesHRV2 and HRV3
-
Main-circuit control methodSine-wave PWM with transistor (IGBT) bridge
-
Applicable CNC families16i-B, 18i-B, 21i-B, 0i-B/C/D and 30i/31i/32i in the common alpha i SV table; complete configuration checks required
View all additional
Alternative Names
FANUC Alpha i SV 80/80
A06B-6117-H209 Two-Axis Amplifier
FANUC H209 HRV2 HRV3 Amplifier
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TWO-AXIS SERVO AMPLIFIER MODULE
Match the two-axis alpha i SV 80/80 configuration
FANUC B-65282EN/06, printed page 47, lists A06B-6117-H209 as the standard two-axis alpha i SV 80/80 amplifier with HRV2 and HRV3 support. The nearby H259 is a different alpha i SV 80/80L ordering configuration and is not an automatically interchangeable item.
The corresponding specification on printed page 37 gives each L and M axis 19 Arms rated output current and an 80 Apeak nominal current limit. Page 38 states that peak current limits are standard values varying by about plus or minus ten percent with circuit constants. Do not use the peak value as a continuous-current rating.
The common alpha i SV table identifies sine-wave PWM control with an IGBT bridge and lists applicable CNC families. This does not replace the detailed motor-selection, connection, software and installation checks for the machine. Only selected specification and ordering pages are included in the reference PDF.
Features:
- Verify two-axis L/M configuration
- Distinguish RMS rating from nominal peak limit
- Use complete instructions for wiring and motor selection
The A06B-6117-H209 servo amplifier requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Compare the full A06B-6117-H209 assembly identity with the installed amplifier before replacement. A similar two-axis product designation or matching current value alone does not establish compatibility with the machine's motors, CNC software and wiring.
The official ordering table explicitly associates H209 with HRV2 and HRV3. It separately lists other amplifier variants and control capabilities. Do not infer HRV4 support or approve an alternative ordering code without the applicable manufacturer documentation.
No exact-model discontinuation date or approved successor was verified. The updated page therefore does not carry forward unverified lifecycle claims or treat a model suffix as a hardware revision. Confirm any proposed substitution against the controlled machine and amplifier instructions.
Features:
- Match H209 rather than a nearby variant
- Verify required HRV mode and machine compatibility
- Require explicit documentation for replacement options
The A06B-6117-H209 servo amplifier requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.
Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the A06B-6117-H209 servo amplifier must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size6 x 28.5 x 38 cm
-
Shipping weight4.35 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about A06B-6117-H209
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is A06B-6117-H209 a one-axis or two-axis amplifier?
It is listed as a two-axis alpha i SV 80/80 amplifier, with separate L and M axis ratings. -
Is 80 A the continuous output-current rating?
No. The table gives 19 Arms rated output current per axis. The 80 Apeak figure is the nominal current limit, with the manufacturer's note indicating approximately plus or minus ten percent variation. -
Does H209 support HRV4?
The H209 ordering row explicitly lists HRV2 and HRV3. HRV4 support must not be inferred from other variants in the same table. -
Is H259 simply another name for H209?
No. The manufacturer lists H259 separately as alpha i SV 80/80L. That separate designation does not constitute approval to substitute it for H209. -
Can the attached reference PDF be used as complete installation instructions?
No. It contains the original specification and ordering pages, retaining their relevant notes. Wiring, motor selection, installation and safety procedures require the complete applicable FANUC documentation.
