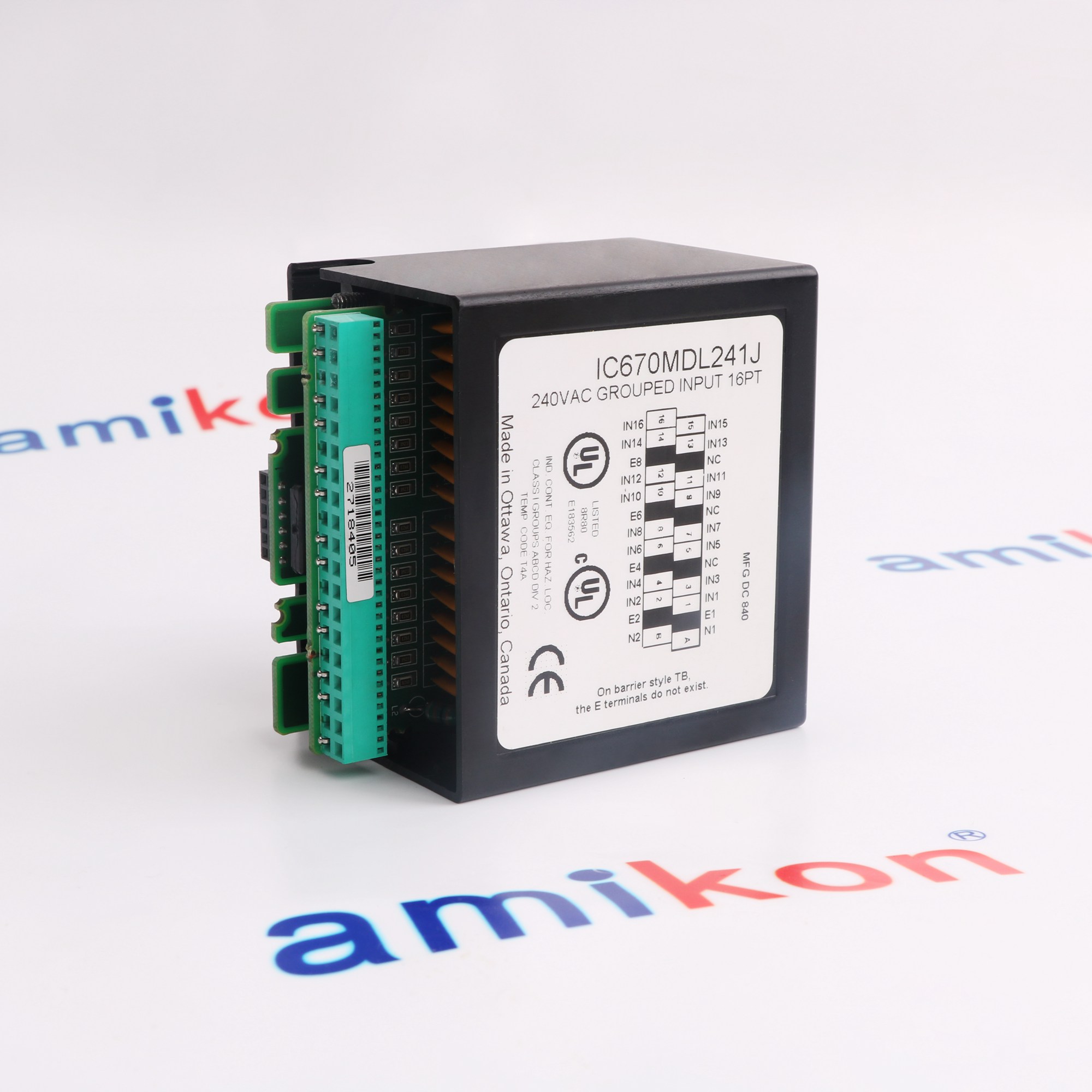

Technical specifications for IC670MDL241
-
Product ModelIC670MDL241
-
Product Parametersinput module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.4x8.5x8cm
-
ManufacturerGeneral Electric
-
Weight0.24 kg
-
Rated Voltage240 Volts AC
-
Input Voltage0 to 265 Volts AC
-
Frequency47 to 63 Hertz
-
User Input Current8.2 mA per point @ 240 VAC
-
On state voltage155 VAC to 265 VAC
-
Off state voltage0 VAC to 40 VAC
-
On state Current4.0 mA to 10mA
-
Off state Current0 mA to 1.5mA
Description
IC670MDL241
INPUT MODULE
16 POINT
2 GROUPS OF 8
240VAC
INPUT MODULE
16 POINT
2 GROUPS OF 8
240VAC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- 16 Points, 2 groups 240 VAC
- Input Module
- 250 VAC Continuous Isolation
- LED Indicators
The IC670MDL241 GE INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC670MDL241 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A network of resistors and capacitors establishes input thresholds and provides input filtering.Optoisolators provide isolation between the field inputs and the module’s logic components.Data from all 16 inputs is placed into a data buffer. The module’s circuit LEDs show thecurrent states of the 16 inputs in this data buffer.Parallel–to–seri al converters change input data from the data buffer into the serial formatneeded by the Bus Interface Unit.After checking the Board ID and verifying that the module is receiving appropriate logic powerfrom the Bus Interface Unit (which is reflected by the state of the module’s Power LED), the BusInterface Unit then reads the filtered, converted input data.
- CNC Machinery & Metallurgy: Integrated into control systems for precision metalworking
- Oil, Gas & Petrochemical: Used in process control for hazardous or large-scale energy production
- Industrial Applications: Utilized in industrial settings for captive power plants
- Automobile Manufacturing: Supports automated assembly lines and specialized production equipment
- Water Treatment: Used in municipal and environmental engineering systems
- Plastic & Textile Machinery: Controls high-voltage inputs for specialized manufacturing processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Field Power: Each group requires an external 240 VAC power source.
Isolation: There is no isolation between individual points within a single group, but there is 250 VAC continuous isolation between the two groups.
Typical Connections: Input devices (like pushbuttons or limit switches) are connected between the 240 VAC "Hot" line and the specific input terminal. The neutral line is common for all points within a group
FAQs
-
What is the IC670MDL241?+It is a 240VAC 16-point discrete input module belonging to the GE Fanuc Field Control I/O family.
-
What is the input voltage range?+It operates at a nominal 240VAC
-
Where is IC670MDL241 used?+It is part of the Field Control I/O system and is designed to be used in conjunction with a Bus Interface Unit (BIU).
-

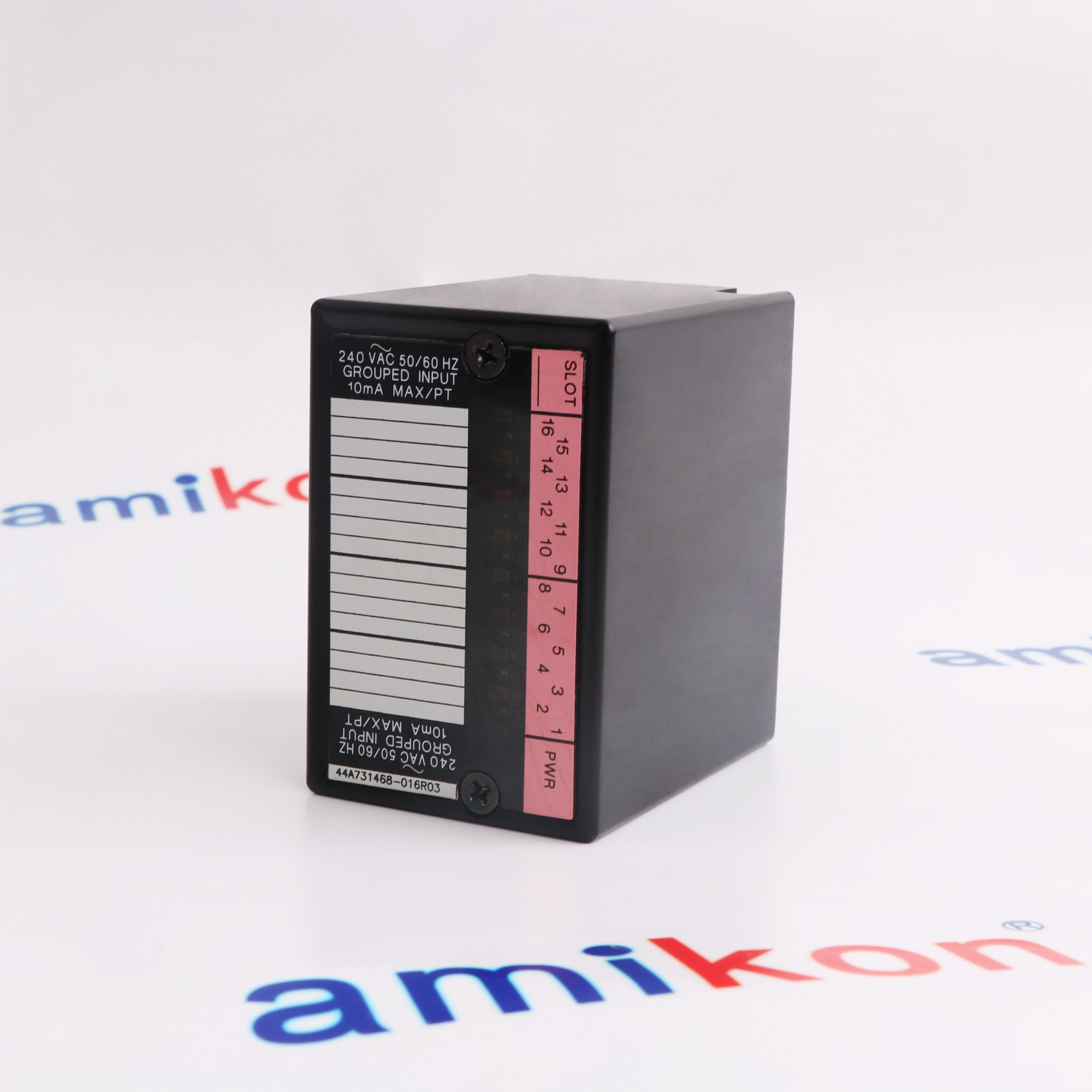

How do the LEDs function?+The module features one LED per point to show individual status, and a PWR LED that indicates both backplane and user power are present.
-
What are its main features?+It is a 16-point module, often configured in grouped or isolated configurations (e.g., 4 isolated groups of 4 points each), specifically designed for 240VAC input signals.
