Technical specifications for IC697HSC700
-
Product ModelIC697HSC700
-
Product ParametersHigh-Speed Counter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x22.5x29.2cm
-
ManufacturerGeneral Electric
-
Weight0.62 kg
-
LED indicatorsModule OK; 01-04 Output circuits
-
Output ratings10 to 30 VDC @ 20 mA maximum
-
No. of output channelsFour (4) Positive Logic outputs
-
Module operating voltage5 VDC sourced from the backplane
-
Twelve (12) Single-ended / differential inputsTwelve (12) positive logic inputs
-
Input frequency200 kHz in Type A, D and Type E in Up/Down Quad mode; 800 kHz at Type E in Quad B mode
Description
Series:Series 90-70
Manufacturer:GE Fanuc (Former); Emerson Automation (Current)
Part Number:IC697HSC700
Product Description:High-Speed Counter (HSC) module
Product Type:High-Speed Counter
Processing speed:200 KHz
Input Voltage:5 VDC; 10-30 VDC
Input Voltage Range:10-30 V DC
Output protection:Short circuit protection
Output Voltage:30 V DC
Maximum count rate:up to 200 kHz
Input/Output Type:Positive Logic
Current draw:250 mA at 5VDC
Number of Inputs:12 single-ended
Power Consumption:500 milliamps at 5 V DC
Manufacturer:GE Fanuc (Former); Emerson Automation (Current)
Part Number:IC697HSC700
Product Description:High-Speed Counter (HSC) module
Product Type:High-Speed Counter
Processing speed:200 KHz
Input Voltage:5 VDC; 10-30 VDC
Input Voltage Range:10-30 V DC
Output protection:Short circuit protection
Output Voltage:30 V DC
Maximum count rate:up to 200 kHz
Input/Output Type:Positive Logic
Current draw:250 mA at 5VDC
Number of Inputs:12 single-ended
Power Consumption:500 milliamps at 5 V DC
Information
Overview
Manuals
Technical notes
Product Applications
Diagnostic & Status Monitoring
Features:
- High-Speed Counter
- GE Series 90-70
- Twelve (12) positive logic inputs
The IC697HSC700 GE High-Speed counter module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC697HSC700 High-Speed counter module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

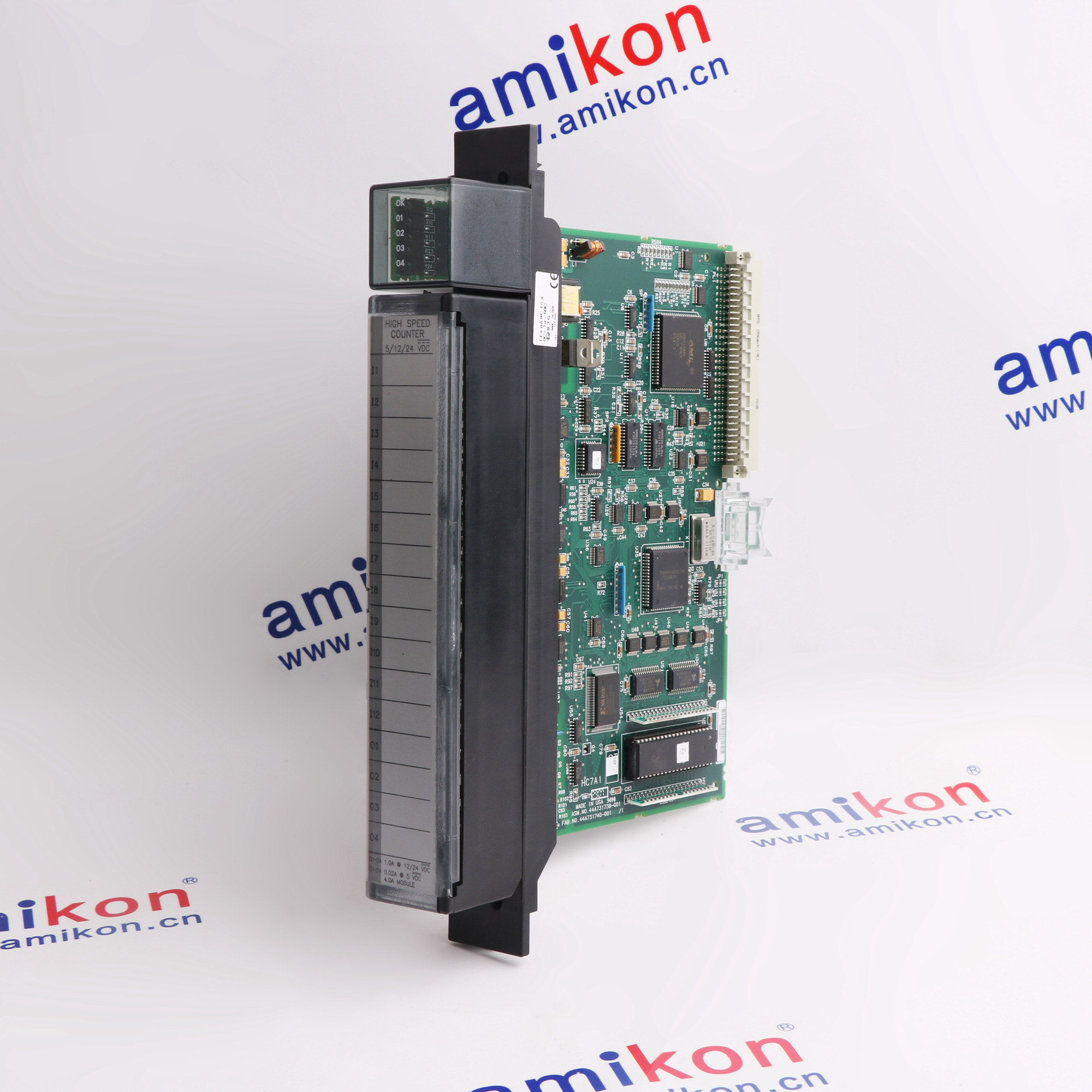

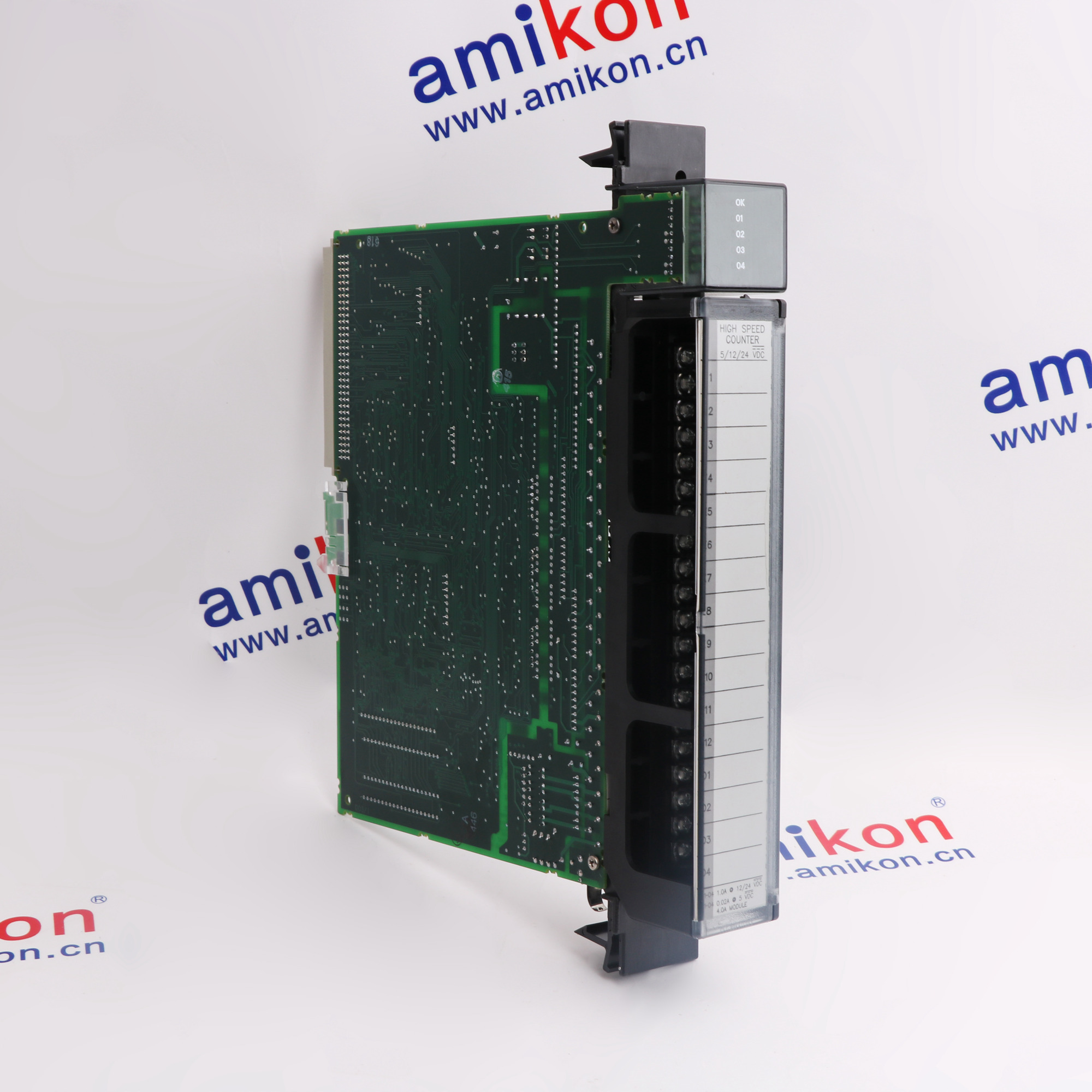

The IC697HSC700 is a High-Speed Counter (HSC) module that is formerly manufactured by GE Fanuc Automation, currently under Emerson Automation. This module is mainly used to interface high-speed switching signals with a frequency of 200 kHz when operating at Type A, D, and Type E in Up/Down Quad mode and 800 kHz at Type E in Quad B mode.
This module is a single-slot module that mounts to an available I/O slot within the CPU baseplate, expansion, or remote baseplate. It has Twelve (12) single-ended or differential logic inputs operating at 5VDC or 10-30 VDC voltages and Four (4) Positive Logic outputs providing 20 mA current output at 10-30 VDC voltage rating. The IC697HSC700 is ideally used in Turbine flowmeter applications, Meter Proving, Velocity Measurement, Material Handling, Motion Control, and Position Control. This module must be operated with a Series 90-70 IC697CPU having a firmware version of 5.0 or later.
Applicable configuration and programming software are the Logicmaster 90-70 with software version of 5.0x or later or the Windows-based programming software packages including VersaPro Professional Edition and the Proficy Machine Edition Logic Developer PLC Professional Edition. This module is provided with LED status indicators such as MODULE OK and 01-04 output circuit status. The input and output isolation of this module is rated 1500 Volts for 1 second and 30 VAC / VDC SteadyStatus. This module has a backplane current draw of 1 Ampere plus 10 mA for every energized output. The output points are powered by the user supplied 5 VDC or 10-30 VDC supply voltage.
- Robotics technology: Monitoring the rotation angles and moving speeds of robot joints
- Meter Proving: High-precision flow calibration and verification system
- Velocity Measurement: Real-time monitoring of the running speed of conveyor belts or rotating equipment
- Automobile manufacturing: Painting workshop, assembly line, and welding machine control automation process
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Internal Diagnostics: The module performs continuous internal health checks to verify proper functioning of its counting and processing circuits.
MODULE OK LED: Indicates whether the module has passed its power-up self-tests and is functioning correctly.
Output State LEDs (O1–O4): Provide immediate visual confirmation of the status of each output circuit.
Input Filtering: Users can configure high-frequency (2.5 µs) or low-frequency (12.5 ms) filters for inputs to protect against signal bounce or electrical interference from affecting count accuracy.
