Technical specifications for IC752SPL013
-
Product ModelIC752SPL013
-
Product ParametersEx2100 Excitation Control Interface Panel
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size22.6x9x24.7cm
-
ManufacturerGeneral Electric
-
Weight1.04 kg
-
Power Supply24 Vdc ±20 %
-
Current Draw120 mA typical
-
Isolation500 Vdc between
-
Operating Temperature–20 °C … +60 °C
-
Storage Temperature–40 °C … +85 °C
-
Humidity95 % RH non-condensing
Description

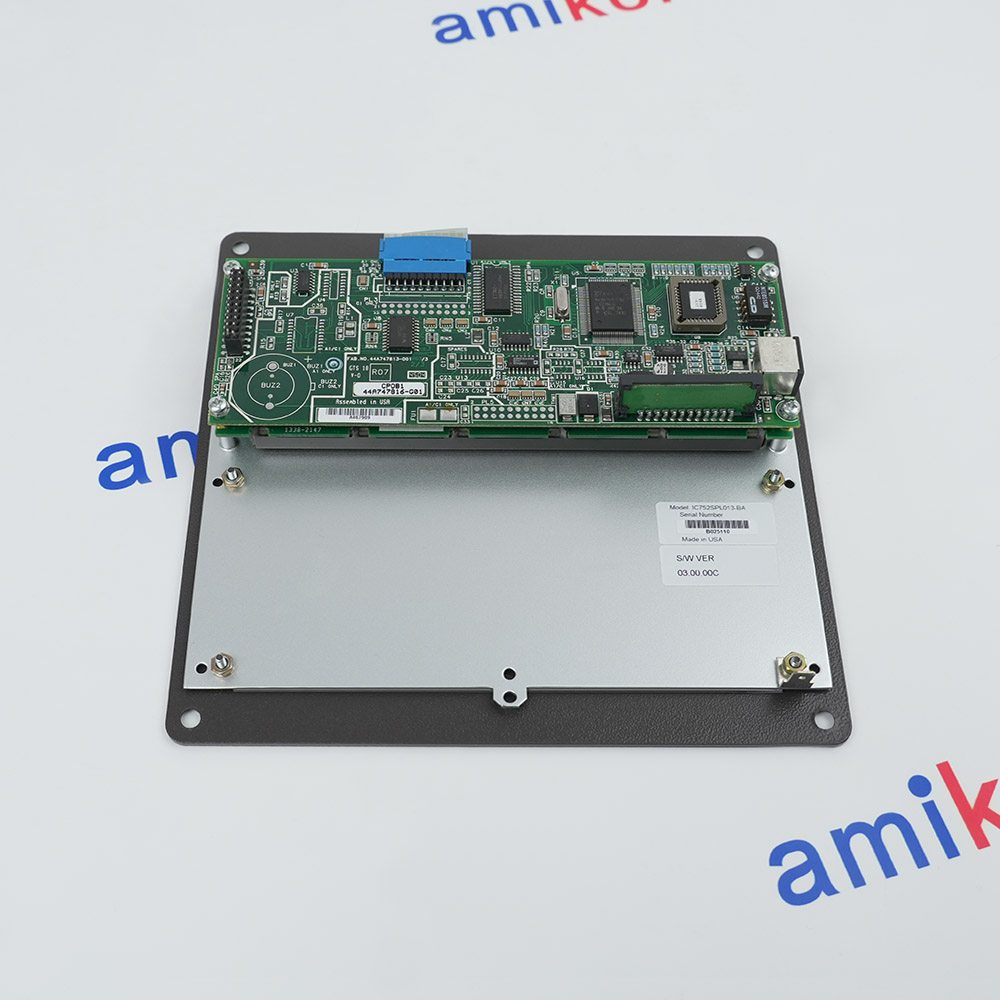

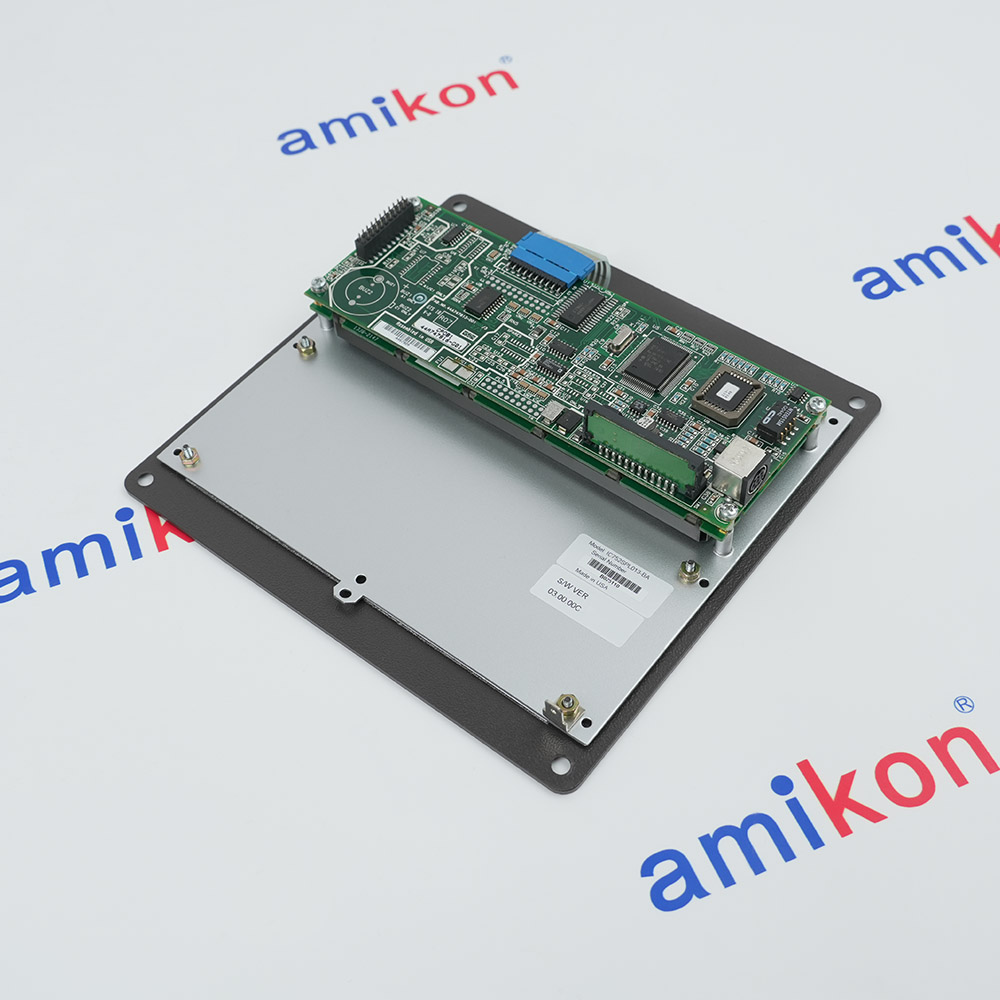

The GE IC752SPL013 is an operator interface component manufactured by General Electric, dedicated to the EX2100 excitation control system. It provides a human-machine interface for operators to monitor and control the generator excitation system.
This operator interface panel features a 12-button keypad and a 16-character alphanumeric display with backlight. The keypad consists of tactile buttons designed for high durability in industrial environments. The 16-character display provides clear visual feedback of system status, parameters, and alarm information. The interface is built for easy replacement in the field, minimizing downtime during maintenance operations.
The IC752SPL013 is installed as a key component in the excitation control panel, serving as a crucial bridge for achieving efficient human-machine interaction. It ensures stable system operation and precise control by allowing operators to input commands, monitor system status, and configure system settings. The panel communicates with the EX2100 controller via an internal bus, facilitating real-time data exchange to maintain generator stability.
This operator interface panel features a 12-button keypad and a 16-character alphanumeric display with backlight. The keypad consists of tactile buttons designed for high durability in industrial environments. The 16-character display provides clear visual feedback of system status, parameters, and alarm information. The interface is built for easy replacement in the field, minimizing downtime during maintenance operations.
The IC752SPL013 is installed as a key component in the excitation control panel, serving as a crucial bridge for achieving efficient human-machine interaction. It ensures stable system operation and precise control by allowing operators to input commands, monitor system status, and configure system settings. The panel communicates with the EX2100 controller via an internal bus, facilitating real-time data exchange to maintain generator stability.
Alternative Names
IC752SPL0i3
IC752SPLO13
IC752SPLOI3
1C752SPL013
IC75ZSPL013
1C75ZSPL013
1C75ZSPLOI3
Information
Overview
Manuals
Application Note
Product Applications
Power Wiring
Features:
- Operator Interface module
- EX2100 Excitation Control System
- 12-button keypad
- Local excitation system monitoring
The module supports a variety of operational functions, including parameter setup, system status monitoring, alarm acknowledgment, fault diagnostics, and maintenance procedures. Operators can use the keypad to navigate system menus, review operating conditions, adjust configured values, and access diagnostic information. The display presents critical excitation system data and alarm messages, helping personnel quickly identify abnormal operating conditions and respond appropriately
The IC752SPL013 GE OPERATOR INTERFACE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC752SPL013 OPERATOR INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This operator interface panel features a 12-button keypad and a 16-character alphanumeric display with backlight. The keypad consists of tactile buttons designed for high durability in industrial environments. The 16-character display provides clear visual feedback of system status, parameters, and alarm information. The interface is built for easy replacement in the field, minimizing downtime during maintenance operations.
- Gas Turbine Power Plants:GE Vernova: start-up, sync & full-load excitation
- Steam & Nuclear Plants:AVR for thermal/nuclear turbine generators
- Hydroelectric Utilities:Multi-channel redundancy for varying water flows
- Cogeneration & Captive Power:On-site plant backup for paper/chemical/steel
- Mining & Metal Refining:Synchronous motor control for mills/crushers/smelters
- Oil, Gas & Petrochemical:Hazardous/remote refinery turbine monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connect a clean 24 V DC power source to the designated input terminals. Ensure voltage is regulated and falls within the ± 10% tolerance to prevent damage to internal components.
Route DC power cables away from high-voltage AC lines and heavy electromagnetic interference (EMI) sources.
Technical notes
The GE IC752SPL013 is an Operator Interface module designed for the GE EX2100 Excitation Control System. Installed on the front panel of the excitation control cabinet, it provides a local human-machine interface (HMI) for monitoring, configuration, diagnostics, and operation of generator excitation systems. The module incorporates a 12-button keypad and a 16-character alphanumeric display, allowing operators to view system status, modify parameters, acknowledge alarms, and perform maintenance functions directly from the control panel.
FAQs
-
Why is my IC752SPL013 keypad/display blank?
+If the display is completely off, first check that all physical plugs and connections are properly secured. Next, inspect the LEDs on the internal EPSM (Exciter Power Supply Module) board to verify it is receiving the correct DC voltage. -
What is the operating temperature range for this keypad?
+The standard operating temperature is between -20°C and +70°C. For storage, the allowed range is -40°C to +85°C. -
What do the different versions of this model mean?
+Suffixes like "-BA" or "-BB" indicate different hardware revisions or firmware upgrades of the same keypad assembly. Generally, they are interchangeable, but you should verify with the technical documentation for your specific EX2100 system architecture. -
What is the primary function of the IC752SPL013?
+It acts as an Excitation Control Panel (ECP) user interface. It is primarily used to monitor generator voltage, current, and speed, and to calculate or input the excitation voltage needed to maintain the desired generator output.
