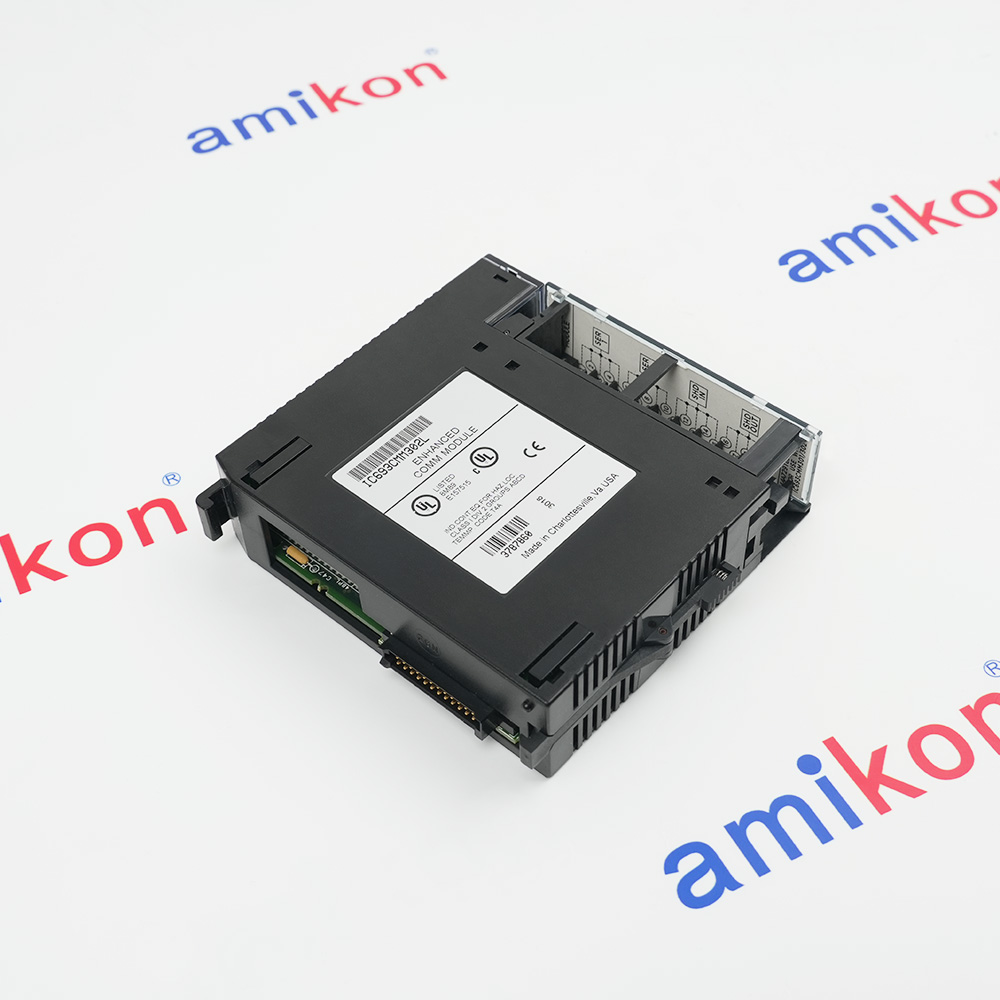

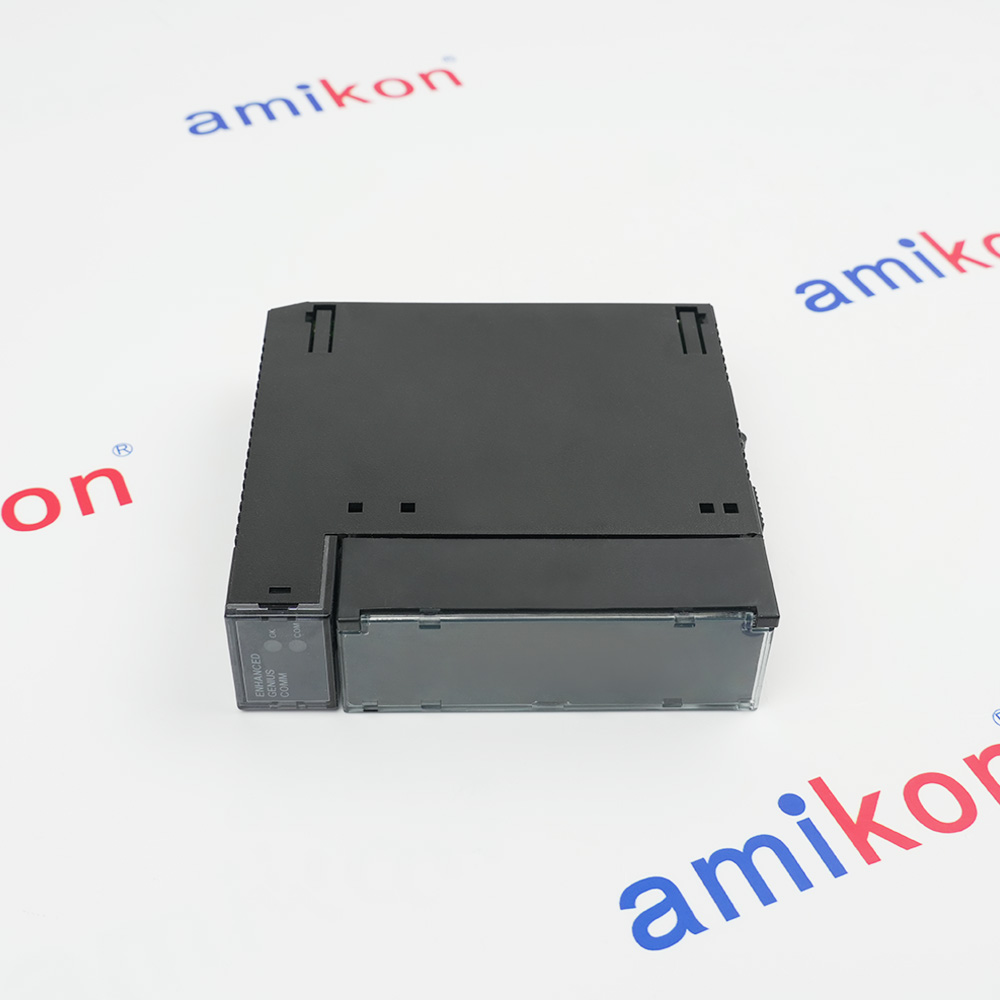

Technical specifications for IC693CMM302
-
Product ModelIC693CMM302
-
Product ParametersEnhanced Genius Communications Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Status LED indicatorsModule OK; COMM
-
No. of modules per PLCUp to 2 devices
-
Backplane current draw< 300 mA at 5VDC
-
Product Lifecycle StatusDiscontinued/Obsolete
-
Supported Registers%G, %I, %Q, %AI, %AQ, and %R
-
Data MonitoringBy an Industrial or Personal Computer
-
Compatible BaseplatesCPU, Expansion, and Remote Baseplates
Description
IC693CMM302
COMMUNICATION MODULE
ENHANCED GENIUS
(1 KBYTE) GCM+ (NO DATAGRAM SUPPORT)
GLOBAL DATA COMMUNICATIONS BETWEEN A
SERIES 90-30 PLC AND UP TO 31 OTHER DEVICES
COMMUNICATION MODULE
ENHANCED GENIUS
(1 KBYTE) GCM+ (NO DATAGRAM SUPPORT)
GLOBAL DATA COMMUNICATIONS BETWEEN A
SERIES 90-30 PLC AND UP TO 31 OTHER DEVICES
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Communication and Data Integrity
Installation
Features:
- Data monitoring by a personal computer or an industrial computer
- Monitoring data from Genius I/O blocks (although it cannot control Genius I/O blocks).
- Peer-to-peer communications among devices on the bus
- Master-slave communications among devices on the bus (emulates remote I/O)
The IC693CMM302 GE Genius Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693CMM302 Genius Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Enhanced Genius Communications Module (GCM+), IC693CMM302, is an intelligent modulethat provides automatic global data communications between a Series 90-30 PLC and up to 31other devices on a Genius bus.The GCM+ can be located in any standard Series 90-30 CPU baseplate, expansion baseplate, orremote baseplate. However, for most efficient operation, it is recommended that the module beinstalled in the CPU baseplate since the sweep impact time of the GCM+ module depends on themodel of PLC and the baseplate where it is located.
- Metallurgy and Steel: Automation monitoring of iron smelting blast furnace systems and boiler control.
- Chemical and Oil Refining: Production environments with extremely high requirements for corrosion prevention and interference resistance.
- Water Treatment Systems: Distributed monitoring of water treatment plants and sewage treatment plants.
- Power Monitoring: Monitoring systems for hydropower plants and substations.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The IC693CMM302 maintains system stability through internal logic and communication safeguards:
Error Monitoring: The module generates specific error codes to protect the PLC from misconfiguration. For example, REF ER indicates that assigned addresses exceed PLC limits, while GCM ERR prevents the dangerous concurrent installation of both a standard GCM and an Enhanced GCM+ in the same PLC.
Isolation from I/O Control: While the module can monitor data from Genius I/O blocks, it has no ability to control them, providing a layer of protection against unauthorized or accidental I/O state changes through the communication module.
IC693CMM302 Can be placed in any standard CPU, expansion, or remote baseplate. For maximum efficiency, installation in the CPU baseplate is recommended.
FAQs
-
What is the IC693CMM302
+The GE Fanuc/Emerson IC693CMM302 is an Enhanced Genius Communications Module (GCM+) for the Series 90-30 PLC, enabling automatic, high-speed data exchange with other devices on a Genius bus. -
What is the capacity of the IC693CMM302?
+It supports up to 31 devices on its bus, allowing for extensive communication with other PLC systems and I/O blocks. -
What is the difference between IC693CMM301 and IC693CMM302?
+The GCM+ (IC693CMM302) is a faster, more advanced version. While they can coexist on the same bus, they cannot be installed together in the same PLC rack. -
What is the maximum data capacity supported by the IC693CMM302 module?
+It supports 128 bytes of data to send and receive. -
What does
+This indicates that the reference address assigned to the Serial Bus Address (SBA) exceeds the PLC's limits or the data length exceeds 128 bytes.
