Technical specifications for IC693PWR331
-
Product ModelIC693PWR331
-
Product ParametersPower Supply module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.7x13x13cm
-
ManufacturerGeneral Electric
-
Weight0.52 kg
-
Input Voltage Range, DCStart: 21 to 56 VDC Run: 18 to 56 VDC
-
Input Power90 VA with VAC Input; 50 W with VDC Input
-
Inrush Current4A peak, 100 ms maximum
-
Output Power 5 VDC and 24 VDC Relay15 watts maximum 24 VDC Relay: 15 watts maximum 24 VDC Isolated: 20 watts maximum
-
Load capacity30 Watts
-
Nominal Rated Voltage24 VDC
-
Start18 to 30 VDC
Description
IC693PWR331
POWER SUPPLY
24 VDC NOMINAL INPUTS
HIGH CAPACITY
30 WATT
POWER SUPPLY
24 VDC NOMINAL INPUTS
HIGH CAPACITY
30 WATT
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Primary Electrical Protection
Operational & Hardware Safeties
Features:
- High Capacity Power Supply
- Isolated +24 VDC, which is used internally by some modules
- 50 watts maximum at full load
- CPU Serial Port Connector on Power Supply

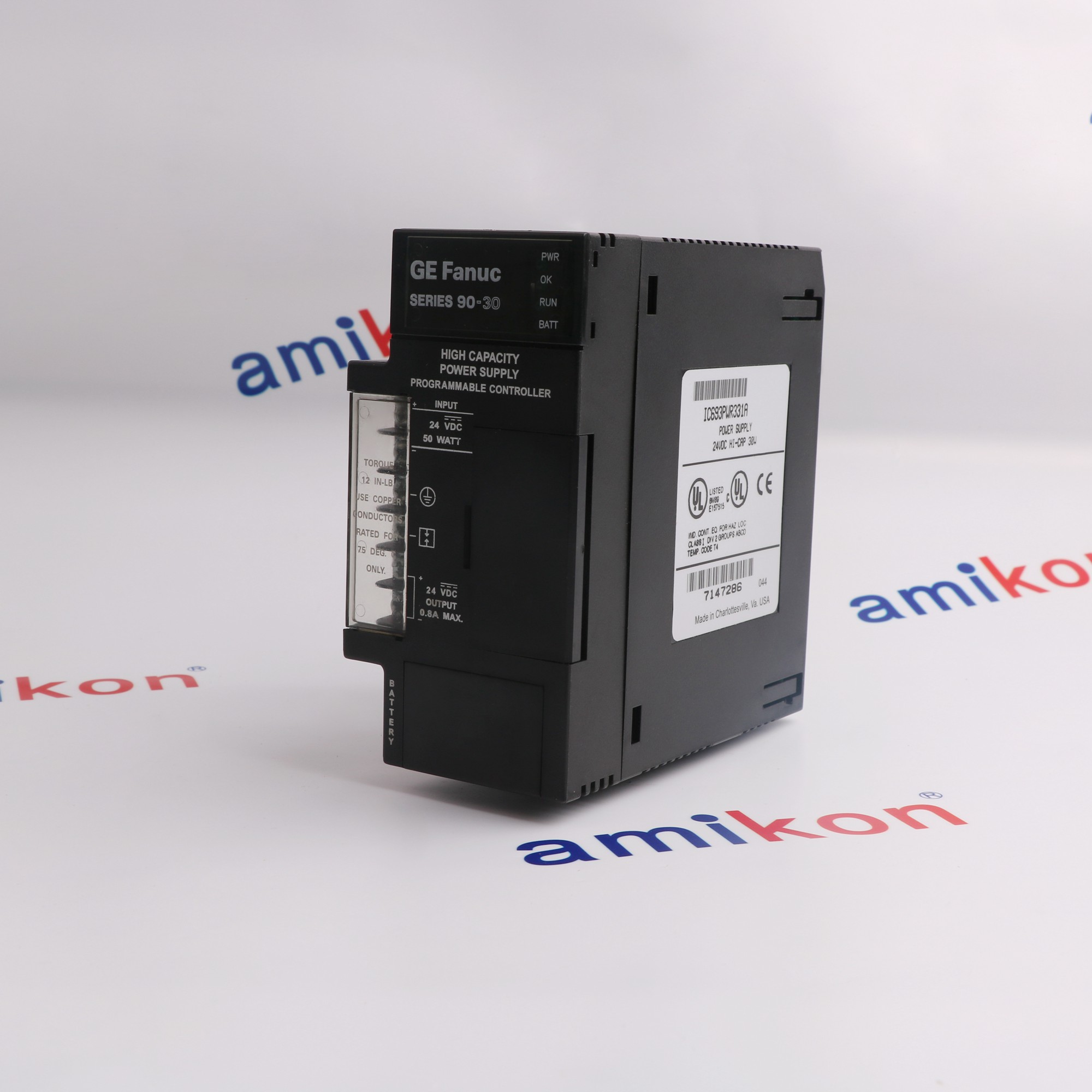

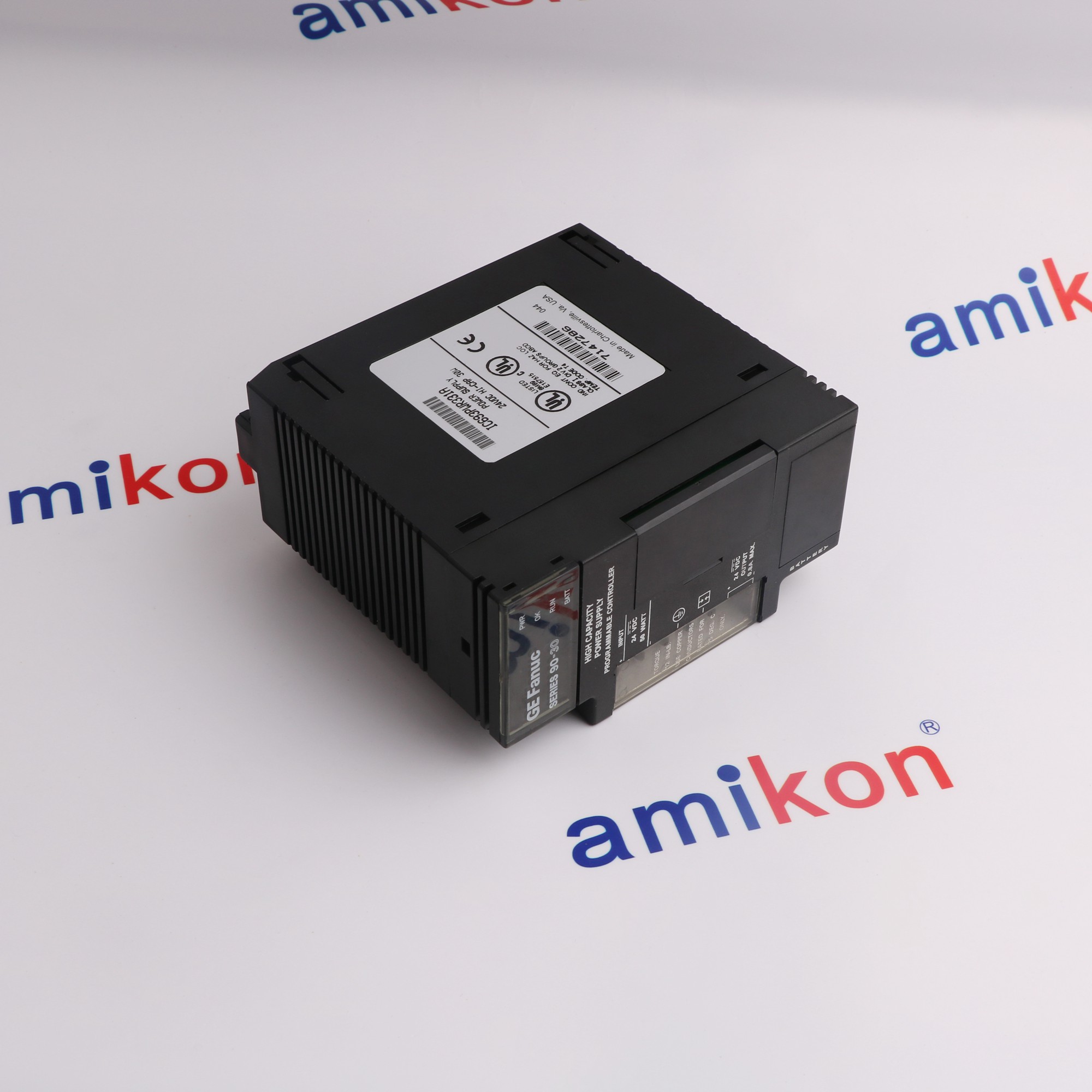

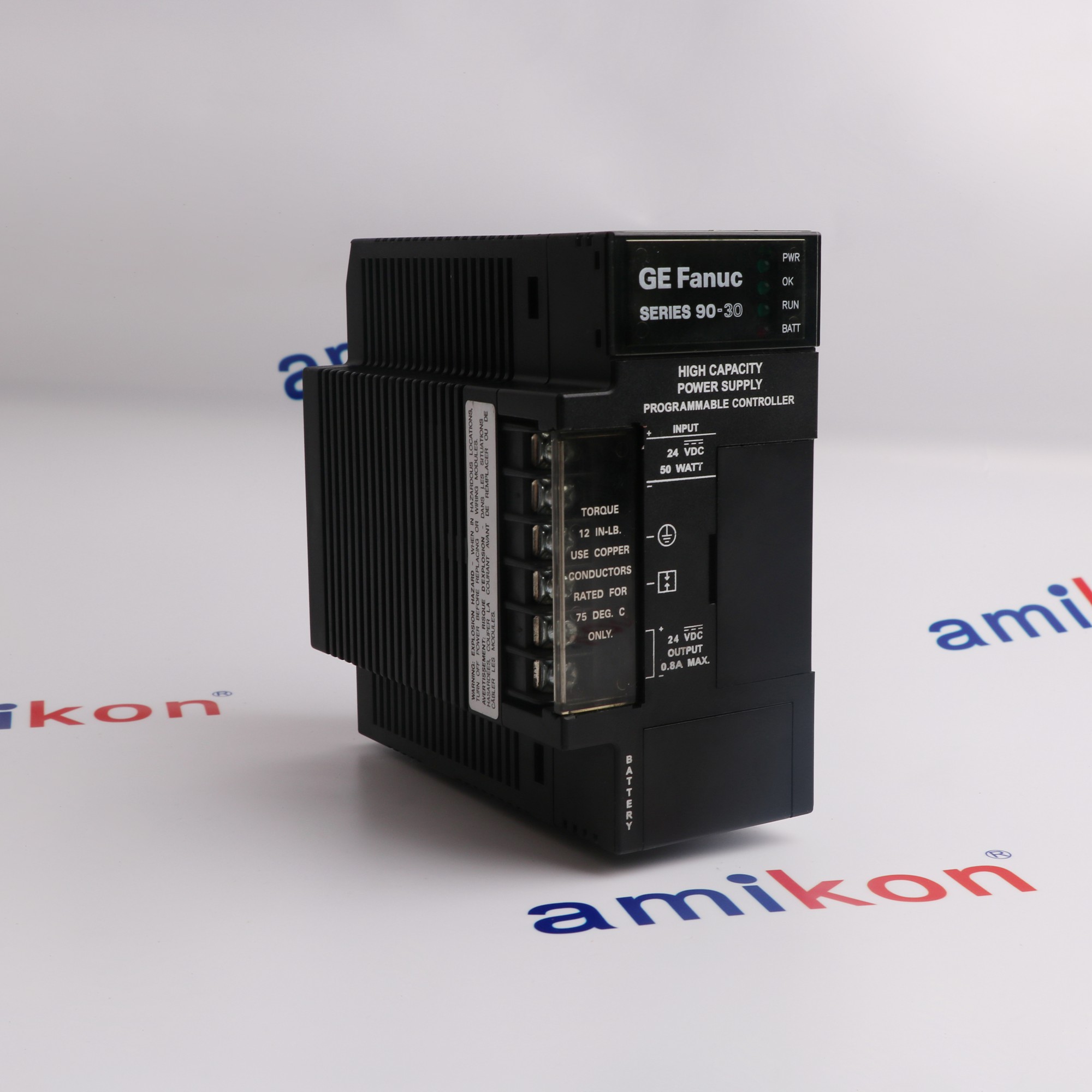

The IC693PWR331 GE Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693PWR331 Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693PWR331 is provided with an RS485 communication terminal. This port allows connection to workstation installed with GE Proficy Software for configuration. Additionally, the same port permits connection of Hand-Held Programmer (HHP) and other devices that are RS485 communication standard enabled.
The IC693PWR331 is provided with LED indicator that reports the state of the module as well as the components attached to the device. It has PWR, OK, RUN and BATT LED indicators. This power supply also hosts the battery back-up that maintain the contents of the PLC’s volatile memory. The BATT indicator is used to indicate the charge of the battery to provide reference as to when the battery must be replaced. The battery connection terminals as well as the incoming wires’ termination strip are installed on the front panel, behind the swing door.
- Manufacturing Automation: Automated assembly lines, packaging machinery, machine tool control.
- Energy and Power Industry: Automation of substations, monitoring of oil and gas pipelines, control of power generation units.
- Water Treatment: Remote control of pumping stations, monitoring of filtration systems.
- Metallurgy and Heavy Industry: Blast furnace control, steel rolling production lines, control of mine hoists.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The GE Fanuc IC693PWR331 High-Capacity Power Supply includes several critical protection functions designed to safeguard the PLC hardware from electrical faults and maintain system stability
Overcurrent and Short Circuit Protection: The 5V logic output is electronically limited to 7 amps. If an overload or short circuit is detected, the supply automatically shuts down to prevent damage. It will then continually attempt to restart until the fault is cleared.
Overvoltage Protection: The 5VDC output is protected against voltage spikes, with a protective limit typically set between 6.4 and 7 VDC.
Holdup Time: To protect against brief power dips (brownouts), the module provides a minimum holdup time of 10 to 14 milliseconds.
Grounding: A dedicated grounding screw on the front panel is used for electrical protection and to ensure the stability of the common ground for the entire baseplate.
Thermal Management: Experts from PLCDCSPro recommend derating output current if ambient temperatures exceed 50°C to maintain long-term stability.
FAQs
-
What is IC693PWR331?
+The GE Fanuc IC693PWR331 is a 30-watt, high-capacity power supply module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. -
What is the IC693PWR331 purpose of the battery?
+The battery installed on the power supply is used to retain the RAM (program and data) of the 90-30 processor during power loss. -
What are the IC693PWR331 input voltage requirements?
+It is designed for a 24 VDC nominal input. -
How do I know if IC693PWR331 failing?
+Signs of failure include the PWR or OK lights being off, the module being excessively loud, or the RUN light failing to activate when the module should be running. -
What does a green "OK" light mean?
+A green "OK" light indicates the CPU has reported back that it is in a fully functional mode.
