- DS200TCCBG3BDC
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DS200TCCBG3BDC
-
Product ModelDS200TCCBG3BDC
-
Spare ModelDS200TCCBG3B
-
Product ParametersEXTENDED ANALOG I/O BOARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size27.8x21.2x2cm
-
ManufacturerGeneral Electric
-
Weight0.65 kg
-
Power Supply+5V DC
-
Power Consumption10-15 W (typical)
-
Isolation1500V AC
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Humidity5-95% RH (non-condensing)
Description
DRIVE BOARD
EXTENDED ANALOG I/O BOARD
TC2000
MARK V
EXTENDED ANALOG I/O BOARD
TC2000
MARK V
Information
Overview
Manuals
Technical notes
Product Applications
Pre-Installation Prerequisites
Features:
- Common Extended
- Analog I/O Board
- Mark V Speedtronic Series
- TC2000 Analog Board
The DS200TCCBG3BDC GE Extended Analog I/O Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE DS200TCCBG3BDC Extended Analog I/O Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

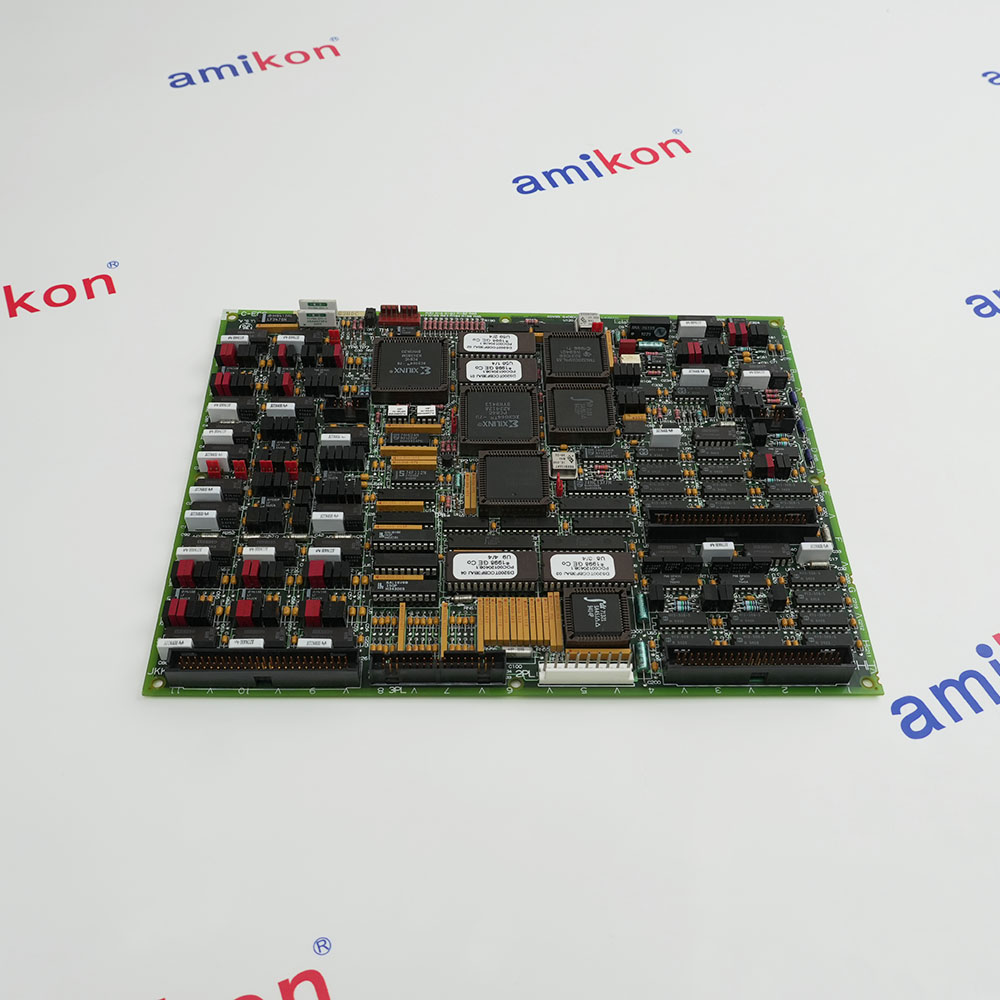

This DS200TCCBG3BDC TC2000 Analog Board necessitates its own unique set of hardware component inclusions and component specifications to achieve its original intended functionality. The General Electric I/O TC2000 Analog Board DS200TCCBG3BDC features one 80196 microprocessor and multiple PROM modules, and also contains one LED and 2 50-pin connectors. This LED is visible from the side view of the board, and the IDs for the 50-pin connectors are JCC and JDD. The 80196 microprocessor is a 16-bit device in a ceramic package; this processor contains a watchdog timer and 8 KB of onboard ROM.
- Baseload & Peaking Plants:Frame 7/9 turbines: monitors generator/line/bus
- Cogeneration (CHP) Factories:Gas turbine exhaust drives secondary steam turbine
- Upstream Processing Stations:Controls gas turbines for remote compression strings
- Refining & Chemical Cracking Plants:Steam turbines for feed pumps & compressors
- Pulp and Paper Mills:Industrial steam turbines for plant-wide power loops
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Static Protection: Use an ESD wrist strap connected to an unpainted, grounded metallic surface on the Mark V cabinet.
Firmware Transfer: The new board does not ship with your specific site application firmware. You must carefully transfer the existing configuration PROM chips from the old board to the replacement board using a chip puller tool.
Jumper Configuration: Inspect all hardware jumpers on the old board. Move the matching jumpers on the replacement board to the exact same positions.
FAQs
-
What is the DS200TCCBG3B ?
+The GE DS200TCCBG3B is a Common Extended Analog I/O board manufactured by General Electric. It is a vital component of the Speedtronic Mark V turbine control system -
What type of input circuitry does it use?
+The DS200TCCBG3B board utilizes a 4-20 mA input circuit. -
How do you connect the RS-232 serial port?
+To connect the RS-232 serial port to DCOM, you must use the hardware jumper J14. This connection is typically used to access diagnostic tools or export status reports to a laptop. -
What is the primary function of the DS200TCCBG3B?
+It provides additional analog input and output channels to the control system. This extension scales up the processing of complex phase currents, voltages, megawatts, power factors, and VARs..
