      General Electric IS200STAIH2ACB
      General Electric IS200STAIH2ACB
      General Electric IS200STAIH2ACB
      General Electric IS200STAIH2ACB
      General Electric IS200STAIH2ACB
      General Electric IS200STAIH2ACB
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      IS200STAIH2ACB

      Simplex analog terminal board

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

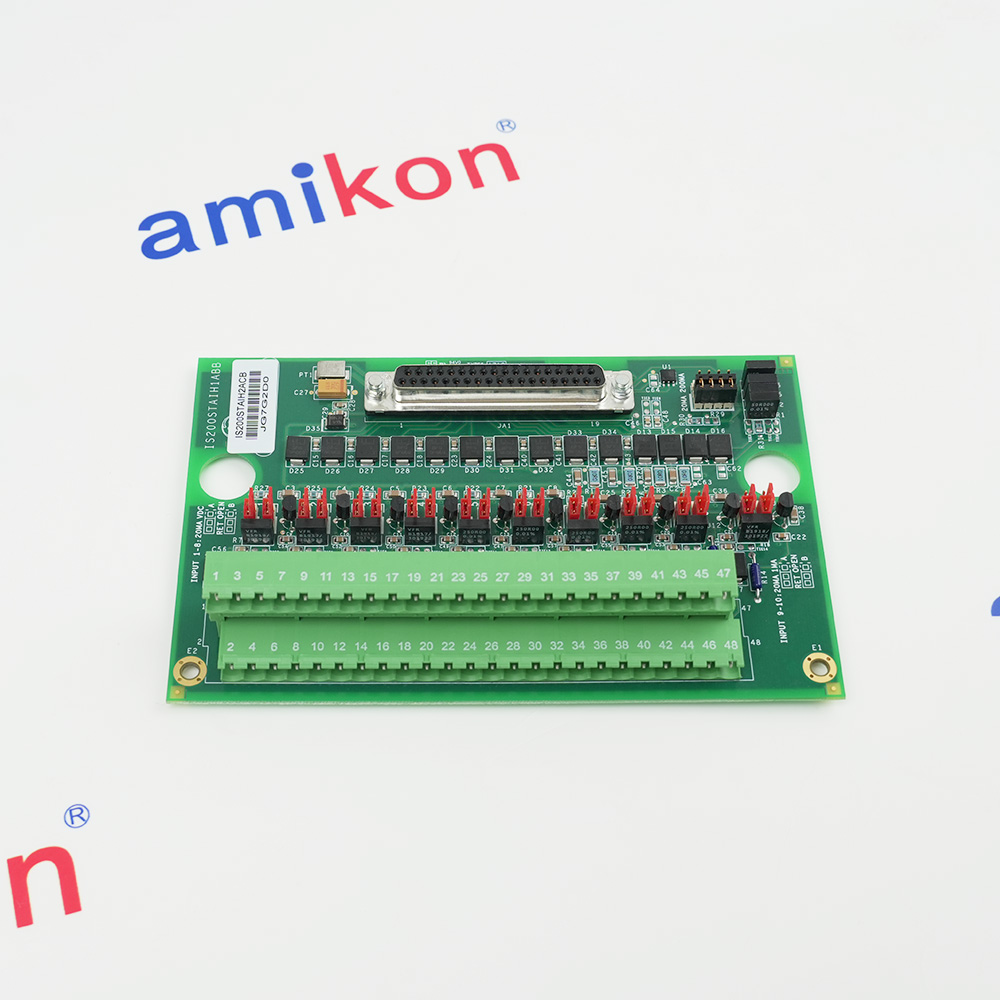

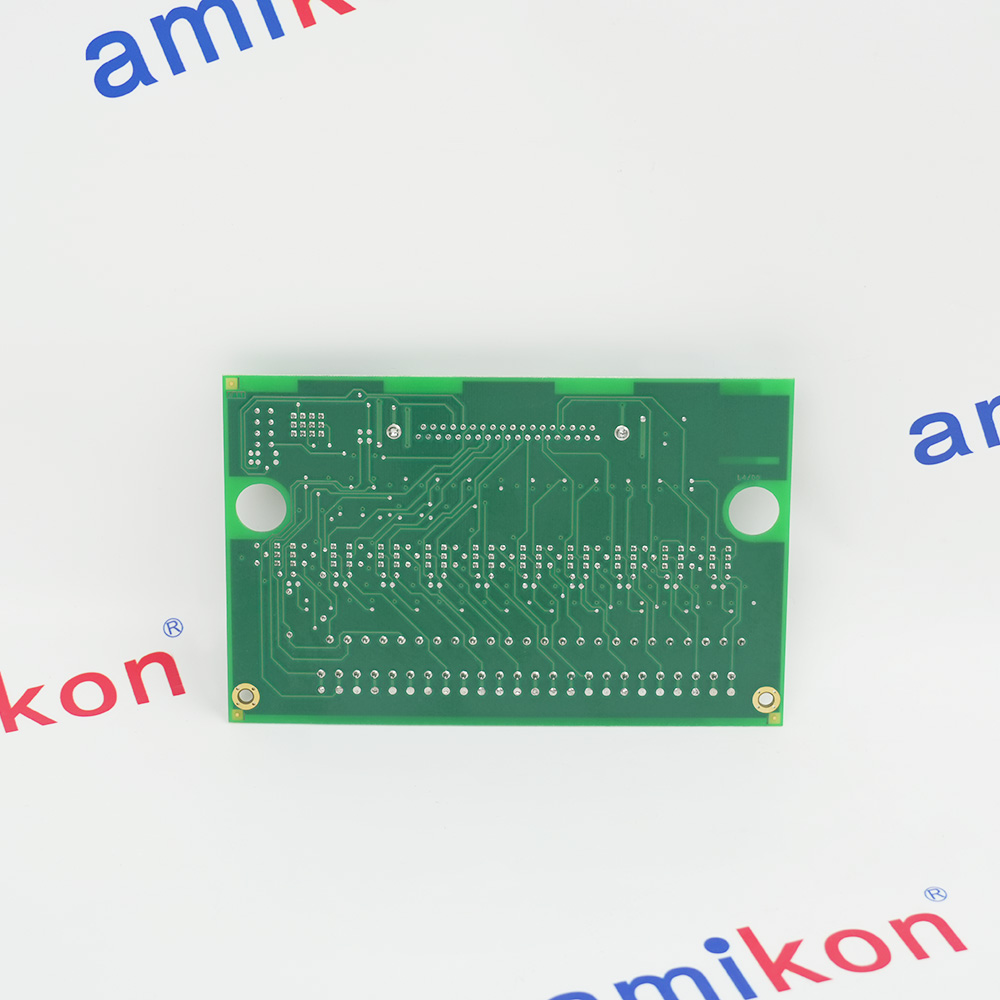

          IS200STAIH2ACB Simplex analog terminal board

          GE IS200STAIH2ACB is a Mark VIe simplex analog terminal board for the PAIC I/O pack. The STAI design handles ten analog inputs and two analog outputs.

          The H2 terminal board uses a right-angle header with pluggable terminal blocks. It supports 48 terminal positions. Both outputs can use 0 to 20 mA, with one configurable for 0 to 200 mA.
          BEFORE YOU BUY

          Confirm the complete IS200STAIH2ACB identity

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application fields for IS200STAIH2ACB

          These broad application fields reflect the documented function and technical characteristics of IS200STAIH2ACB.
          • 01 · WATER & WASTEWATER

            Water and Effluent Treatment

            Industrial water and effluent treatmentMunicipal treatment and process instrumentation
          • 02 · CHEMICAL PROCESSING

            Chemical Processing and Industrial Utilities

            Chemical processing and plant instrumentationProcess monitoring and industrial utilities
          • 03 · POWER GENERATION

            Thermal Generation and Plant Utilities

            Thermal generation and process monitoringPlant utilities and industrial instrumentation

          Technical specifications for IS200STAIH2ACB

          • Product Model
            IS200STAIH2ACB
          • Spare Model
            IS200STAIH2A
          • Product Parameters
            Simplex analog terminal board
          • In stock
            9 units
          • Manufacturer
            General Electric
          • I/O configuration
            Simplex
          • Analog inputs
            10
          • Analog outputs
            2
          • Customer terminals
            48
          • Terminal connection
            Right-angle header for pluggable blocks
          • I/O pack
            PAIC
          • Voltage inputs
            ±5 V DC or ±10 V DC
          • Standard analog outputs
            0 to 20 mA
          • Selectable output range
            0 to 200 mA on one output
          • Typical field conductor
            18 AWG shielded twisted pair
          View all additional
          Ask for Quote

          Alternative Names

          IS200STAIH2ACB Simplex analog terminal board Mark VIe Simplex analog terminal board
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate IS200STAIH2ACB within Mark VIe

          Use the PAIC pack in a simplex configuration and identify the ten input and two output circuits from the STAI wiring drawing.
          Confirm the installed transmitter types, terminal positions and shield connections. The guide shows support for two-wire, three-wire, four-wire and externally powered transmitters.
          Check the output range jumper before energising any connected loop. Confirm each input and output against the approved I/O map.

          Features:

          • I/O configuration: Simplex
          • Analog inputs: 10
          • Mark VIe
          Use IS200STAIH2ACB only within the documented Mark VIe arrangement and applicable installation instructions.
          INTERCHANGEABILITY

          Replace IS200STAIH2ACB within Mark VIe

          Match the complete H2ACB marking and identify the pluggable terminal blocks. Record the PAIC model and board orientation before removal.
          Photograph jumper positions and label each terminal block. Identify the output configured for an extended range before reconnecting field wiring.
          After replacement, review board identification diagnostics in the PAIC and check loop readings against known values. Verify both outputs in the approved range.

          Features:

          • I/O configuration: Simplex
          • Analog inputs: 10
          • Mark VIe
          Use IS200STAIH2ACB only within the documented Mark VIe arrangement and applicable installation instructions.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Exact-model technical data for IS200STAIH2ACB
          • Document applicability checked against the complete identity
          • Directory links by subcategory and brand
          Documentation for IS200STAIH2ACB must match the installed product identity and supplied configuration.

          Also searched as

          IS200TBTCH1CBB IS200VVIBH1CAB IS200VVIBH1C IS230SNRTH2A/IS200SRTDH2ACB IS220STAIH2A IS215UCVEH2A

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            15.80 x 10.80 x 3.30 cm
            Shipping weight
            0.20 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538900000
            Origin
            United States
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about IS200STAIH2ACB

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • How many channels does GE IS200STAIH2ACB provide?

            The STAI design provides ten analog inputs and two outputs.

          • Which I/O pack fits the STAIH2 analog board?

            Use a compatible PAIC pack in a simplex configuration.

          • Can both STAI outputs use the 200 mA range?

            One output can be jumper configured for 0 to 200 mA. The standard range is 0 to 20 mA.

          • Which voltage inputs does the STAI board support?

            The GE guide lists ±5 V DC and ±10 V DC analog inputs.

          • What distinguishes STAIH2 from STAIH1 on a quote?

            The H2 version accepts pluggable blocks. The H1 version has a permanently mounted block.

          • Which markings should a distributor verify for STAIH2ACB?

            Check the complete IS200STAIH2ACB label and ask for photos of the terminal header and fitted blocks.

          • Does the quotation include the PAIC pack?

            Specify whether the supply includes the terminal board, PAIC pack and removable terminal blocks.

          • What needs recording before moving an STAIH2 terminal block?

            Record the terminal assignments, shield connections, transmitter type and output range jumper.
