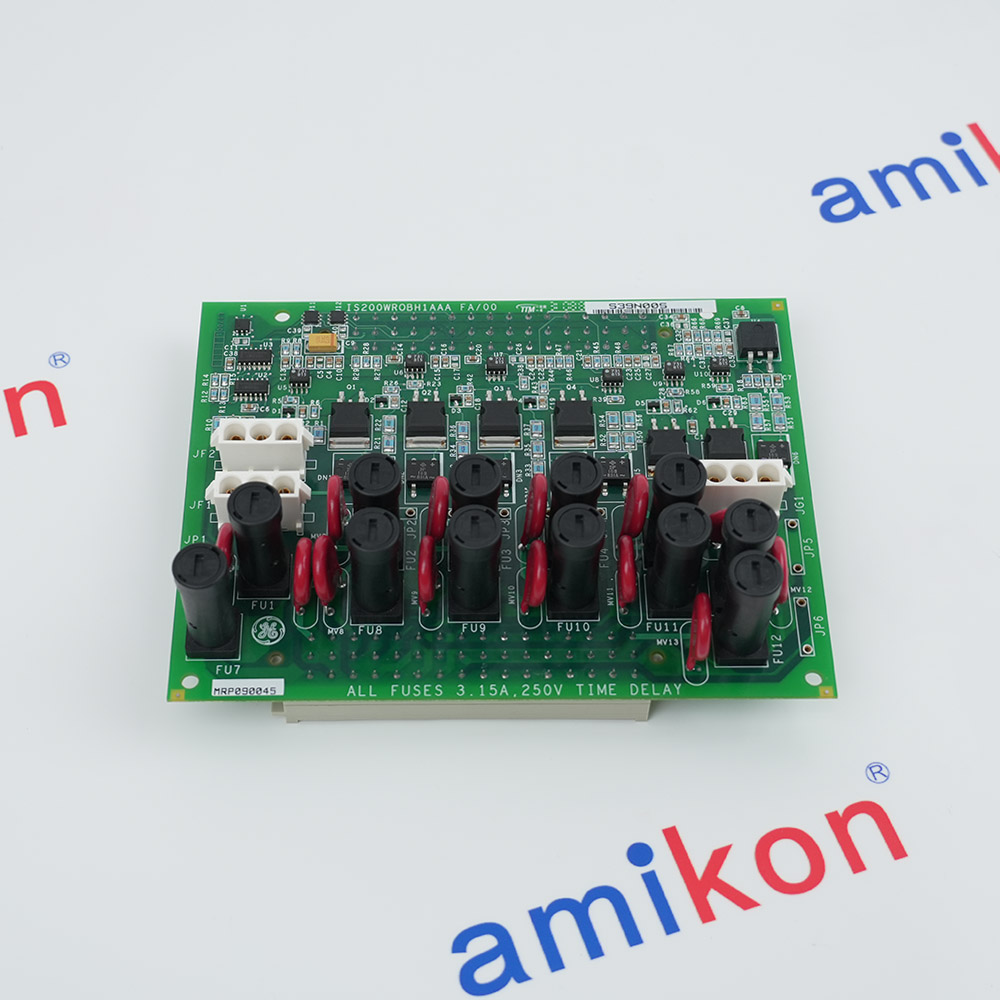

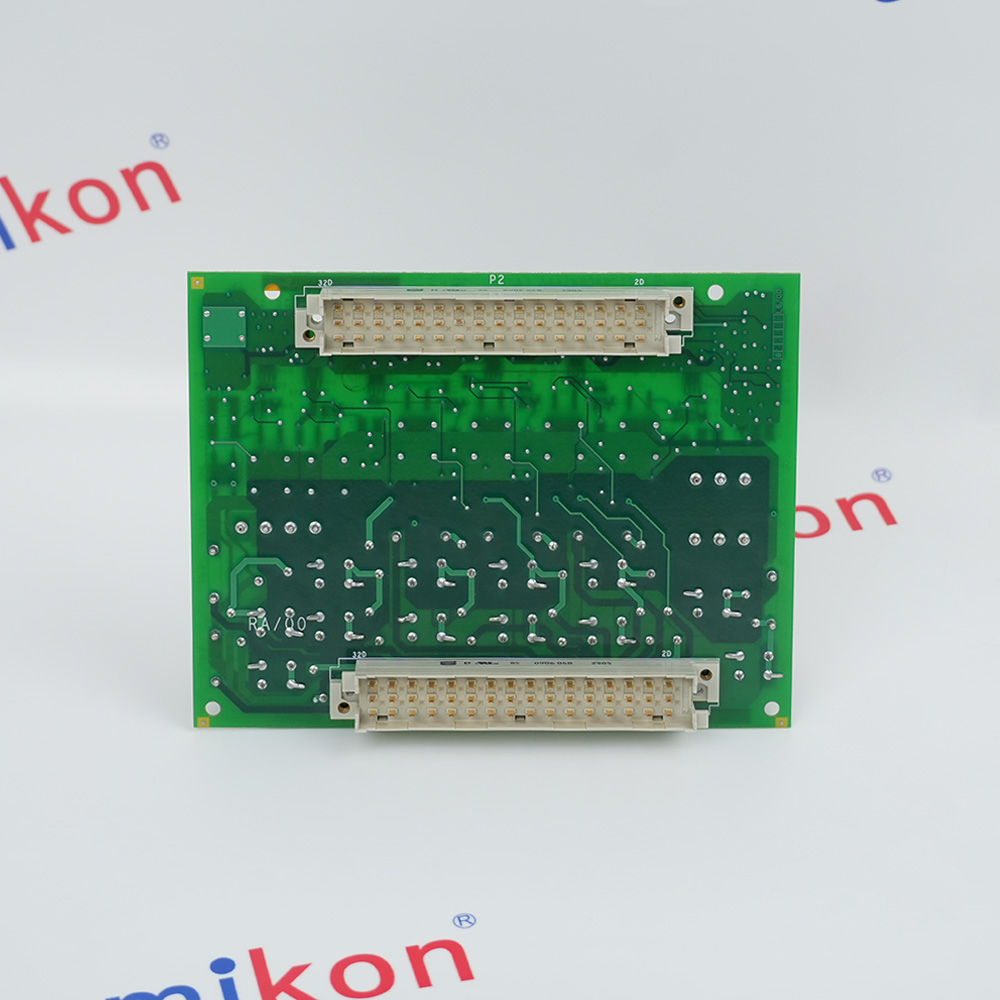

- IS200WROBH1AAA
In Stock
Ships by Friday, July 10
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IS200WROBH1AAA
-
Product ModelIS200WROBH1AAA
-
Spare ModelIS200WROBH1A
-
Product ParametersDiscrete Contact Output Option Board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15.5x11.8x5.2cm
-
ManufacturerGeneral Electric
-
Weight0.25 kg
-
SeriesMark V
-
Nominal Voltage24 VDC (±10%)
-
Fuse Voltage Feedback24 VDC, 48 VDC
-
Default Fuse Value3.15 A
-
Total Number of Fuses12
-
Current Output4–20 mA
-
Voltage Output0–10 V DC
-
Operating Temperature Range−40°C to +70°C
-
Storage Temperature−40°C to +85°C
Description
IS200WROBH1AAA is a Power Distribution Board under the Mark VI series.GE created the board as part of their Speedtronic range.The Mark control platform offers scalable redundancy levels. A single (simple) controller with simplex I/O and a single network is the foundation of the system.The dual system has two controllers
singular or fanned TMR I/O, and dual networks, which increases reliability and allows for online repairs. Three controllers, singular or fanned TMR I/O, three networks, and state voting amongst controllers make up the TMR system, which allows for maximum fault detection and availability.
The core distribution system and branch circuit elements are two distinct types in the PDM.They are responsible for a cabinet's or a set of cabinets'primary power management.The branch circuit elements take the core output and distribute it to specific circuits in the cabinets for consumption.Branch circuits have their own feedback methods that are not included in the PPDA I/O pack's feedback. IS200WROBH1A is a Relay Fuse And Power Sensing card from WROB.The card has twelve fuses on it.The fuse has a 3.15 A rating and is rated for 500VAC/400VDC.
singular or fanned TMR I/O, and dual networks, which increases reliability and allows for online repairs. Three controllers, singular or fanned TMR I/O, three networks, and state voting amongst controllers make up the TMR system, which allows for maximum fault detection and availability.
The core distribution system and branch circuit elements are two distinct types in the PDM.They are responsible for a cabinet's or a set of cabinets'primary power management.The branch circuit elements take the core output and distribute it to specific circuits in the cabinets for consumption.Branch circuits have their own feedback methods that are not included in the PPDA I/O pack's feedback. IS200WROBH1A is a Relay Fuse And Power Sensing card from WROB.The card has twelve fuses on it.The fuse has a 3.15 A rating and is rated for 500VAC/400VDC.
Alternative Names
IS200WROBHIAAA
IS200WR0BH1AAA
IS20OWROBH1AAA
IS2O0WROBH1AAA
ISZ00WROBH1AAA
1S200WROBH1AAA
IS200WROBH1A-AA
IS200WROBH1A/AA
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Expands discrete relay output capability
- Relay fuse monitoring and power sensing functions
- Supports Simplex and TMR system configurations
- Twelve 3.15 A industrial protection fuses
The board contains twelve fuses, each rated at 3.15 A, 500 VAC / 400 VDC (Littelfuse 04773.15MXP), providing fused power distribution to external relay circuits. Fuse voltage feedback is available for 24 VDC, 48 VDC, 125 VDC, 120 VAC, and 240 VAC systems, with isolated voltage sensing that is not polarity sensitive. This allows the board to monitor the health of each fused branch and report status back to the control system.
The IS200WROBH1AAA GE Discrete Contact Output Option Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS200WROBH1AAA Discrete Contact Output Option Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The board supports simplex, redundant, and TMR (Triple-Modular Redundant) configurations. In TMR mode, it mounts on the TDBT terminal board alongside contact input terminal boards (TBCI). In non-TMR configurations, it mounts on the TDBS board, converting it into a functional equivalent of the TRLY relay board. This flexibility allows the control system to scale from basic single-controller setups to fully redundant, fault-tolerant architectures with three controllers and state voting.
The IS200WROBH1AAA includes self-diagnostic capabilities that continuously monitor signal consistency, hardware integrity, and configuration validity. Faults such as inconsistent signals, blown fuses, or hardware failures are reported through the control system interface. The board also features overcurrent, overvoltage, short-circuit, and overtemperature protection to safeguard both the module and connected field devices.
- Gas/Steam Turbine Control: Interfaces control systems with actuators, valves, and auxiliaries in power plants
- Industrial Energy: Regulates control signals for combined-cycle and co-generation facilities
- Safety/Protection: Triggers trips and safety sequences upon detecting power anomalies
- Heavy-Duty Automation: Switches high-voltage/current field devices with ruggedized, conformal-coated architecture for harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Relay & Power Wiring: Connect field wiring to the corresponding terminals on the base terminal board. The IS200WROBH1AAA board features 12 standard fuses (default fuse rating is 3.15 A, 500 VAC/400VDC). Verify that all external field circuits are appropriately rated and terminated.
Communication & Feedback: Attach any required D-type computer cables or communication lines to the I/O pack to establish data backplane connection.
Redundancy: If your turbine system runs in Simplex or TMR (Triple Modular Redundant) mode, verify that the module is correctly configured in your setup.
Technical notes
The IS200WROBH1AAA functions as a relay control and power sensing interface. It receives low-level control signals from the Mark VI/VIe controller and switches electromechanical relay contacts to control field devices such as solenoid valves, contactors, motors, and alarm horns. The onboard relays handle resistive loads up to 5 A at 120/240 VAC; for inductive loads, the current rating is derated, and the use of external interposing relays is recommended to prevent contact degradation from arcing.
FAQs
-
What is the IS200WROBH1AAA ?
+The GE IS200WROBH1AAA is a protective option relay output board used in the GE Mark VIe Turbine Control System. -
What is the primary function of the IS200WROBH1AAA?
+It is a modified, conformal-coated option board that mounts with other Mark VIe boards (such as SRLY or TDBS) to provide enhanced capabilities to relay outputs, fused power distribution, and power sensing -
What are the specifications of the fuses on this board?
+The board features 12 fuses rated at 3.15 A. They are designed for 500 V AC or 400 V DC. -
What happens when it is paired with a TDBS board?
+When used with a TDBS board, it functions to detect the statuses of the fuses across the six fuse pairings on the board and turns the relay portion into an equivalent to the IS20TRLYH1B board
