- IS220PSFDH1A
In Stock
Ships by Sunday, June 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IS220PSFDH1A
-
Product ModelIS220PSFDH1A
-
Product ParametersFlame Detector Power Supply
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x12.3x8.2cm
-
ManufacturerGeneral Electric
-
Weight0.4 kg
-
Input Voltage24 VDC
-
Flame Signal Output4–20 mA
-
Isolation1500 VAC
-
Operating Temp-40°C to +70°C (-40°F to +158°F)
-
Humidity5–95% non-condensing
Description
The GE IS220PSFDH1A is a Flame Detector Power Supply. The GE IS220PSFDH1A is manufactured by General Electric as part of the Mark VI Series. The GE IS220PSFDH1A is used in gas turbine control systems. The GE IS220PSFDH1A provides 335V DC power for flame detectors.
The GE IS220PSFDH1A converts 28V DC input to 335V DC output. The input voltage range on the GE IS220PSFDH1A is 26.6 to 29.4V DC. The output voltage on the GE IS220PSFDH1A varies by 5% depending on input, ranging from 318 to 352V DC. The rated output on the GE IS220PSFDH1A is 335V DC at 5mA.
The GE IS220PSFDH1A converts 28V DC input to 335V DC output. The input voltage range on the GE IS220PSFDH1A is 26.6 to 29.4V DC. The output voltage on the GE IS220PSFDH1A varies by 5% depending on input, ranging from 318 to 352V DC. The rated output on the GE IS220PSFDH1A is 335V DC at 5mA.
Alternative Names
1S220PSFDHIA
IS22OPSFDH1A
1SZZ0PSFDH1A
1SZZOPSFDHIA
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Tips and Specifications
Features:
- Mark VI Speedtronic
- Conformal PCB coating style
- Flame Detector Power Supply
The IS220PSFDH1A GE Flame Detector Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS220PSFDH1A Flame Detector Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This IS220PSFDH1A Modular Assembly product number in specific starts off through an inclusion of the dual-functional IS220 series tag dictating this IS220PSFDH1A Modular Assembly device's special modular Mark VI Series assembly as well as it domestic original GE manufacture location. Some of the other IS220PSFDH1A Modular Assembly Board details revealed in this manner include its:
PSFD functional product acronym
Group one Mark VI Series grouping
Conformal PCB coating style
A-rated functional product revision
- Electric power industry: Power plants control the cooling pumps, fans, and lubrication systems of the generating units.
- Nuclear power industry: Logical interlock switches are implemented in related systems of nuclear power plants.
- Petroleum, natural gas and chemicals: Chemical plants control actuators to relieve pressure or isolate.
- Rail transportation and heavy machinery: Heavy circuit breakers in large automated production lines or large hydraulic systems.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

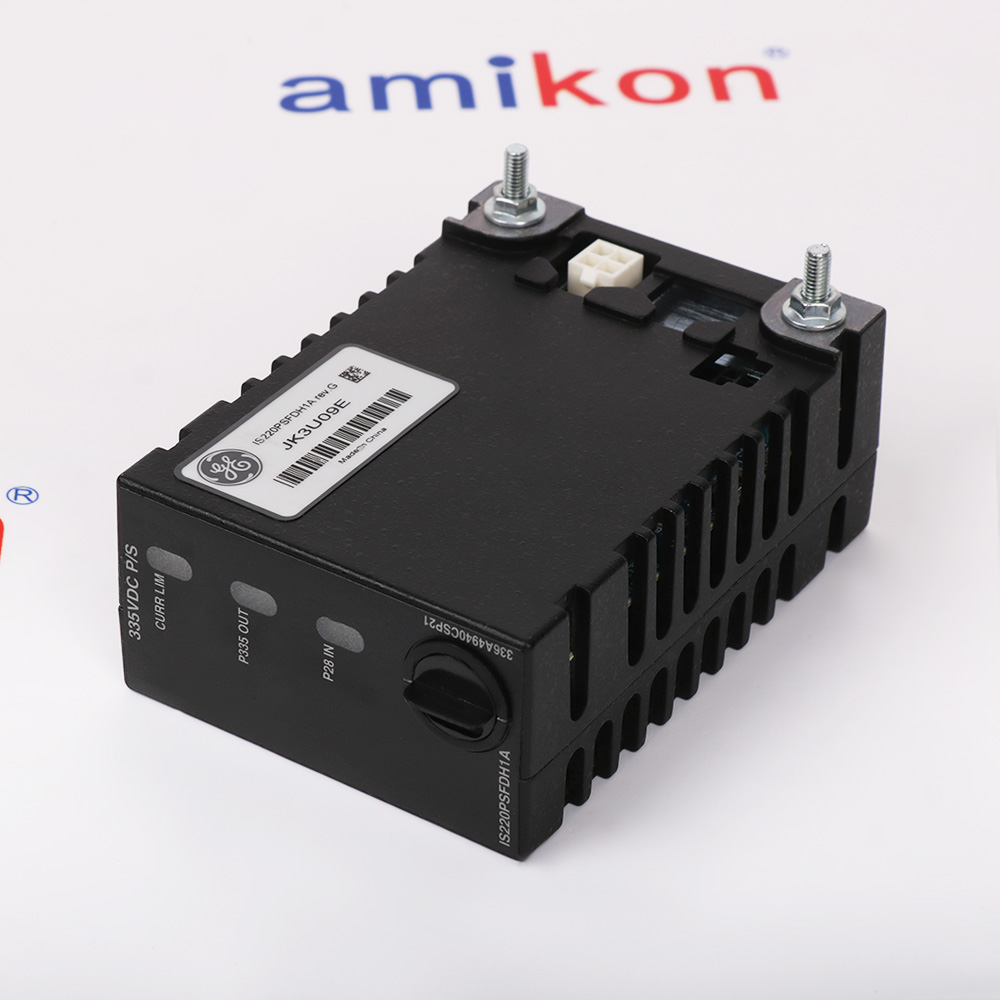

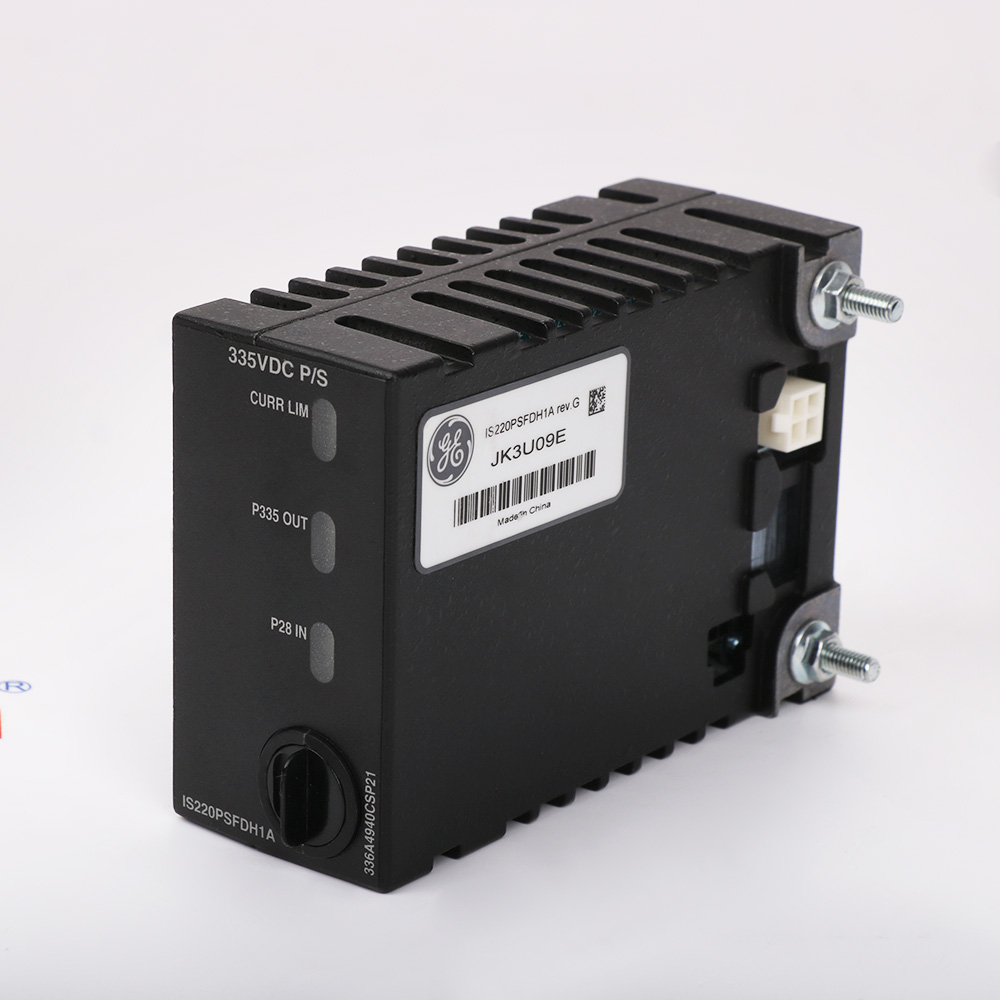

This functions as a Flame Detector Power Supply pack. It is convection cooled; it does not have any cooling fans. Its working temperature range is -30 degrees Celsius to +65 degrees Celsius. The IS220PSFDH1A is housed within a rectangular enclosure. The front faceplate of this enclosure is marked with the component ID number, three diagnostic LEDs, and an IR port (infrared port.) This last component is not used. The LEDs are red (one,) and green (two and three.) and are used to indicate a number of IS220PSFDH1A Modular Assembly functional fault and normative function conditions, as would have been detailed in this IS220PSFDH1A Modular Assembly device's sparsely-available original instructional manual materials. The IS220PSFDH1A provides power to the flame detector circuit on the TRPG (primary gas turbine trip protection board.) It does this through that board’s J3 through J5 connectors. The IS220PSFDH1A is usually mounted above the TRPG board on a sheet metal surface using mounting studs, mounting brackets, and a mounting plate.
Technical notes
The GE IS220PSFDH1A features soft-start hot-swap input. The inrush current on the GE IS220PSFDH1A is limited to 550mA for 40μs. The steady-state inrush current on the GE IS220PSFDH1A is limited to 300mA. The GE IS220PSFDH1A can be hot-plugged into an active 28V DC bus without disturbing other loads.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the IS220PSFDH1A ?
+The GE IS220PSFDH1A is a Flame Detector Power Supply (PSFD) module designed for the Mark VIe turbine control system. -
What is the function of the IS220PSFDH1A?
+It converts 28 V DC input power (typically from a JPDL board) into a 335 V DC output to power up to eight flame detectors on the Primary Gas Turbine Trip Protection (TRPG) board. -
How is the IS220PSFDH1A module installed?
+The PSFD is usually mounted on a sheet metal plate above the TRPG board using threaded studs that slide into mounting brackets. -
How to safely test the output voltage of the IS220PSFDH1A?
+The output voltage can be monitored locally using a pair of differential TP test points. For safety, the attenuation ratio of these test points is 100:1. -
Does the IS220PSFDH1A support hot-swapping?
+Yes, the 28 V DC input is hot-swap compatible.
