      IS420YDOAS1B

      Need Help? Contact US!
      Call us: +86-18020776786
      Proper, Ready.

      Delivery time
      Please indicate your delivery time

      Product Information

      Product Describe
      Surface-Mount
      12 Relay/Coil Monitors
      Simplex or TMR
      Processor Board BPPC

      Specifications

      • Product Model
        IS420YDOAS1B
      • Product Parameters
        Discrete Output Module
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        5.7x12.2x8.3cm
      • Manufacturer
        General Electric
      • Weight
        0.3 kg
      • Output Points
        16 points
      • Rated Load Voltage
        48V DC
      • Voltage Range
        10 - 60V DC
      • Max Load Current
        0.5A per point
      • Max Inrush Current
        1.5A for 100ms
      • Off-state Leakage Current
        ≤ 0.1 mA
      • On-state Voltage Drop
        ≤ 1.5V @ 0.5A
      • Insulation Resistance
        ≥ 100 MΩ @ 500V DC
      • Heat Dissipation
        1.2W per point (max)

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is IS420YDOAS1B ?+
        The GE IS420YDOAS1B is a Discrete Output I/O Pack designed for the Mark VIe and Mark VIeS Safety control systems, commonly used for controlling 12 discrete output relays in turbine and industrial applications.
      • What terminal boards are compatible with the IS420YDOAS1B?+
        The module is compatible with TRLY and SRLY type terminal boards. Specifically, it works with TRLYS1B, D, and F terminal boards, which provide electromagnetic relays, as well as the Simplex Relay Contact Output (SRLY) board
      • Is the IS420YDOAS1B used for safety applications?+
        Yes, it is used in Mark VIeS Functional Safety systems to achieve SIL 2 and SIL 3 capabilities.
      • Does the IS420YDOAS1B support redundancy?+
        Yes. It supports simplex and Triple Module Redundancy (TMR) configurations. In a TMR setup, multiple I/O modules work together to provide greater fault tolerance and reliability.
      • How do the diagnostic LEDs work?+
        The pack features 12 yellow LEDs that indicate when a command is energizing a specific relay. It also includes an "ATTN" LED (red or green) and a "SIL OK" LED to indicate the status of the safety logic and processor health.
      Get a quick price fo IS420YDOAS1B
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product Applications
      • Applications include control systems for heavy-duty gas turbines, steam turbines, and wind turbine generators.
      • Applications include automation logic management for large centrifugal compressors, pump station control, and oil and gas processing plants.
      • In power plants, it coordinates the synchronous operation of generator sets and waste heat boilers.
      • It monitors the power systems of large steel plants.
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      What happens next
      Get the quote now Write Email to INFO@AMIKON.CN
      Email confirmation You will get an email confirming that we have received your enquiry.
      Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.
      Your quote You will receive a comprehensive quote tailored to your specific needs.
      Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Amikon 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
       We accept Bank transfers and the following methods of payment:

      For more information, please visit our dedicated payments page.
      Why Choose Amikon Limited?

      When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.

      • ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
      • ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
      • ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
      • ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
      • ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
      •

      Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.


      Product

      MORE INFORMATION

      Overview Manuals Technical notes Hardware Tips and Specifications

      Features:

      • Mark VIe Turbine Control System Series
      • 12 Relay/Coil Monitors
      • 2 PT bus sensing Mains sensing
      • Electrical interfaces between up to two Ethernet input-output networks
      The Mark VIeS Functional Safety Relay Contact Output module provides an interface between the discrete process actuators(12 discrete outputs), relay contact outputs, and the Mark VIeS Safety control logic. The Relay Contact Output moduleconsists of two orderable parts: the discrete output I/O pack and the relay contact output terminal board. All safetydiscrete/contact output modules use the same I/O pack, IS420YDOAS1B. Multiple DIN-rail mounted terminal boards and I/Ocontact wetting/fusing daughterboards are available to provide the necessary contact voltages, contact wetting and fusingconfigurations, redundancy, and terminal block styles

      The IS420YDOAS1B GE Discrete Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      GE IS420YDOAS1B Discrete Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

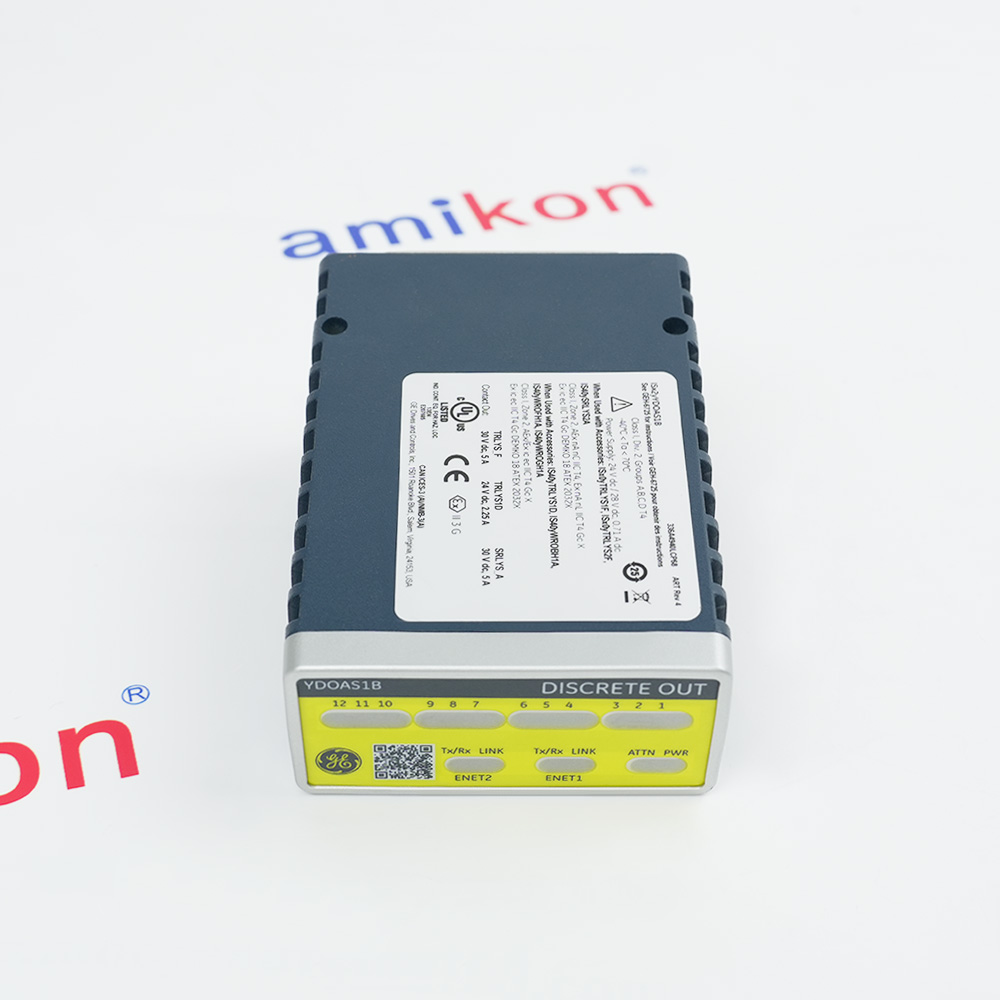

      The IS420YDOAS1B is a Discrete Output I/O Pack developed by General Electric (GE) as part of the Mark VIe and Mark VIeS functional safety control systems. It acts as an electrical interface, providing safety-certified outputs to drive external relays, solenoids, and contactors in turbine control applications.
      electrical interfaces between up to two Ethernet input-output networks
      a discrete output terminal board.
      diagnostic LEDs; typically the twelve LEDs will be yellow to provide an indication for each output that command is energizing the relay.

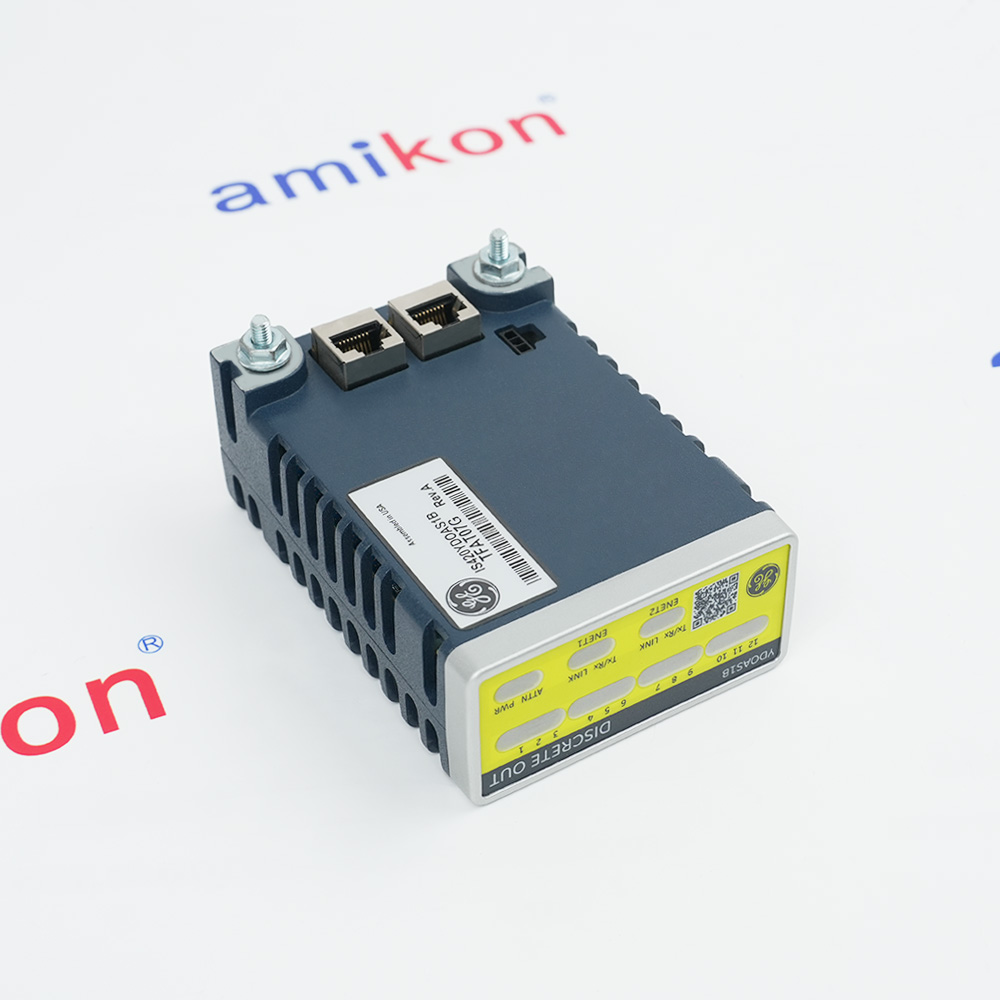

      This pack can control up to twelve relays and will accept terminal board-specific feedback. All of the inputs to the I/O pack will be sent through dual Ethernet RJ454 connectors as well as three-pin power input. A DC37 pin connector is used for the outputs which will connect directly to the associated terminal board connectors. If visual diagnostics are needed they will be provided through the LED indicators on the front of the pack.
