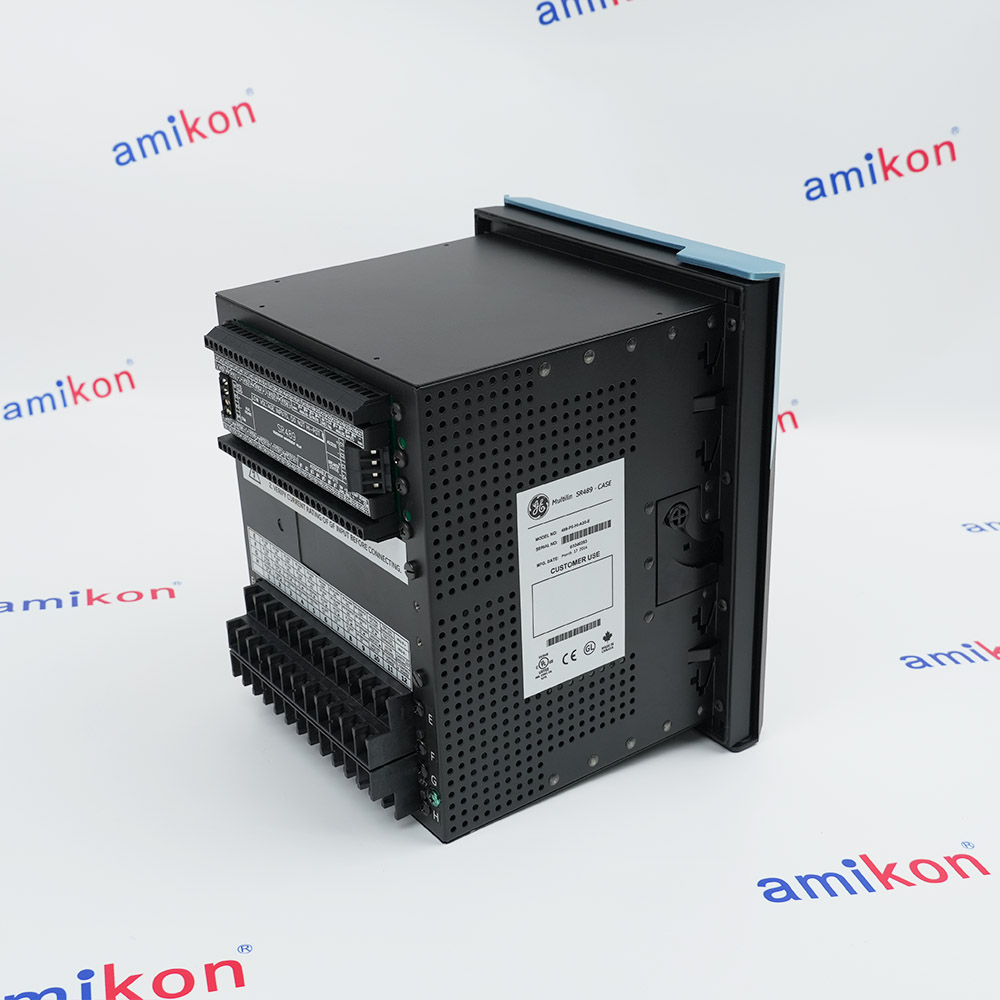

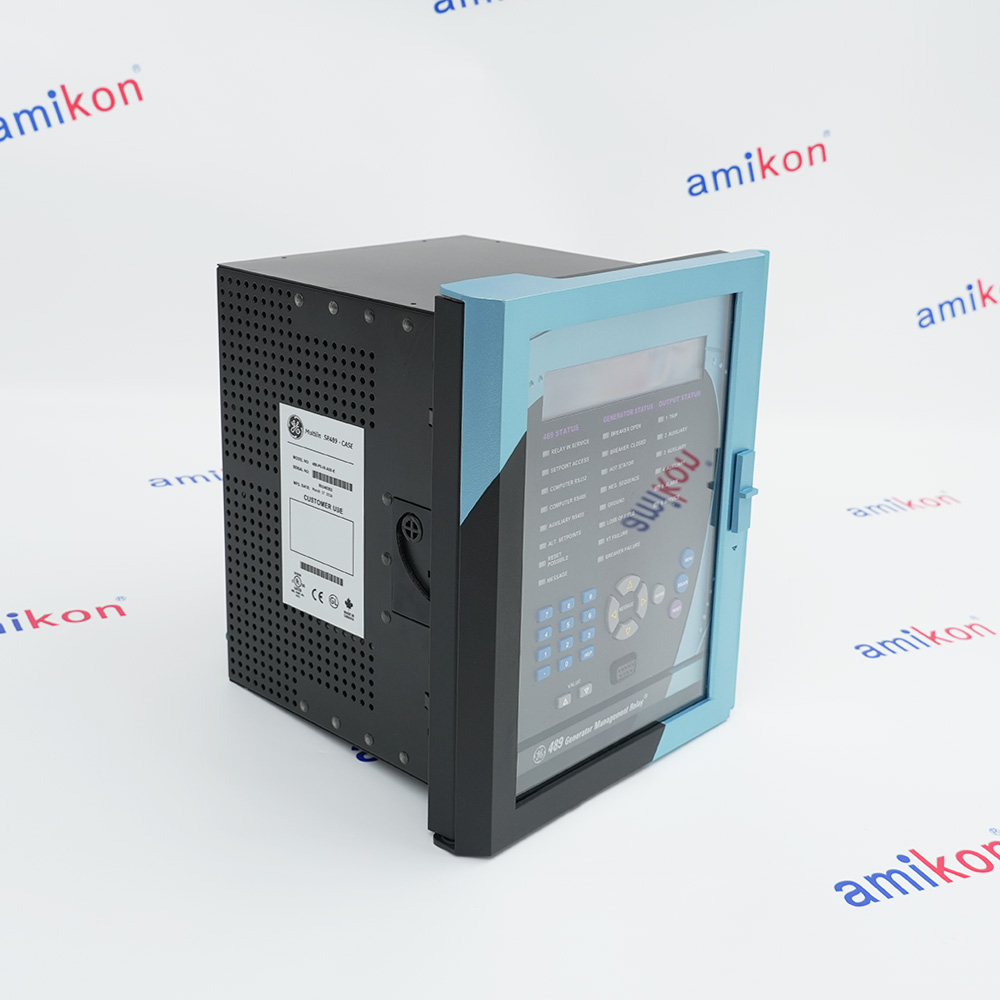

SR489-CASE 489-P5-HI-A20-E
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe
GENERATOR MANAGEMENT RELAY
BASE UNIT 489
PHASE CURRENT INPUTS - 5 AMP
90-300 V DC
70-265 V AC
48/62 HZ
4-20 MA ANALOG OUTPUTS
ENHANCED DISPLAY
BASE UNIT 489
PHASE CURRENT INPUTS - 5 AMP
90-300 V DC
70-265 V AC
48/62 HZ
4-20 MA ANALOG OUTPUTS
ENHANCED DISPLAY
Specifications
-
Product ModelSR489-CASE 489-P5-HI-A20-E
-
Spare Model489-P5-HI-A20-E
-
Product ParametersGENERATOR MANAGEMENT RELAY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size22x23x25cm
-
ManufacturerGeneral Electric
-
Weight7.34 kg
-
Input Voltage90-300VDC or 70-265VAC
-
Inadvertent Energization Time DelayNo Intentional Delay
-
Impulse Voltage Withstand Test Level5 KV
-
EFT StandardIEEE/ANSI C37.90.1
-
3rd Harmonic Timing Accuracy±3.0 s
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 489-P5-HI-A20-E+The GE Multilin 489-P5-HI-A20-E is a microprocessor-based generator management relay designed for protecting, controlling, and monitoring small to medium-sized generators
-
What is the function of the 489-P5-HI-A20-E?+It offers complete generator protection, including stator thermal protection, bearing over-temperature monitoring, and negative sequence overcurrent for rotor protection.
-
How do I view metered values?+Metered values (voltage, current, power) are available on the front panel display or via communication ports.
-
Does the relay support 4-wire RS485?+No, the 489-P5-HI-A20-E communicates only in 2-wire half-duplex mode.
-
What are the analog output ranges?+The analog outputs are 4 to 20 mA.
Get a quick price fo SR489-CASE 489-P5-HI-A20-E
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- What Happens Next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and Payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Generator Stator Differential
Features:
- Secure protection for small/medium generators
- Easy use with industry-leading software suite
- Advanced protection: RTDs & analog inputs for vibration
- Draw-out construction for minimized downtime
- IRIG-B event records, waveform capture & data loggers
- Cost-effective access via RS232, RS485, Ethernet & Modbus.
- Built-in waveform simulation for setpoint verification
The Multilin™ 489 Generator Protection System, a member of the SR family of relays,provides protection, control and advanced communications in a cost effective industryleading draw-out construction. Designed for small and medium sized generators, the 489delivers advanced protection including generator stator differential protection. The 489also includes detailed diagnostic information allowing for reduced troubleshooting time.
The 489-P5-HI-A20-E GE Generator Management Relay System may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE 489-P5-HI-A20-E Generator Management Relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 489-P5-HI-A20-E is a generator management relay that is manufactured by GE Multilin as part of the 489 Generator Management Series. This relay has 5A phase CT secondaries and a HI control power of 90-300 VDC and 70265 VAC at 48-62 Hz. The analog outputs on this relay are 4 to 20 mA. This 489-P5-HI-A20-E relay has an enhanced display with a larger LCD than the basic display generally serves as an upgrade from the 489-P5-HI-A20 basic display version. The 489-P5-HI-A20-E is the most installed relay in the 489 Generator Protection Series and as a result is a high demand relay. The 489-P5-HI-A20-E has the following features built-in to the relay.
- Generator Protection:Primary/backup for reverse power, overexcitation & inadvertent energization
- Industrial Power Systems:Reliable monitoring for critical high-demand industrial environments
- Cogeneration Plants:Manages synchronization & protection in power generation systems
- Generator Monitoring:Tracks stator/bearing temperature and vibration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The 489 utilizes high-speed dual slopedifferential protection for detecting andclearing of stator phase faults. AdvancedCT saturation detection algorithmsmaintain immunity to saturationconditions that may be caused due toexternal disturbances through the use of adirectional check that provides additionalsupervision and ensures the fault isinternal to the generator before triggeringit to trip.
