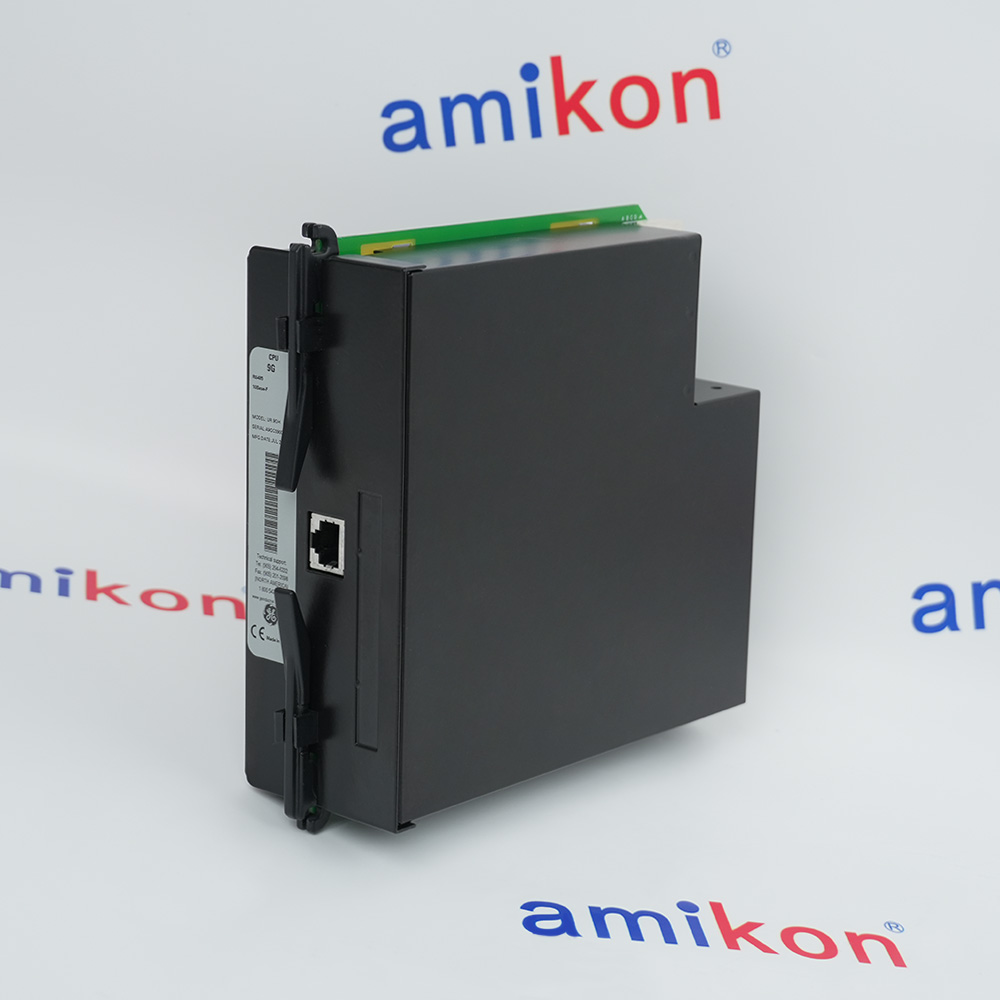

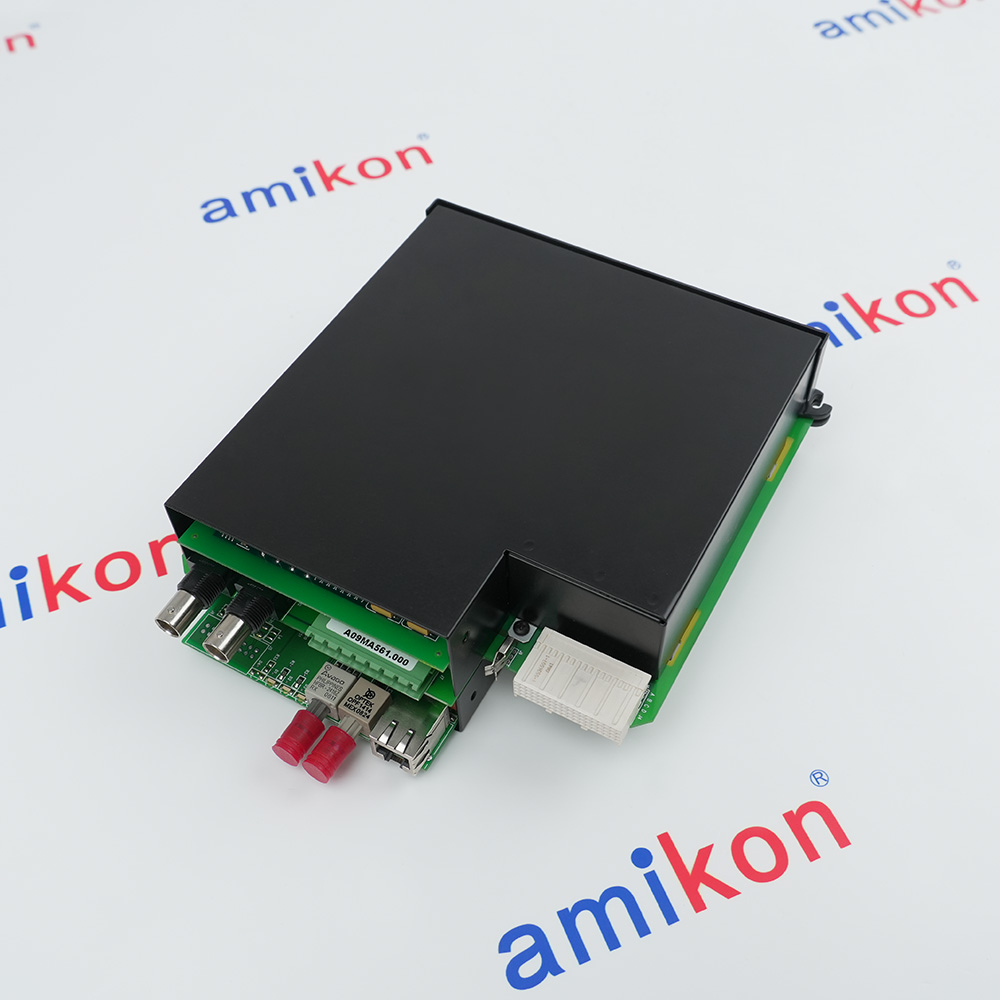

Technical specifications for UR 9GH
-
Product ModelUR 9GH
-
Spare ModelUR9GH
-
Product ParametersMultilin CPU Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x21x17.2cm
-
ManufacturerGeneral Electric
-
Weight0.85 kg
-
Chassis Supply24 V dc
-
Clock Speed400 MHz ARM
-
RAM512 MB DDR3
-
Flash512 MB
-
Operating Temp–20 °C … +70 °C
-
Storage Temp–40 °C … +85 °C
-
Humidity5 – 95 % RH non-condensing
Description
The UR-9GH is a CPU of the 9G model used in many of the universal relays of the Multilin GE UR series. The different CPU parts can be classified in terms of old and new models. In this case, the UR-9GH, is a new model that is described as having a RS485 and a 10Base-F with Ethernet, Modbus TCP/IP, and DNP features.
The older model with these similar features is the 9C model of CPUs. Some new model designations, such as the 9J, 9K, 9L, 9M, 9N, 9P, 9R, and 9S modules, do not have preexisting old CPU options with their similar characteristics. For example, the 9N CPU is the only module CPU that has the RS485 and the 10/100Base-T features.
If a new CPU is paired with an old version of the CT/VT module then the universal relay will display an error code showing that the hardware options do not function together properly. However, all of the other hardware options for other I/O modules can function with the new hardware (for the CPU and for the CT/VT modules). Firmware versions may also designate if the new or the old versions will be compatible in the UR system as a whole.
The older model with these similar features is the 9C model of CPUs. Some new model designations, such as the 9J, 9K, 9L, 9M, 9N, 9P, 9R, and 9S modules, do not have preexisting old CPU options with their similar characteristics. For example, the 9N CPU is the only module CPU that has the RS485 and the 10/100Base-T features.
If a new CPU is paired with an old version of the CT/VT module then the universal relay will display an error code showing that the hardware options do not function together properly. However, all of the other hardware options for other I/O modules can function with the new hardware (for the CPU and for the CT/VT modules). Firmware versions may also designate if the new or the old versions will be compatible in the UR system as a whole.
Information
Overview
Manuals
Application Notes
Product Applications
Physical Mounting
Features:
- Central CPU module for Multilin UR relays
- Executes protection and control algorithms
- Supports event and fault recording
- Stores relay settings in non-volatile memory
The module works with the relay backplane and associated I/O, communication, and protection modules to provide comprehensive monitoring and control of electrical assets. It supports applications including generator protection, transformer protection, feeder management, motor protection, bus protection, and transmission line protection.
The UR9GH GE CPU Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE UR9GH CPU Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The UR9GH continuously monitors internal operating conditions and maintains critical relay settings, event records, oscillography files, and fault data. Its architecture enables integration with SCADA systems, substation automation networks, and advanced grid management applications.
The UR9GH is widely deployed in power generation facilities, electrical substations, transmission networks, distribution systems, petrochemical plants, mining operations, and heavy industrial power systems.
- Substation Automation: Central hub for SCADA/DCS integration enabling remote monitoring and control
- Transformer Protection: Manages CT/VT inputs and executes relay logic for fault detection and isolation
- Generator/Motor Protection: Provides thermal modeling, monitors abnormalities, and executes high-speed tripping
- Transmission/Distribution: Supports differential, distance, and phase comparison protection algorithms
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Chassis & Case: Universal Relays use a drawout case. Install the empty case into the switchgear panel cut-out using the provided mounting hardware. Securely torque all hardware to factory specifications.
Grounding: Connect the main ground terminal on the back of the case to the main grounding system. Keep all ground leads as short as possible to minimize electromagnetic interference.
Module Insertion: Carefully insert the UR 9GH CPU module into the assigned rear slot. Fasten the module's front faceplate screws tightly to ensure proper backplane connection and chassis grounding.
Alternative Names
UR9GH
UR 9GH
UR-9GH
Technical notes
The GE Multilin UR9GH CPU Module is the central processing unit for the Multilin Universal Relay platform, providing protection, control, automation, communications, diagnostics, event recording, and fault analysis functions. It serves as the core processing component in utility and industrial power protection systems, supporting advanced relay applications and substation automation networks.
FAQs
-
What is the UR 9GH?
+The GE Multilin UR 9GH (UR-9GH) CPU module is a high-performance, microprocessor-based component for Universal Relay (UR) systems, supporting advanced protection, monitoring, and communication (Modbus, DNP 3.0, IEC 61850). It features RS485 and 10Base-F fiber Ethernet ports and is designed for critical, redundant power network applications. -
What protocols does the UR-9GH support?
+It supports Modbus, DNP 3.0, Ethernet/IP, and IEC 61850 for seamless automation integration. -
What distinguishes it from older models?
+The UR-9GH is an updated model (replacing older 9C models) featuring enhanced communications, though it may trigger errors if paired with older CT/VT modules.
