Technical specifications for IC695PNS001
-
Product ModelIC695PNS001
-
Product ParametersSCANNER MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x14x14.1cm
-
ManufacturerGeneral Electric
-
Weight0.5 kg
-
SeriesRX3i PacSystem
-
Product TypePROFINET Scanner Module
-
Number of Slots1 (single slot)
-
Operating Temperature0 to 60 degrees Celsius
-
Storage Temperature-40 to 85 degrees Celsius
Description

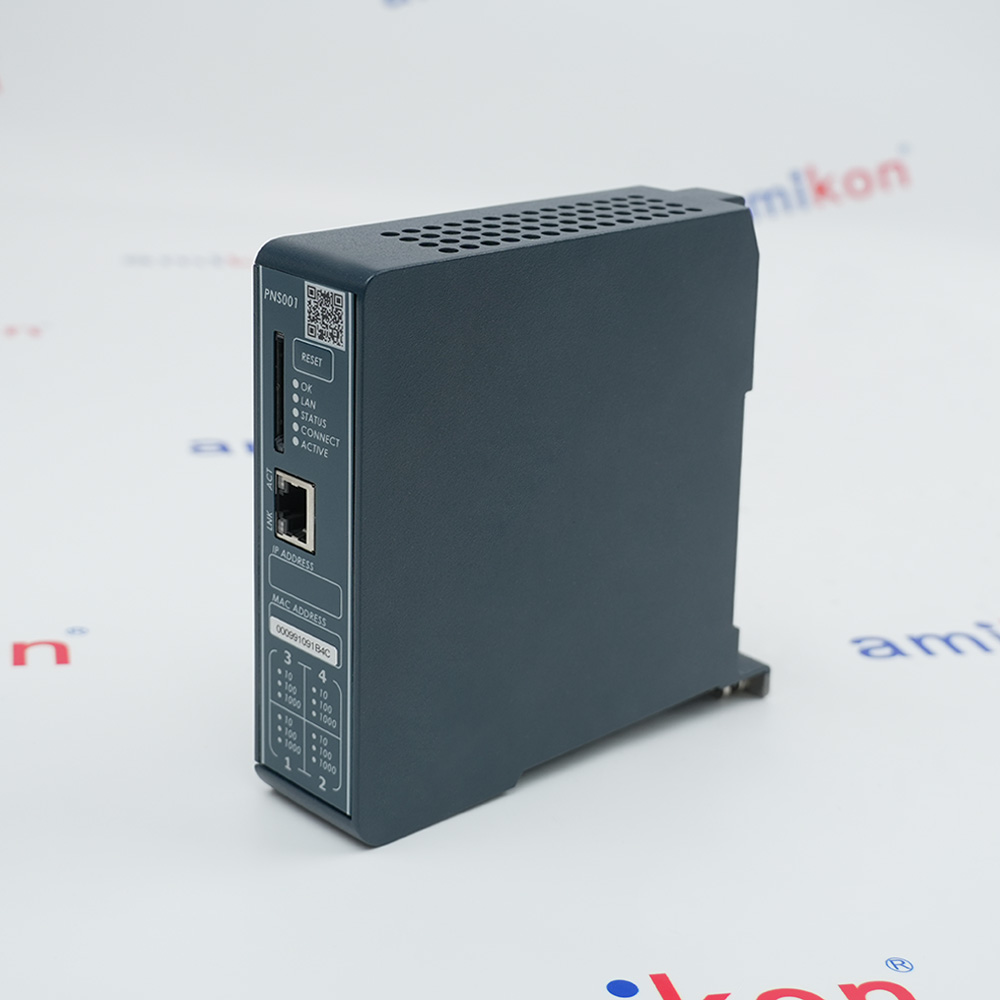

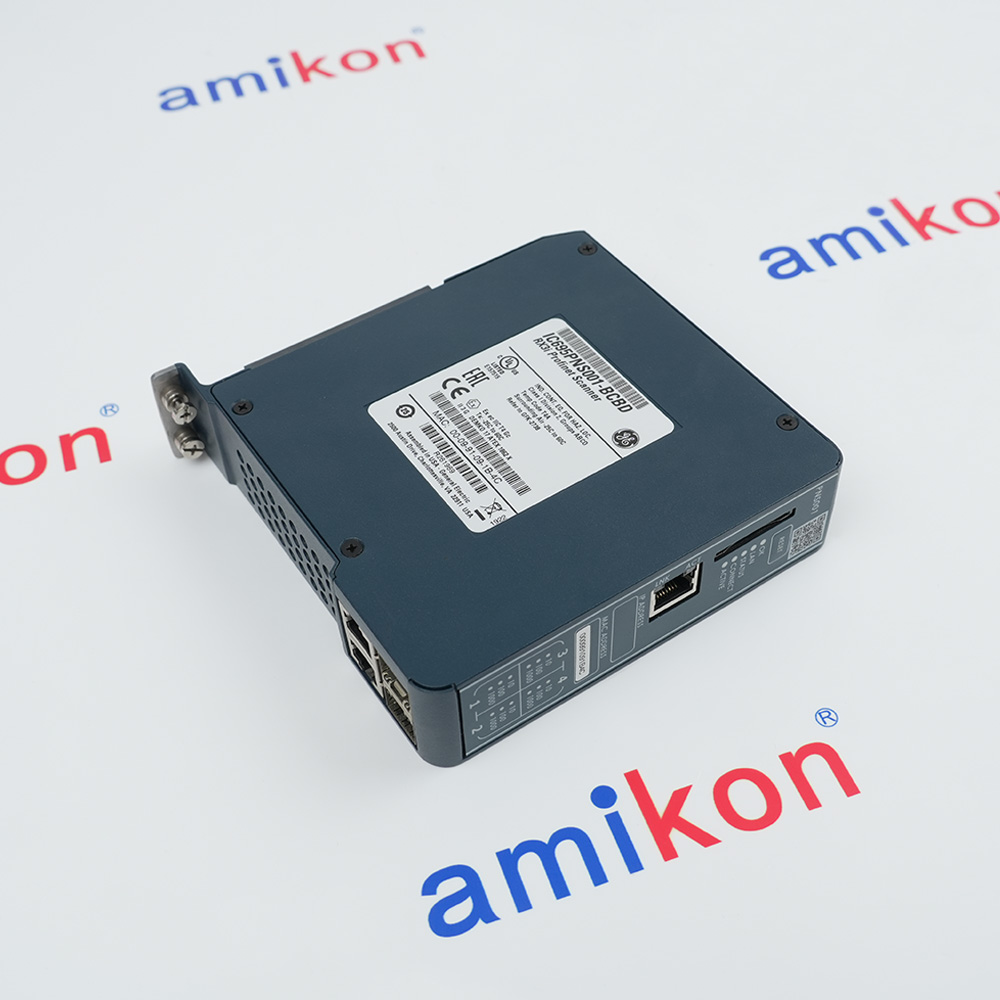

The IC695PNS001 Scanner Module is a PROFINET scanner module designed by GE Fanuc. It is used to connect the PROFINET I/O controller to remote universal I/O racks or RX3i modules. The power requirement of the module is 3.3 Volts DC at 1.2 Amps or 5 Volts DC at 1.1 Amps. It features 4 switched Ethernet ports, 2 RJ-45 connectors, 2 SFP cages, 1 Micro-B USB 2.0 connector, and SD and SDHC cards. The IC695PNS001 Scanner Module also provides 32 input status bits and 32 output control bits as PNS status and control bits. This module comes with 8 indicator LEDs that glow in 22 patterns to provide the users with operating error messages, updates about the status of the module, and module identification.
The IC695PNS001 PROFINET Scanner Module is designed to be used with RX3i PLC CPU versions such as the CPU315, CPU320, CPE305, and CPE310 CPUs. The modules on the rack are scanned by this scanner in order to retrieve and exchange data within the PROFINET I/O LAN. It supports 1 CIDR IP address and 5 MAC addresses. The Proficy Machine Edition software version which is required for use with this IC695PNS001 module is version 8.50 SIM 2 or later. Since this module is open equipment that has user-accessible live electrical parts, it must be installed inside a suitable enclosure for safety.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Network & SFP Configuration
Features:
- Connects Remote RX3I I/O Rack to PROFINET IO-Controller
- Four Switched Ethernet Ports with Multiple Media Support
- Support for Daisy-Chain, Star, and Ring Topologies
- SD Card for IO-Device Name Transfer
- USB Port for Firmware Updates
The IC695PNS001 supports 10/100/1000 Mbps copper, 100/1000 Mbps multi-mode fiber, and 100/1000 Mbps single-mode fiber interfaces; PROFINET communications on the network require 100 or 1000 Mbps link speed, while 10 Mbps can be used for other types of Ethernet traffic such as programming and configuration. The IC695PNS001 features four switched Ethernet ports: two 8-conductor RJ-45 shielded twisted pair 10/100/1000 Mbps copper interfaces and two Small Form-factor Pluggable (SFP) cages for user-supplied SFP devices, allowing the network to include media interfaces of more than one type.
The IC695PNS001 GE PACSystems RX3i PROFINET Scanner (PNS) module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC695PNS001 PACSystems RX3i PROFINET Scanner (PNS) module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC695PNS001 supports daisy-chain/line, star, or ring (redundant media) topologies, providing flexibility for different industrial network architectures. The IC695PNS001 supports transfer of the IO-Device Name to another PNS module using an SD card, eliminating the need to connect a configuration tool such as Proficy Machine Edition when replacing a module. The IC695PNS001 includes a USB port for field updates of firmware using WinLoader; the USB port is for firmware upgrades only and is not intended for permanent connection. The IC695PNS001 provides 32 bits of input status data and receives 32 bits of output control data, with the application program in the IO-Controller system able to monitor the input status bits for the PNS module.
- Distributed I/O: Connects remote RX3i backplanes and legacy Series 90-30 I/O to primary RX3i PLC
- Plant Control: Integrates remote field devices with PACs like CPU315, CPU320, CPE305, and CPE310
- HMI/SCADA: Enables data pathways between sensors, operator interfaces, and supervisory control systems
- High-Availability: Uses MRP for ring/redundant topologies in critical manufacturing environments
- Long-Distance: Incorporates SFP cages for fiber optic conversion across geographically spread facilities
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Ports: The scanner features two RJ-45 ports and two Small Form-factor Pluggable (SFP) cages.
SFP Handling: If the surrounding air temperature exceeds 40°C, SFP devices can surpass 70°C. Use protective gloves or needle-nose pliers when handling installed SFP modules. Keep protective covers on empty SFP ports.
Device Naming: Before operating, you must assign an I/O Device Name to the scanner using a Discovery and Configuration Protocol (DCP) tool, such as the Proficy Machine Edition Discovery Tool.
Software Requirement: Proficy Machine Edition version 8.0 or later is required for configuration.
Alternative Names
1C695PNS001
IC695PNSO01
1C695PNSOOI
IC695PNSOO1
IC695PNS00I
IC695PNS0O1
Technical notes
It must be installed in Slot 1 or Slot 2 of an RX3i universal backplane or Slot 6 of an RX3i 7-slot backplane. This module has independently operating ports that are used to attach different types of modules. It can be used to manage module configuration and PROFINET communication among the modules and I/O controllers within a remote rack.
FAQs
-
How many Ethernet ports does the IC695PNS001 have?
+The IC695PNS001 has Four (4) Ethernet ports with Two (2) of the ports in the form of SFP port for insertion of user supplied SFP device. -
What are the topologies supported by the embedded Ethernet ports?
+The IC695PNS001’s Ethernet ports support Linear, Star, Daisy-chain and Ring or redundant media topology. -
What is the operating temperature range?
+The module can operate reliably in temperatures ranging from -25°C to 60°C. -
What is the IC695PNS001 ？
+The GE IC695PNS001 is a PACSystems RX3i PROFINET Scanner module that connects remote RX3i I/O racks to a central PROFINET controller, enabling high-speed real-time data exchange and diagnostics.
