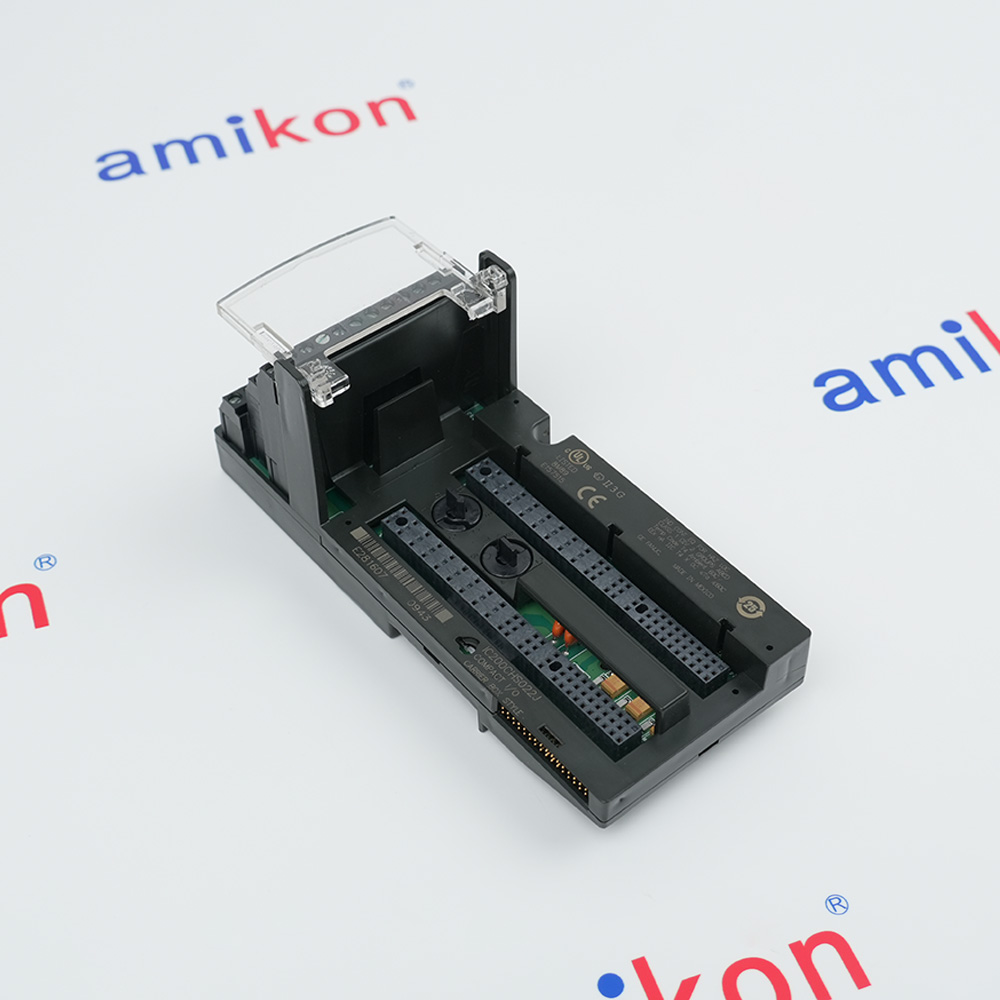

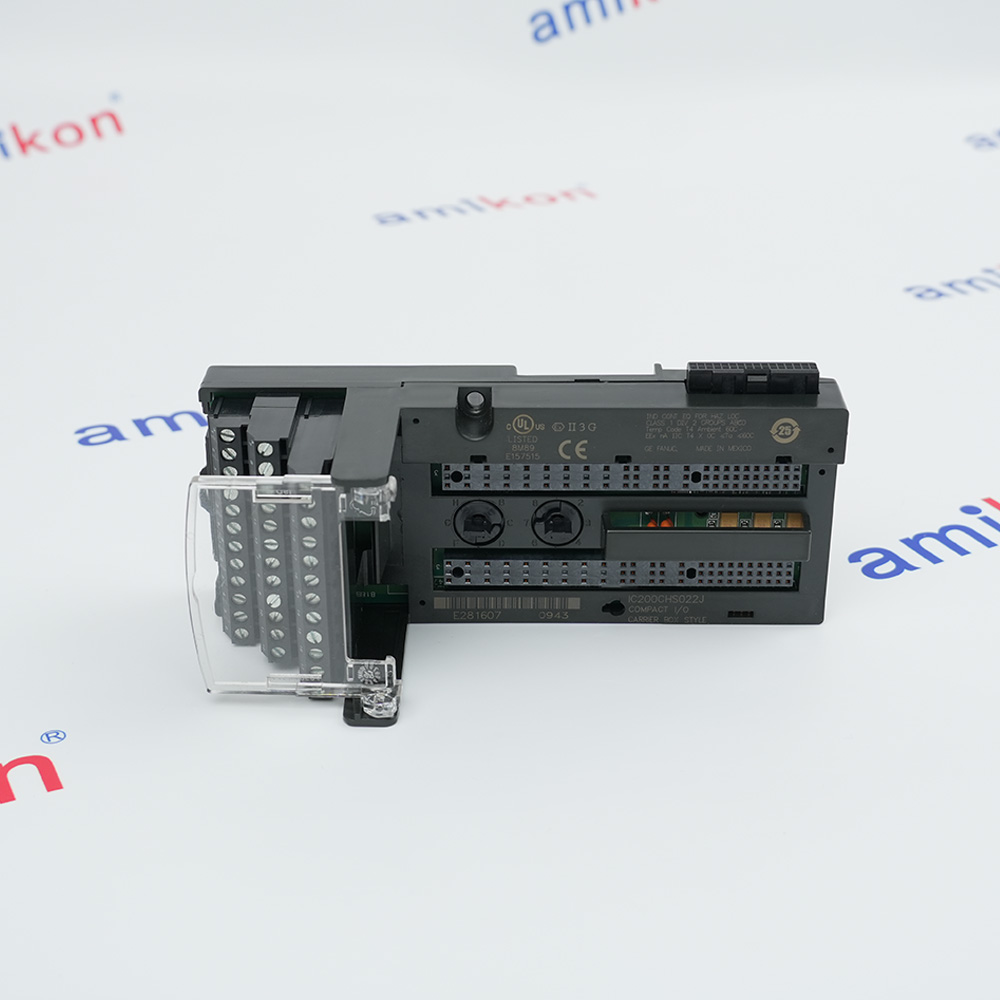

- IC200CHS022J
· Product image is representative; revision or series may vary. Contact us to request a specific version.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
IC200CHS022
I/O CARRIER
VERSAMAX
COMPACT
LOCAL BOX STYLE
INTEGRATED TYPE
DIN RAIL
VERTICAL ORIENTATION
I/O CARRIER
VERSAMAX
COMPACT
LOCAL BOX STYLE
INTEGRATED TYPE
DIN RAIL
VERTICAL ORIENTATION
Technical specifications for IC200CHS022J
-
Product ModelIC200CHS022J
-
Spare ModelIC200CHS022
-
Product ParametersCompact I/O Carrier
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen,China
-
Estimated Shipping Size16.5x6.6x7cm
-
ManufacturerGeneral Electric
-
Weight0.2 kg
-
Product TypeCompact box-style I/O carrier
-
No. of Terminals36 terminal
-
Single-Wire Cross Section0.36 mm2 to 2.1 mm2
-
Two-Wire Cross SectionUp to 0.86 mm2
-
Voltage rating0-264 VAC
-
Current per Point2 Amps
View all additional
Revisions
Revision Part #
Also known as
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Technical notes
Product Applications
Module Configuration and Latching
Features:
- Supports 32 I/O points & 4 commons
- Keying dials for correct module install
- Carrier-to-carrier connectors, no extra cables
- Module latch hole for secure fastening
- Printed wiring card folds into card holder
The IC200CHS022 GE I/O CARRIER may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200CHS022 I/O CARRIER Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Compact Box-Style I/O Carrier (IC200CHS022) has 36 IEC box-style terminals. Itprovides mounting, backplane communications, and field wiring for one I/O module.The I/O carrier snaps easily onto a 7.5mm X 35mm DIN rail. The DIN rail must beelectrically grounded to provide EMC protection. The rail must have a conductive(unpainted) corrosion-resistant finish.For applications requiring maximum resistance to mechanical vibration and shock, thecarrier must also be panel-mounted.
- Factory Automation:Modular PLCs for high-speed manufacturing lines
- Power Generation:Monitors & manages power plant control systems
- Heavy Manufacturing:Rugged design for steel, auto & food processing
- Food Processing:Regulates temp, flow & pressure for quality/safety
- Distributed Control Systems (DCS):Remote I/O node for field devices to central controller
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Keying Dials: Before inserting an I/O module, set the two keying dials on the carrier to match the keying on the bottom of the module. This prevents the installation of incorrect module types.
Securing: Align the module with the carrier and press firmly until it is fully seated. A latch hole on the carrier secures the module in place.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about IC200CHS022J
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is IC200CHS022?
The GE Fanuc IC200CHS022 is a 36-terminal, compact box-style I/O carrier for the VersaMax series, used to support the mounting, backplane communications, and field wiring for a single Input/Output (I/O) module. -
Which IC200CHS022 modules are compatible with this carrier board?
The IC200CHS022 is compatible with most VersaMax I/O modules and can serve as a common base for various input/output configurations. -
What is the capacity of IC200CHS022?
It supports a maximum of 32 I/O points and 4 common power connections. -
Is it compatible with all VersaMax modules?
Yes, it is designed to be compatible with any VersaMax I/O module.
