IC200GBI001
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

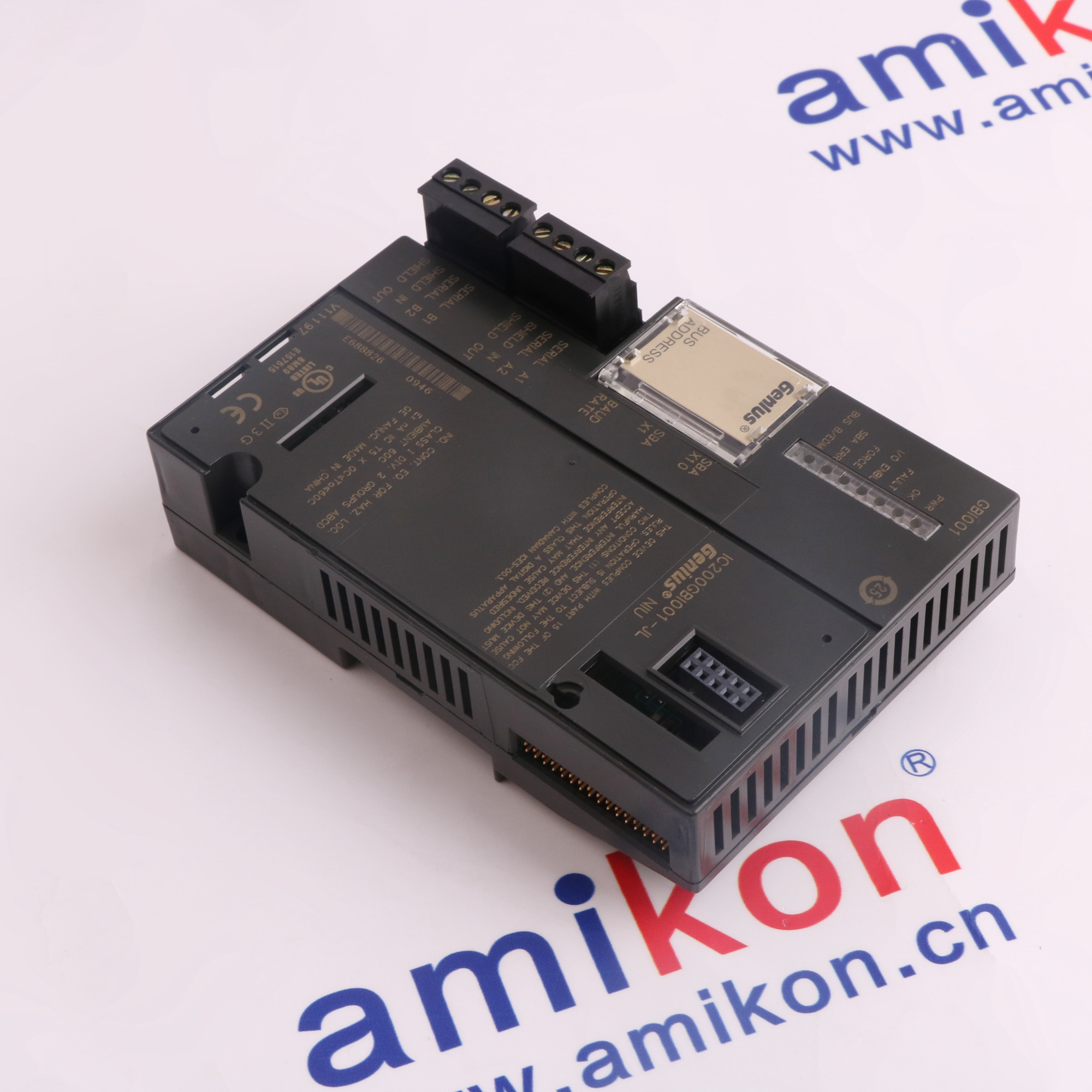

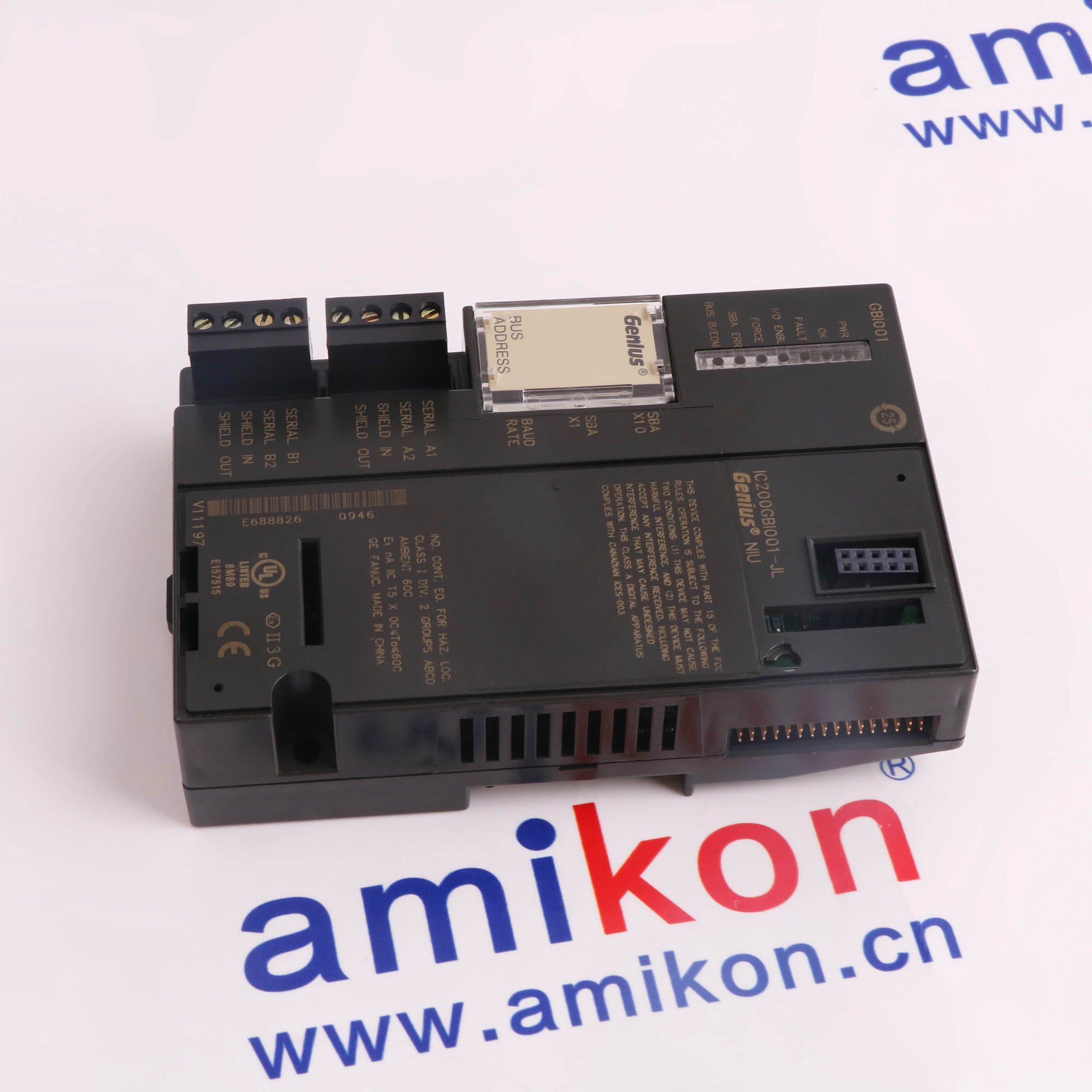

This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe
INTERFACE MODULE
REMOTE I/O
GENIUS NETWORK
153.6 KBAUD EXTENDED
38.4/76.8/153.6 KBAUD STANDARD
REMOTE I/O
GENIUS NETWORK
153.6 KBAUD EXTENDED
38.4/76.8/153.6 KBAUD STANDARD
Specifications
-
Product ModelIC200GBI001
-
Product ParametersGenius Network Interface Unit
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.8x8.5x4.3cm
-
ManufacturerGeneral Electric
-
Weight0.16 kg
-
Network Inputs/Bus Scan128 bytes
-
I/O Memory1024 points
-
No. of modulesEight (8) modules
-
Compatible controllersSeries 90-70; PACSystem RX7i; PACSystem RX3i
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the IC200GBI001 ？+The GE IC200GBI001 is a Genius Network Interface Unit (NIU) for the VersaMax PLC system.
-
What are the IC200GBI001 power requirements?+The unit requires +5V@250mA and +3.3V@10mA.
-
How is the IC200GBI001 module addressed?+It uses two rotary switches to set the serial bus address (SBA) from 0 to 31..
-
How many modules and racks does IC200GBI001 support?+It can support up to 8 modules per rack and up to 8 expansion racks, for a total of 64 I/O modules.
-
What is the IC200GBI001 I/O memory capacity?+The unit supports 1,024 points of discrete input and output memory and 128 bytes of analog input and output memory.
Get a quick price fo IC200GBI001
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
- Product Applications
- Used in the automated control systems of large steel mills and oil and gas extraction, refining and processing processes
- Collect the signals from long-distance distributed water level, flow rate and pressure sensors of water treatment facilities
- Deterministic data exchange for automotive production lines and packaging machinery
- Distributed monitoring of oil refineries and long-distance transportation pipelines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Physical and Electrical Protection
Features:
- Genius Network Interface Unit
- VersaMax I/O module
- 1024 Inputs and 1024 Outputs
- 64 Analog In and 64 Analog Out
The IC200EBI001 GE Genius Network Interface Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200EBI001 Genius Network Interface Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC200GBI001 is a VersaMax communication module. This module is a Genius Network Interface Unit, allowing VersaMax I/O modules to be installed in distributed I/O architecture. This module is designed to host up to Eight (8) I/O module per rack and supports installation of up to Eight (8) racks, for a maximum number of 64 I/O module support. It supports transmission speed of 153.6 kbaud for extended network configuration; 153.6 kbaud, 76.8 Kbaud and 38.4 Kbaud for standard configuration, The IC200GBI001 can accommodate a high number of I/O points, specifically, up to 1024 points for Discrete Inputs; 1024 Discrete outputs; 128 bytes of analog analog input memory and 128 bytes of analog output memory.
This module can manage scanning of 128 bytes of network input per scan and 128 bites of output per scan. It has power consumption of 250 mA @ 4VDC and 10 mA @ 3.3 mA. The IC200GBI001 is compatible for use with a variety of controller systems as Genius protocol is supported by previous and modern controller platforms. Compatible control systems include Series 90-70 and PACSystem RX7i and PACSystem RX3i. Appropriate firmware revisions must be loaded to both the controller and the IC200GBI001 Genius Network Interface Module.
The IC200GBI001 is provided with dual Genius connection terminals. The upper terminal serves as the primary Genius connection point while the lower terminal serves as the redundant port. These ports are designed for connecting in Daisy chain topology, installed with a terminating resistor at both ends of the communication cable. Appropriate resistor values are 75, 100, 120, or 150-ohm across terminals Serial 1 and 2.
ESD and Pin Protection: The unit includes a connector cover for the last carrier in a rack to protect internal pins from damage and electrostatic discharge (ESD) during handling.
Isolation and Shielding: For added protection against electrical noise, each shield drain wire can be insulated with tubing to prevent shorting between Shield In, Shield Out, or signal wires.
Safe Handling Requirements: The manufacturer specifies that the power supply must be removed before removing the module to prevent electrical damage.
Module Enclosure: Later revisions (such as -EF) utilize V0-rated plastic for the module housing to improve fire resistance.
