PRODUCT DESCRIPTION

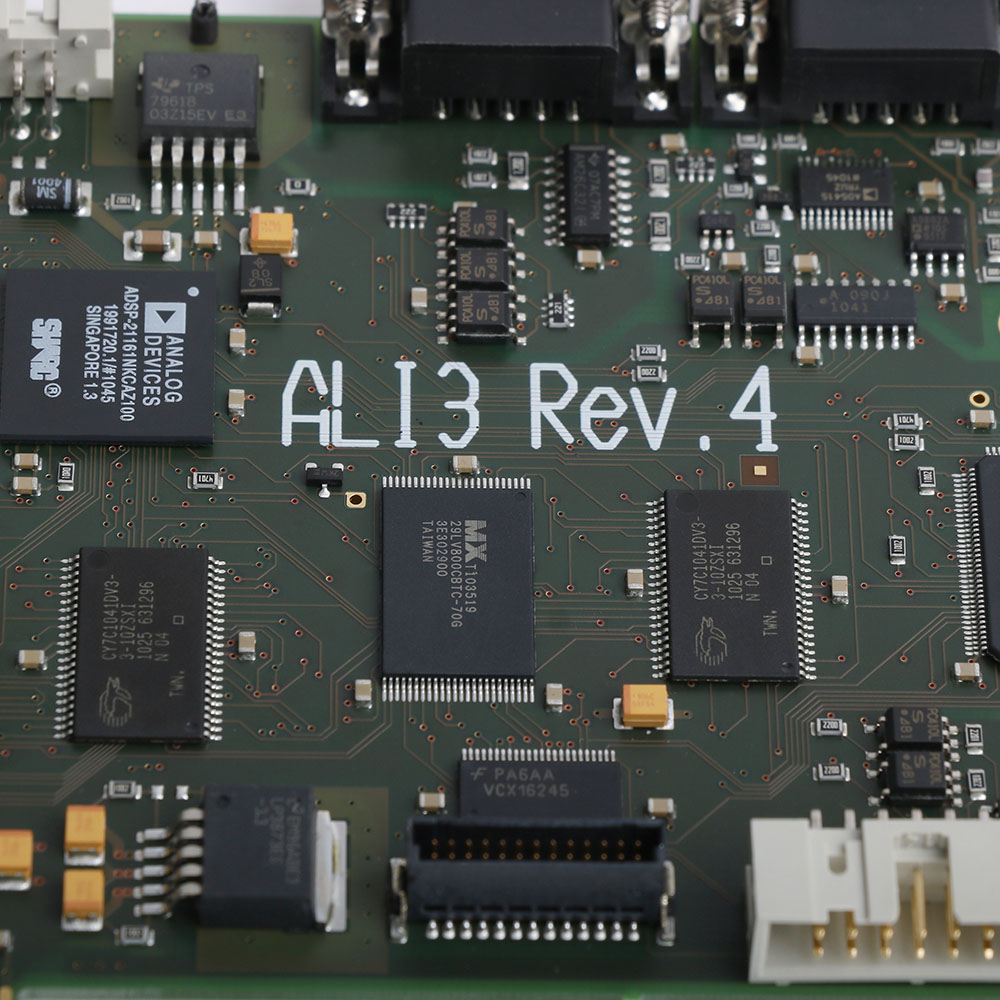

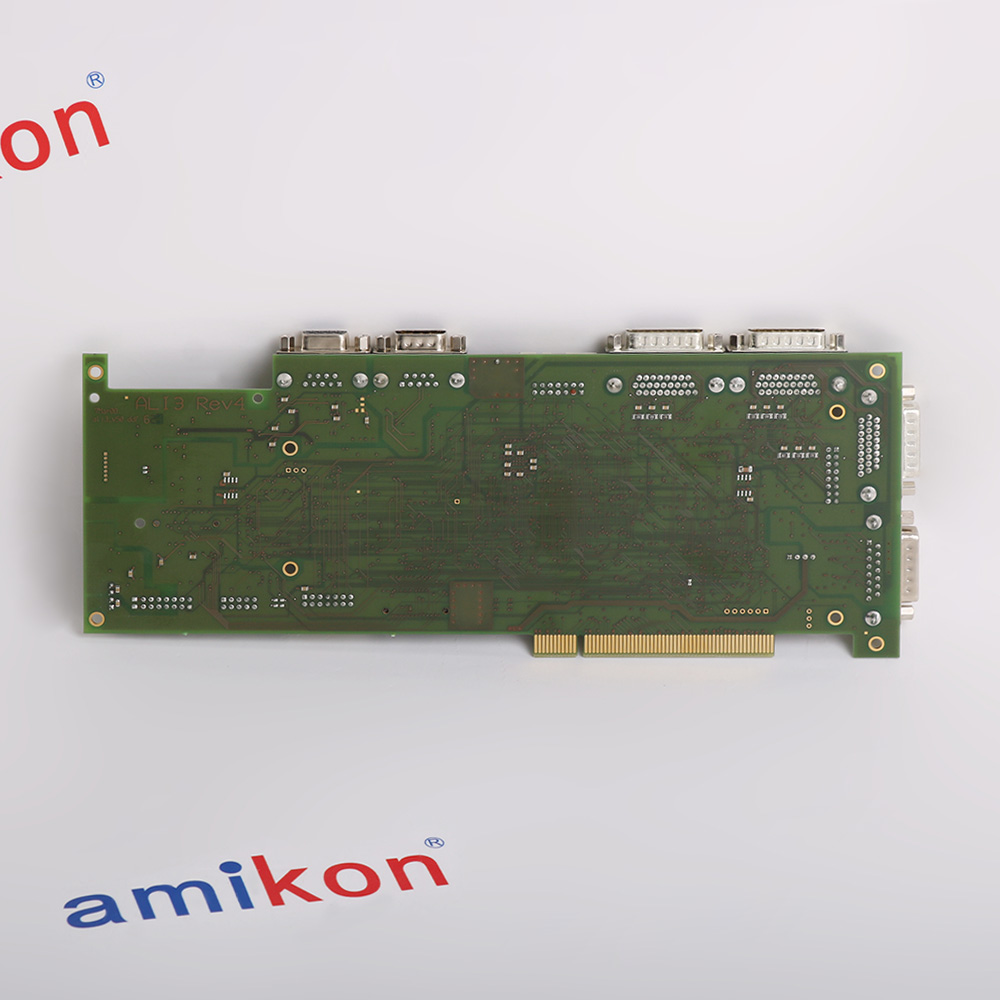

ALI3 V4 120301182 PCI laser controller board
General Electric ALI3 V4 120301182 is a full-height Rev.4 PCI laser controller board identified by its exact board markings. Its visible construction includes a universal keyed PCI edge, multiple D-sub interfaces, service headers, Xilinx logic and onboard memory devices.
BEFORE YOU BUY
Confirm the complete PCI laser controller board
ACTUAL APPLICATIONS
Application context for ALI3 V4 120301182
The applications below show typical industry settings, application scenarios, application areas and equipment for ALI3 V4 120301182. Confirm the exact product configuration before use.
-
01 · LASER MATERIAL PROCESSING
PowerLine laser equipment control
Application areasLaser source coordinationProcess-head interface control -
02 · INDUSTRIAL MANUFACTURING
Marking and cutting machine integration
Application areasMotion and trigger coordinationPeripheral status interfacing -
03 · MAINTENANCE & RETROFIT
Legacy PCI controller replacement
Application areasConnector and firmware matchingControlled functional testing
Technical specifications for ALI3 V4 120301182
-
Product ModelALI3 V4 120301182
-
Product ParametersPCI laser controller board
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Hardware RevisionRev.4
-
Host Bus32-bit PCI edge connector
-
PCI SignallingUniversal 3.3 V / 5 V keyed edge
-
Board FormatFull-height PCI controller board
-
Front InterfacesMultiple D-sub connectors
-
Internal InterfacesKeyed headers and service connectors
-
Programmable LogicXilinx logic devices fitted
-
Local MemoryMultiple onboard memory devices
-
Firmware Label1.8
-
Compliance MarkingRoHS label present
View all additional
Alternative Names
ALI3 V4 120301182
ALI3 Rev.4
120301182 PCI laser controller
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match ALI3 V4 120301182 to the installed ALI3 Rev.4 PCI controller boards
GE ALI3 V4 120301182 is a PCI laser controller board for the ALI3 Rev.4 PCI controller boards. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare board format (Full-height PCI controller board), front interfaces (Multiple D-sub connectors) and internal interfaces (Keyed headers and service connectors) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: ALI3 V4 120301182
- Product class: PCI laser controller board
- Family: ALI3 Rev.4 PCI controller boards
The GE ALI3 V4 120301182 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete ALI3 V4 120301182 identity before exchange
Replace ALI3 V4 120301182 only after matching the complete article code, PCI laser controller board, installed ALI3 Rev.4 PCI controller boards role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: ALI3 V4 120301182
- Product class: PCI laser controller board
- Family check: ALI3 Rev.4 PCI controller boards
The GE ALI3 V4 120301182 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for ALI3 V4 120301182
- Product family: ALI3 Rev.4 PCI controller boards
- Exact GE identity required before service
Documentation for GE ALI3 V4 120301182 must match the installed equipment; confirm document applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size27.5 x 11.1 x 1.5 cm
-
Shipping weight0.20 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537109090
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about ALI3 V4 120301182
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which markings identify the required ALI3 board?
Match ALI3, hardware revision Rev.4, article 120301182 and the visible firmware label 1.8. Connector layout photographs should also agree with the installed board. -
Will this board fit every industrial PCI computer?
The board has a universal 3.3 V and 5 V keyed 32-bit PCI edge, but chassis clearance, slot signalling, host software and connected laser equipment must still be verified. -
What connector evidence should engineers capture first?
Photograph every front D-sub connector, internal keyed header and cable position on ALI3 V4 120301182 before disconnection so the service team can restore the same interface arrangement. -
How should the Rev.4 hardware be inspected on arrival?
Check the full-height PCI board for bent brackets, damaged edge contacts, loose memory or Xilinx devices, altered labels and damaged D-sub or header connectors. -
What should be tested after installing the ALI3 card?
Confirm host detection, firmware identification, laser-control communication, interlock response, trigger timing and all connected peripheral status signals under the approved machine procedure. -
Can another ALI3 revision be used as a substitute?
No direct interchangeability is established. Compare revision, firmware, PCI keying, connector population, cable pinout and machine software before considering another ALI3 board. -
What information is needed for an ALI3 quotation?
Send the complete ALI3 V4 120301182 label, firmware sticker, front and rear board photographs, machine type, required quantity and delivery destination. -
Why is no manufacturer manual listed for this board?
No manufacturer-owned exact-model PDF was located for ALI3 V4 120301182, so the page supplies only an Amikon data sheet based on verified board markings and visible interfaces.
