PRODUCT DESCRIPTION

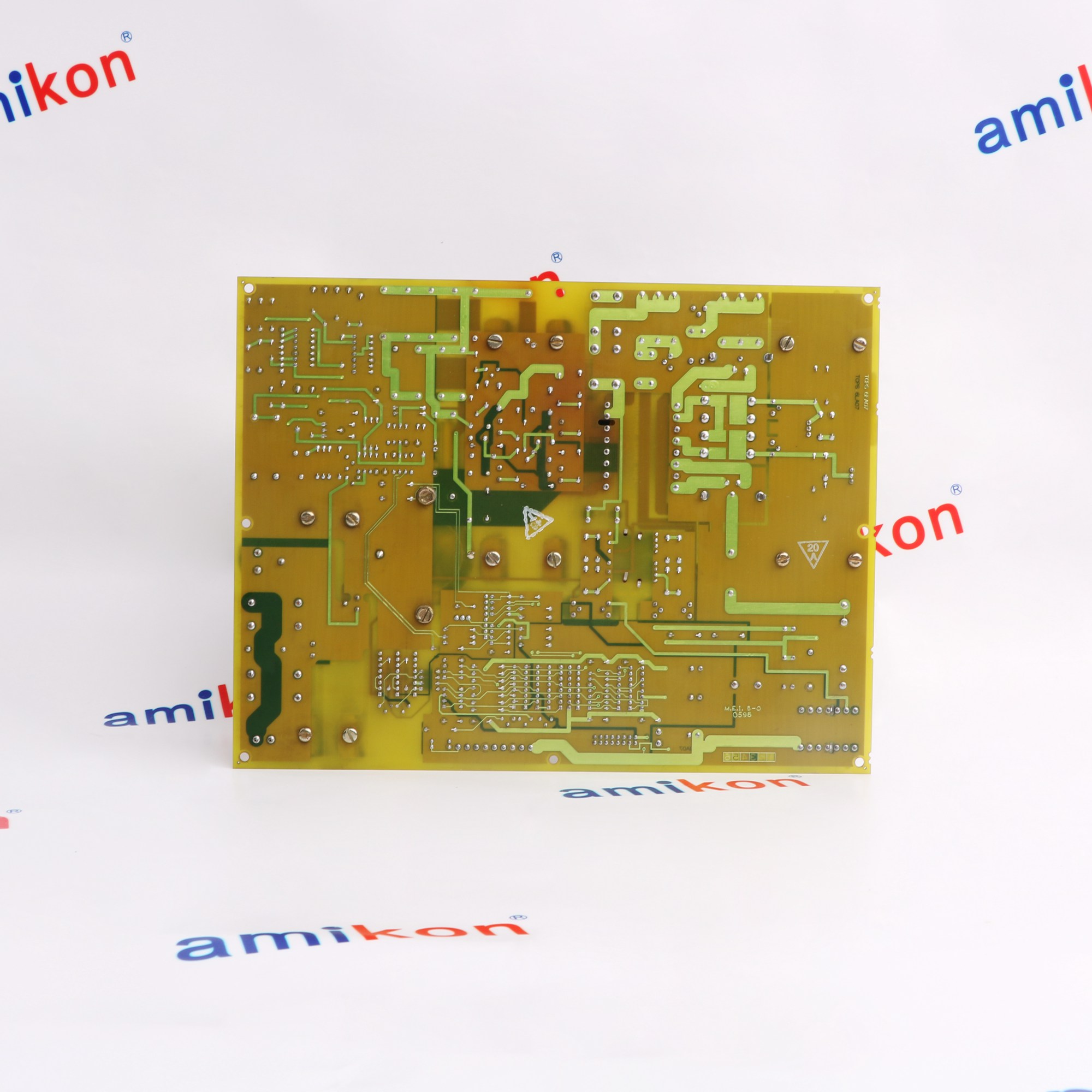

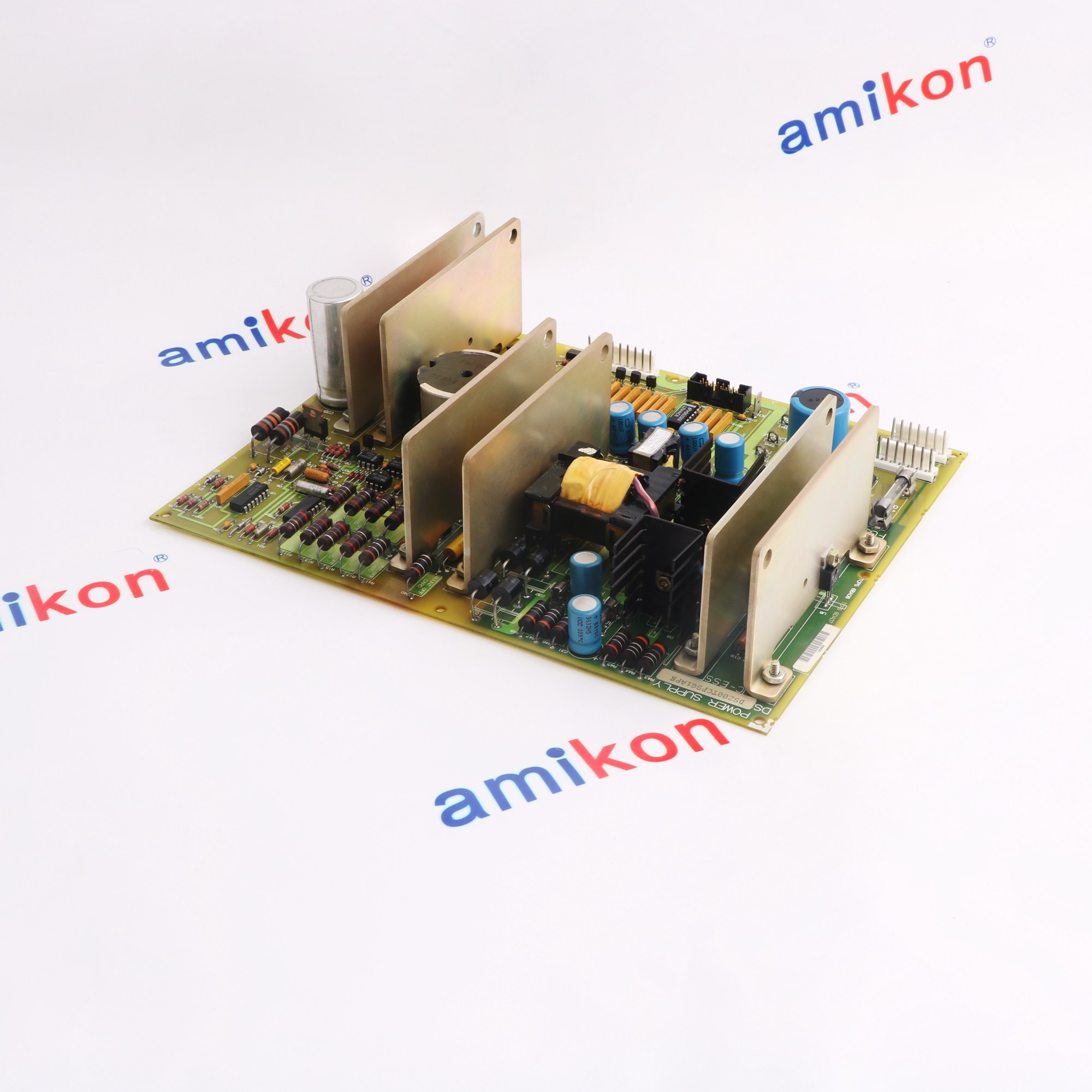

DS200TCPSG1APE DC input power supply board
GE DS200TCPSG1APE is a DC input power supply board in the Speedtronic Mark V TCPS family. The TCPS converts the 125 V DC feed from the TCPD board into supply voltages used within the I/O core.
The J1 connector accepts the incoming feed. The 2PL connector carries supply voltages to the core boards, and separate connections support diagnostics and digital-core feeds. GE documents no hardware jumper or software configuration for the TCPS.
The J1 connector accepts the incoming feed. The 2PL connector carries supply voltages to the core boards, and separate connections support diagnostics and digital-core feeds. GE documents no hardware jumper or software configuration for the TCPS.
BEFORE YOU BUY
Confirm the complete DS200TCPSG1APE identity
ACTUAL APPLICATIONS
Application fields for DS200TCPSG1APE
These broad application fields reflect the documented function and technical characteristics of DS200TCPSG1APE.
-
01 · POWER GENERATION
Gas Turbine and Combined Cycle Generation
Gas turbine and combined cycle generationIndustrial cogeneration and electric power generation -
02 · INDUSTRIAL UTILITIES
Industrial Power and Plant Utilities
Industrial electric power and plant utilitiesOnsite generation and industrial utility operations -
03 · ENERGY INFRASTRUCTURE
Power Utilities and Regional Generation
Regional electricity generation and power utilitiesIndustrial energy infrastructure and utility generation
Technical specifications for DS200TCPSG1APE
-
Product ModelDS200TCPSG1APE
-
Spare ModelDS200TCPSG1A
-
Product ParametersDC input power supply board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
ManufacturerGeneral Electric
-
Nominal input125 V DC
-
Power input connectorJ1
-
Power distribution connector2PL
-
Diagnostic feed connectorJC
-
Digital-core feed connectorsJP1 or JP2
-
Bus connectionCCOM via X1
-
Hardware jumpersNone
-
Software configurationNone
View all additional
Alternative Names
DS200TCPSG1APE
TCPS DC power supply board
Mark V TCPS board
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Technical notes
System integration
Product Applications
Replacement check
Monitoring and Diagnostics
Manuals & support
Features:
- Mark VIe Turbine Control System Series
- DC Input Power Supply Board
- one 16-pin connector
The DS200TCPSG1APE GE Printed circuit board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE DS200TCPSG1APE Printed circuit board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The DS200TCPSG1APE is a DC Input Power Supply Board (TCPS) developed by General Electric (GE) for the Mark V Speedtronic series, commonly used in turbine control systems. It is a modified version of the original board with an A-rated functional revision, designed for the R and four IO cores to transform 125 VDC power into lower voltage levels for various components.
SYSTEM INTEGRATION
Integrate DS200TCPSG1APE within Speedtronic Mark V
Identify the Mark V core and confirm that J1 receives the documented 125 V DC feed from TCPD. Use the cabinet drawings to locate the corresponding upstream power connection.
Match the 2PL distribution connection and the JC diagnostic feed to the installed core. Confirm whether JP1 or JP2 is used before transferring the harness.
Consult the site commissioning procedure before restoring power. Check supply diagnostics at the receiving boards and investigate any fault with the approved test points.
Features:
- Nominal input: 125 V DC
- Power input connector: J1
- Speedtronic Mark V
Use DS200TCPSG1APE only within the documented Speedtronic Mark V arrangement and applicable installation instructions.
- Steam turbine control: The automated drive program for the steam turbines in thermal power plants
- Wind power generation control: In the automatic control cabinets of large wind turbine generators
- Compressor station control: The control systems for large centrifugal compressors in oil and gas pipelines
- Pulp and paper production: The precise unit control of the paper production line
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
INTERCHANGEABILITY
Replace DS200TCPSG1APE within Speedtronic Mark V
Record the full DS200TCPSG1APE marking and identify the receiving core. Confirm that the offered revision matches the approved configuration.
Document the J1, 2PL, JC and digital-core connections before removing the original board. Compare connector orientation and harness positions with the cabinet drawings.
After replacement, confirm the core supply and diagnostic indications under the site procedure. If a fault persists, check the upstream TCPD feed and the affected distribution connection.
Features:
- Nominal input: 125 V DC
- Power input connector: J1
- Speedtronic Mark V
Use DS200TCPSG1APE only within the documented Speedtronic Mark V arrangement and applicable installation instructions.
Integrated Test Points (TP): Multiple physical test points are used to measure and verify power supply performance and diagnostic voltages.
System Integration: When installed in a Mark V drive, it interacts with built-in diagnostic tools that can generate reports on component health, viewable on a 2-line display or via serial connection.
Power Distribution Monitoring: The JC connector distributes voltages specifically for power supply diagnostics to other boards like the TCQC and TCCA.
