- HC202500/0XX0AJ2

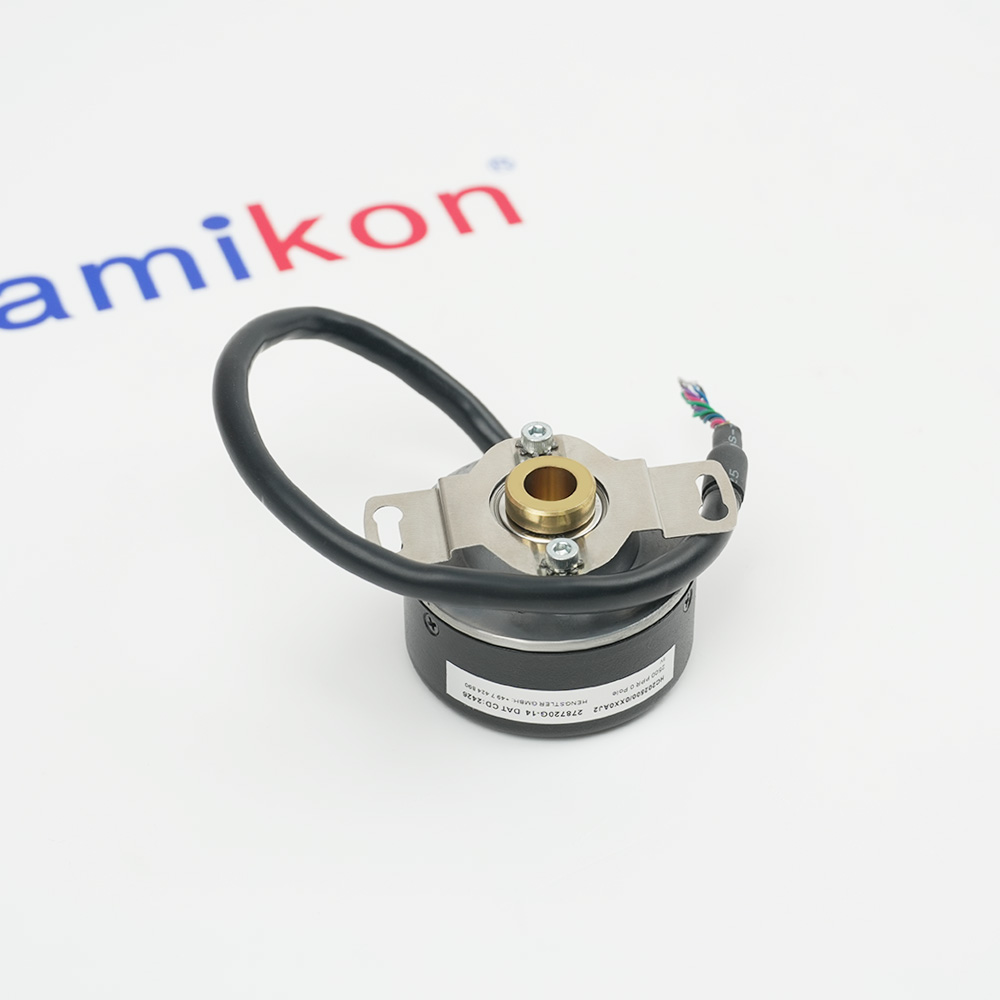

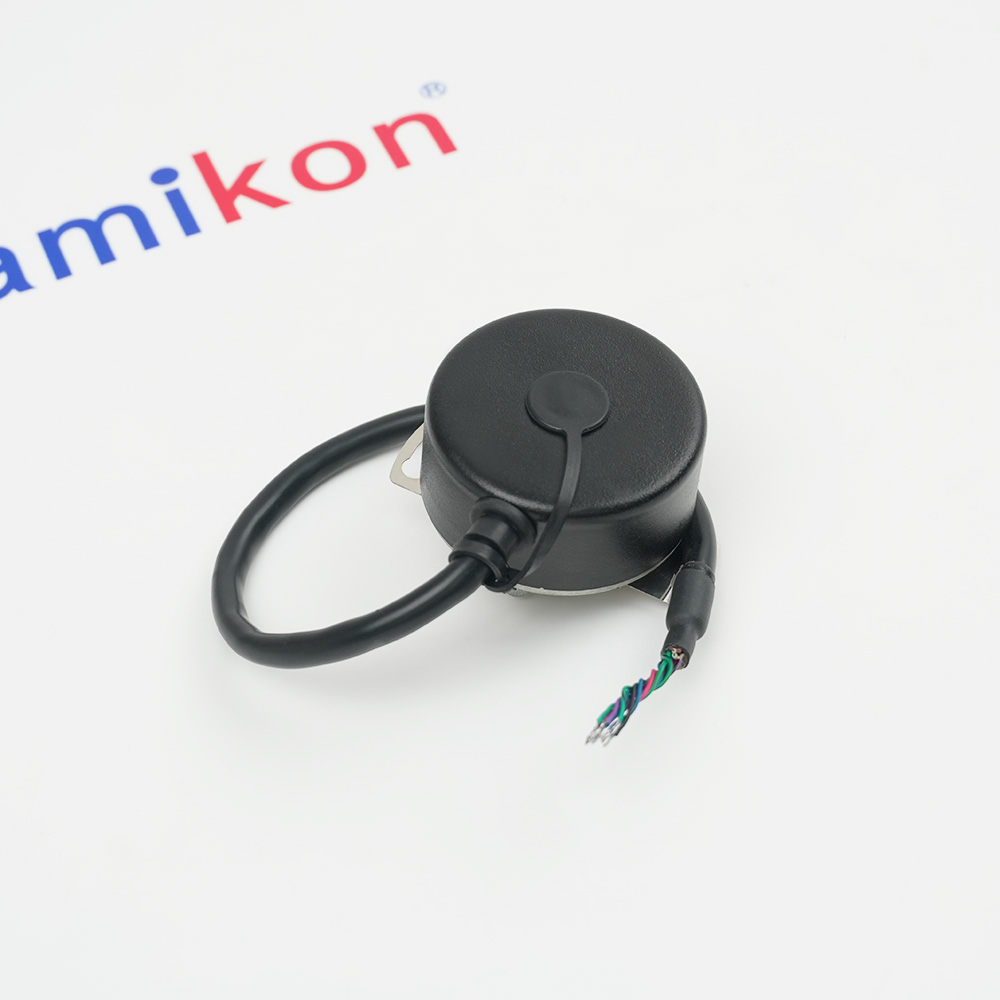

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for HC202500/0XX0AJ2
-
Product ModelHC202500/0XX0AJ2
-
Product ParametersENCODER
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7x7x3.8cm
-
ManufacturerHENGSTLER
-
Weight0.1 kg
-
Voltage Rating5V dc
-
Current Rating150mA
-
FrequencyOptical
-
Number of Pulses2500
-
Shaft TypeHollow
-
Shaft Size9mm
-
Speed Rating12000rpm
-
Frequency Rating500 kHz (Pulse)
-
Connection TypeRadial Cable
-
Mounting TypeFlange Mount
-
Cable Length25mm
-
MaterialAluminium;Aluminium (Flange)
Description
HC2025000XX0AJ2
ENCODER
2500 PPR
O POLE
PIGTAIL LEAD
HOLLOW SHAFT
ENCODER
2500 PPR
O POLE
PIGTAIL LEAD
HOLLOW SHAFT
Information
Overview
Manuals
Technical notes
Product Applications
Key Cross-Reference Criteria
Features:
- HC20 Series
- Hollowshaft Motor Encoder
- Compact hollowshaft motorencoder, ideal for BLDC, DCservo and Stepper feedback
- Incremental + commutation
- Frequency response to 500kHz
The HC202500/0XX0AJ2 Hengstler Hollowshaft Motor Encoder may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Hengstler HC202500/0XX0AJ2 Hollowshaft Motor Encoder Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Hengstler HC202500/0XX0AJ2 is a high-precision, 2500 PPR incremental hollow-shaft encoder designed for industrial motor feedback, robotics, and automation. It features a 9-10mm hollow shaft, optical technology, IP64/IP65 protection, and operates at 5–30V DC with Push-Pull or Open Collector outputs.
- Motor Feedback & Drives:Speed & position control for servo and stepper motors.
- Industrial Automation:Packaging, assembly lines, and factory automation systems.
- Robotics:Provides motion feedback in robotic arms and automated systems
- Conveyors & Handling:Accurate positional monitoring for conveyor systems.
- Process Control Systems:Reliable signal transmission in harsh industrial environments.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The resolution (PPR) must be exactly 2500 pulses per revolution. For shaft size, this model typically features a 9 mm hollow shaft—ensure the replacement has a matching diameter and mounting tether. Regarding output signal, verify whether your system requires TTL (5V) or HTL (10–30V) output, as most HC20 units use a 5V DC supply. For mounting, the HC20 uses a 2-inch compact package with a specific flange or tether mounting.
FAQs
-
What is HC202500/0XX0AJ2?
+The Hengstler HC202500/0XX0AJ2 is a 2500 PPR, 5V-30V DC incremental hollow-shaft optical encoder used for precise position/speed feedback, commonly in industrial automation, robotics, and motor drives. -
What are the main technical specifications of HC202500/0XX0AJ2?
+It features 2500 pulses. This motor features pulses per revolution (PPR) resolution, a blind hollow shaft, and typically operates on 10-30V DC or 5V DC (depending on the model). Its maximum speed can reach 12,000 rpm. -
What is the protection rating of HC202500/0XX0AJ2?
+This encoder has an IP65 protection rating, is dustproof and waterproof, and is suitable for harsh industrial environments. -
What are the connection methods for the HC202500/0XX0AJ2?
+It offers radial cable outputs or M12/M23 connector options for flexible installation on motors or control panels. -
Is this an absolute or incremental encoder?
+It is an incremental encoder that produces A/B quadrature signals and a reference (Z) pulse.
