Technical specifications for F3238
-
Product ModelF3238
-
Product Parameters8 Channel Safety-Related Input Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x19x12.8cm
-
ManufacturerHIMA
-
Weight0.3 kg
-
Input Type24V DC
-
Input Voltage Range5-30V DC
-
Input Current2.5mA @ 24V DC
-
Isolation Voltage500V A
-
Operating Temperature-40°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Humidity5-95% RH (non-condensing)
Description

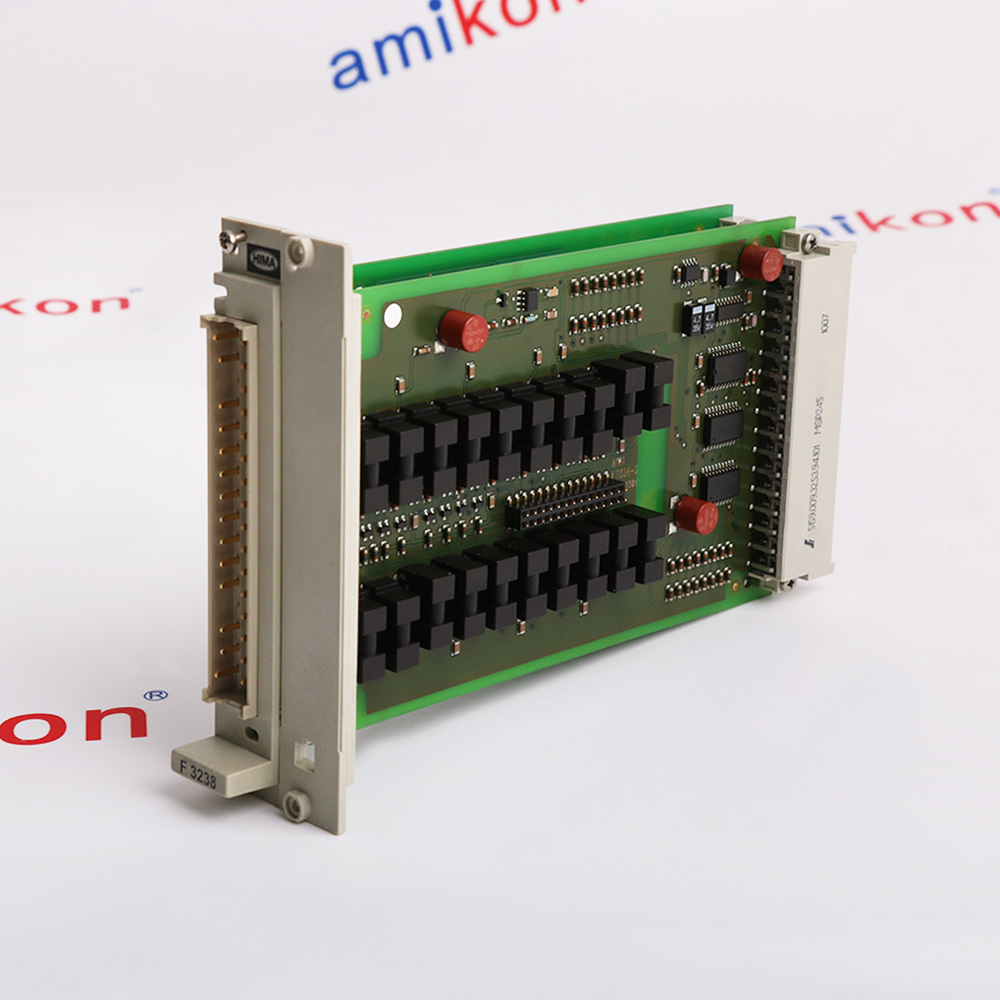

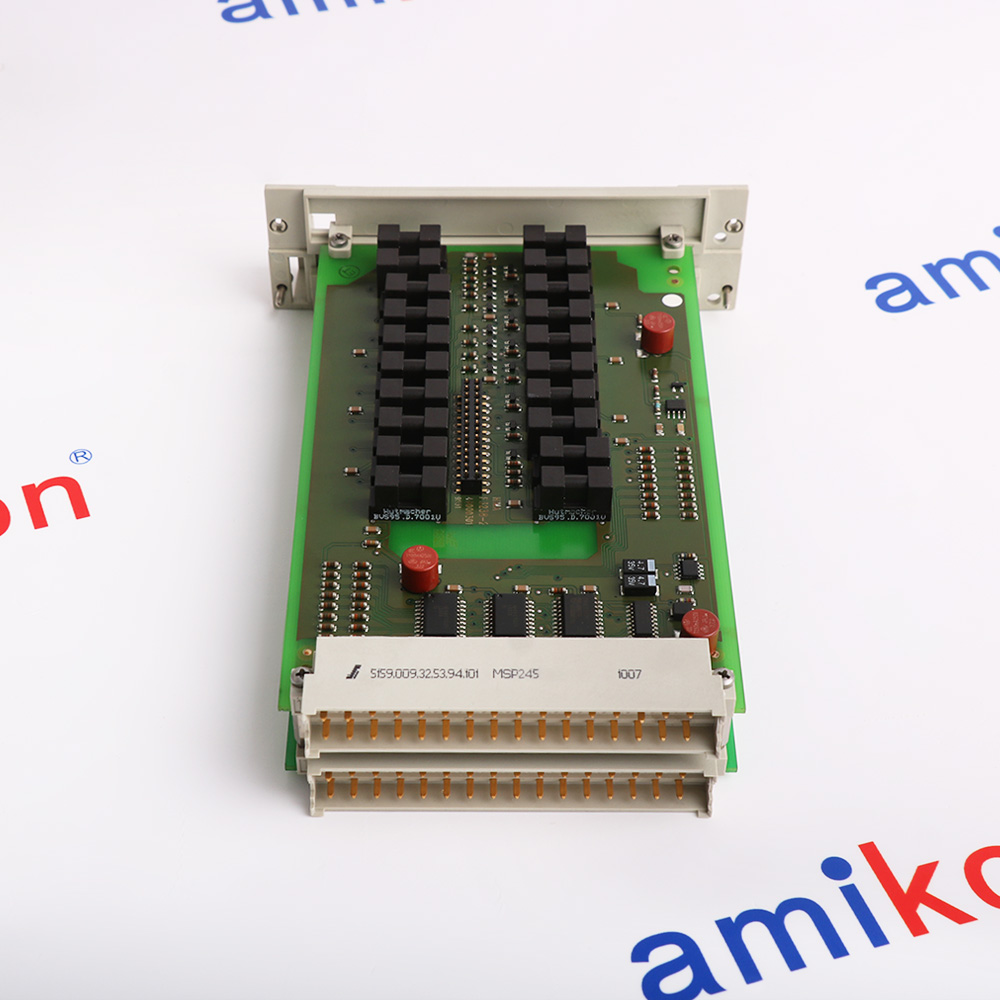

The HIMA F3238 is an 8 Channel Safety-Related Input Module designed for the HIQuad X safety automation system. The F3238 is used to connect safety-related proximity switches, DIN 19234 (NAMUR) proximity switches, and resistor-wired sensors in safety instrumented systems (SIS) for industrial process plants.
The HIMA F3238 provides 8 isolated safety-related input channels that process digital signals from various safety sensors and switches. The F3238 accepts 1-signal inputs of 6mA current (including cable plug) or 24V mechanical contact signals, making the F3238 compatible with a wide range of safety field devices.
The HIMA F3238 meets stringent safety requirements with certification to safety requirement class AK 1 to AK 6 and compliance with IEC 61508 standards. The F3238 achieves SIL 3 (Safety Integrity Level 3) and Category 4, making the F3238 suitable for the most demanding safety applications where personnel safety and environmental protection are paramount.
The HIMA F3238 provides 8 isolated safety-related input channels that process digital signals from various safety sensors and switches. The F3238 accepts 1-signal inputs of 6mA current (including cable plug) or 24V mechanical contact signals, making the F3238 compatible with a wide range of safety field devices.
The HIMA F3238 meets stringent safety requirements with certification to safety requirement class AK 1 to AK 6 and compliance with IEC 61508 standards. The F3238 achieves SIL 3 (Safety Integrity Level 3) and Category 4, making the F3238 suitable for the most demanding safety applications where personnel safety and environmental protection are paramount.
Alternative Names
F 3238
F-3238
F323B
F3Z38
Information
Overview
Manuals
Application Notes
Product Applications
Insertion Instructions
Features:
- 8 Safety-Related Input Channels
- SIL 3 / Category 4 Safety Certification
- Comprehensive Automatic Self-Testing
- Dual Input Signal Compatibility (6mA Current or 24V Mechanical Contact)
- Line Monitoring for Short-Circuit and Wire-Break Detection
The module processes safety-critical digital input signals from field devices including NAMUR proximity switches (per DIN 19234), limit switches, resistive sensors, and mechanical contacts. Each channel accepts either a 6 mA current signal or a 24 V mechanical contact input. Signal thresholds are defined as 2.1 mA to 6.0 mA for logic "1", 0.35 mA to 1.2 mA for logic "0", with wire break detected below 0.28 mA and short circuit above 6.5 mA. Maximum line length is 1,000 meters with 0.5 mm² cross-section and line impedance not exceeding 50 Ω.
The F3238 Hima 8 Channel Safety-Related Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Hima F3238 8 Channel Safety-Related Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The F3238 connects to the safety controller via the HIMatrix redundant backplane bus, ensuring high-determinism communication with electromagnetic interference resistance for rapid transfer of safety data and diagnostic information. Channels are optically isolated from the backplane.
The module supports hot-swap operation, permitting replacement without system shutdown. Its modular design facilitates system expansion and maintenance. Operating temperature range is 0°C to +60°C with IP20 protection rating.
- Emergency Shutdown (ESD): Trips isolated process segments during hazardous runtime variances
- Burner Management (BMS/BCS): Manages fuel/ignition valves on industrial burners and boilers safely
- HIPPS: Acts as high-speed input logic to prevent over-pressurization in pipelines or vessels
- Petrochemical/Refining: Safeguards LDPE units and chemical reactor cells
- Turbomachinery Control: Delivers overspeed protection and manages auxiliary feedback loops
- Marine Automation: Type-approved for shipboard safety logic in vessels and machinery spaces
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down: Disconnect and lock out all power sources (both 24 VDC and 5 VDC) from the relevant system.
Verify: Check the module for physical damage, and ensure the part number matches your system design.
Slide & Seat: Align the F3238 with the designated slot in your HIMA base rack. Gently but firmly slide it in along the guide rails until it mates securely with the backplane connector.
Technical notes
The HIMA F3238 features line monitoring with defined operating points: 0-signal current range of 0.35 ≤ IE ≤ 1.2 mA, 1-signal current range of 2.1 ≤ IE ≤ 6.0 mA, wire-break detection at ≤ 0.28 mA, and short-circuit detection at ≥ 6.5 mA. The F3238 supports line impedance ≤ 50 Ohm (according to DIN 19234) and line lengths up to 1000 meters with 0.5 mm² cable cross-section.
FAQs
-
What is the F3238 ?
+The HIMA F3238 is an 8-channel intrinsically safe input module designed for safety-related programmable electronic systems. -
What is the primary function of the HIMA F3238?
+It is a safety-related digital input module used to safely evaluate NAMUR proximity switches and mechanical contacts -
Is the F3238 safe for use in explosive or hazardous environments?
+Yes, it features intrinsically safe circuits and holds [Ex ia Ga] and ATEX certifications. This allows proximity switches and contacts to be safely installed in Zone 0 and Zone 1 hazardous areas. -
What Safety Integrity Level (SIL) does it support?
+The module is designed to support high-availability and safety-related applications up to SIL 3.
